ROS-ED12845/1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> ROS-ED12845/1

ROS-ED12845/1: DescriptionVoltage Controlled Oscillator, 865MHz Min, 880MHz Max, CASE CK1113, 16 PIN; CategoryPassive components oscillator; File Size93KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric View All

ROS-ED12845/1 Overview

Voltage Controlled Oscillator, 865MHz Min, 880MHz Max, CASE CK1113, 16 PIN

ROS-ED12845/1 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	TAPE AND REEL
Maximum control voltage	10 V
Minimum control voltage	0.5 V
JESD-609 code	e0
Modulation sensitivity	6 MHz/V
Installation features	SURFACE MOUNT
offset frequency	1 kHz
Maximum operating frequency	880 MHz
Minimum operating frequency	865 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	5 dBm
phase noise	-95 dBc/Hz
Maximum slew rate	35 mA
Nominal supply voltage	8 V
surface mount	YES
Terminal surface	TIN LEAD
Base Number Matches	1

Preview

Download Datasheet

View All

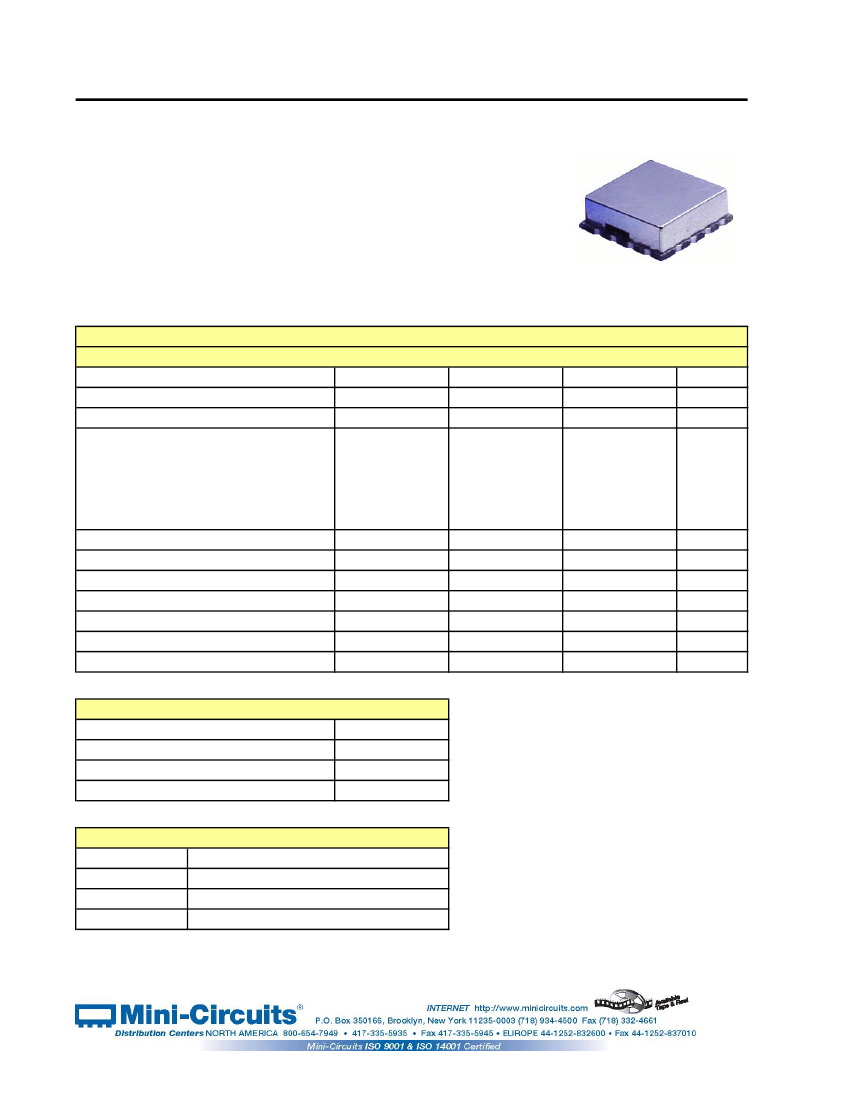

Engineering Development Model

Voltage Controlled Oscillator

ROS-ED12845/1

Important Note

This model has been designed, built and tested in our engineering

department. Performance data represents model capability.

At present it is a non-catalog model. On request, we can supply a

final specification sheet, part number and price/delivery information.

Please click "Back", and then click "Contact Us" for Applications support.

CASE STYLE : CK1113

ELECTRICAL SPECIFICATIONS 50Ω

Parameter

Frequency

Tuning

Voltage

Power Output

Min.

865

0.5

Typ.

Max.

880

-95

-120

-140

-160

0.25

0.1

4-6

-16

65000

Units

MHz

dBm

dBc/Hz

MHz

MHz/V

dBc

kHz

Phase Noise

at 1 kHz offset

at 10 KHz offset

at 100 KHz offset

at 1000 kHz offset

Pulling at 12 dBr PK-PK all phases

Pushing at Vcc=5V±0.25V

Tuning Sensitivity

Harmonic Suppression

3 dB Modulation Bandwidth

Supply Voltage

Supply Current

MAXIMUM RATINGS

Operating Temperature

Storage Temperature

Absolute Supply Voltage (Vcc)

Absolute Tuning Voltage (Vtune)

-55°C to 85°C

-55°C to 100°C

+10V

+12V

RF OUT

VCC

V-TUNE

GROUND

PIN CONNECTIONS

1,3,4,5,6,7,8,9,11,12,13,15,16

REV. X1

ROS-ED12845/1

070103

Page 1 of 1
