HD74LVC541A
Octal Buffers / Line Drivers with 3-state Outputs
REJ03D0359–0500Z
(Previous ADE-205-115B (Z))
Rev.5.00
Jul. 28, 2004
Description
The HD74LVC541A has eight line drivers with three state outputs in a 20 pin package. When
G1
and
G2
is low level,
this drivers set up output is enable. Low voltage and high-speed operation is suitable at the battery drive product (note
type personal computer) and low power consumption extends the life of a battery for long time operation.
Features
•
•
•
•
•
•
•
V
CC
= 2.0 V to 5.5 V
All inputs V
IH
(Max.) = 5.5 V (@V
CC
= 0 V to 5.5 V)
All outputs V
OUT
(Max.) = 5.5 V (@V
CC
= 0 V or output off state)
Typical V
OL
ground bounce < 0.8 V (@V
CC
= 3.3 V, Ta = 25°C)
Typical V
OH
undershoot > 2.0 V (@V
CC
= 3.3 V, Ta = 25°C)
High output current ±24 mA (@V
CC
= 3.0 V to 5.5 V)
Ordering Information
Package Type
SOP–20 pin (JEITA)
TSSOP–20 pin
Package Code
FP–20DAV
TTP–20DAV
Package
Abbreviation
FP
T
Taping Abbreviation
(Quantity)
EL (2,000 pcs/reel)
ELL (2,000 pcs/reel)
Part Name
HD74LVC541AFPEL
HD74LVC541ATELL
Note: Please consult the sales office for the above package availability.
Function Table
Inputs
G1
L
L
H
X
H:
L:
X:
Z:
High level
Low level
Immaterial
High impedance
G2
L
L
X
H
A
L
H
X
X
Output Y
L
H
Z
Z
Rev.5.00 Jul. 28, 2004 page 1 of 6
HD74LVC541A

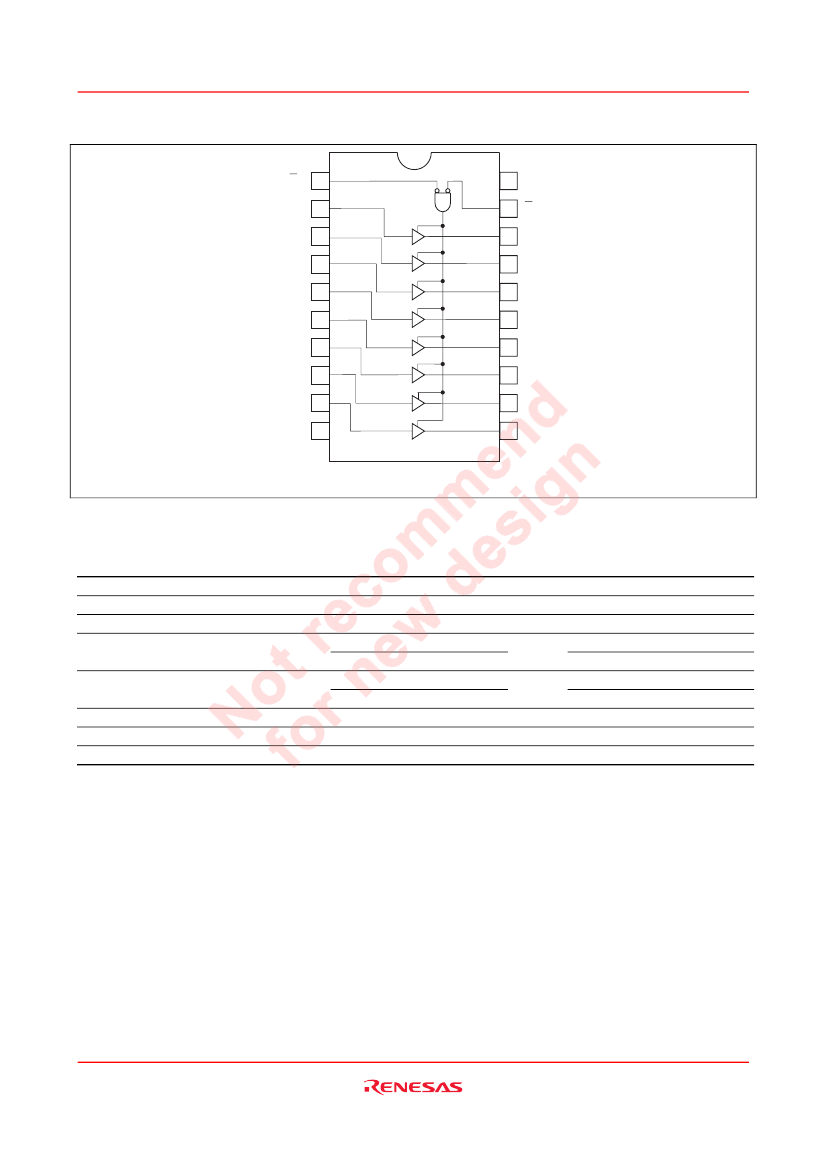

Pin Arrangement
G1 1
A1
A2
2
3
20 V
CC
19 G2
18 Y1
17 Y2
16 Y3
15 Y4
14 Y5
13 Y6
12 Y7
11 Y8
A3 4
A4
A5
A6
A7
5
6
7
8
A8 9
GND 10
(Top view)
Absolute Maximum Ratings
Item
Supply voltage
Input diode current
Input voltage
Output diode current
Output voltage
Output current
V
CC
, GND current / pin
Storage temperature
Symbol
V
CC
I
IK
V
I
I
OK
V
O
I
O
I
CC
or I
GND
Tstg
Ratings
–0.5 to 6.0
–50
–0.5 to 6.0
–50
50
–0.5 to V
CC
+0.5
–0.5 to 6.0
±50
100
–65 to +150
Unit
V
mA
V
mA
V
mA
mA
°C
Conditions
V
I
= –0.5 V
V
O
= –0.5 V
V
O
= V
CC
+0.5 V
Output "H" or "L"
Output "Z" or V
CC
:OFF
Note: The absolute maximum ratings are values, which must not individually be exceeded, and furthermore, no two of
which may be realized at the same time.
Rev.5.00 Jul. 28, 2004 page 2 of 6
HD74LVC541A
Recommended Operating Conditions
Item
Supply voltage
Input / output voltage
Symbol
V
CC
V
I
V
O
Ta
I
OH
I
OL
Input rise / fall time
*1
t
r
, t
f
Ratings
1.5 to 5.5
2.0 to 5.5
0 to 5.5
0 to V
CC
0 to 5.5
–40 to 85
–12
–24
*2
12
24
*2
10
Unit
V
V
V
°C
mA
mA
ns/V
Conditions
Data hold
At operation
G1, G2,
A
Output "H" or "L"
Output "Z" or V
CC
:OFF
V
CC
= 2.7 V
V
CC
= 3.0 V to 5.5 V
V
CC
= 2.7 V
V
CC
= 3.0 V to 5.5 V
Operating temperature
Output current
Notes: 1. This item guarantees maximum limit when one input switches.
Waveform: Refer to test circuit of switching characteristics.
2. Duty cycle
≤
50%
Electrical Characteristics
Ta = –40 to 85°C
Item
Input voltage
Symbol
V
IH
V
IL
Output voltage
V
OH
V
CC
(V)
2.7 to 3.6
4.5 to 5.5
2.7 to 3.6
4.5 to 5.5
2.7 to 5.5
2.7
3.0
3.0
4.5
2.7 to 5.5
2.7
3.0
4.5
0 to 5.5
2.7 to 5.5
0
2.7 to 3.6
2.7 to 5.5
3.0 to 3.6
Min
2.0
V
CC
×0.7
—
—
V
CC
–0.2
2.2
2.4
2.2
3.8
—
—
—
—
—
—
—
—
—
—
Max
—
—
0.8
V
CC
×0.3
—
—
—
—
—
0.2
0.4
0.55
0.55
±5.0
±5.0
20
±10
10
500
Unit
V
V
V
I
OH
= –100
µA
I
OH
= –12 mA
I
OH
= –24 mA
V
I
OL
= 100
µA
I
OL
= 12 mA
I
OL
= 24 mA
V
IN
= 5.5 V or GND
V
IN
= V
CC
, GND
V
OUT
= 5.5 V or GND
V
IN
/ V
OUT
= 5.5 V
V
IN
/ V
OUT
= 3.6 to 5.5 V
V
IN
= V
CC
or GND
V
IN
= one input at(V
CC
–0.6)V,
other inputs at V
CC
or GND
Test Conditions
V
OL
Input current
Off state output current
Output leak current
Quiescent supply current
I
IN
I
OZ
I
OFF
I
CC
∆I
CC
µA
µA
µA
µA
µA
Rev.5.00 Jul. 28, 2004 page 3 of 6
HD74LVC541A
Switching Characteristics
Ta = –40 to 85°C
Item
Propagation delay time
Symbol
t
PLH
t
PHL
t
ZH
t
ZL
t
HZ
t
LZ
t
OSLH
t
OSHL
C
IN
C
O
V
CC
(V)
2.7
3.3±0.3
5.0±0.5
2.7
3.3±0.3
5.0±0.5
2.7
3.3±0.3
5.0±0.5
2.7
3.3±0.3
5.0±0.5
2.7
2.7
Min
—
1.5
—
—
1.5
—
—
1.5
—
—
—
—
—
—
Typ
—
—
—
—
—
—
—
—
—
—
—
—
3.0
15.0
Max
7.5
6.5
5.0
9.5
8.5
7.0
8.5
7.5
6.5
—
1.0
1.0
—
—
Unit
ns
From
(Input)
A
To
(Output)
Y
Output enable time
ns
G1
or
G2
Y
Output disable time
ns
G1
or
G2
Y
Between output
pins skew
*1
Input capacitance
Output capacitance
Note:
ns
pF
pF
1. This parameter is characterized but not tested.
tos
LH
= | t
PLHm
- t
PLHn
|, tos
HL
= | t
PHLm
- t
PHLn
|

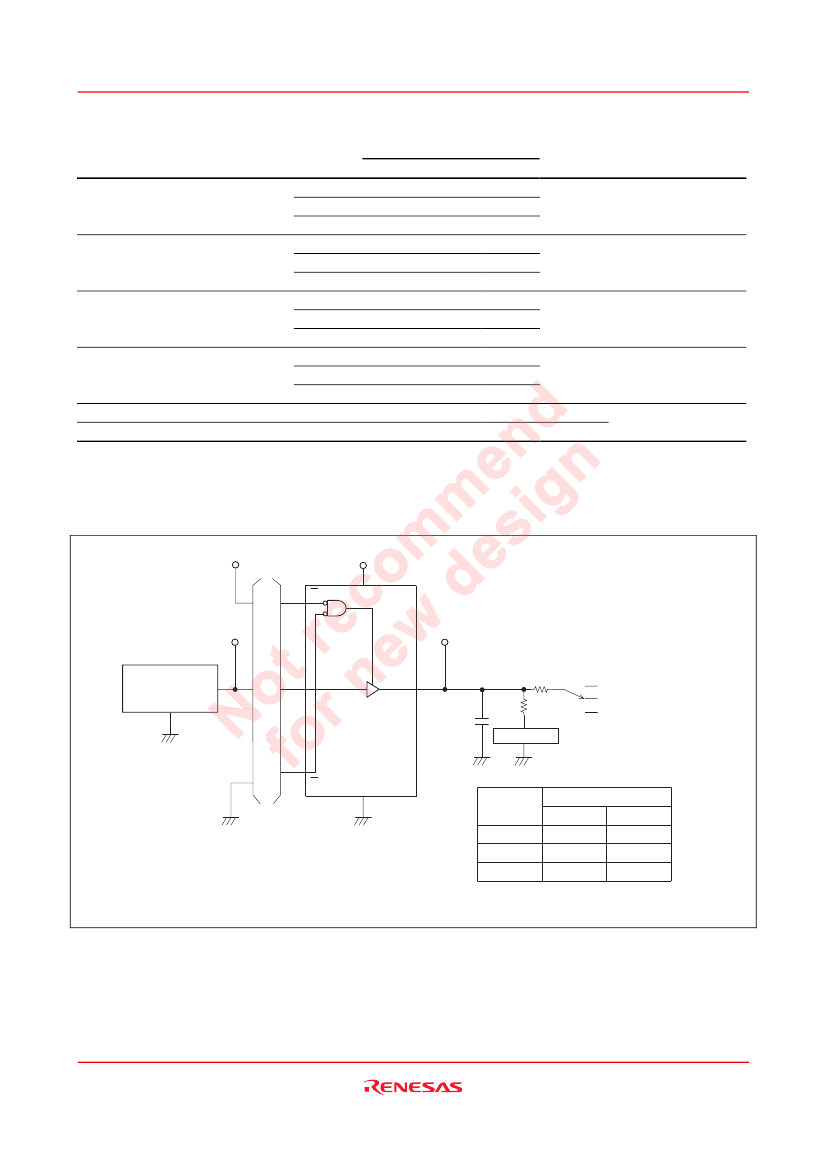

Test Circuit
V
CC
G1
Input
Output
V
CC
See Function Table
Pulse generator
Z
out
= 50
Ω
A1
Y1
C
L
=
50 pF
500
Ω
S1
450
Ω
50
Ω
Scope
*1
OPEN
See under table
GND
G2
Symbol
t
PLH
/ t
PHL
t
ZH
/ t
HZ
t
ZL
/ t
LZ
S1
Vcc=2.7V,
3.3±0.3V
Vcc=5.0±0.5V
OPEN
GND
6V
OPEN
GND
2×Vcc
Notes:
1. C
L
includes probe and jig capacitance.
2. A2-Y2 to A8-Y8 are identical to above load circuit.
Rev.5.00 Jul. 28, 2004 page 4 of 6
HD74LVC541A

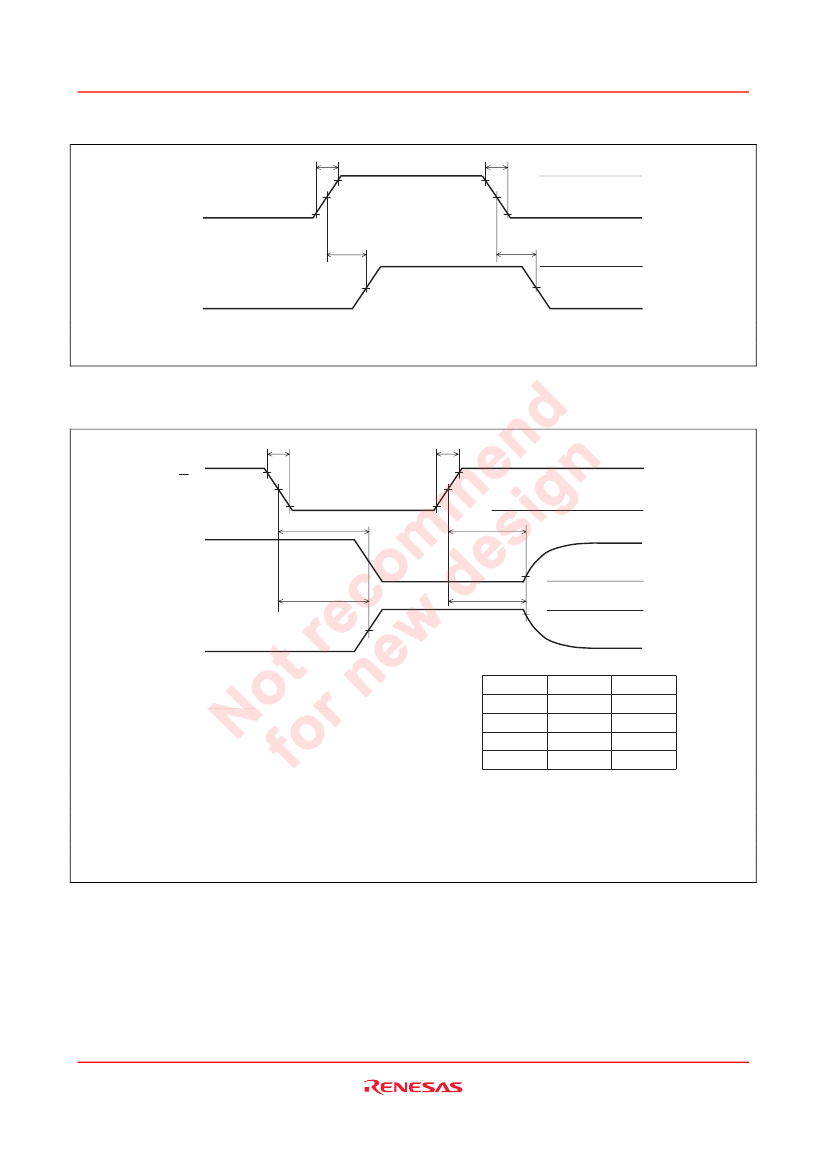

Waveforms – 1
t
r
Input A
90 %
V
ref
10 %
t
PLH
V
ref
90 %
V
ref
10 %
t
PHL
V
OH
Output Y
V
ref
V
OL
t
f
V
IH
GND
Notes:
1. t
r
= 2.5 ns, t
f
= 2.5 ns
2. Input waveform : PRR = 10 MHz, duty cycle 50%
Waveforms – 2
t
f
Input G
90 %
V
ref
10 %
t
ZL
Waveform - A
t
ZH
Waveform - B
V
ref
V
ref
t
HZ
V
OH
– 0.3 V
t
r
90 %
V
ref
10 %
t
LZ
V
IH
GND
≈V
OH1
V
OL
+ 0.3 V
V
OL
V
OH
≈V
OL1
TEST
V
IH
V
ref
V
OH1
V
OL1
Vcc=2.7V,
3.3±0.3V
Vcc=5.0±0.5V
2.7 V
1.5 V
3V
GND
Vcc
50%Vcc
Vcc
GND
Notes:
1. t
r
= 2.5 ns, t
f
= 2.5 ns
2. Input waveform : PRR = 10 MHz, duty cycle 50%
3. Waveform – A shows input conditions such that the output is "L" level when enable by the
output control.
4. Waveform – B shows input conditions such that the output is "H" level when enable by the
output control.
Rev.5.00 Jul. 28, 2004 page 5 of 6
