FCN-795P034-L/0 datasheet, PDF

Datasheet> All Categories > The connector> The connector> FCN-795P034-L/0

FCN-795P034-L/0: DescriptionBoard Connector, 34 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug; CategoryThe connector The connector; File Size374KB，7 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

FCN-795P034-L/0 Overview

Board Connector, 34 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug

FCN-795P034-L/0 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	LOW PROFILE
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	790
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	34
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

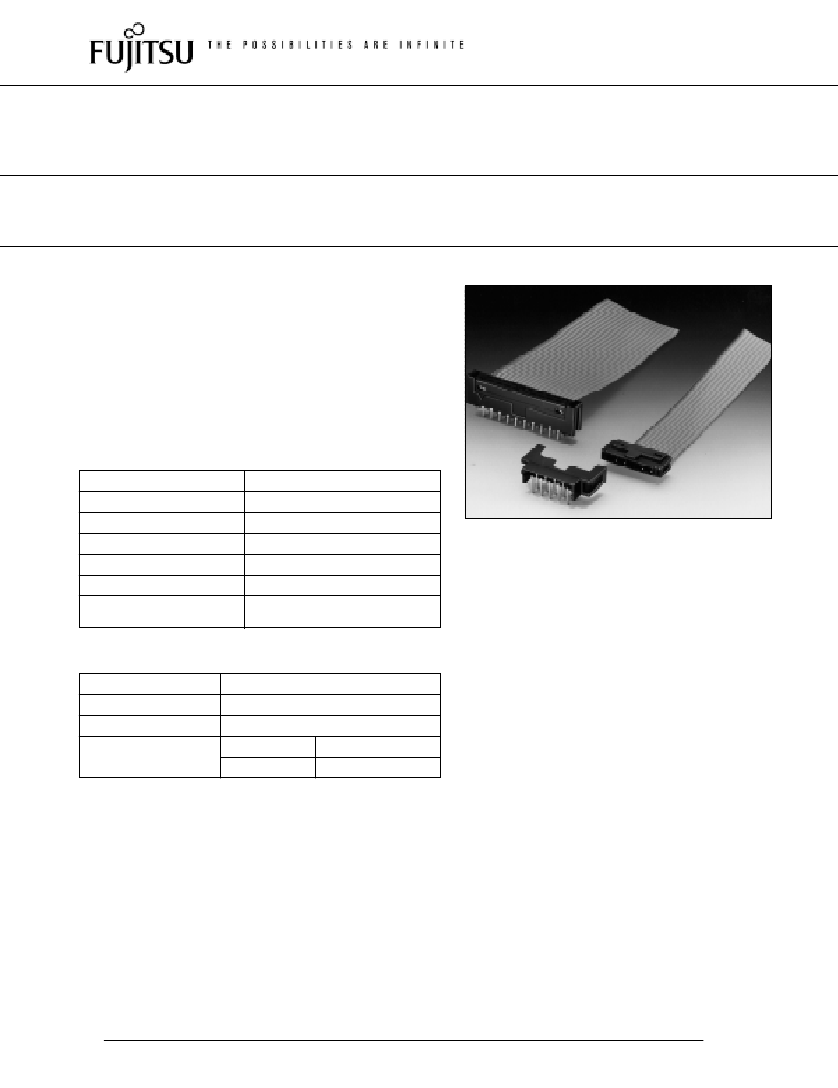

PC BOARD CONNECTORS

790 SERIES (LOW PROFILE CONNECTORS)

FEATURES

• Low profile two-piece connector: 8.6 mm (0.336 in.)

height for straight type, 4.6 mm (0.181 in.) height for

right-angle type

• Unique simple lock mechanism (preventing

connectors from working loose because of vibration)

• Reliable ribbon contact

• 2.54-mm (0.100 in.) grid

SPECIFICATIONS

Item

Operating temperature range

Current rating

Contact resistance

Insulation resistance

Dielectric strength

Applicable cable

Specification

–55°C to +105°C

DC 1 A

20 mΩ max.

1000 MΩ min.

AC 1500 V for 1 minute

Flat cable: 1.27 mm (0.050 in.) pitch

AWG #28 (stranded) or #30 (solid)

MATERIALS

Item

Insulating material

Conductor

Plating

Terminal

Materials

Polyester (UL94V-0)

Copper alloy

Contact

Gold

Palladium

Specifications

subject to change

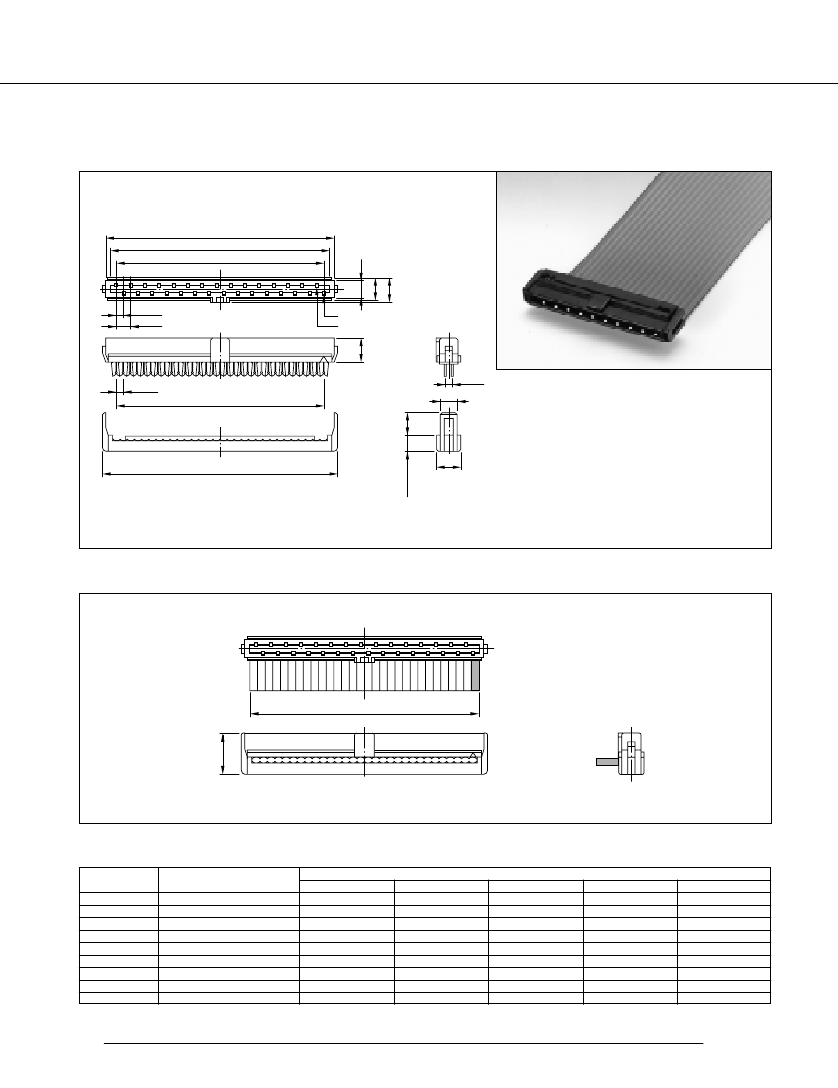

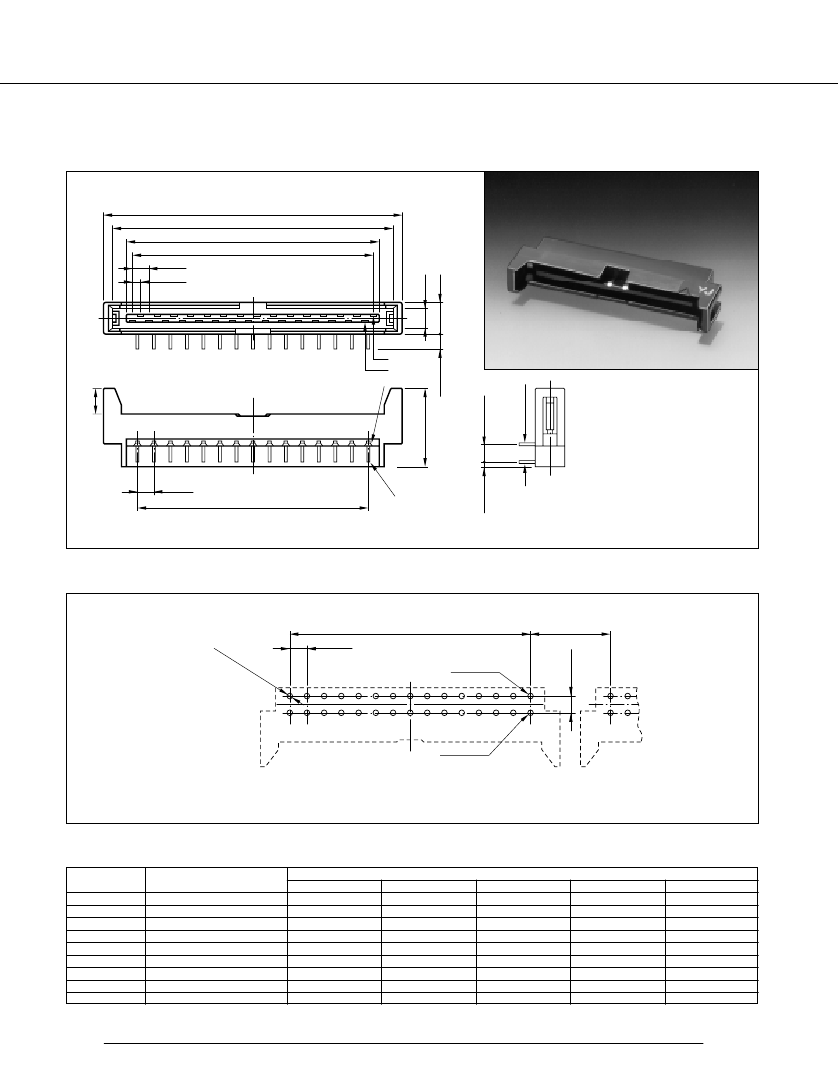

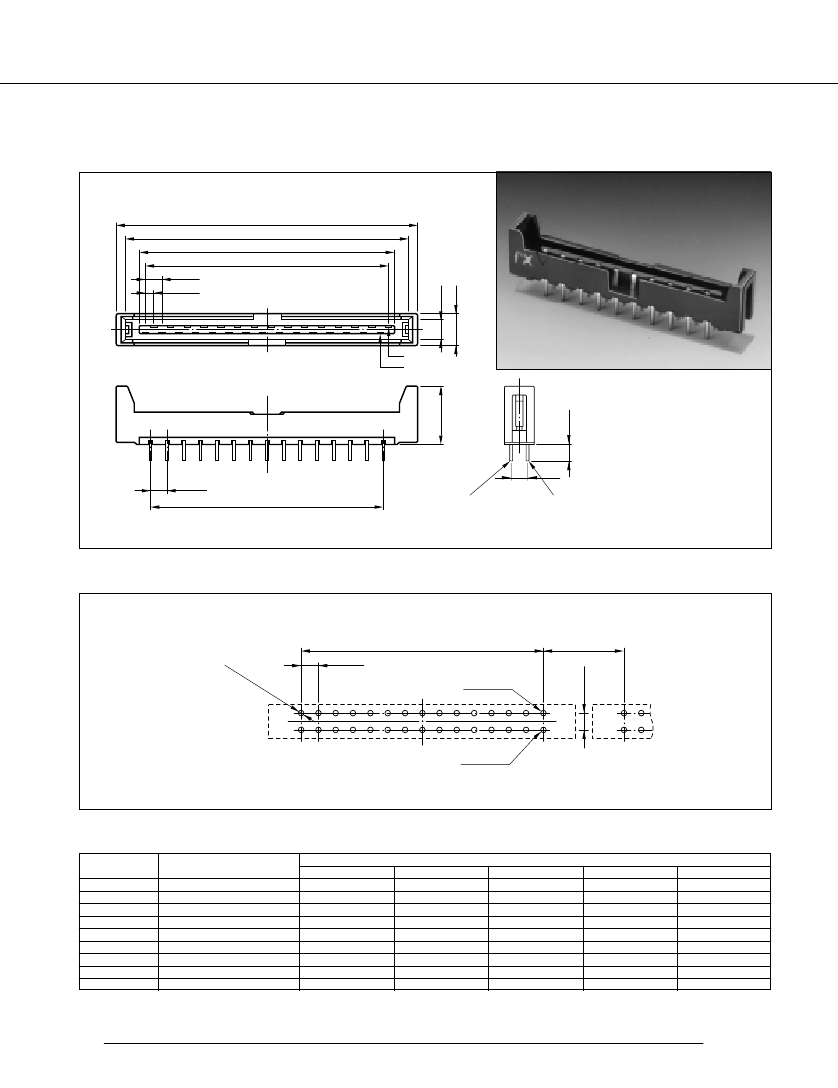

Dimensions are in millimeters (inches)

www.fcai.fujitsu.com

FCN-795P034-L/0 Related Products

	FCN-795P034-L/0	FCN-794P020-L/0	FCN-794P040-L/0	FCN-795P014-L/0	FCN-795P030-L/0	FCN-795P040-L/0	FCN-797B010-L/B	FCN-797B014-L/B	FCN-797B030-L/B	FCN-797B040-L/B
Description	Board Connector, 34 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug	Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug	Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug	Board Connector, 14 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug	Board Connector, 30 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug	Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug	Board Connector, 10 Contact(s), 2 Row(s), Female, IDC Terminal, Socket	Board Connector, 14 Contact(s), 2 Row(s), Female, IDC Terminal, Socket	Board Connector, 30 Contact(s), 2 Row(s), Female, IDC Terminal, Socket	Board Connector, 40 Contact(s), 2 Row(s), Female, IDC Terminal, Socket
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	790	790	790	790	790	790	790	790	790	790
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	IDC	IDC	IDC	IDC
Total number of contacts	34	20	40	14	30	40	10	14	30	40
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1	1	1
Installation method	RIGHT ANGLE	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-	-	-	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	-	-	-
