FCN-754P030-AU/0-HN datasheet, PDF

FCN-754P030-AU/0-HN: DescriptionBoard Connector, 30 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size177KB，2 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric View All

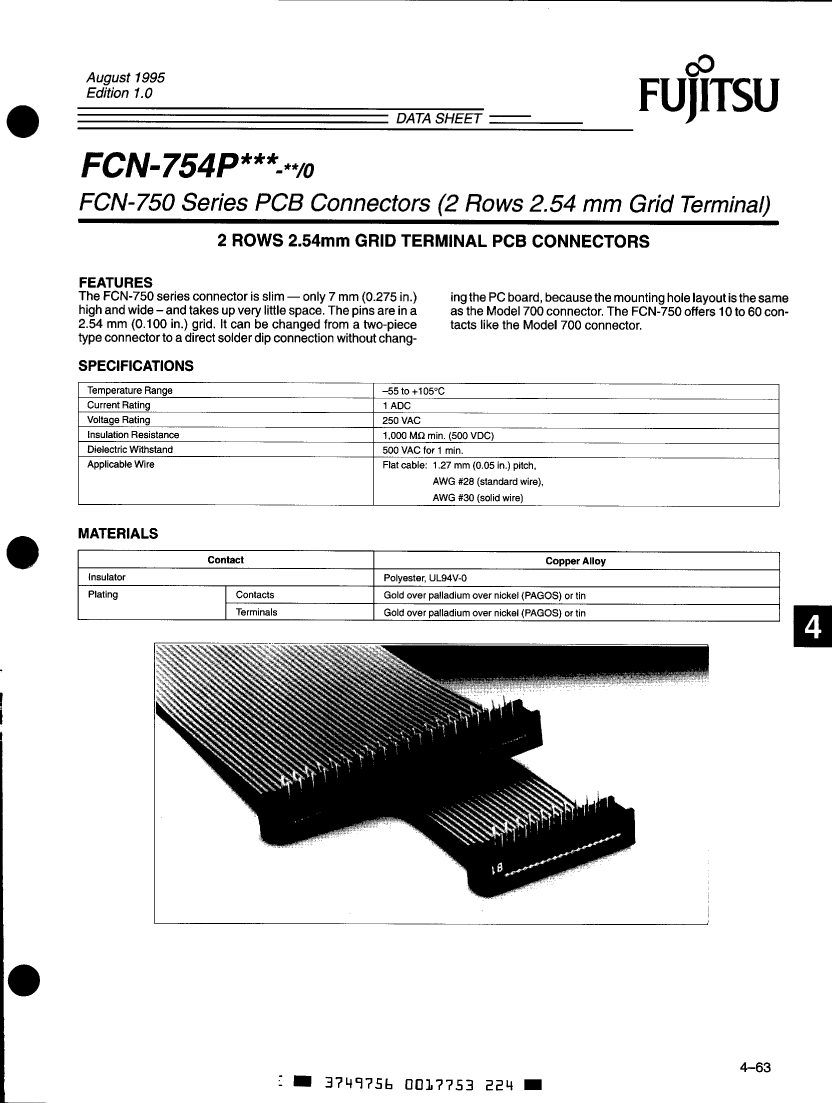

FCN-754P030-AU/0-HN Overview

Board Connector, 30 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99

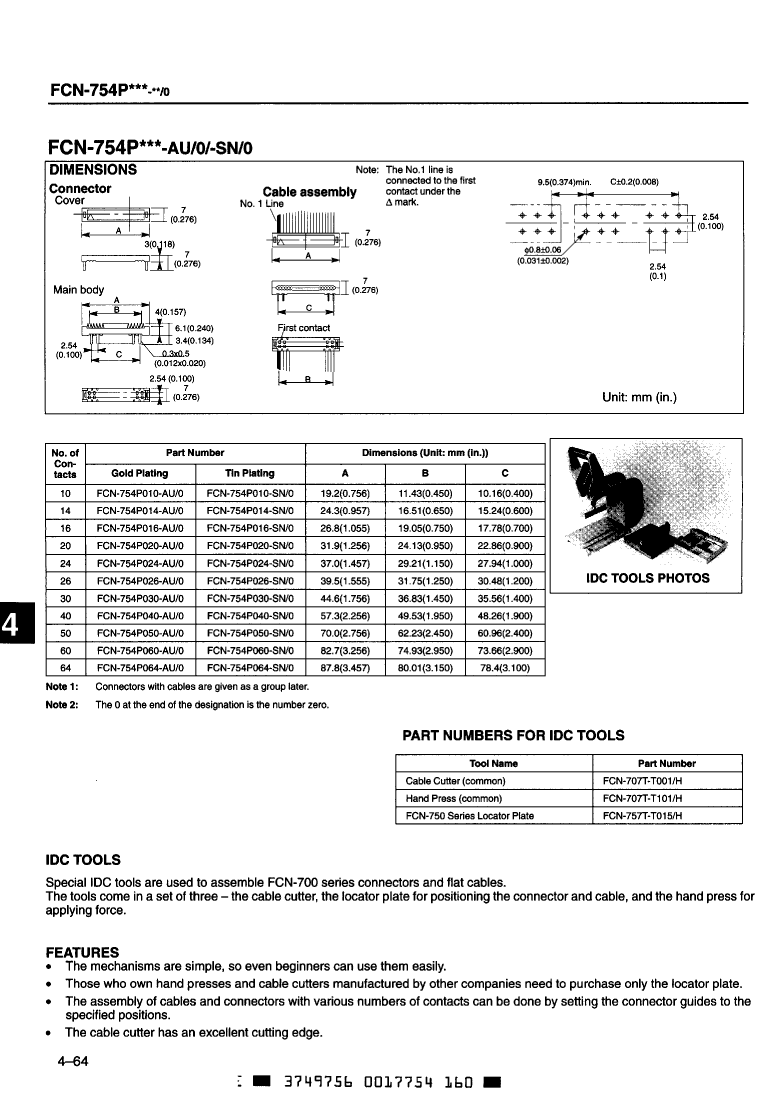

body width	0.276 inch
subject depth	0.276 inch
body length	1.756 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYESTER
Manufacturer's serial number	FCN-754P
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	3u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.134 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	30
Base Number Matches	1
