HBCR-1612A01 datasheet, PDF - EEWORLD Datasheet

HBCR-1612A01: DescriptionConsumer Circuit, CMOS, PQFP44; CategoryOther integrated circuit (IC) Consumption circuit; File Size407KB，12 Pages; ManufacturerHewlett Packard Co.

Download Datasheet Parametric Compare View All

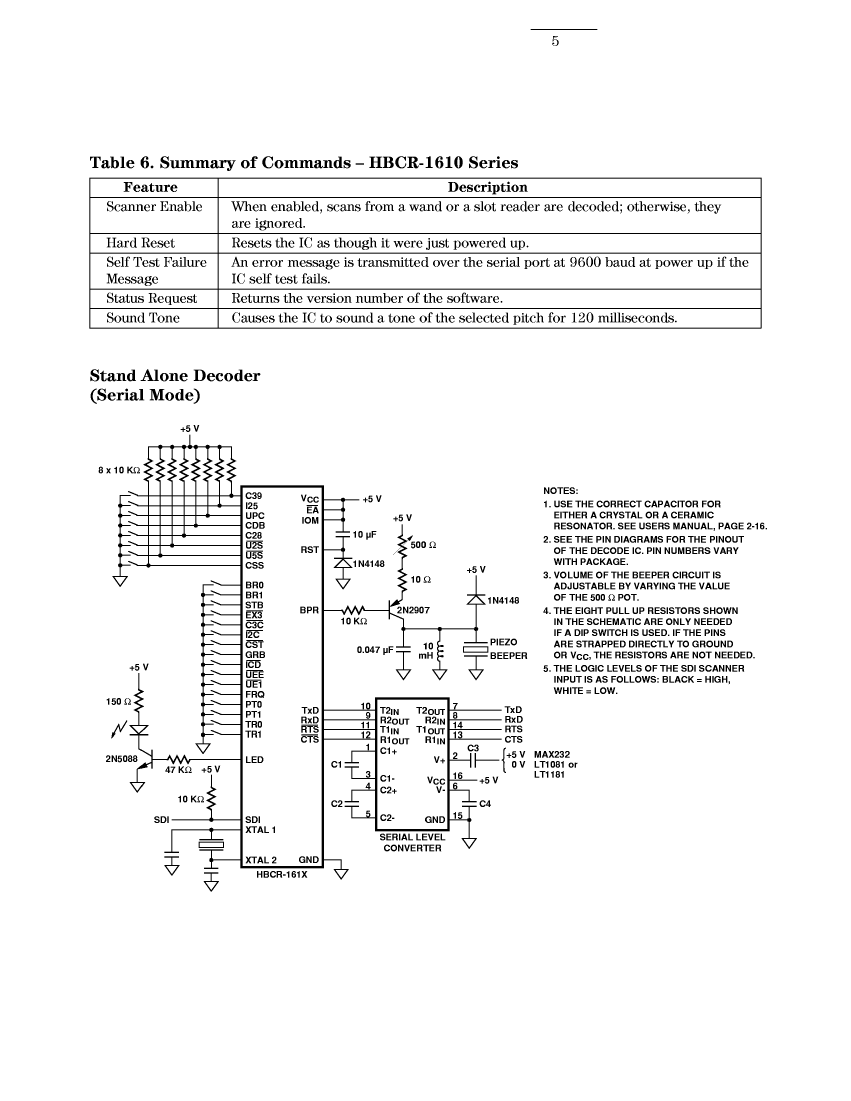

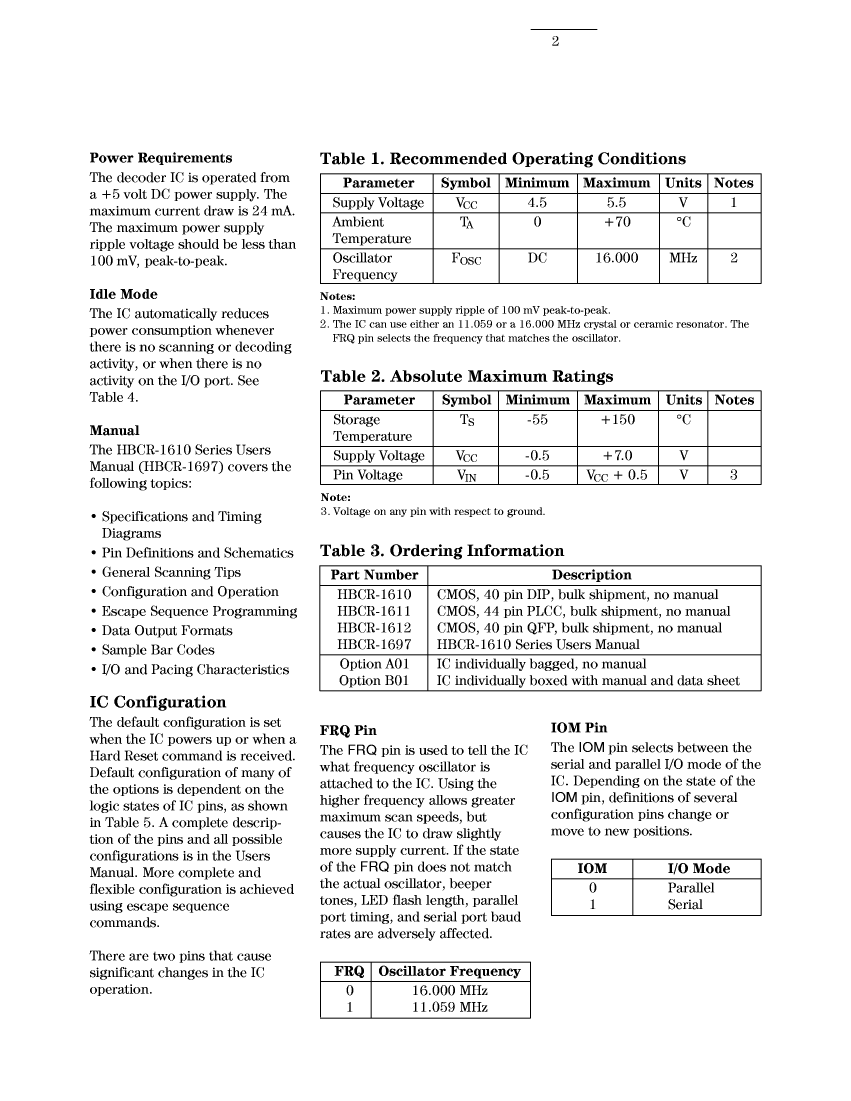

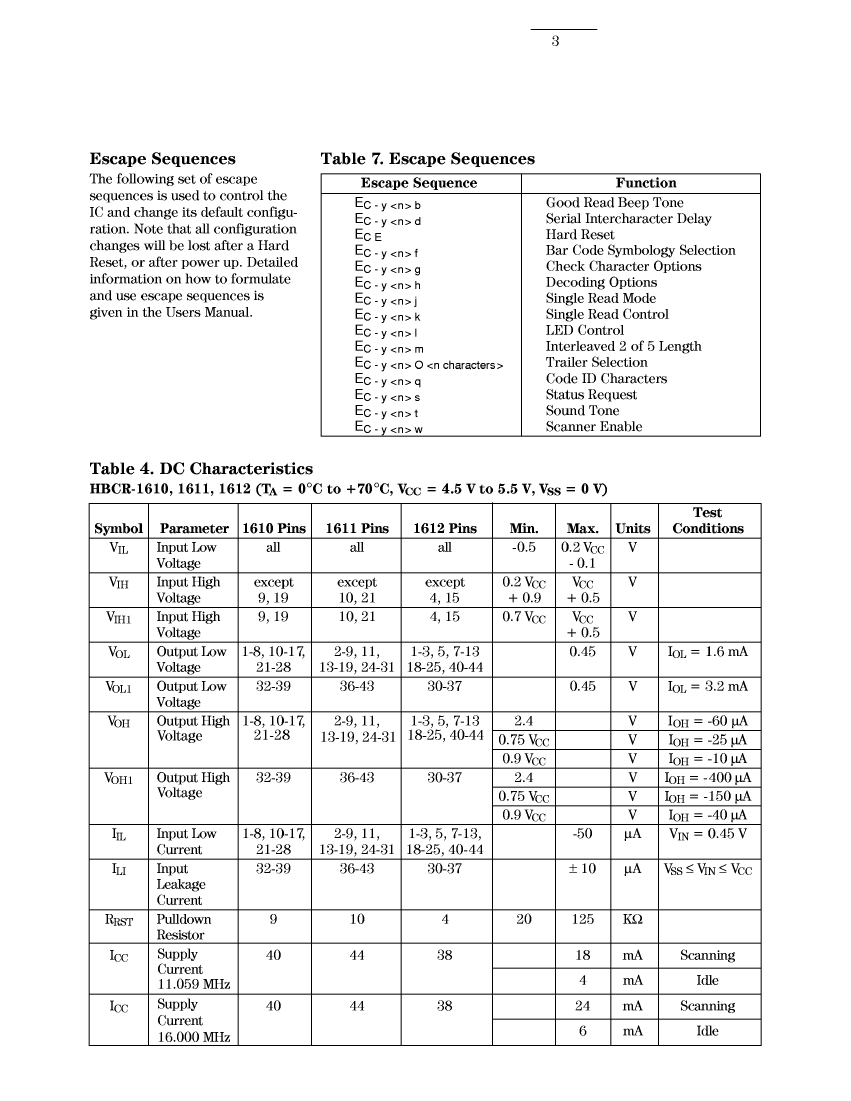

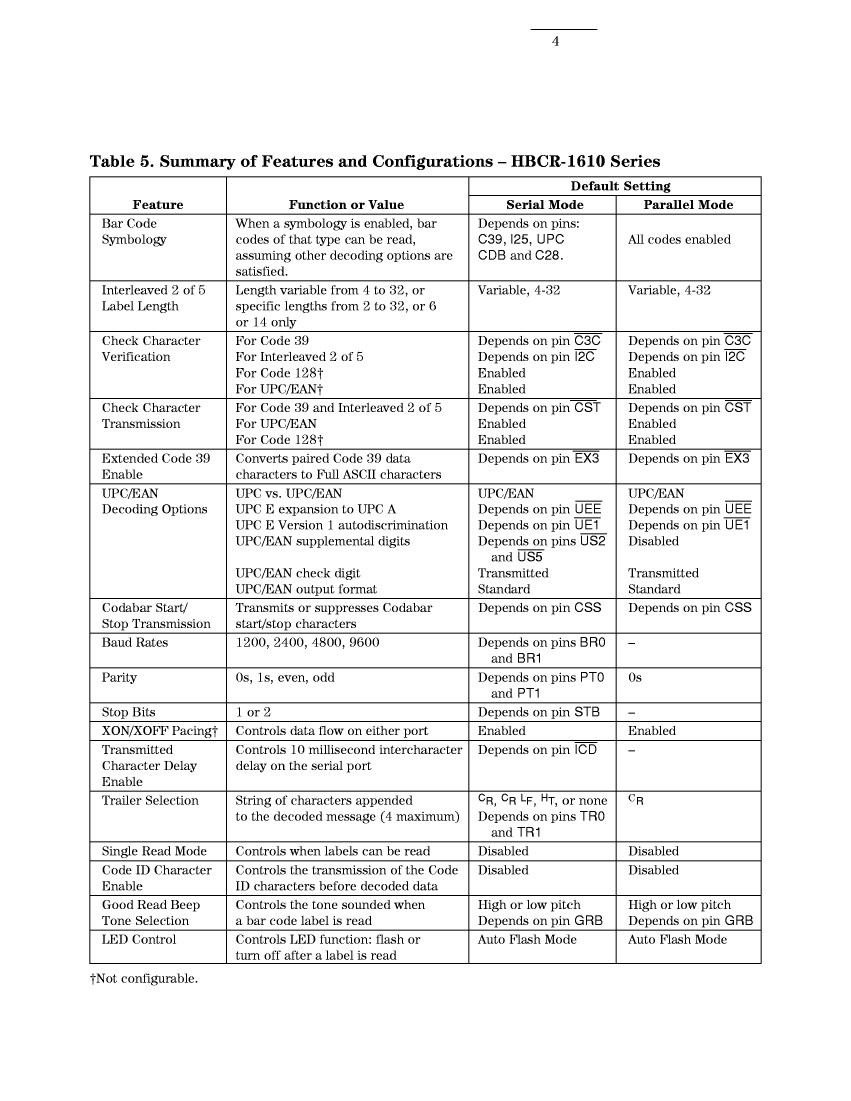

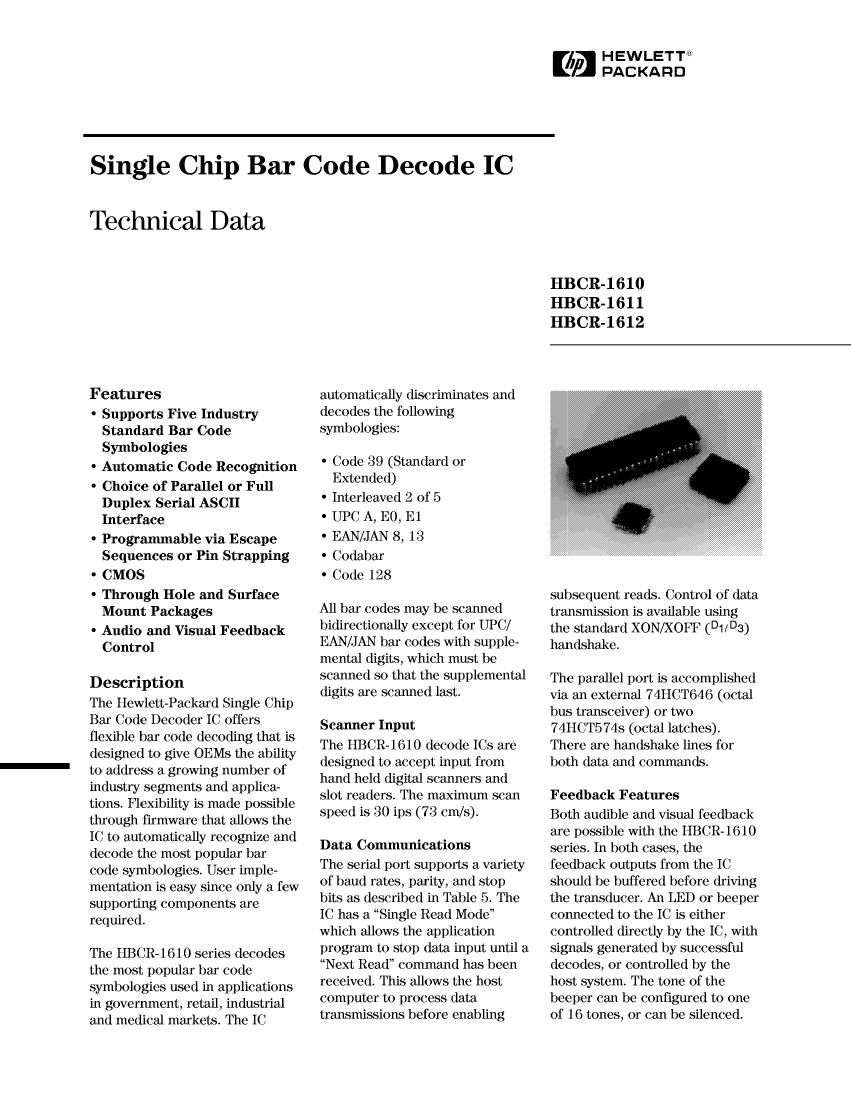

HBCR-1612A01 Overview

Consumer Circuit, CMOS, PQFP44

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PQFP-G44
Number of functions	1
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
Maximum slew rate	24 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	QUAD
Base Number Matches	1

	HBCR-1612A01	HBCR-1610A01	HBCR-1611A01
Description	Consumer Circuit, CMOS, PQFP44	Consumer Circuit, CMOS, PDIP40	Consumer Circuit, CMOS, PQCC44
Reach Compliance Code	unknown	unknown	unknown
Commercial integrated circuit types	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT
JESD-30 code	R-PQFP-G44	R-PDIP-T40	S-PQCC-J44
Number of functions	1	1	1
Number of terminals	44	40	44
Maximum operating temperature	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	IN-LINE	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	24 mA	24 mA	24 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
surface mount	YES	NO	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE	J BEND
Terminal location	QUAD	DUAL	QUAD
Base Number Matches	1	1	1
