TSSH-110-01-S-DV: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size426KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

TSSH-110-01-S-DV Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TSSH-110-01-S-DV	-	-	View	Buy Now

TSSH-110-01-S-DV Overview

Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, ROHS COMPLIANT

TSSH-110-01-S-DV Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
body width	0.35 inch
subject depth	0.35 inch
body length	1.2 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	TSSH
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	6.5024 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
Evacuation force-minimum value	6.672 N
Base Number Matches	1

Preview

Download Datasheet

View All

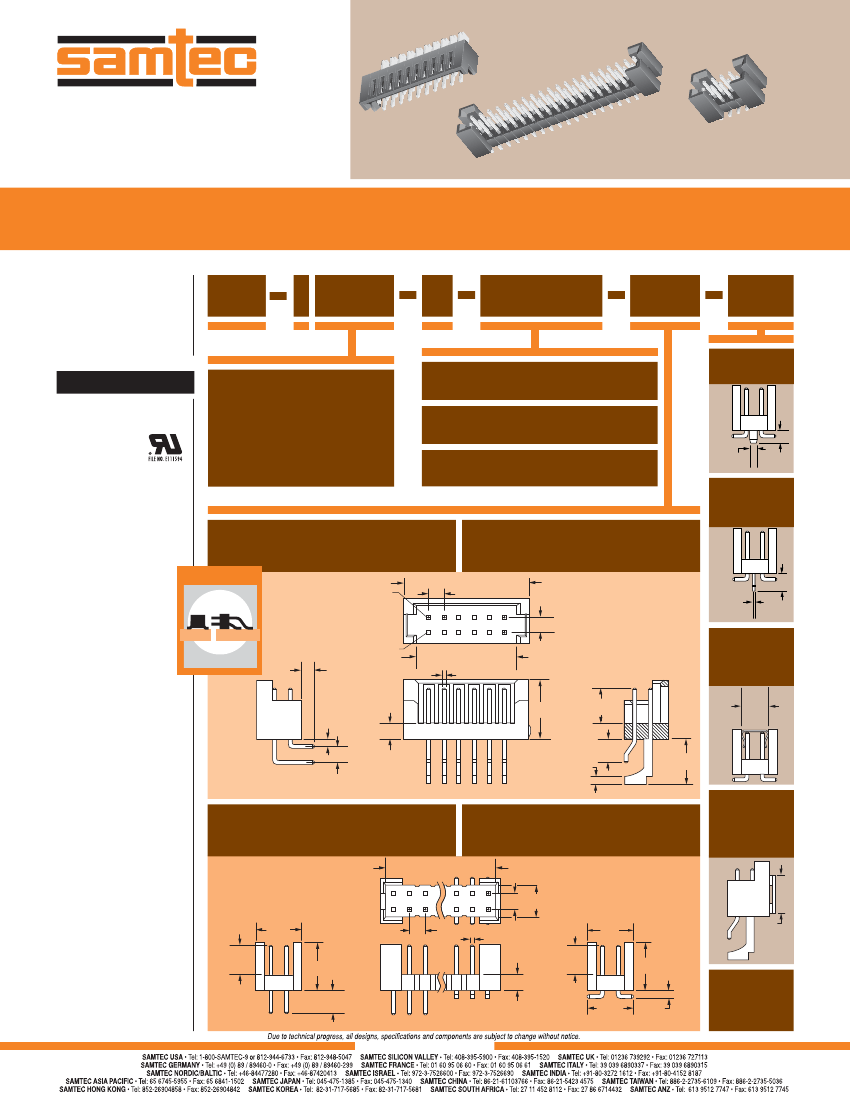

F-209

TSSH–110–01–S–DH

TSSH–105–01–L–DV

TSSH–120–01–T–D

.025" SHROUDED HEADER

SQ

Mates with:

SSW, SSQ, SSM

Important Note:

This Series will only mate

with SSW, SSQ &

SSM Series

TSSH

SERIES

OTHER

OPTION

TSSH

1

NO. PINS

PER ROW

01

PLATING

OPTION

ROW

OPTION

SPECIFICATIONS

For complete speciﬁcations

and recommended PCB layouts

see www.samtec.com?TSSH

Insulator Material:

Black Liquid Crystal

Polymer

Terminal Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27µm) Ni

Operating Temp Range:

-55°C to +105°C with Tin;

-55°C to +125°C with Gold

RoHS Compliant:

Yes

05, 10, 15, 20,

25, 30, 34

(–D–RA, –DH)

–S

= 30µ" (0,76µm) Gold on post, Matte Tin on tail

–A

= Alignment Pin

–L

= 10µ" (0,25µm) Gold on post, Matte Tin on tail

05, 10, 15, 20,

25, 30, 35, 36

(–D, –DV)

–T

= Matte Tin

(1,58)

.062

(3,17)

.125

–LC

= Locking Clip

(–DV only)

–D–RA

= Double Row Right Angle Pin

Through-hole

–DH

= Double Row Horizontal Pin

Surface Mount

(No. of positions + 2) x (2,54) .100

(2,54) .100

(2,54)

.100

(1,42)

.056

x

(0,25)

.010

Processing:

Max Processing Temp:

230°C for 60 seconds, or

260°C for 20 seconds 3x

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,20mm) .008" max (–DH)

(0,20mm) .008" max (–DV)

APPLICATIONS

02

SSM TSSH

(3,43)

.135

01

HORIZONTAL

(No. of positions x

(2,54) .100) + (1,02).040

(0,64) .025 SQ

(5,84)

.230

–M

= Metal Pick &

Place Pad

(–DV only)

(9,65)

.380

(5,71)

.225

x

(4,16)

.164

(2,29)

.090

(1,52)

.060

(2,54)

.100

(3,94)

.155

(1,27)

.050

(7,62)

.300

–D–RA

(2,54)

.100

–DH

–D

= Double Row Vertical Pin

Through-hole

02

–DV

= Double Row Vertical Pin

Surface Mount

No. of positions x

(2,54) .100 + (1,27) .050

72

(2,54) (6,35)

.100 .250

–P

= Plastic Pick &

Place Pad

(–DH only)

5 pos. min

(8,89)

.350

(6,10)

.240

01

(2,54) .100

71

(0,64) .025 SQ

(6,10)

.240

(2,54)

.100

(8,89)

.350

(8,89)

.350

(6,86)

.270

x

(8,26)

.325

(8,89)

.350

(2,69)

.106

–TR

(10,03)

.395

(1,91)

.075

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

–D

–DV

= Tape & Reel

5 to 25 positions

(–DH & –DV only)

WWW.SAMTEC.COM

TSSH-110-01-S-DV Related Products

	TSSH-110-01-S-DV	TSSH-120-01-S-DV
Description	Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, ROHS COMPLIANT	Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
Factory Lead Time	2 weeks	2 weeks
body width	0.35 inch	0.35 inch
subject depth	0.35 inch	0.35 inch
body length	1.2 inch	2.2 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
Insulator color	BLACK	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3	e3
MIL compliance	NO	NO
Manufacturer's serial number	TSSH	TSSH
Plug contact pitch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	2	2
Number of rows loaded	2	2
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	6.5024 mm	6.5024 mm
Plating thickness	30u inch	30u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal pitch	2.54 mm	2.54 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	20	40
Evacuation force-minimum value	6.672 N	6.672 N
