MDF7P-9P-2.54DSA(55) datasheet, PDF

MDF7P-9P-2.54DSA(55): DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT; CategoryThe connector The connector; File Size144KB，1 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric View All

MDF7P-9P-2.54DSA(55) Overview

Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.1 inch
body length	0.9 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	650VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	MDF7
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
Options	GENERAL PURPOSE
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0
Base Number Matches	1

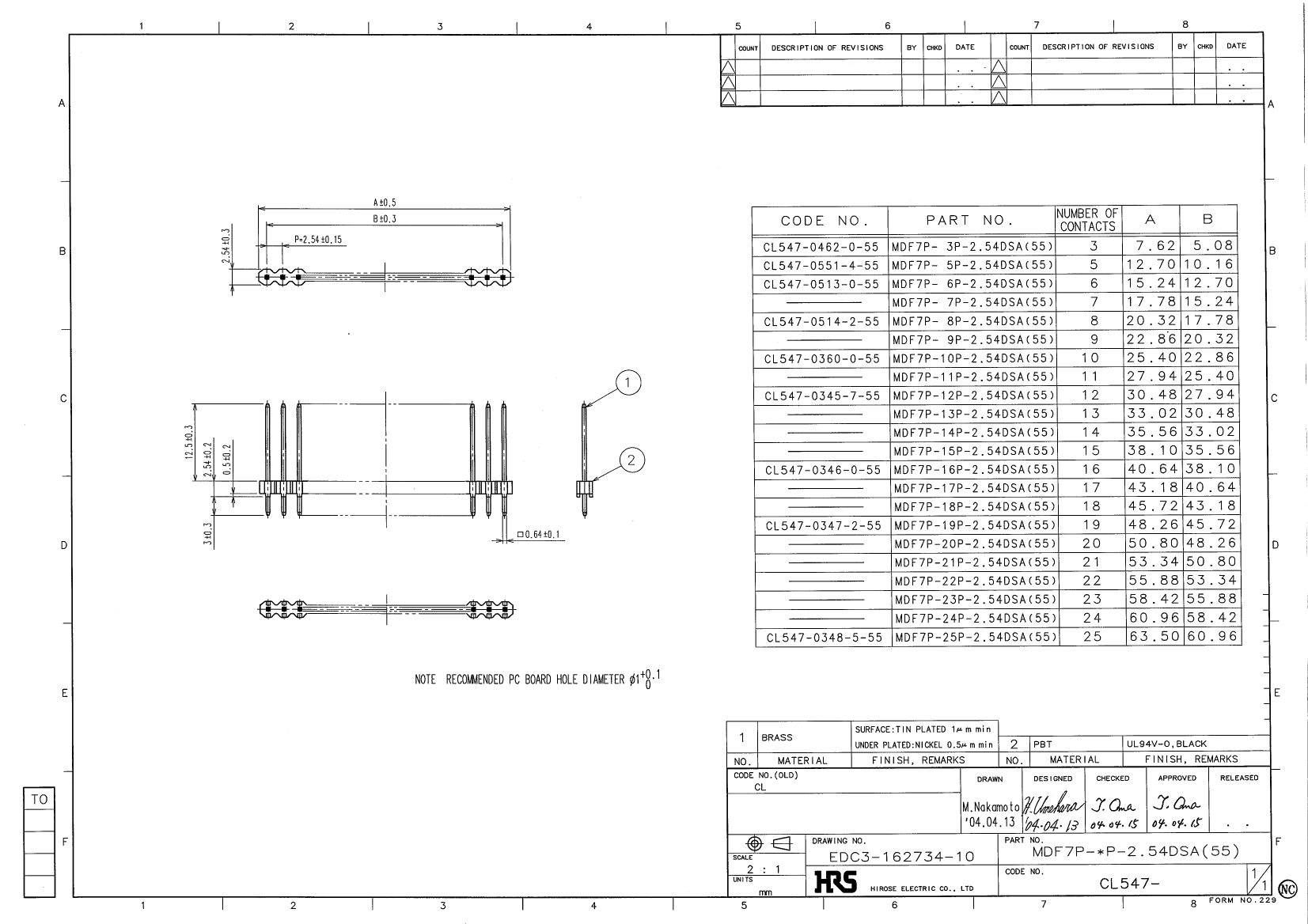

DRAWING FOR REFERENCE: This is subject to change without notice

08/11/2012

HR

S

DR

AW

IN

G

FO

R

RE

FE

RE

NC

E
