HD74LS32FPEL Overview

LS SERIES, QUAD 2-INPUT OR GATE, PDIP14

HD74LS32FPEL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Renesas Electronics Corporation
Parts packaging code	SOIC
package instruction	SOP, SOP14,.3
Contacts	14
Reach Compliance Code	compli
series	LS
JESD-30 code	R-PDSO-G14
length	10.06 mm
Logic integrated circuit type	OR GATE
MaximumI(ol)	0.008 A
Humidity sensitivity level	1
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Maximum supply current (ICC)	9.8 mA
Prop。Delay @ Nom-Su	22 ns
propagation delay (tpd)	22 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	2.2 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5.5 mm

Preview

Download Datasheet

View All

HD74LS32

Quadruple 2-input Positive OR Gate

REJ03D0405–0200

Rev.2.00

Feb.18.2005

Features

•

Ordering Information

Part Name

HD74LS32P

HD74LS32FPEL

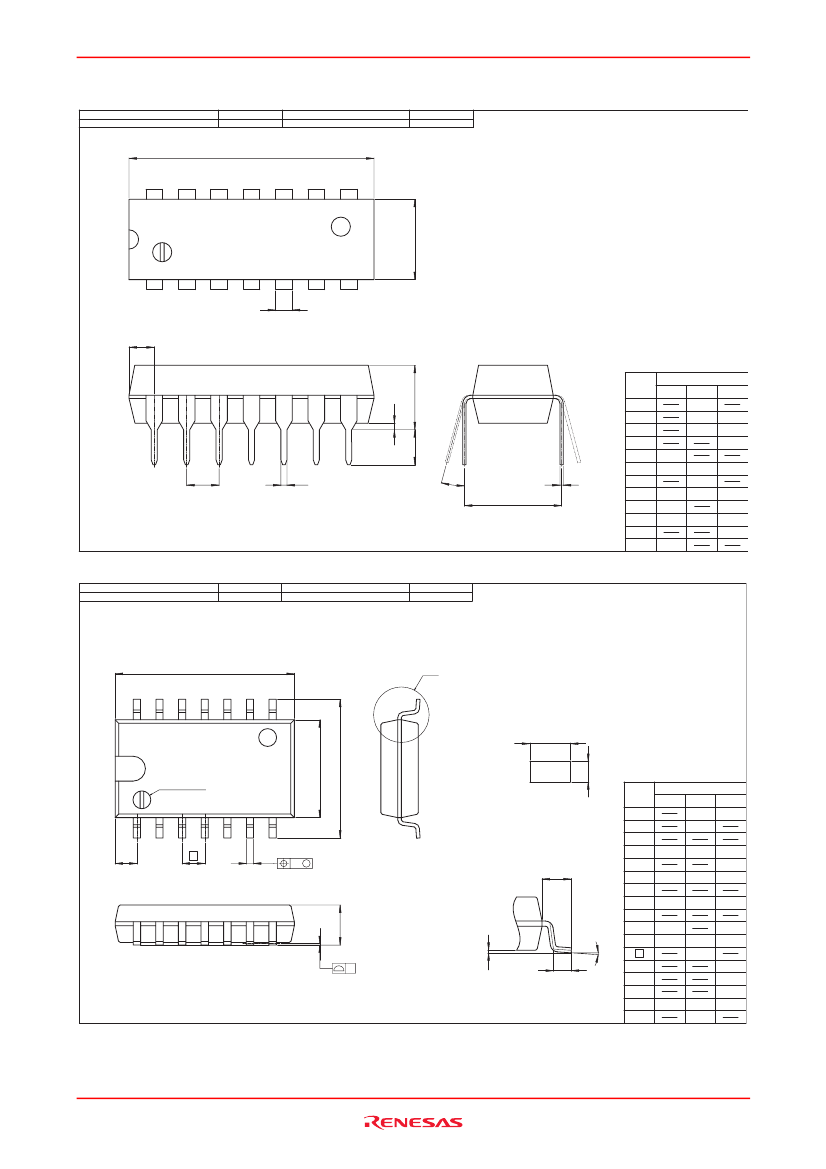

Package Type

DILP-14 pin

SOP-14 pin (JEITA)

Package Code

(Previous Code)

PRDP0014AB-B

(DP-14AV)

PRSP0014DF-B

(FP-14DAV)

Package

Abbreviation

Taping Abbreviation

(Quantity)

—

EL (2,000 pcs/reel)

Note: Please consult the sales office for the above package availability.

Pin Arrangement

GND

(Top view)

Rev.2.00, Feb.18.2005, page 1 of 4
