UPD431000AGU-B12-9KH datasheet, PDF

Datasheet> All Categories > storage> storage> UPD431000AGU-B12-9KH

UPD431000AGU-B12-9KH: Description128KX8 STANDARD SRAM, 120ns, PDSO32, 8 X 13.40 MM, PLASTIC, REVERSE, TSOP1-32; Categorystorage storage; File Size416KB，32 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

UPD431000AGU-B12-9KH Overview

128KX8 STANDARD SRAM, 120ns, PDSO32, 8 X 13.40 MM, PLASTIC, REVERSE, TSOP1-32

UPD431000AGU-B12-9KH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	TSOP1
package instruction	TSOP1-R, TSSOP32,.56,20
Contacts	32
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum access time	120 ns
I/O type	COMMON
JESD-30 code	R-PDSO-G32
JESD-609 code	e0
length	11.8 mm
memory density	1048576 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of terminals	32
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1-R
Encapsulate equivalent code	TSSOP32,.56,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/5 V
Certification status	Not Qualified
reverse pinout	YES
Maximum seat height	1.2 mm
Maximum standby current	0.00001 A
Minimum standby current	2 V
Maximum slew rate	0.07 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8 mm
Base Number Matches	1

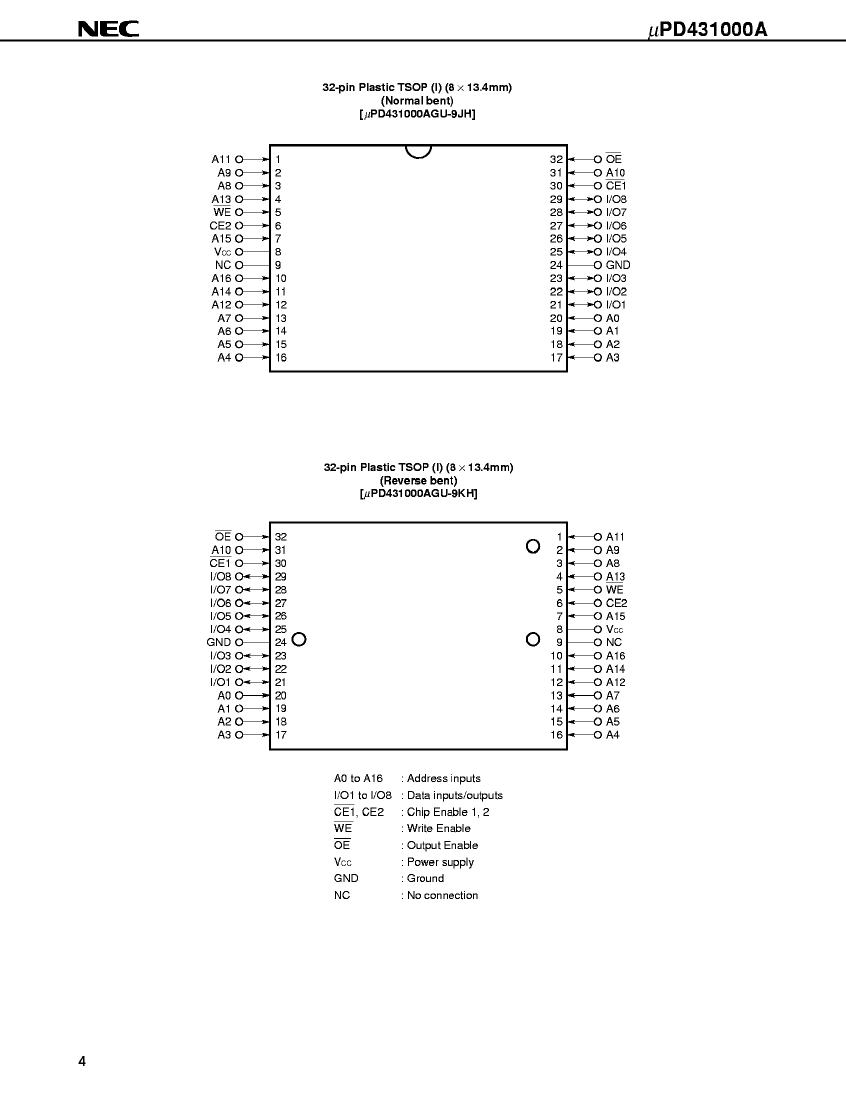

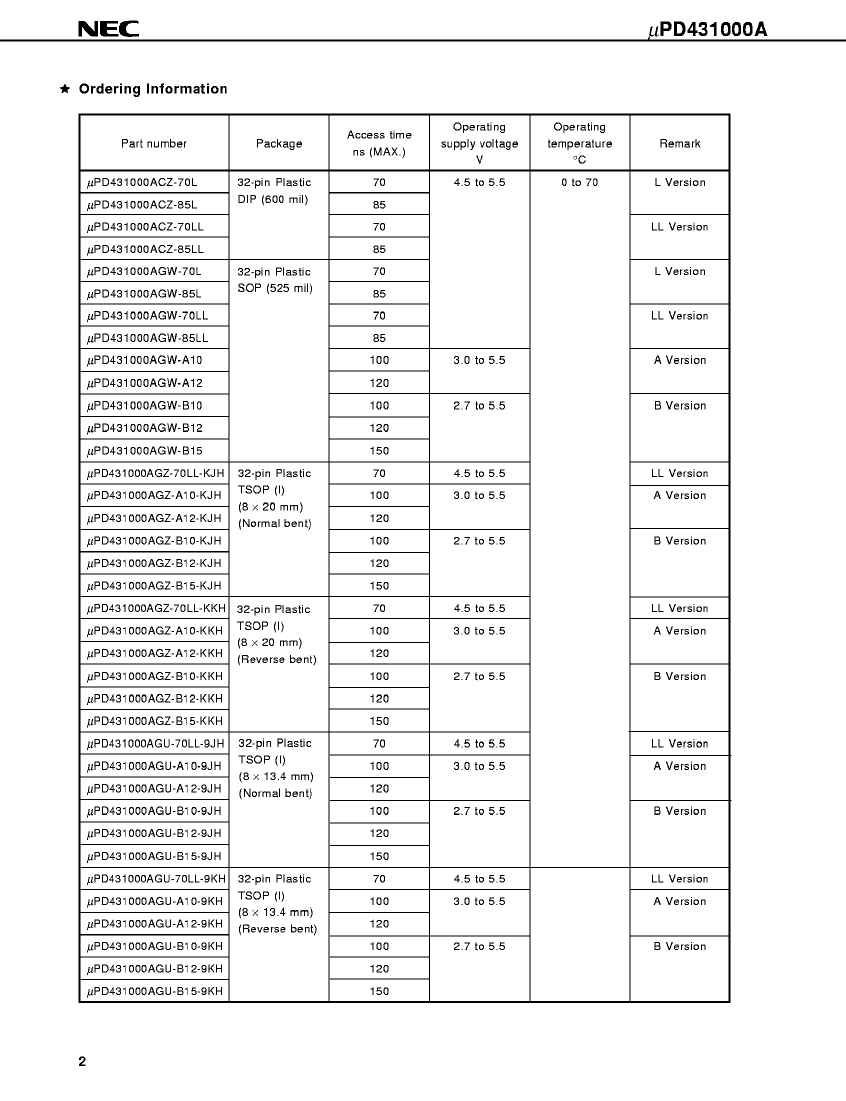

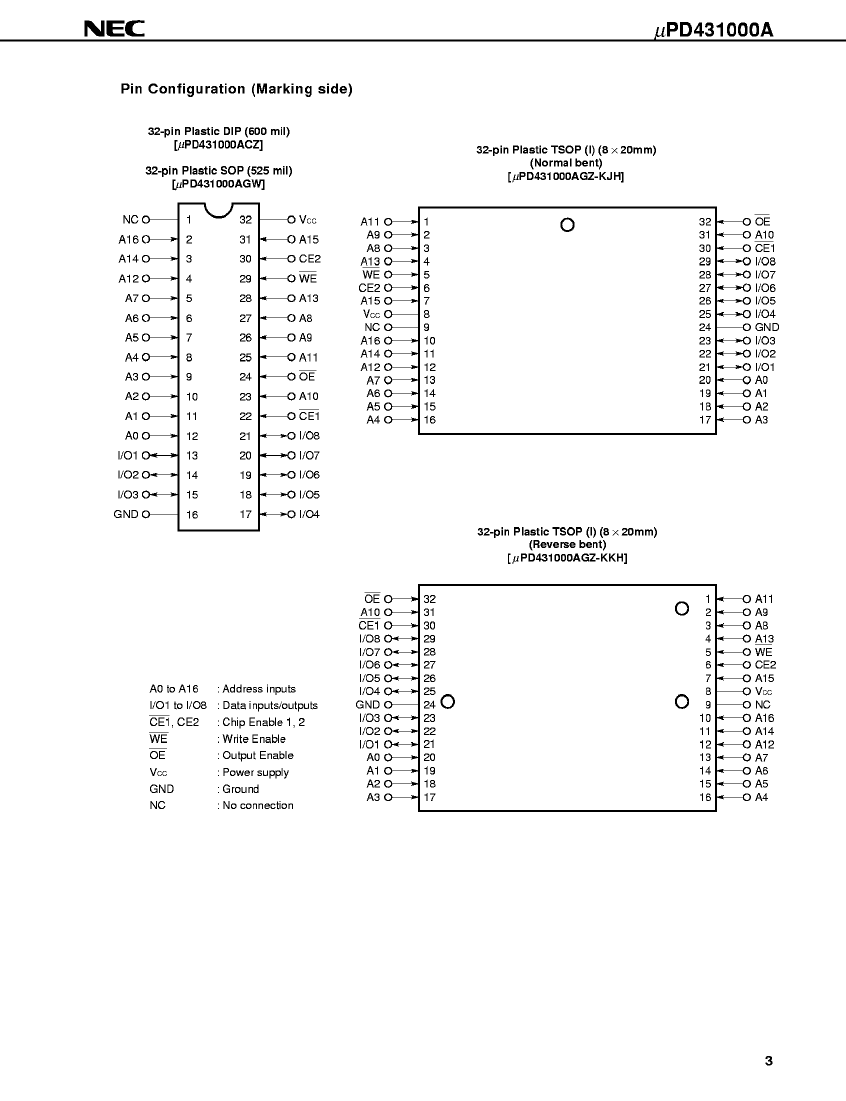

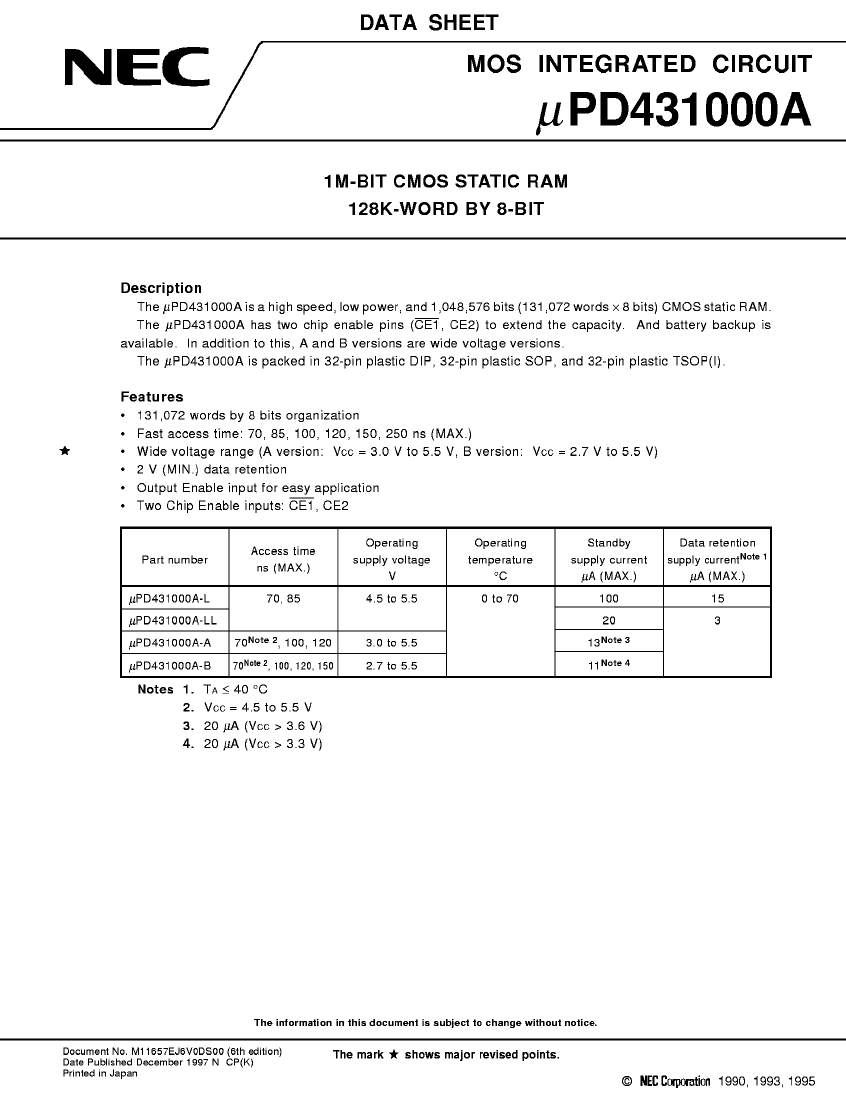

Preview

Download Datasheet

View All

UPD431000AGU-B12-9KH Related Products

	UPD431000AGU-B12-9KH	UPD431000AGU-A10-9KH	UPD431000AGZ-B12-KJH	UPD431000AGW-B10	UPD431000AGZ-A10-KKH	UPD431000AGU-A10-9JH	UPD431000AGU-70LL-9KH
Description	128KX8 STANDARD SRAM, 120ns, PDSO32, 8 X 13.40 MM, PLASTIC, REVERSE, TSOP1-32	128KX8 STANDARD SRAM, 100ns, PDSO32, 8 X 13.40 MM, PLASTIC, REVERSE, TSOP1-32	128KX8 STANDARD SRAM, 120ns, PDSO32, 8 X 20 MM, PLASTIC, TSOP1-32	128KX8 STANDARD SRAM, 100ns, PDSO32, 0.525 INCH, PLASTIC, SOP-32	128KX8 STANDARD SRAM, 100ns, PDSO32, 8 X 20 MM, PLASTIC, REVERSE, TSOP1-32	128KX8 STANDARD SRAM, 100ns, PDSO32, 8 X 13.40 MM, PLASTIC, TSOP1-32	128KX8 STANDARD SRAM, 70ns, PDSO32, 8 X 13.40 MM, PLASTIC, REVERSE, TSOP1-32
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	TSOP1	TSOP1	TSOP1	SOIC	TSOP1	TSOP1	TSOP1
package instruction	TSOP1-R, TSSOP32,.56,20	TSOP1-R, TSSOP32,.56,20	TSOP1, TSSOP32,.8,20	SOP, SOP32,.56	TSOP1-R, TSSOP32,.8,20	TSOP1, TSSOP32,.56,20	TSOP1-R, TSSOP32,.56,20
Contacts	32	32	32	32	32	32	32
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	120 ns	100 ns	120 ns	100 ns	100 ns	100 ns	70 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
memory density	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1
Number of terminals	32	32	32	32	32	32	32
word count	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words
character code	128000	128000	128000	128000	128000	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP1-R	TSOP1-R	TSOP1	SOP	TSOP1-R	TSOP1	TSOP1-R
Encapsulate equivalent code	TSSOP32,.56,20	TSSOP32,.56,20	TSSOP32,.8,20	SOP32,.56	TSSOP32,.8,20	TSSOP32,.56,20	TSSOP32,.56,20
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3/5 V	3.3/5 V	3/5 V	3/5 V	3.3/5 V	3.3/5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	2.95 mm	1.2 mm	1.2 mm	1.2 mm
Maximum standby current	0.00001 A	0.00001 A	0.00001 A	0.00001 A	0.00001 A	0.00001 A	0.00001 A
Minimum standby current	2 V	2 V	2 V	2 V	2 V	2 V	2 V
Maximum slew rate	0.07 mA	0.07 mA	0.07 mA	0.07 mA	0.07 mA	0.07 mA	0.07 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2.7 V	3 V	2.7 V	2.7 V	3 V	3 V	4.5 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	1.27 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
length	11.8 mm	11.8 mm	18.4 mm	-	18.4 mm	11.8 mm	11.8 mm
reverse pinout	YES	YES	-	-	YES	-	YES
Nominal supply voltage (Vsup)	3.3 V	-	3.3 V	3.3 V	-	-	5 V
width	8 mm	8 mm	8 mm	-	8 mm	8 mm	8 mm
Maker	-	-	-	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
