EC7H-10-FREQ4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> EC7H-10-FREQ4

EC7H-10-FREQ4: DescriptionQUARTZ CRYSTAL RESONATOR, 160.001 MHz - 212.5 MHz, ROHS COMPLIANT PACKAGE-2; CategoryPassive components Crystal/resonator; File Size101KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EC7H-10-FREQ4 Overview

QUARTZ CRYSTAL RESONATOR, 160.001 MHz - 212.5 MHz, ROHS COMPLIANT PACKAGE-2

EC7H-10-FREQ4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	unknown
Other features	AT CUT CRYSTAL
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.003%
frequency tolerance	15 ppm
load capacitance	10 pF
Manufacturer's serial number	EC7
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	212.5 MHz
Minimum operating frequency	160.001 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L7.9XB3.2XH8.1 (mm)/L0.311XB0.126XH0.319 (inch)
Series resistance	30 Ω
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

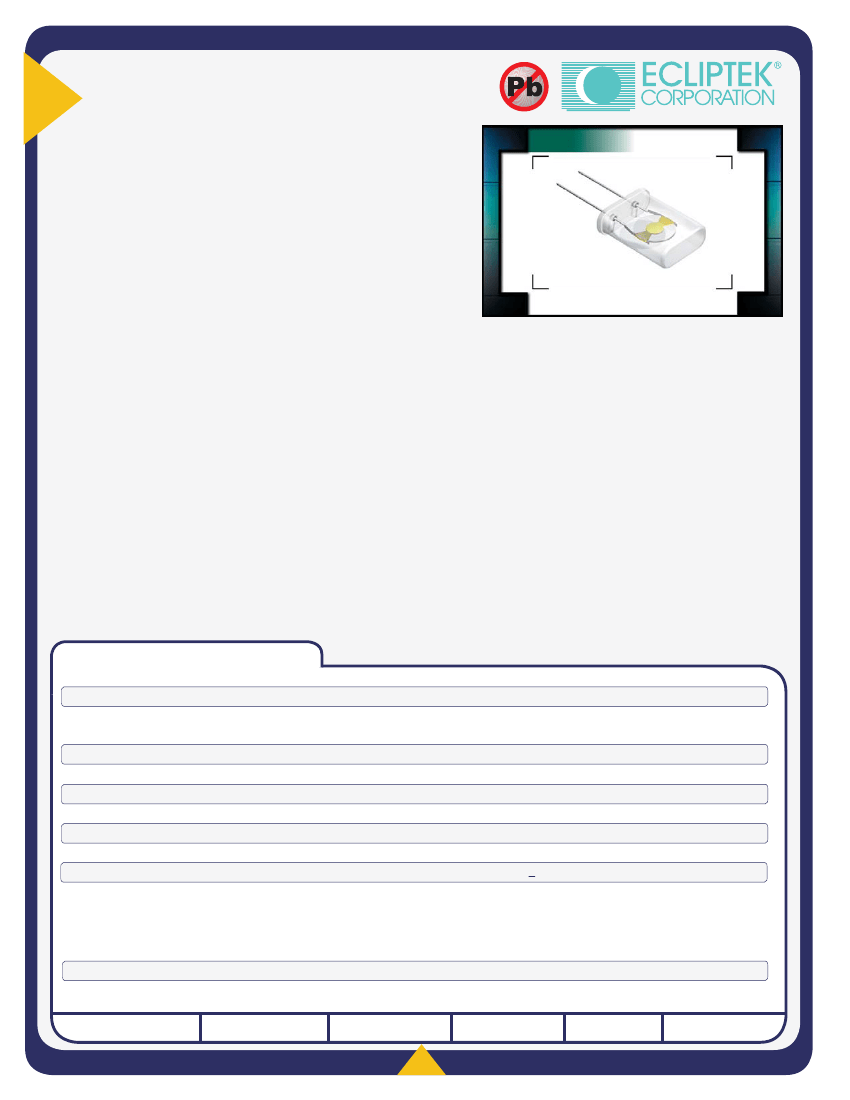

EC7

Series

• RoHS Compliant (Pb-Free)

• Inverted Mesa Crystal

• Fundamental mode frequencies to 212.5MHz

• UM-1 package

• AT cut

• Tight tolerance/stability

• Wide operating temperature range

NOTES

EC7

8.1

7.9

3.2

CRYSTAL

_____________________________________________________________________________________________________________________________________________________________________________________________

ELECTRICAL SPECIFICATIONS

Frequency Range

Frequency Tolerance / Stability

Over Operating Temperature Range

Operating Temperature Range

Aging (at 25°C)

Storage Temperature Range

Shunt Capacitance

Drive Level

Load Capacitance (C

)

Motional Capacitance (C

)

Insulation Resistance

35.000MHz to 212.500MHz

±50ppm / ±100ppm, ±30ppm/±50ppm

±15ppm / ±30ppm, or ±10ppm / ±30ppm

0°C to 70°C, -20°C to 70°C, or -40°C to 85°C

±3ppm / year Maximum

-40°C to 85°C

5pF Maximum

100µWatts Maximum

18pF (Standard), Custom C

≥

10pF, or Series Resonant

3fF Min, 10fF Max (F

< 100MHz), 3fF Min, 13fF Max (F

> 100MHz)

500 Megaohms Minimum at 100V

EQUIVALENT SERIES RESISTANCE (ESR), MODE OF OPERATION (MODE), AND CUT

Frequency Range

35.000MHz to 50.000MHz

50.001MHz to 100.000MHz

MANUFACTURER

ESR (Ω)

15 Max

20 Max
