SP8838BDG datasheet, PDF - EEWORLD Datasheet

SP8838BDG: Description8838 SERIES, PRESCALER, CDIP8, DG-8; Categorylogic logic; File Size822KB，4 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

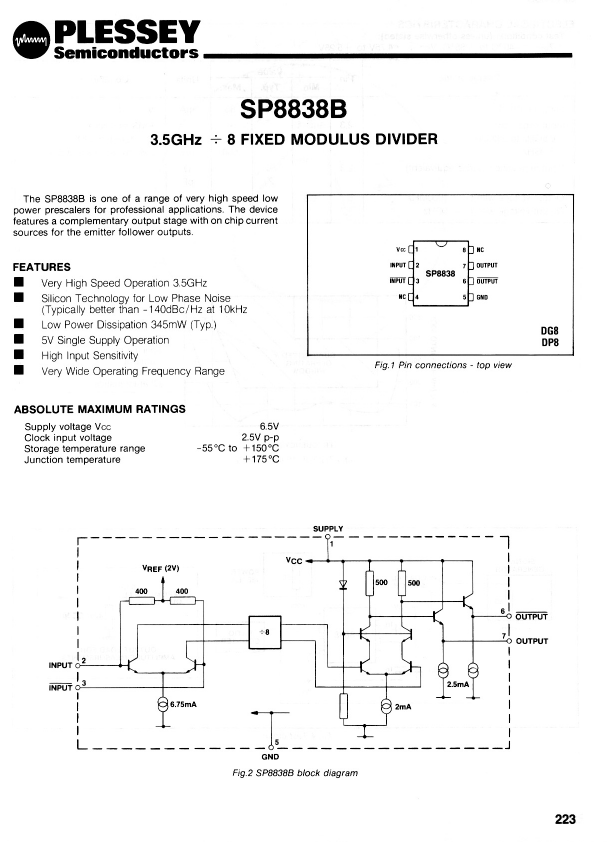

SP8838BDG Overview

8838 SERIES, PRESCALER, CDIP8, DG-8

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	8
Reach Compliance Code	unknown
series	8838
JESD-30 code	R-GDIP-T8
JESD-609 code	e0
Logic integrated circuit type	PRESCALER
Number of data/clock inputs	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	EMITTER FOLLOWER
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
minfmax	3500 MHz
Base Number Matches	1

Obsolescence Notice

This product is obsolete.

This information is available for your

convenience only.

For more information on

Zarlink’s obsolete products and

replacement product lists, please visit

http://products.zarlink.com/obsolete_products/

	SP8838BDG	SP8838BDP
Description	8838 SERIES, PRESCALER, CDIP8, DG-8	8838 SERIES, PRESCALER, PDIP8, DP-8
Parts packaging code	DIP	DIP
package instruction	DIP,	DIP,
Contacts	8	8
Reach Compliance Code	unknown	unknown
series	8838	8838
JESD-30 code	R-GDIP-T8	R-PDIP-T8
JESD-609 code	e0	e0
Logic integrated circuit type	PRESCALER	PRESCALER
Number of data/clock inputs	1	1
Number of functions	1	1
Number of terminals	8	8
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	EMITTER FOLLOWER	EMITTER FOLLOWER
Output polarity	COMPLEMENTARY	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	7.62 mm	7.62 mm
minfmax	3500 MHz	3500 MHz
Base Number Matches	1	1
