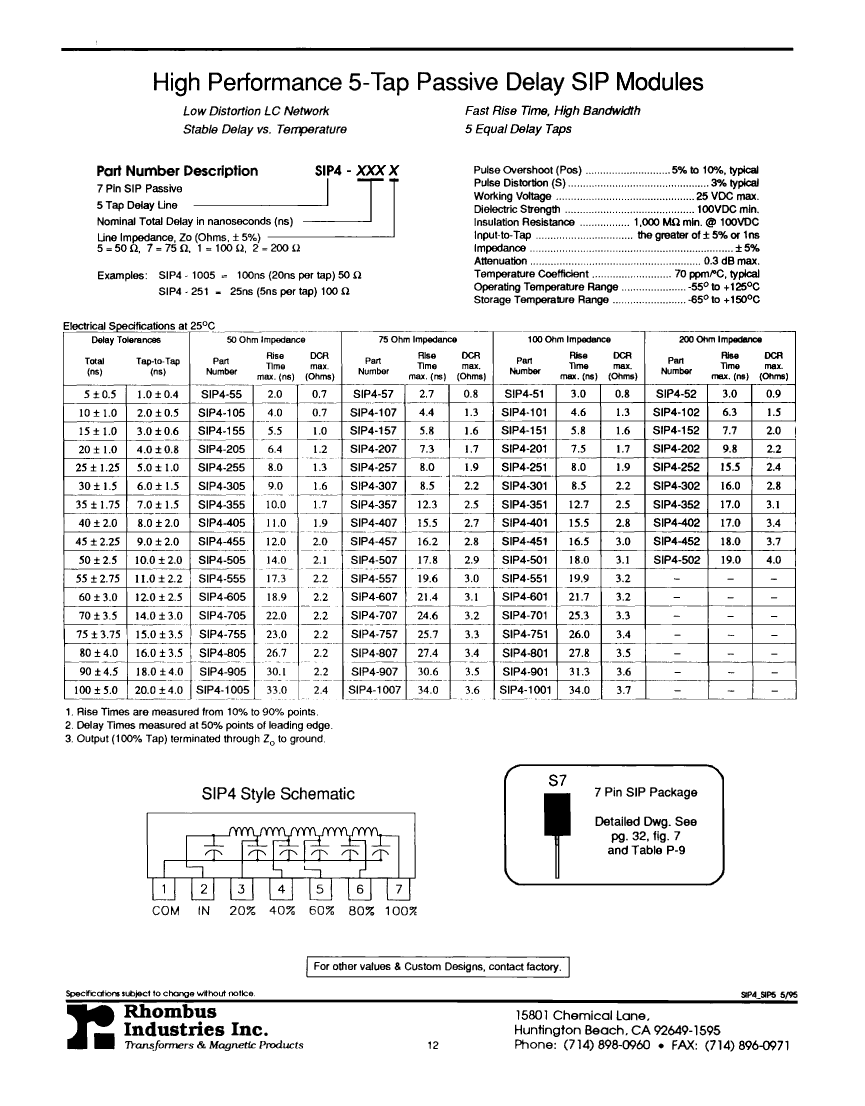

Passive Delay Line, 1-Func, 5-Tap, True Output, Hybrid, MODULE, SIP-7
| Parameter Name | Attribute value |
| Parts packaging code | SIP |
| package instruction | SIP, |
| Contacts | 7 |
| Reach Compliance Code | unknown |
| Other features | MAX RISE TIME CAPTURED |
| JESD-30 code | R-XSIP-T7 |
| Logic integrated circuit type | PASSIVE DELAY LINE |
| Number of functions | 1 |
| Number of taps/steps | 5 |
| Number of terminals | 7 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output impedance nominal value (Z0) | 75 Ω |
| Output polarity | TRUE |
| Package body material | UNSPECIFIED |
| encapsulated code | SIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| programmable delay line | NO |
| Certification status | Not Qualified |
| Maximum seat height | 6.99 mm |
| surface mount | NO |
| technology | HYBRID |
| Temperature level | MILITARY |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | SINGLE |
| Total delay nominal (td) | 80 ns |
| Base Number Matches | 1 |
| SIP4-807 | SIP4-705 | SIP4-907 | SIP4-701 | SIP4-801 | SIP4-607 | SIP4-805 | SIP4-905 | |
|---|---|---|---|---|---|---|---|---|
| Description | Passive Delay Line, 1-Func, 5-Tap, True Output, Hybrid, MODULE, SIP-7 | Passive Delay Line, 1-Func, 5-Tap, True Output, Hybrid, MODULE, SIP-7 | Passive Delay Line, 1-Func, 5-Tap, True Output, Hybrid, MODULE, SIP-7 | Passive Delay Line, 1-Func, 5-Tap, True Output, Hybrid, MODULE, SIP-7 | Passive Delay Line, 1-Func, 5-Tap, True Output, Hybrid, MODULE, SIP-7 | Passive Delay Line, 1-Func, 5-Tap, True Output, Hybrid, MODULE, SIP-7 | Passive Delay Line, 1-Func, 5-Tap, True Output, Hybrid, MODULE, SIP-7 | Passive Delay Line, 1-Func, 5-Tap, True Output, Hybrid, MODULE, SIP-7 |
| Parts packaging code | SIP | SIP | SIP | SIP | SIP | SIP | SIP | SIP |
| package instruction | SIP, | SIP, | SIP, | MODULE, SIP-7 | SIP, | MODULE, SIP-7 | MODULE, SIP-7 | MODULE, SIP-7 |
| Contacts | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Other features | MAX RISE TIME CAPTURED | MAX RISE TIME CAPTURED | MAX RISE TIME CAPTURED | MAX RISE TIME CAPTURED | MAX RISE TIME CAPTURED | MAX RISE TIME CAPTURED | MAX RISE TIME CAPTURED | MAX RISE TIME CAPTURED |
| JESD-30 code | R-XSIP-T7 | R-XSIP-T7 | R-XSIP-T7 | R-XSIP-T7 | R-XSIP-T7 | R-XSIP-T7 | R-XSIP-T7 | R-XSIP-T7 |
| Logic integrated circuit type | PASSIVE DELAY LINE | PASSIVE DELAY LINE | PASSIVE DELAY LINE | PASSIVE DELAY LINE | PASSIVE DELAY LINE | PASSIVE DELAY LINE | PASSIVE DELAY LINE | PASSIVE DELAY LINE |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of taps/steps | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of terminals | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Output impedance nominal value (Z0) | 75 Ω | 50 Ω | 75 Ω | 100 Ω | 100 Ω | 75 Ω | 50 Ω | 50 Ω |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| encapsulated code | SIP | SIP | SIP | SIP | SIP | SIP | SIP | SIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| programmable delay line | NO | NO | NO | NO | NO | NO | NO | NO |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 6.99 mm | 6.99 mm | 6.99 mm | 6.99 mm | 6.99 mm | 6.99 mm | 6.99 mm | 6.99 mm |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO |
| technology | HYBRID | HYBRID | HYBRID | HYBRID | HYBRID | HYBRID | HYBRID | HYBRID |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Total delay nominal (td) | 80 ns | 70 ns | 90 ns | 70 ns | 80 ns | 60 ns | 80 ns | 90 ns |
| Maker | - | Rhombus Industries, Inc. | - | Rhombus Industries, Inc. | Rhombus Industries, Inc. | Rhombus Industries, Inc. | Rhombus Industries, Inc. | Rhombus Industries, Inc. |
