PE-68283T: DescriptionSMPS Transformer; CategoryPower management transformer; File Size51KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

PE-68283T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PE-68283T	-	-	View	Buy Now

PE-68283T Overview

SMPS Transformer

PE-68283T Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LENGTH AND BREADTH DIMENSIONS INCLUDE TERMINAL ALSO
high	6.43 mm
Maximum input voltage	5.25 V
Minimum input voltage	4.75 V
length	13.97 mm
Manufacturer's serial number	PE-68283T
Installation features	SURFACE MOUNT
Number of primary windings	2
Number of secondary windings	4
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
Output voltage 1	9 V
method of packing	TAPE & REEL
physical size	L13.97XB11.51XH6.43 (mm)
surface mount	YES
Transformer type	SMPS TRANSFORMER
width	11.51 mm
Base Number Matches	1

Preview

Download Datasheet

View All

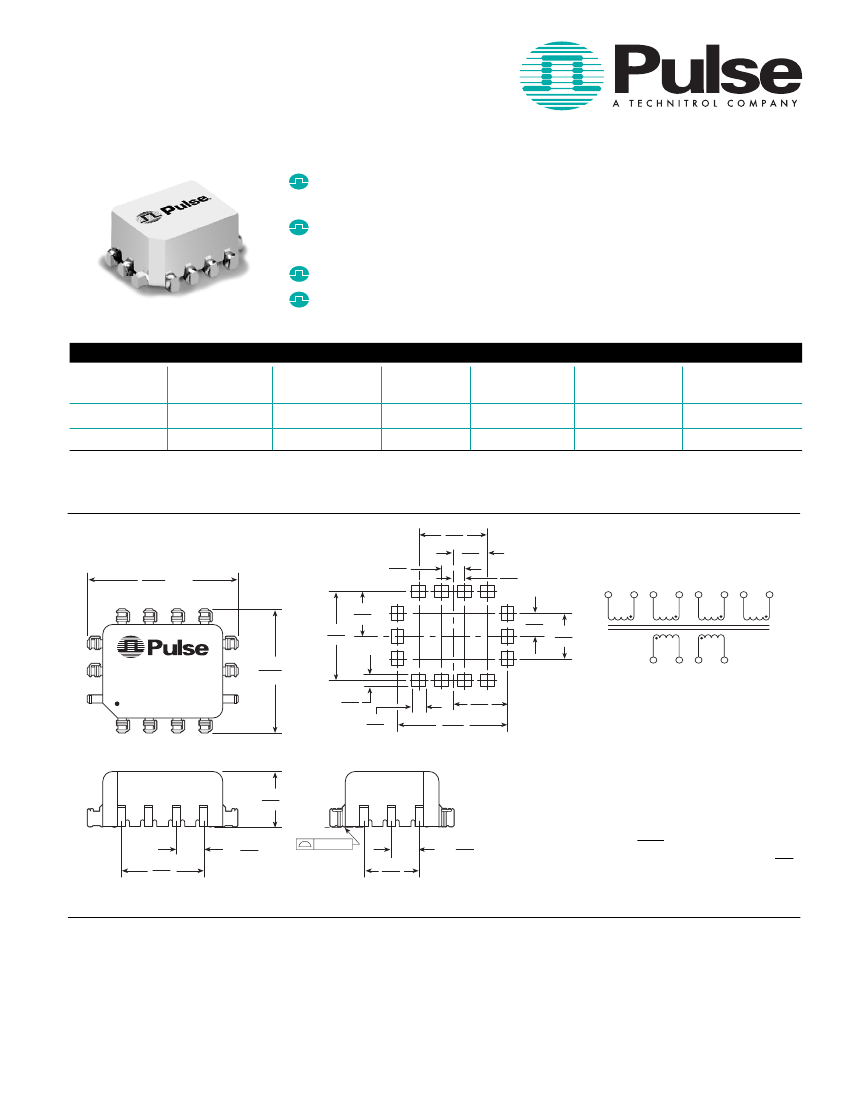

DC/DC CONVERTER

TRANSFORMER

Small Footprint, Low Profile, SMT Package

Key to cost effective alternative for Modular

DC/DC Converters

Design flexibility: positive, negative, or ± supplies

possible with a single transformer design

Auto-placeable

Can be used regulated or unregulated

Electrical Specifications @ 25°C — Operating Temperature -40°C to 130°C

Part

Number

PE-68279

PE-68283

Input Voltage

(Vin)

11.5 to 12.5

4.75 to 5.25

Output Voltage

(Vo)

9V nom

Efficiency

(NOM)

75%

72%

Output

(I/O MIN)

80 mA /200 mA

Output Load

(I/O MAX)

±5%

Hi-Pot

Regulation

1500 Vrms

NOTE:

Add suffix

"T"

to part number for Tape & Reel package (i.e. PE-68279T).

Mechanical

.300

7,62

.150

3,81

.050

1,27

Schematic

.550 MAX

13,97

11

10

9

8

.380

9,65

.190

4,83

.100

2,54

13

12 11

10

9

8

7

6

.100

2,54

12

13

14

7

.200

5,08

PE-682XX

DATE CODE

COUNTRY OF ORIGIN

.453

6 11,51 MAX

5

.050

1,27

.060

1,52

.480

12,19

.240

6,10

1

2

3

4

1

2

3

4

SUGGESTED PAD LAYOUT

.253 MAX

6,43

Weight

. . . . . . . . . . . . . .1.0 grams

Tape & Reel

. . . . . . . . . . . .500/reel

Tube

. . . . . . . . . . . . . . . . . .40/tube

3X .100

2,54

.300

7,62

.005/,127

2X .100

2,54

.200

5,08

Dimensions:

Inches

mm

Unless otherwise specified, all tolerances are ± .005

0,13

For More Information :

UNITED STATES

(Worldwide)

12220 World Trade Drive

San Diego, CA 92128

U.S.A.

http://www.pulseeng.com

TEL: 858 674 8100

FAX: 858 674 8262

UNITED KINGDOM

(Northern Europe)

1 & 2 Huxley Road

The Surrey Research Park

Guildford, Surrey GU2 5RE

United Kingdom

TEL: 44 1483 401700

FAX: 44 1483 401701

FRANCE

(Southern Europe)

Zone Industrielle

F-39270

Orgelet

France

TEL: 33 3 84 35 04 04

FAX: 33 3 84 25 46 41

SINGAPORE

(Southern Asia)

150 Kampong Ampat

#07-01/02

KA Centre

Singapore 368324

TEL: 65 6287 8998

FAX: 65 6280 0080

TAIWAN, R.O.C.

(Northern Asia)

3F-4, No. 81, Sec. 1

HsinTai Wu Road

Hsi-Chih, Taipei Hsien

Taiwan, R.O.C.

Tel: 886 2 2698 0228

FAX: 886 2 2698 0948

HONG KONG

(China/Hong Kong)

9/F, Phase 2, Tai Sang

Shatin Warehouse Centre

6 Wong Chuk Yeung Street

Fotan, Shatin, Hong Kong

TEL: 852 2788 6588

FAX: 852 2776 1055

DISTRIBUTOR

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product

names mentioned herein may be trademarks or registered trademarks of their respective owners.

P599.A (1/04)

PE-68283T Related Products

	PE-68283T	PE-68283	PE-68279	PE-68279T
Description	SMPS Transformer	SMPS Transformer	SMPS Transformer	SMPS Transformer
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	LENGTH AND BREADTH DIMENSIONS INCLUDE TERMINAL ALSO	LENGTH AND BREADTH DIMENSIONS INCLUDE TERMINAL ALSO	LENGTH AND BREADTH DIMENSIONS INCLUDE TERMINAL ALSO	LENGTH AND BREADTH DIMENSIONS INCLUDE TERMINAL ALSO
high	6.43 mm	6.43 mm	6.43 mm	6.43 mm
Maximum input voltage	5.25 V	5.25 V	12.5 V	12.5 V
Minimum input voltage	4.75 V	4.75 V	11.5 V	11.5 V
length	13.97 mm	13.97 mm	13.97 mm	13.97 mm
Manufacturer's serial number	PE-68283T	PE-68283	PE-68279	PE-68279T
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of primary windings	2	2	2	2
Number of secondary windings	4	4	4	4
Maximum operating temperature	130 °C	130 °C	130 °C	130 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Output voltage 1	9 V	9 V	9 V	9 V
method of packing	TAPE & REEL	TUBE	TUBE	TAPE & REEL
physical size	L13.97XB11.51XH6.43 (mm)	L13.97XB11.51XH6.43 (mm)	L13.97XB11.51XH6.43 (mm)	L13.97XB11.51XH6.43 (mm)
surface mount	YES	YES	YES	YES
Transformer type	SMPS TRANSFORMER	SMPS TRANSFORMER	SMPS TRANSFORMER	SMPS TRANSFORMER
width	11.51 mm	11.51 mm	11.51 mm	11.51 mm
