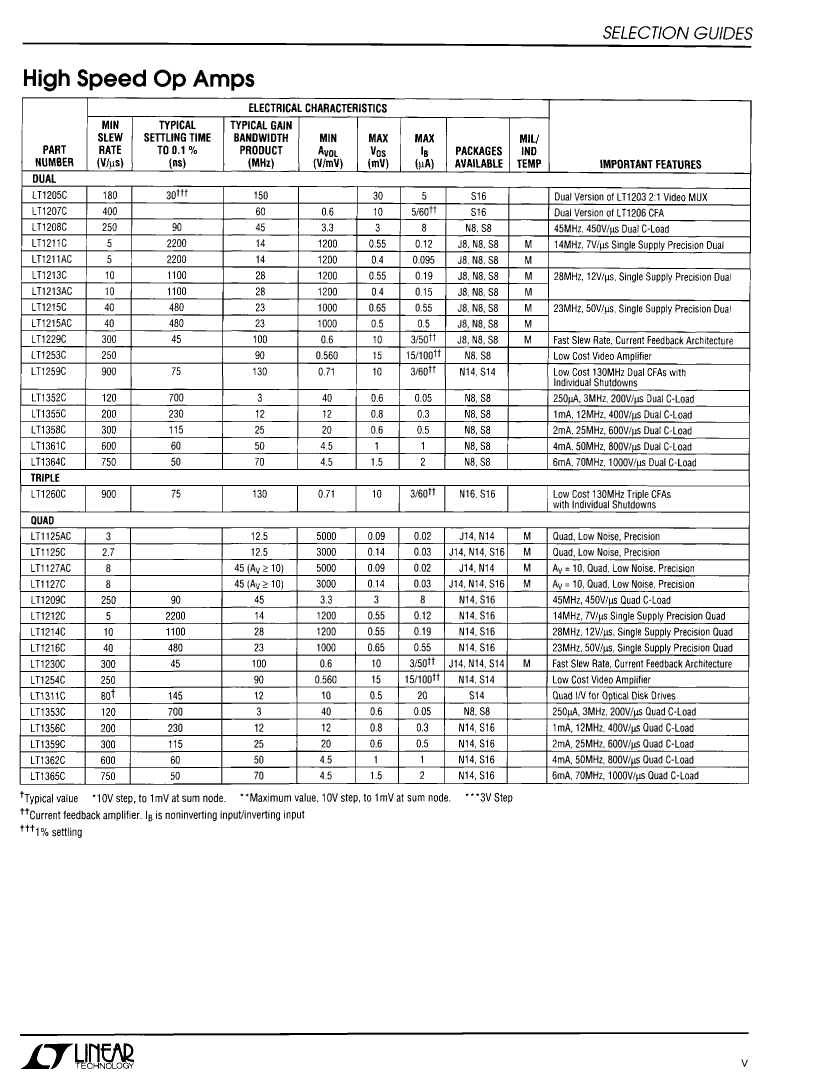

Preview

LT1260CS16: DescriptionBasic information of LT1260CS16 amplifier: LT1260CS16 is an OPERATIONAL AMPLIFIER. LT1260CS16 amplifier core information: Its maximum average bias current is 3 µA How to simply check the efficiency of an amplifier? Looking at its slew rate, the LT1260CS16 has a nominal slew rate of 900 V/us. When the op amp is used in a closed loop, at a specified closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the LT1260CS16 gain becomes 0.707 times the low-frequency gain is 130000 kHz. The nominal supply voltage of the LT1260CS16 is 12 V, and its corresponding nominal negative supply voltage is -12 V. The input offset voltage of the LT1260CS16 is 10000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).) Related dimensions of LT1260CS16: The width of LT1260CS16 is: 3.9 mm and the length is 9.9 mm. LT1260CS16 has 16 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 16 LT1260CS16 amplifier additional information: The LT1260CS16 is not Rohs certified. The corresponding JESD-30 code is: R-PDSO-G16. The corresponding JESD-609 code is: e0. The packaging code of LT1260CS16 is: SOP. The materials used in the LT1260CS16 package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The LT1260CS16 package pin formats are: SMALL OUTLINE. Its terminal forms are: GULL WING. The maximum seat height is 1.75 mm.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size52KB，1 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html; Alternative parts：LT1260CS16

Download Datasheet Parametric View All

LT1260CS16 Overview

Basic information of LT1260CS16 amplifier:

LT1260CS16 is an OPERATIONAL AMPLIFIER.

LT1260CS16 amplifier core information:

Its maximum average bias current is 3 µA

How to simply check the efficiency of an amplifier? Looking at its slew rate, the LT1260CS16 has a nominal slew rate of 900 V/us. When the op amp is used in a closed loop, at a specified closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the LT1260CS16 gain becomes 0.707 times the low-frequency gain is 130000 kHz.

The nominal supply voltage of the LT1260CS16 is 12 V, and its corresponding nominal negative supply voltage is -12 V. The input offset voltage of the LT1260CS16 is 10000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).)

Related dimensions of LT1260CS16:

The width of LT1260CS16 is: 3.9 mm and the length is 9.9 mm. LT1260CS16 has 16 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 16

LT1260CS16 amplifier additional information:

The LT1260CS16 is not Rohs certified. The corresponding JESD-30 code is: R-PDSO-G16. The corresponding JESD-609 code is: e0. The packaging code of LT1260CS16 is: SOP. The materials used in the LT1260CS16 package are mostly PLASTIC/EPOXY.

The package shape is RECTANGULAR. The LT1260CS16 package pin formats are: SMALL OUTLINE. Its terminal forms are: GULL WING. The maximum seat height is 1.75 mm.

LT1260CS16 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
Contacts	16
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	3 µA
Maximum input offset voltage	10000 µV
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	9.9 mm
Nominal Negative Supply Voltage (Vsup)	-12 V
Number of functions	3
Number of terminals	16
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	1.75 mm
Nominal slew rate	900 V/us
Nominal supply voltage (Vsup)	12 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	130000 kHz
width	3.9 mm
Base Number Matches	1
