D6R00LFS: DescriptionKEYPAD SWITCH, SPST, MOMENTARY-TACTILE, 0.1A, 32VDC, 1.3N, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size222KB，4 Pages; ManufacturerC&K; Environmental Compliance

Download Datasheet Parametric View All

D6R00LFS Overview

KEYPAD SWITCH, SPST, MOMENTARY-TACTILE, 0.1A, 32VDC, 1.3N, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT

D6R00LFS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator length	0.275 inch
Actuator type	ROUND TYPE
Other features	ROHS COMPLIANT
body width	11.3792 mm
Body color	WHITE
body height	5.9 mm
Body length or diameter	11.4 mm
Circuit configuration	1X1
Maximum contact bounce time	3 ms
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated power R load	3VA@32VDC
Contact (DC) maximum rated R load	.1A@32VDC
Contact resistance	0.1 mΩ
Maximum contact voltage (DC)	32 V
Electrical life	1000000 Cycle(s)
Insulation resistance	100000000 Ω
Installation features	THROUGH HOLE-STRAIGHT
Number of switches	1
Maximum operating force	1.3 N
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Solderability	WAVE
surface mount	NO
Switch action	MOMENTARY-TACTILE
switch function	SPST
Switch type	KEYPAD SWITCH
Terminal length	0.196 inch
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

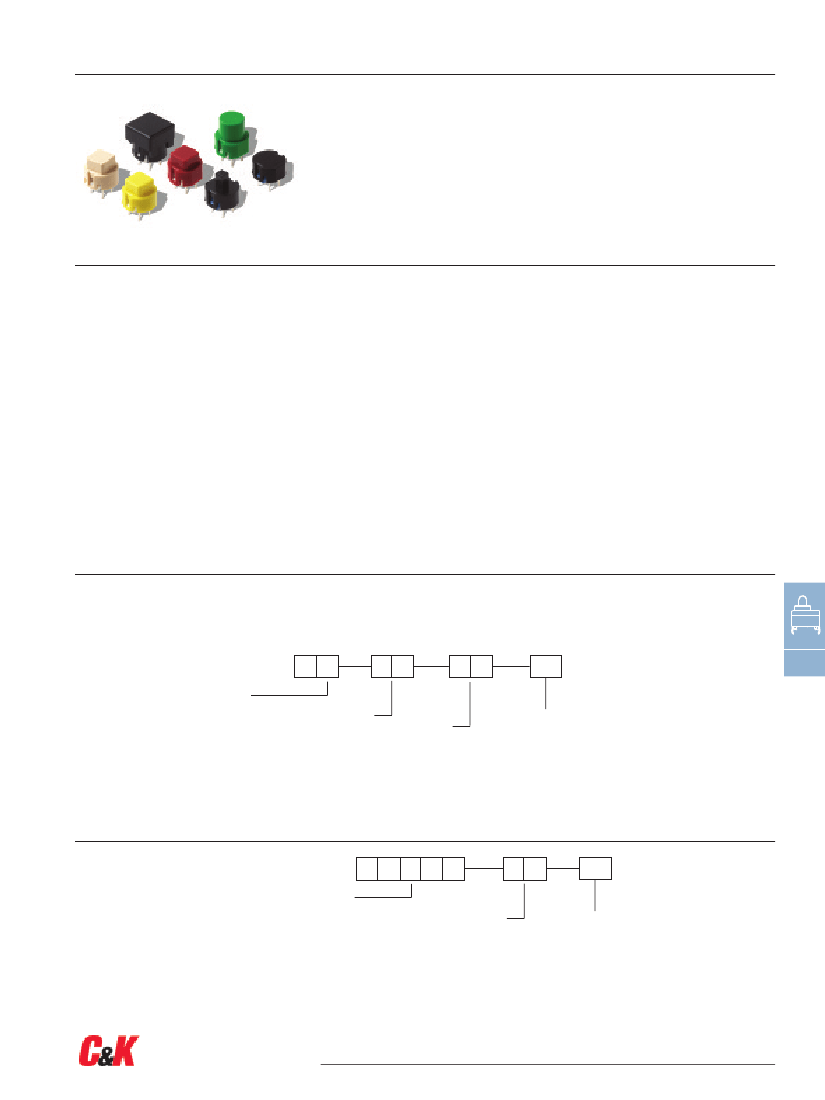

SPST Momentary Key Switches

Features/Benefits

•

Easy X, Y coding on single

side PCB

•

Positive tactile feedback

High temperature

Wide variety of colors & styles

RoHS compliant and compatible

Typical Applications

•

Video

•

Electronic games

•

Appliances

Construction

FUNCTION: momentary

CONTACT ARRANGEMENT: 1 make contact (SPST), NO

DISTANCE BETWEEN BUTTON CENTERS, MIN.: 12,7 (0.500)

TERMINALS: PC pins

Mechanical

SWITCHING TRAVEL: Version F1: 0.20mm

≤

Te(on)

≤

1.0 mm

Version F2: 0.30 mm

≤

Te(on)

≤

1.1 mm

OPERATING FORCE: Version F1: 0.8N

≤

≤1.8N

Version F2:

2.0N

≤

3.5N

Electrical

SWITCHING POWER MAX.: 3 VA

SWITCHING VOLTAGE MAX.: 32 V DC

SWITCHING CURRENT MAX.: 100 mA DC

DIELECTRIC STRENGTH (50 Hz / 1 min): 250 V

OPERATING LIFE with max. switching power: (2,5x10

operations)

CONTACT RESISTANCE:

≤100

mΩ

INSULATION RESISTANCE:

≥10

Ω

BOUNCE TIME:

≤

10 ms

Environmental

OPERATING TEMPERATURE: -20˚C to 85˚C.

Process

SOLDERABILITY:

Hand soldering: 350˚C for 3 seconds

Wave or bath soldering: 260˚C for 5 seconds

Cleaning: Not washable

PACKAGING:

The D6 switches are delivered in boxes containing 10 trays

with 250 pieces each: Total 2,500 pieces per box.

The D6 buttons are delivered in bulk with 2500 pieces per box.

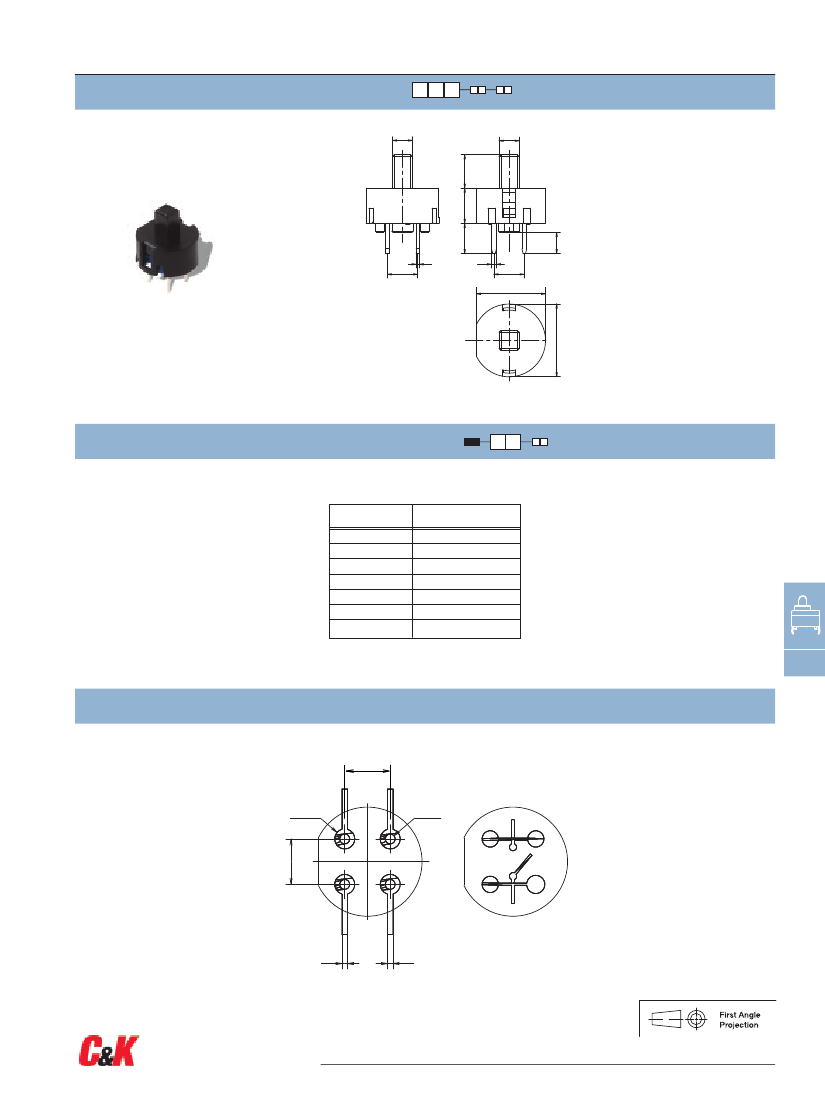

How To Order

Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select

desired option from each category and place it in the appropriate box.

Switch

Series

D6C

Square

D6R

Round

D6L*

Plunger

D6F**

Flat

LFS

Key Switches

*Available only in color 90 (black).

** Available only in color 90 (black) and 00 (white).

Switch Color

White

Gray

Yellow

Red

Green

Blue

Black

Force

1.3N(STD)

2.5N

RoHS compliant and compatible product.

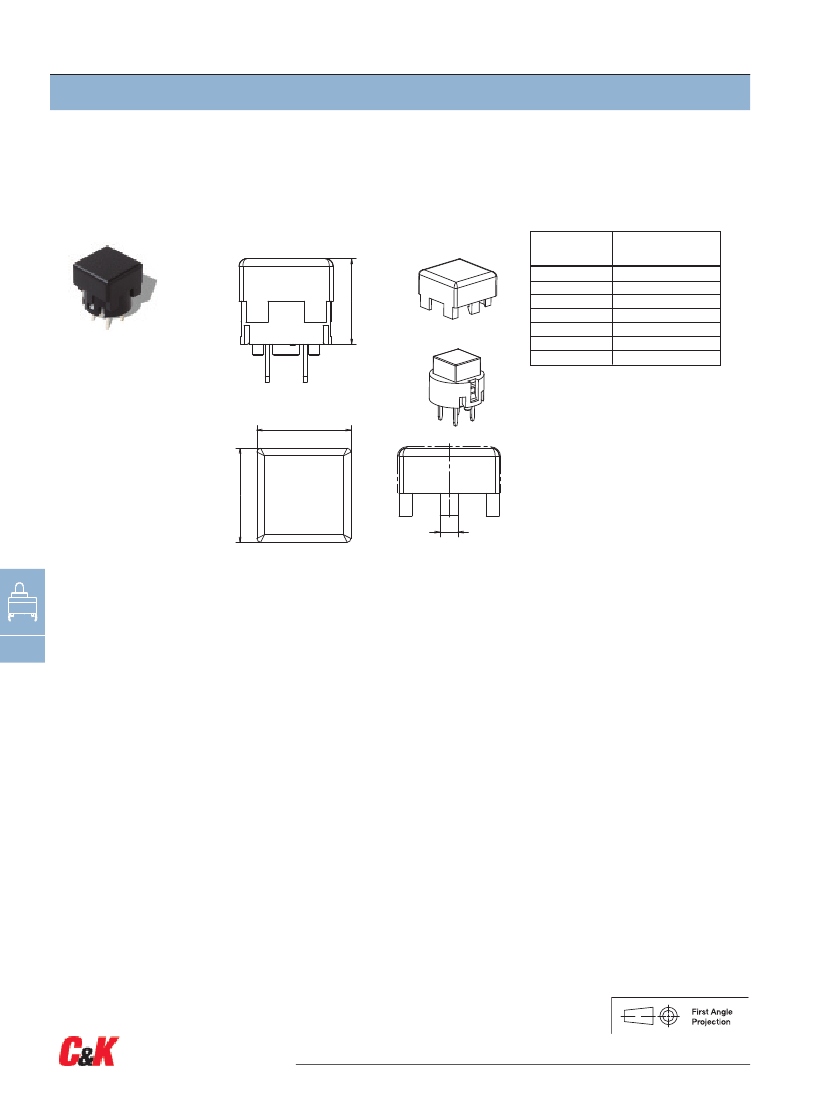

Button

Buttons can be ordered separately.

Shipped in bulk.

D6 button for use with D6C only.

N D

Series

BTND6

Button

Button Color

White

Gray

Yellow

Red

Green

Blue

Black

Version F1 or F2.

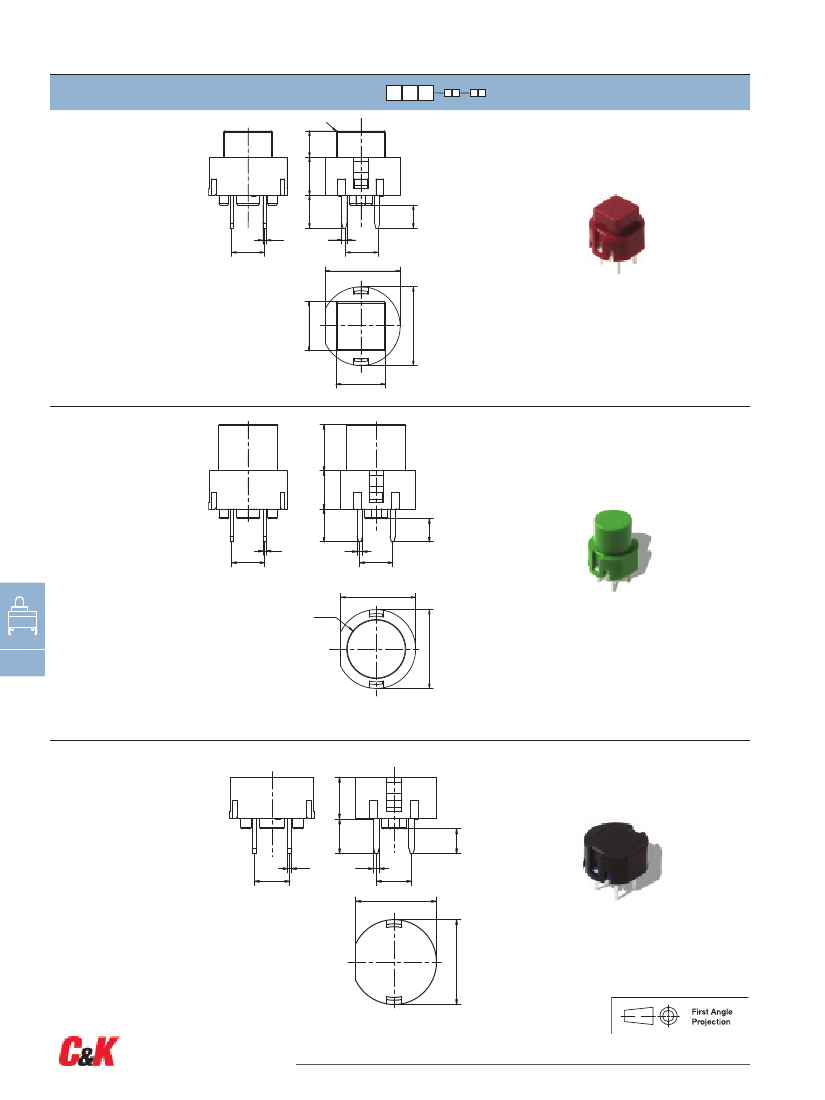

Dimensions are shown: mm (inch)

Specifications and dimensions subject to change

E–19

www.ck-components.com
