BNC31201-HW-75R datasheet, PDF

BNC31201-HW-75R: DescriptionRF BNC Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size44KB，1 Pages; ManufacturerRegal Electronics; Websitehttp://regalusa.net

Download Datasheet Parametric Compare View All

BNC31201-HW-75R Overview

RF BNC Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Locking, Plug

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.614 inch
subject depth	1.366 inch
body length	0.571 inch
Body/casing type	PLUG
Characteristic impedance	75 Ω
Connector type	RF BNC CONNECTOR
Contact point gender	FEMALE
Contact resistance	3 mΩ
Contact style	COAX
Dielectric withstand voltage	2100VAC V
Insulation resistance	5000000000 Ω
insulator material	POLYPROPYLENE
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating frequency	3 GHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Panel mounting	YES
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.161 inch
Termination type	SOLDER
Total number of contacts	1
Base Number Matches	1

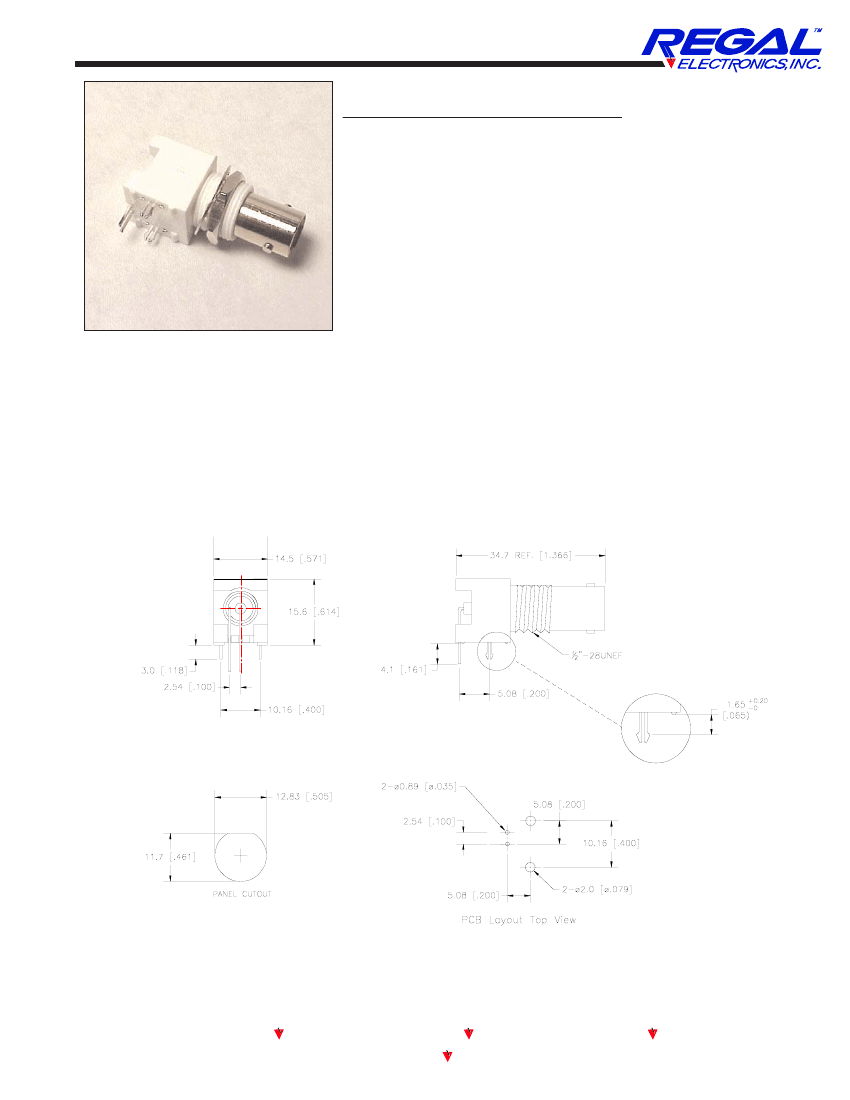

BNC Right Angle High Profile

BNC 31201-HW-[*]R

*Ohm; Options are:

50, 75

RoHS Compliant

ELECTRICAL:

• Impedance: 50 & 75 ohm

• Contact resistance: 3.0 milliohms maximum

• Insulation resistance: 5000 Megohms minimum

• Operating Voltage: 500 Volts RMS

• Dielectric withstanding voltage: 1500 V

RMS

MATERIAL:

• Insulator: Polypropylene UL 94 HB

• Housing: BPT with glass fiber UL 94 V0

• Contacts: Phosphor bronze, Glod Flash

• Operating Temperature: -55°C to +85°C

080228

Sunnyvale, CA 94086

Phone 800/882-8086 Fax 800/345-2831

120 San Lucar Court

Visit www.regalusa.com

E-mail hal@regalusa.com

	BNC31201-HW-75R	BNC31201-HW-50R
Description	RF BNC Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Locking, Plug	RF BNC Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Locking, Plug
Reach Compliance Code	unknown	unknown
Other features	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.614 inch	0.614 inch
subject depth	1.366 inch	1.366 inch
body length	0.571 inch	0.571 inch
Body/casing type	PLUG	PLUG
Characteristic impedance	75 Ω	50 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact point gender	FEMALE	FEMALE
Contact resistance	3 mΩ	3 mΩ
Contact style	COAX	COAX
Dielectric withstand voltage	2100VAC V	2100VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω
insulator material	POLYPROPYLENE	POLYPROPYLENE
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of ports	1	1
Maximum operating frequency	3 GHz	3 GHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
Panel mounting	YES	YES
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.161 inch	0.161 inch
Termination type	SOLDER	SOLDER
Total number of contacts	1	1
Base Number Matches	1	1
