BNCV31201-HB-75R

Description
RF BNC Connector, 1 Contact(s), Male, Board Mount, Solder Terminal, Plug
CategoryThe connector    The connector
File Size36KB,1 Pages
ManufacturerRegal Electronics
Websitehttp://regalusa.net
Download Datasheet Parametric Compare View All

BNCV31201-HB-75R Overview

RF BNC Connector, 1 Contact(s), Male, Board Mount, Solder Terminal, Plug

BNCV31201-HB-75R Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Other featuresROHS COMPLIANT
body width0.571 inch
subject depth1.37 inch
body length0.614 inch
Body/casing typePLUG
Characteristic impedance75 Ω
Connector typeRF BNC CONNECTOR
Contact completed and terminatedGOLD
Contact point genderMALE
Contact resistance3 mΩ
Contact styleCOAX
Dielectric withstand voltage1500VAC V
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialPOLYPROPYLENE
Installation methodSTRAIGHT
Installation typeBOARD
Number of ports1
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.161 inch
Termination typeSOLDER
Total number of contacts1
Base Number Matches1

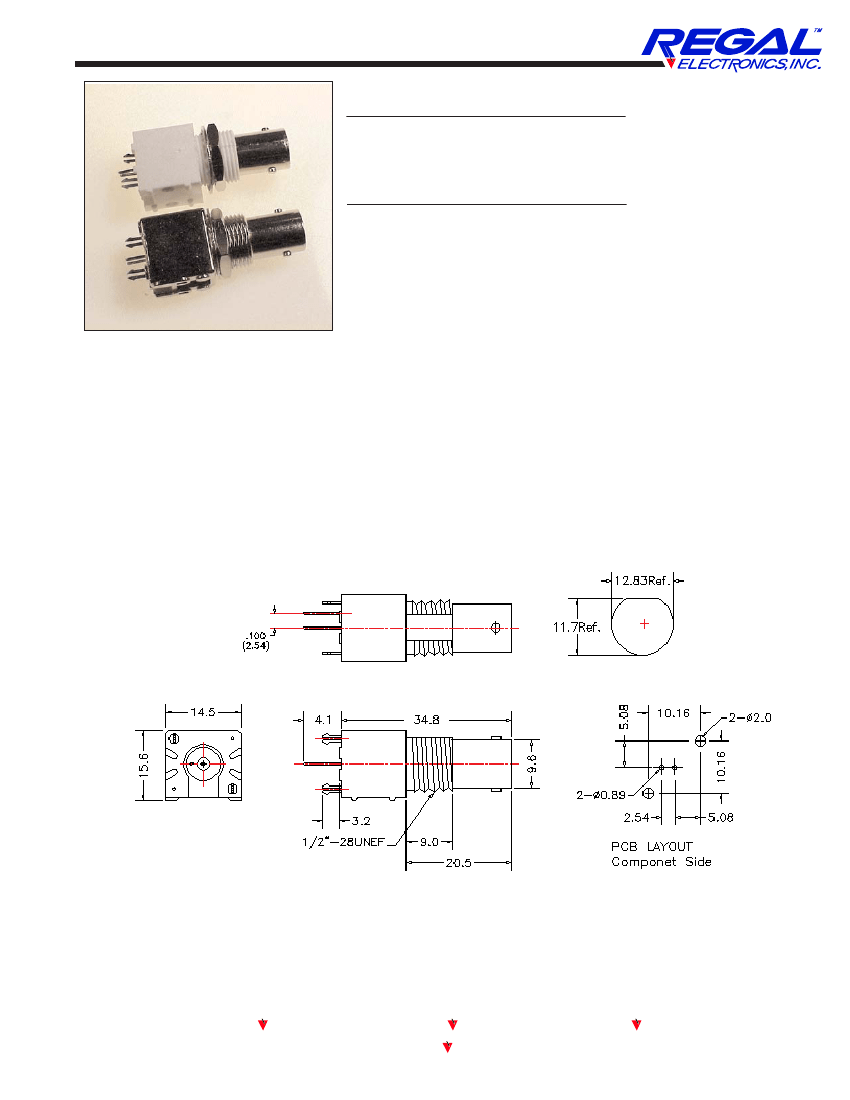

BNC Vertical Mount High Profile
BNC V31201-H[*]-[**]R
*Color; Options are:
B
= Black
W
= White
M
= Shielded metal case
**Ohm; Options are:
50, 75
RoHS Compliant
ELECTRICAL:
• Impedance: 50 & 75 ohm
• Contact resistance: 3.0 milliohms maximum
• Insulation resistance: 5000 Megohms minimum
• Dielectric withstanding voltage: 1500 V
RMS
MATERIAL:
• Insulator: Polypropylene UL 94HB
• Contacts: Phosphor bronze, Gold flash
• Housing: UL 94 V0 PBT with glass fiber
• Operating temperature: -55°C to +85°C
080228
120 San Lucar Court
Sunnyvale, CA 94089
Visit www.regalusa.com
Phone 800/882-8086 Fax 800/345-2831
E-mail hal@regalusa.com

BNCV31201-HB-75R Related Products

BNCV31201-HB-75R BNCV31201-HB-50R
Description RF BNC Connector, 1 Contact(s), Male, Board Mount, Solder Terminal, Plug RF BNC Connector, 1 Contact(s), Male, Board Mount, Solder Terminal, Plug
Reach Compliance Code unknown unknown
Other features ROHS COMPLIANT ROHS COMPLIANT
body width 0.571 inch 0.571 inch
subject depth 1.37 inch 1.37 inch
body length 0.614 inch 0.614 inch
Body/casing type PLUG PLUG
Characteristic impedance 75 Ω 50 Ω
Connector type RF BNC CONNECTOR RF BNC CONNECTOR
Contact completed and terminated GOLD GOLD
Contact point gender MALE MALE
Contact resistance 3 mΩ 3 mΩ
Contact style COAX COAX
Dielectric withstand voltage 1500VAC V 1500VAC V
Insulation resistance 5000000000 Ω 5000000000 Ω
Insulator color BLACK BLACK
insulator material POLYPROPYLENE POLYPROPYLENE
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of ports 1 1
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -55 °C -55 °C
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal length 0.161 inch 0.161 inch
Termination type SOLDER SOLDER
Total number of contacts 1 1
Base Number Matches 1 1
