MS27496T-25N-43JA datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MS27496T-25N-43JA

Preview

MS27496T-25N-43JA: DescriptionMIL Series Connector, 43 Contact(s), Steel, Female, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size59KB，1 Pages; ManufacturerHiRel Connectors Inc; Websitehttps://hirelco.net

Download Datasheet Parametric View All

MS27496T-25N-43JA Overview

MIL Series Connector, 43 Contact(s), Steel, Female, Crimp Terminal, Receptacle

MS27496T-25N-43JA Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	STANDARD: MIL-DTL-38999, COMPATIBLE CONTACTS: M39029/56-351, M39029/56-352
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT; ENVIRONMENT RESISTANT; FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	MS27496
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	STEEL
Housing size	25
Termination type	CRIMP
Total number of contacts	43
Base Number Matches	1

Preview

Download Datasheet

View All

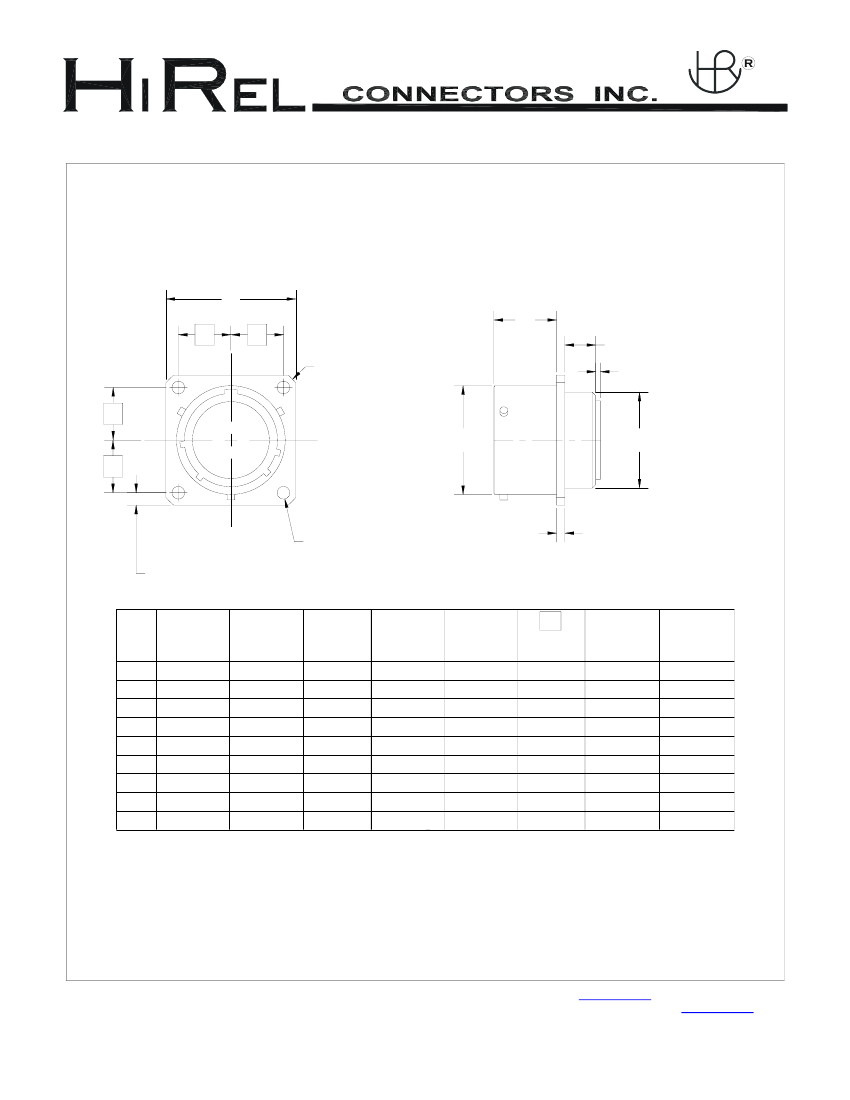

MS27496

Box Mount Environment Resisting Receptacle

MIL-DTL-38999

Series I Receptacles

2 PL

S

R

CHAMFERED OR

ROUNDED 4 PL

M

L

MAX

.060 [1.52] MAX.

GROMMET EXTENSION

R

ØD

R

ØX

ØP

4 PL

EQUAL WITHIN .015 [0.38]

8 PL

K

SHELL

SIZE

+.001/-.005

9

11

13

15

17

19

21

23

25

ØD

K

.085 [2.16]

.115 [2.92]

L

MAX

.312 [7.92]

M

.632 [16.05]

.602 [15.29]

ØP

.128 [3.25]

.147 [3.73]

R

.359 [9.13]

S

±.020

[±0.51]

.938 [23.83]

ØX

MAX

.469 [11.91]

.594 [15.09]

.719 [18.26]

.844 [21.44]

.969 [24.61]

+.015/-.000

[+0.03/-0.13] [+0.38/-0.00]

.572 [14.53]

.700 [17.78]

.850 [21.59]

.975 [24.77]

1.100 [27.94]

1.207 [30.66]

1.332 [33.83]

1.457 [37.01]

1.582 [40.18]

+.000/-.005 +.010/-.005

[+0.00/-0.13] [+0.25/-0.13]

.406 [10.31] 1.031 [26.19]

.453 [11.51] 1.125 [28.58]

.484 [12.31] 1.219 [30.96]

.531 [13.49] 1.312 [33.32]

.578 [14.61] 1.438 [36.53] 1.078 [26.38]

.625 [15.88] 1.562 [39.67] 1.203 [30.56]

.687 [17.46] 1.688 [42.88] 1.328 [33.73]

.750 [19.05] 1.812 [46.02] 1.453 [36.91]

DIMENSIONS ARE IN INCHES [MILLIMETERS]
