M37530T-PTCB

Converter for Connecting 40-pin Narrow-pitch Connector to 32-pin

0.8mm-pitch LQFP (for 7531, 7532, 7534, 7540, 7542 and 7544 Groups)

Function

This board is used in combination with the M37530T-PTC converter

for the 7531, 7532, 7534, 7540, 7542 and 7544 Groups of Renesas

8-bit MCUs or the M37532T-PTC converter for the 7532 and 7534

Groups to connect a 40-pin narrow-pitch connector to the foot

pattern for the 32-pin 0.8mm-pitch LQFP (32P6U-A, 32P6B-A).

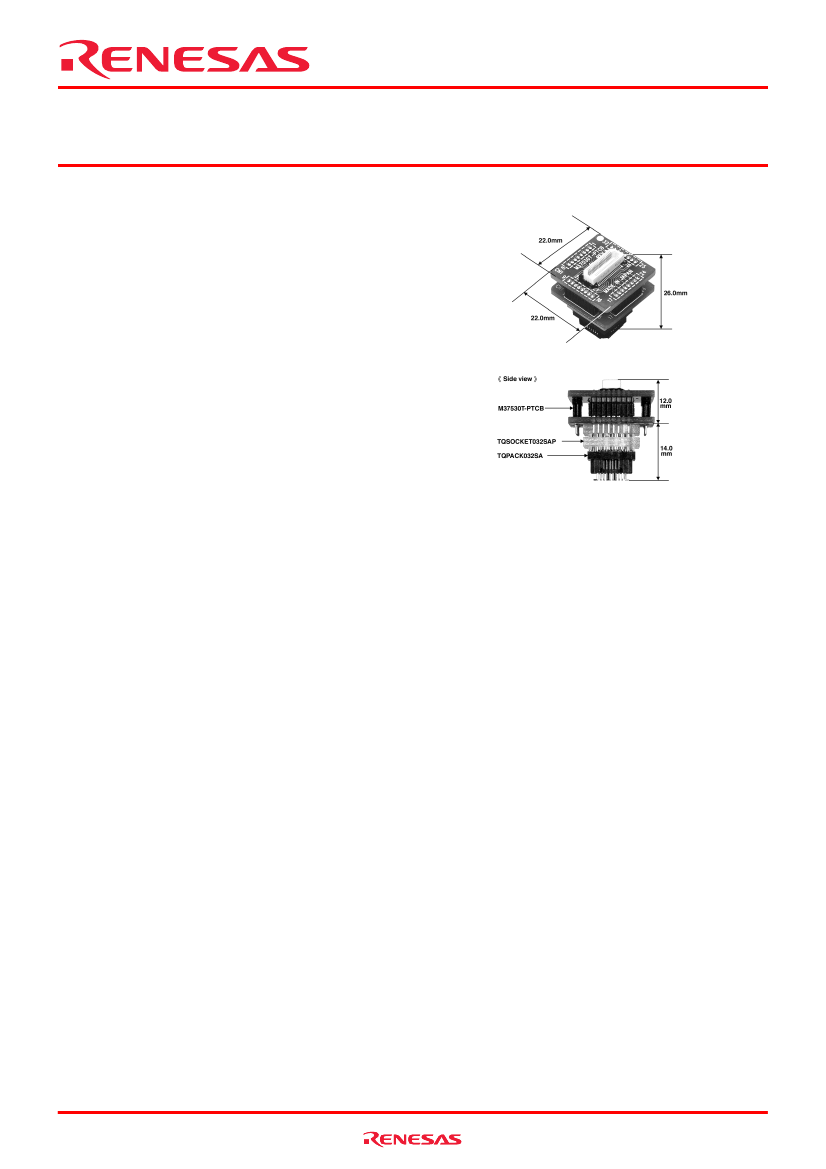

External View and Dimensions

Application

Solder the TQPACK032SA (included with this converter) to the foot

pattern for the 32-pin 0.8mm-pitch LQFP (32P6U-A, 32P6B-A) on

the target system. Then attach the M37530T-PTC or M37532T-PTC

converter to the connector provided on this board.

Package Components

• M37530T-PTCB

• TQSOCKET032SAP (made by Tokyo Eletech Co., Ltd.)

• TQPACK032SA (made by Tokyo Eletech Co., Ltd.)

• User's manual

*Required components to connect to the target system are included with this

product package. Each component made by Tokyo Eletech Co., Ltd. is

optionally available alone from Tokyo Eletech Co., Ltd.

See Appendix G "Contact Addresses for Partner Products".

Foot Pattern Reference Dimensions

See Appendix E "List of TQPACK/NQPACK Foot Patterns Made

by Tokyo Eletech Co., Ltd."

[Ordering Information] See Appendix H "Ordering Information".
