CTBF09TK: DescriptionGeneral Purpose Inductor, 0.0355uH, 10%, 1 Element, Air-Core, SMD, 2312, CHIP, ROHS COMPLIANT; CategoryPassive components inductor; File Size165KB，1 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CTBF09TK Overview

General Purpose Inductor, 0.0355uH, 10%, 1 Element, Air-Core, SMD, 2312, CHIP, ROHS COMPLIANT

CTBF09TK Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	2312
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	2312
structure	Open Wound
core material	AIR
DC Resistance	0.0068 Ω
Nominal inductance(L)	0.0355 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	CTBF
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	3.18 mm
Package length	5.84 mm
Package form	SMT
Package width	3.05 mm
method of packing	TR
Minimum quality factor (at nominal inductance)	112
Maximum rated current	4 A
self resonant frequency	1500 MHz
series	CTB
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	150 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

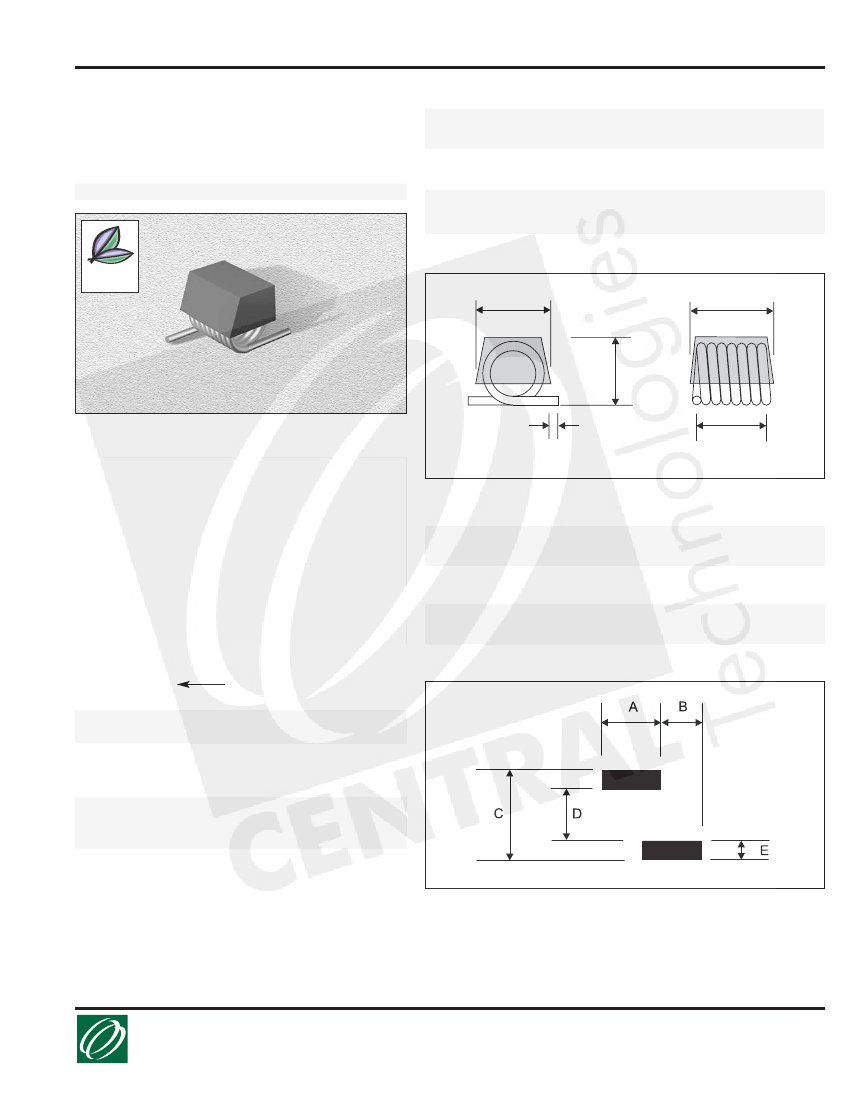

Wire-wound Chip Inductors - Open Wound

ctparts.com

CTAF & CTBF Series

From 2.5 nH to 43 nH

ENGINEERING KIT #13

Not shown at actual size.

PHYSICAL DIMENSIONS

CTA SERIES

Size

mm

inches

A

3.05

0.12

B

3.18

0.125

C

0.58±0.38

0.023±0.015

D

3.68

0.145

E

2.92±0.25

0.115±0.01

CTB SERIES

Size

mm

inches

A

3.05

0.12

B

3.18

0.125

C

0.58±0.38

0.023±0.015

D

6.86

0.270

E

5.84±0.25

0.230±0.01

Compliant

RoHS

A

D

B

C

CHARACTERISTICS

Description:

SMD air core “spring” inductor

Applications:

Designed to operate a wide frequency range

application. Also designed to operate in high Q applications.

Operating Temperature:

-40°C to +85°C

Inductance Tolerance:

±2%, ±5%, ±10%,

Testing:

Inductance is tested on an HP4286A at 150 MHz

Packaging:

Tape & Reel

Tape Size:

12 mm wide CTA series, 16 mm wide CTB series

Miscellaneous:

RoHS Compliant.

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

E

PAD LAYOUT

CTA SERIES

Size

mm

inches

Size

mm

inches

A

3.3

0.13

B

2.79

0.11

C

4.19

0.165

D

1.65

0.065

E

1.27

0.05

CTB SERIES

A

3.3

0.13

B

2.79

0.11

C

7.24

0.285

D

4.7

0.185

E

1.27

0.05

SPECIFICATIONS

Please specify tolerance code when ordering.

CTAF03T_

G = ±2%, J = ±5%, K = ±10%

* = J or K Tolerance only.

#

Of

Turns

1

2

3

4

5

6

7

8

9

10

Q

Fact.

Min.

145

140

137

132

100

102

105

112

106

DCR

Max.

Ω

(mΩ)

1.1

1.8

2.6

3.4

3.9

4.5

5.2

6.0

6.8

7.9

IDC

Max.

(A)

4

Part

Number

CTAF01TK

CTAF02T_*

CTAF03T_

CTAF04T_

CTAF05T_

CTBF06T_

CTBF07T_

CTBF08T_

CTBF09T_

CTBF10T_

Inductance

(nH)

2.5

5.0

8.0

12.5

18.5

17.5

22.0

28.0

35.5

43.0

SRF

(GHz)

12.5

6.5

5.0

3.3

2.5

2.2

2.1

1.8

1.5

1.2

10.11.06

Technologies

Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice
