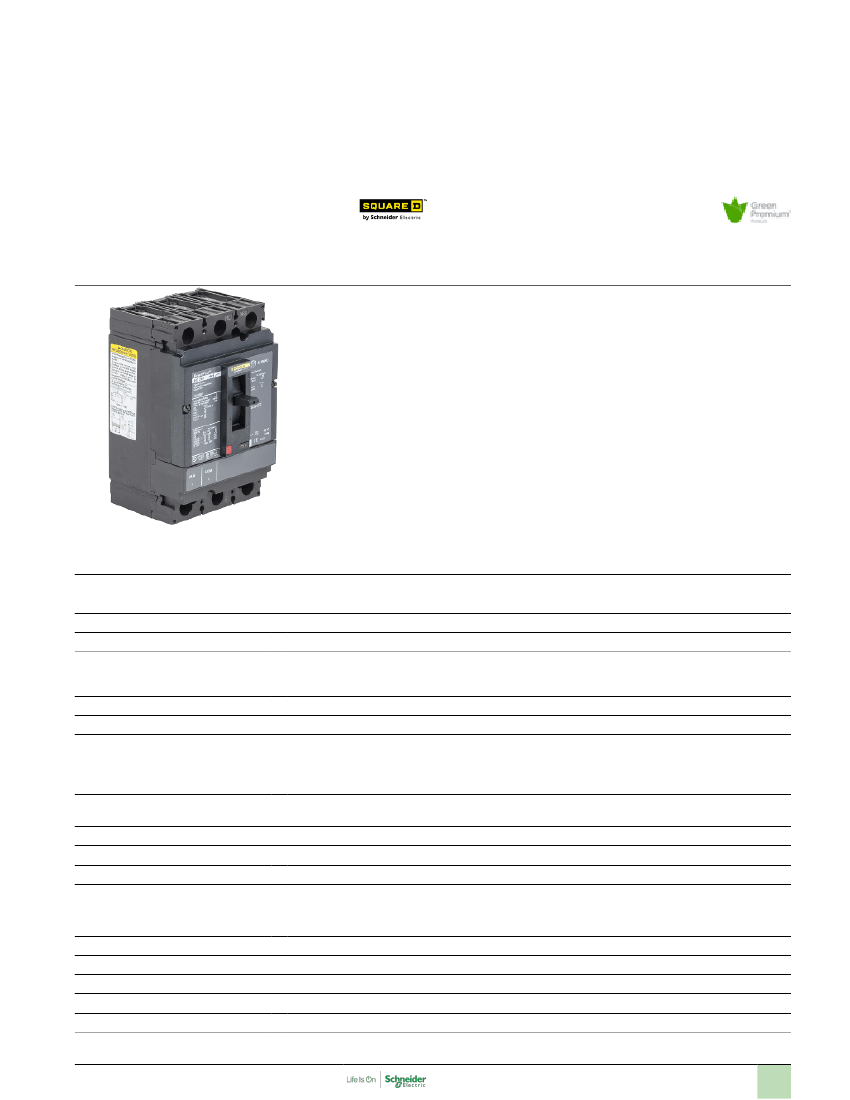

Product data sheet

Characteristics

HDL36015T

PowerPact H Circuit

Breaker,ThermMagn,15A,3P,600V,14kA,

Removable TU

Product availability : Non-Stock - Not normally stocked in distribution facility

Price* : 1,088.00 USD

Main

Product or component type

Range of product

Trip Unit Type

Breaking capacity code

Circuit breaker

PowerPact H

Thermal-magnetic

Complementary

Line Rated Current

Number of Poles

Interrupt Rating

15 A

18 kA at 480 V AC

25 kA at 240 V AC

14 kA at 600 V AC

20 kA at 250 V DC

250 V DC

600 V AC

80 %

Field installable trip unit

Unit mount

Lugs load

Lugs line

AWG 14...AWG 3/0 (aluminium/copper)

350 A

750 A

6.4 in

4.12 in

4.36 in

System Voltage

Continuous current rating

Trip Unit

Mounting mode

Electrical connection

Wire Gauge

Magnetic hold current

Magnetic tripping current

Height

Width

Depth

May 3, 2019
