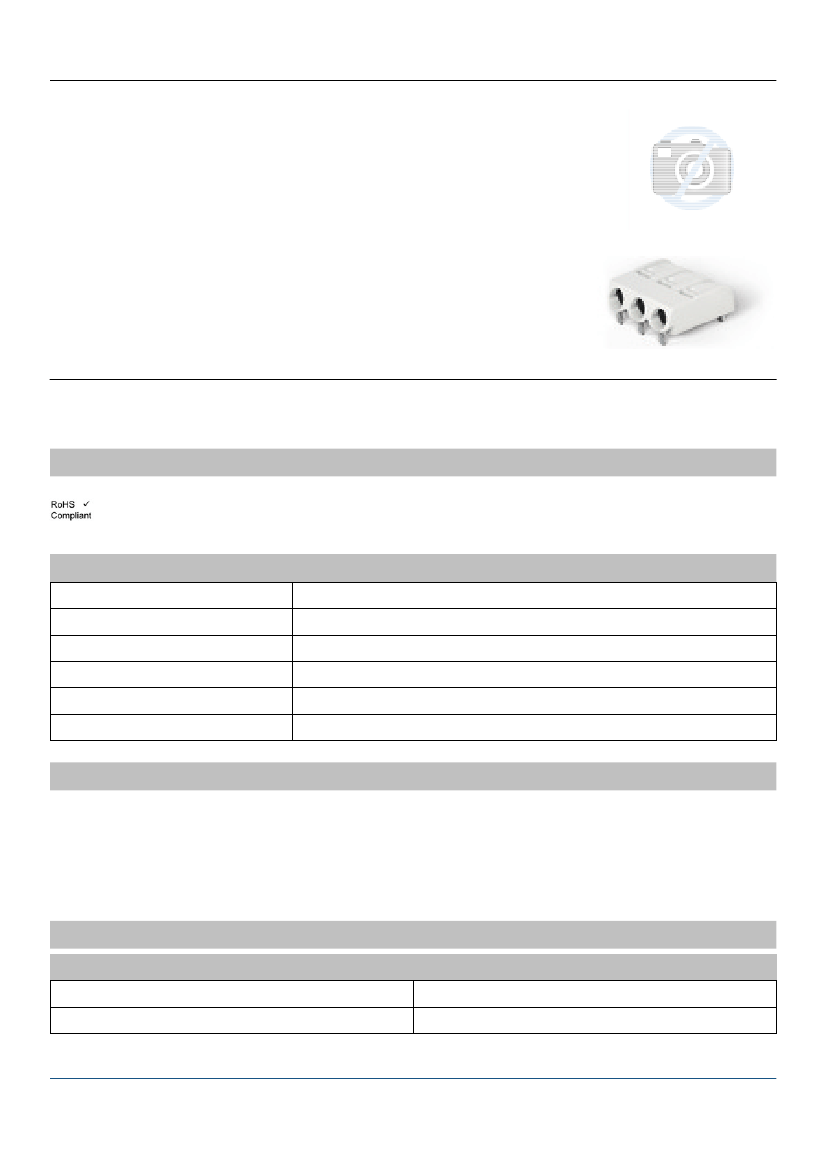

Printview: THR PCB terminal block; Push-button; 1.5 mm²; Pin spacing 6 mm; 3-pole; Push-in CAGE
CLAMP®; in tape-and-reel packaging - Item No.: 2061-1643/998-404
.
THR PCB terminal block; Push-button; 1.5 mm²; Pin spacing 6
mm; 3-pole; Push-in CAGE CLAMP®; in tape-and-reel packaging
Item No.: 2061-1643/998-404
.
THR PCB terminal block; Push-button; 1.5 mm²; Pin spacing 6 mm; 3-pole; Push-in CAGE CLAMP®; in tape-and-
reel packaging
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
2061-1643/998-404
4055143274777
1
320
Item description:THR PCB terminal blocks with Push-in CAGE CLAMP® connection and push-buttonsPush-in
termination of solid and ferruled conductorsPush-buttons simplify insertion/removal of all conductor typesJust 5.6 mm
tallAvailable in tape-and-reel packaging for automated assemblyAlso suitable for wave solderingAssemble terminal
blocks without pole loss
Technical data
Miscellaneous
No. of poles
Pin spacing
3
6 mm (0.24 in)
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: THR PCB terminal block; Push-button; 1.5 mm²; Pin spacing 6 mm; 3-pole; Push-in CAGE
CLAMP®; in tape-and-reel packaging - Item No.: 2061-1643/998-404
Technical data
Total number of connection points
Total number of potentials
Color
Ratings per
Rated voltage (III / 3) [V]
Rated impulse voltage (III / 3) [kV]
Rated voltage (III/2) [V]
Rated impulse voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated impulse voltage (II / 2) [kV]
Rated current [A]
Legend for ratings
Number of connection objects
Number of levels
Connection technology
Number of connection points connector
Actuation type
Solid conductor
Fine-stranded conductor
Fine-stranded conductor with ferrule with plastic collar
3
3
white
IEC/EN 60664-1
250 [V]
4 [kV]
320 [V]
4 [kV]
630 [V]
4 [kV]
17.5 [A]
(III / 2) Overvoltage category III / Pollution degree 2
1
1
Push-in CAGE CLAMP®
1
Operating lever
0.5 … 1.5 mm² / 20 … 16 AWG
0.5 … 1.5 mm² / 20 … 16 AWG
0.5 … 0.75 mm² / …
Fine-stranded conductor with ferrule without plastic collar 0.5 … 0.75 mm² / …
Strip length
Solder pin arrangement
Solder pin length [mm]
Reel diameter of tape-and-reel packaging [mm]
Tape width [mm]
Plated through-hole diameter (THR) [mm]
Material group
Insulating material
Flammability class per UL94
Limit temperature range
Contact material
Contact plating
Weight [g]
7 … 10 mm / 0.28 … 0.39 Inch
in line
1.5 [mm]
330 [mm]
24 [mm]
1.5 (+ 0.1) [mm]
I
Polyphthalamide (PPA GF)
V0
-60 … 105 °C
Copper alloy
tin-plated
2.717 [g]
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: THR PCB terminal block; Push-button; 1.5 mm²; Pin spacing 6 mm; 3-pole; Push-in CAGE
CLAMP®; in tape-and-reel packaging - Item No.: 2061-1643/998-404
Technical data
Width
Height
Height from the surface
Depth
17.7 mm / 0.697 Inch
7.1 mm / 0.28 Inch
5.6 mm / 0.22 Inch
15.2 mm / 0.598 Inch
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: THR PCB terminal block; Push-button; 1.5 mm²; Pin spacing 6 mm; 3-pole; Push-in CAGE
CLAMP®; in tape-and-reel packaging - Item No.: 2061-1643/998-404

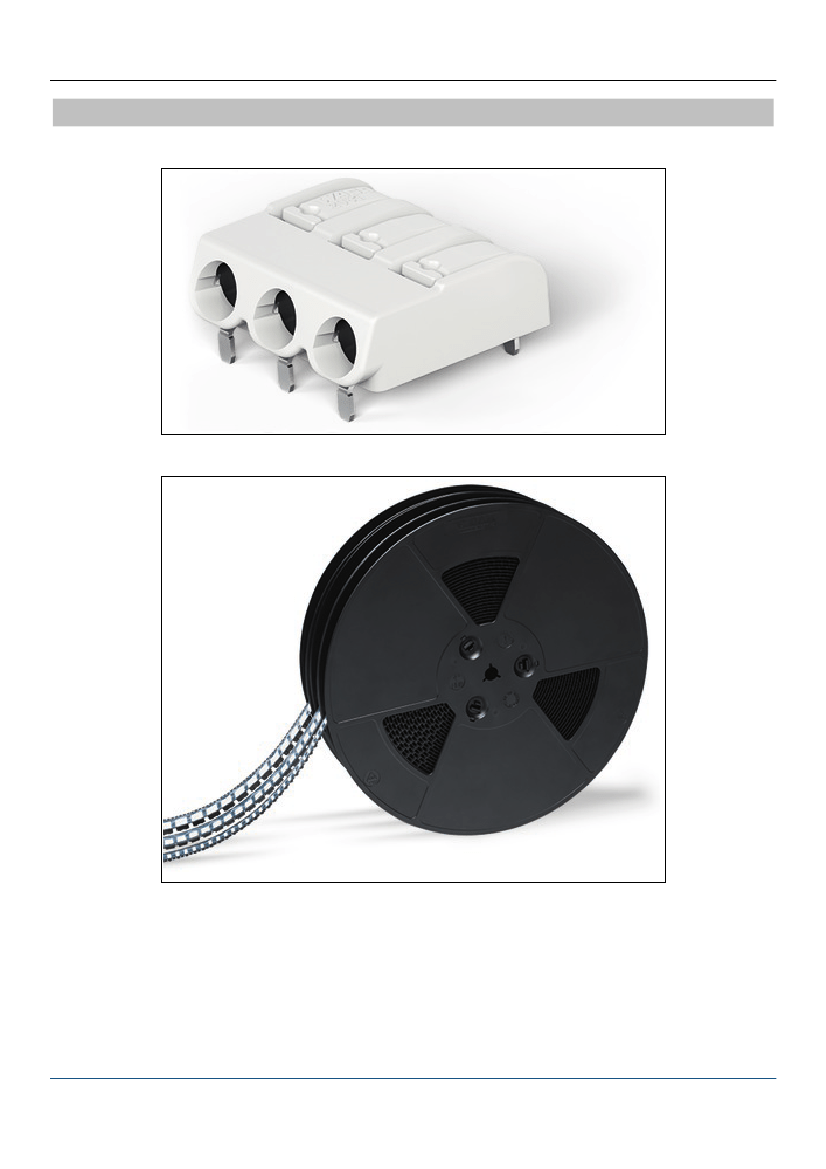

Images & drawings
WAGO Kontakttechnik GmbH & Co. KG
4

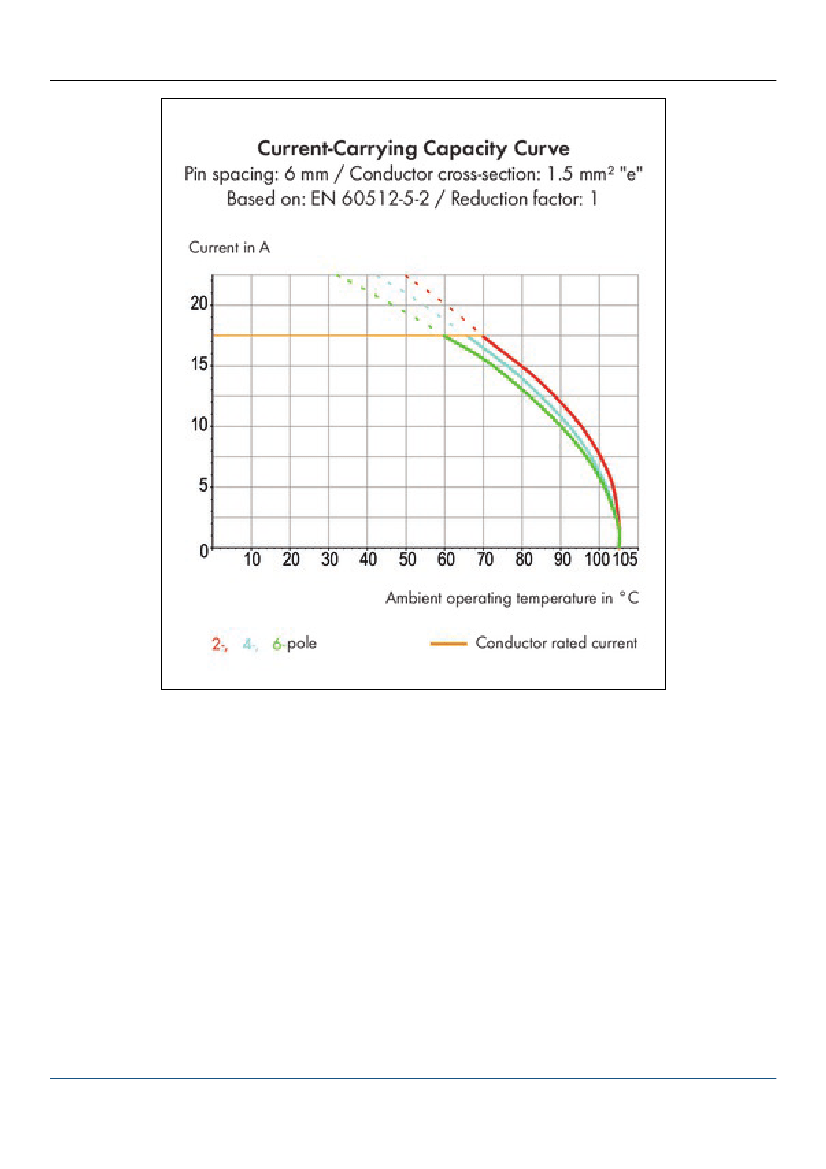

Printview: THR PCB terminal block; Push-button; 1.5 mm²; Pin spacing 6 mm; 3-pole; Push-in CAGE
CLAMP®; in tape-and-reel packaging - Item No.: 2061-1643/998-404
WAGO Kontakttechnik GmbH & Co. KG
5
