74ACT161DCQR datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> 74ACT161DCQR

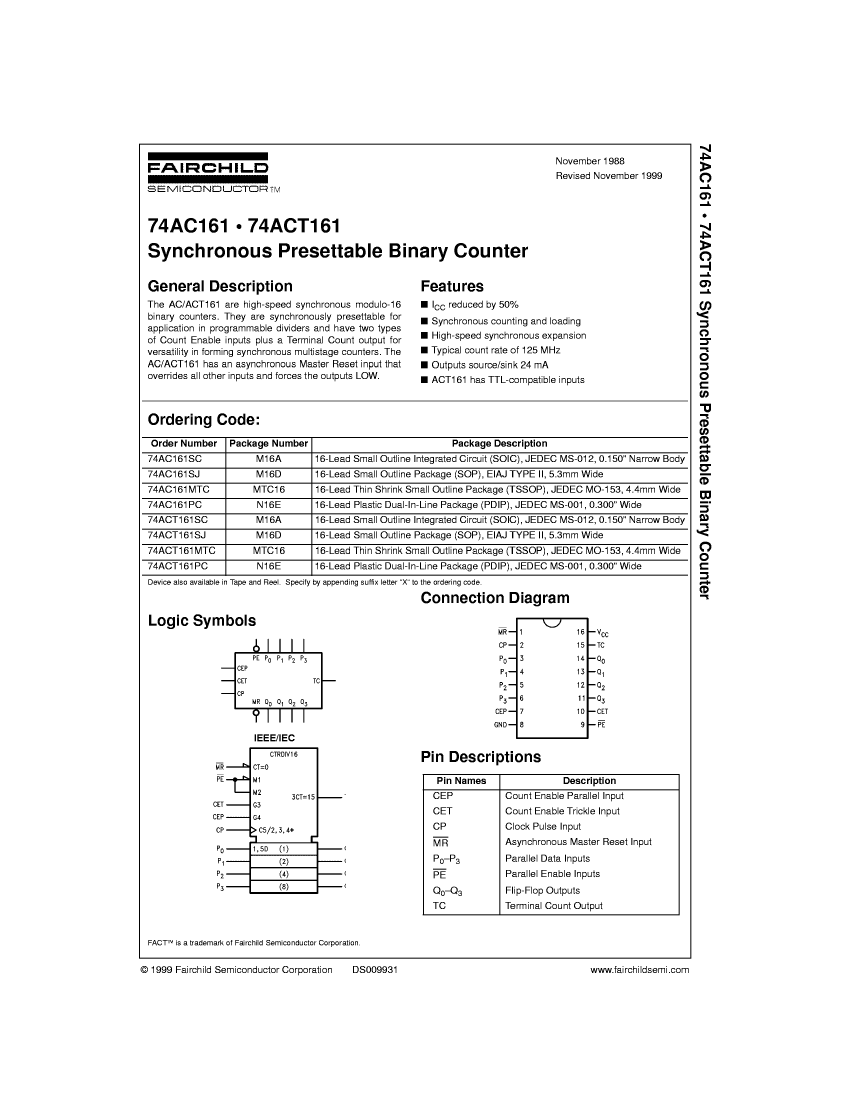

Preview

74ACT161DCQR: DescriptionBinary Counter, ACT Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDIP16, CERAMIC, DIP-16; Categorylogic logic; File Size466KB，11 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

74ACT161DCQR Overview

Binary Counter, ACT Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDIP16, CERAMIC, DIP-16

74ACT161DCQR Parametric

Parameter Name	Attribute value
package instruction	DIP,
Reach Compliance Code	unknown
Other features	TCO OUTPUT
Counting direction	UP
series	ACT
JESD-30 code	R-GDIP-T16
length	19.43 mm
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	11.5 ns
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	125 MHz
Base Number Matches	1

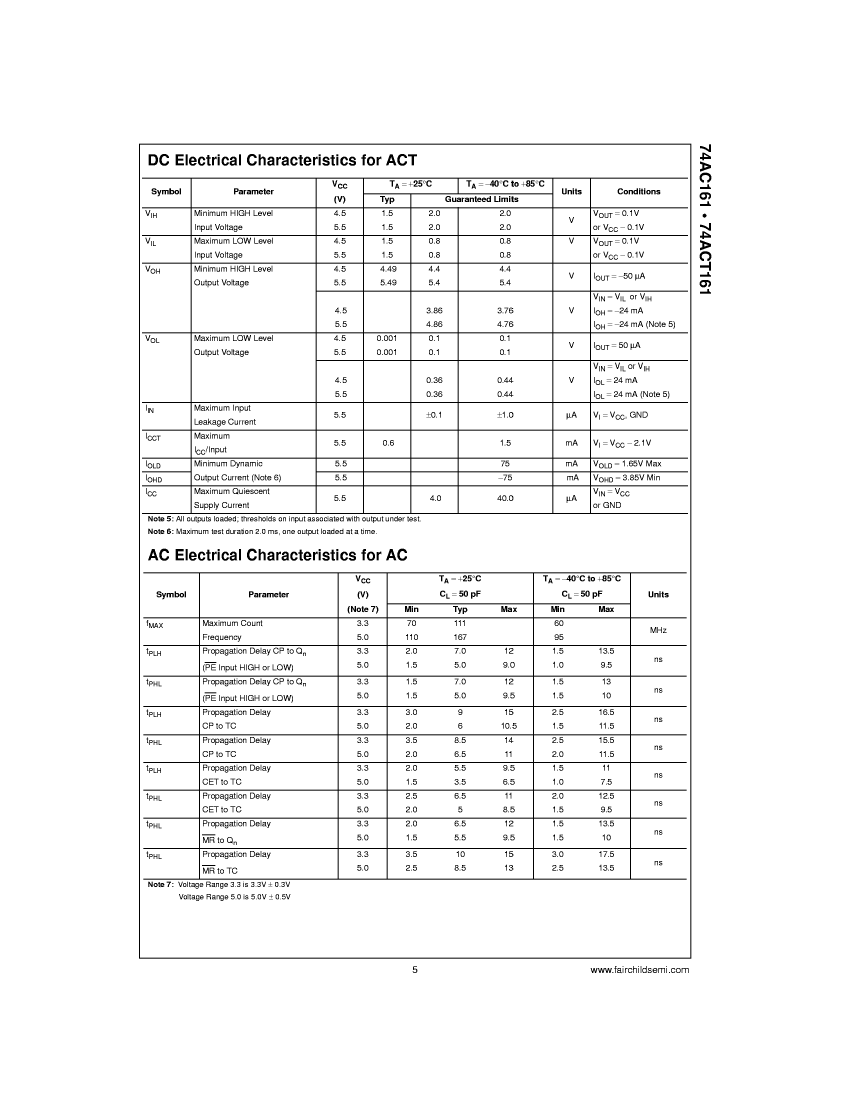

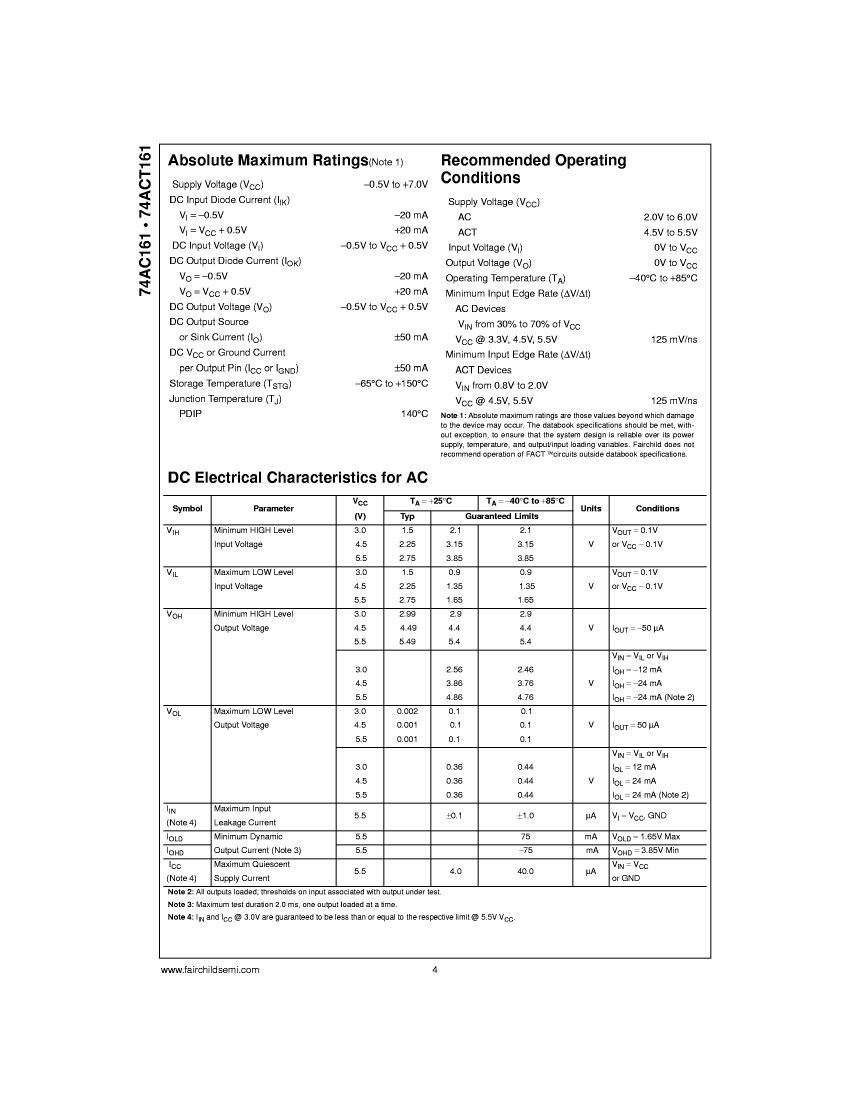

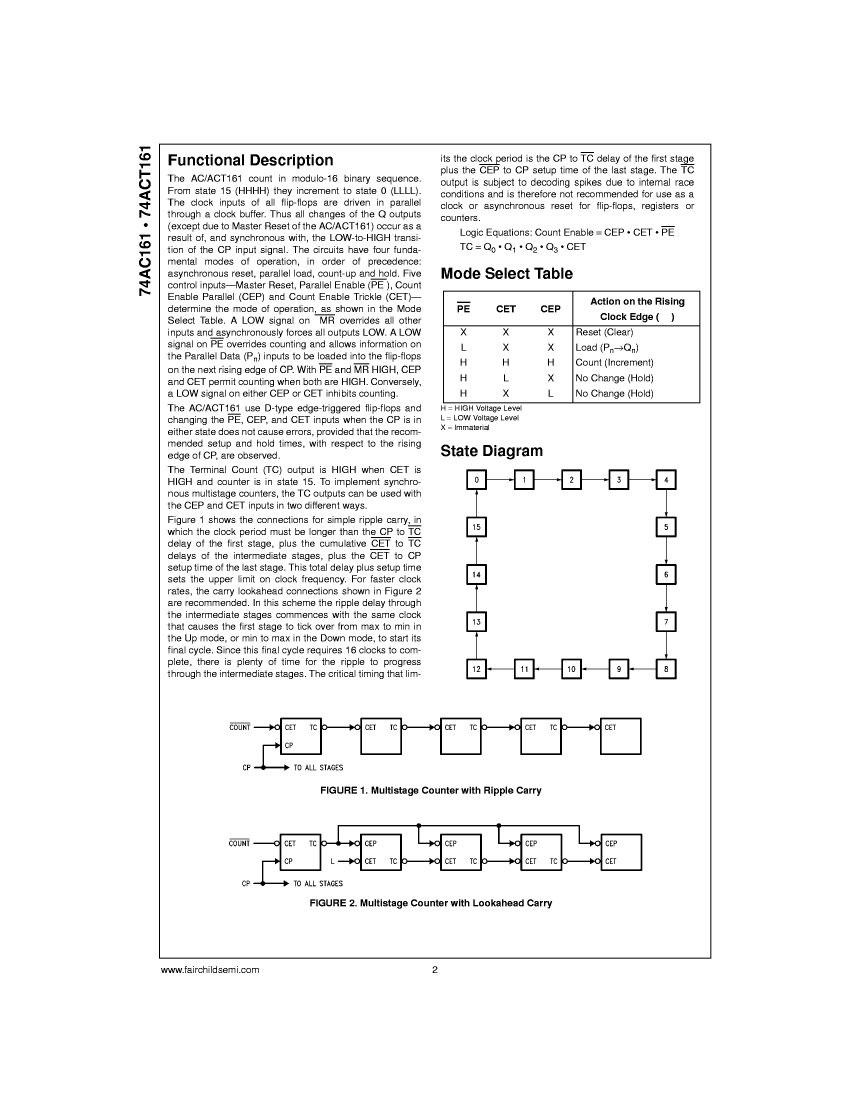

Preview

Download Datasheet

View All

74ACT161DCQR Related Products

	74ACT161DCQR	54ACT161FM	54ACT161LM	74ACT161DC
Description	Binary Counter, ACT Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDIP16, CERAMIC, DIP-16	Binary Counter, ACT Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDFP16, CERPACK-16	Binary Counter, ACT Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CQCC20, CERAMIC, LCC-20	Binary Counter, ACT Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDIP16, CERAMIC, DIP-16
package instruction	DIP,	DFP,	QCCN,	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown
Counting direction	UP	UP	UP	UP
series	ACT	ACT	ACT	ACT
JESD-30 code	R-GDIP-T16	R-CDFP-F16	S-CQCC-N20	R-GDIP-T16
Load/preset input	YES	YES	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of digits	4	4	4	4
Number of functions	1	1	1	1
Number of terminals	16	16	20	16
Maximum operating temperature	85 °C	125 °C	125 °C	85 °C
Minimum operating temperature	-40 °C	-55 °C	-55 °C	-40 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DFP	QCCN	DIP
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	FLATPACK	CHIP CARRIER	IN-LINE
Maximum seat height	5.08 mm	2.159 mm	2.54 mm	5.08 mm
Maximum supply voltage (Vsup)	6 V	6 V	6 V	6 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V	2 V
surface mount	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	MILITARY	INDUSTRIAL
Terminal form	THROUGH-HOLE	FLAT	NO LEAD	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	QUAD	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	7.62 mm	6.731 mm	8.89 mm	7.62 mm
length	19.43 mm	-	8.89 mm	19.43 mm
Base Number Matches	1	1	1	-
