SAT400
AC Input
Optocoupler
DESCRIPTION
The SAT400 consists of a phototransistor optically coupled to a pair of light emitting diodes for AC input operation. Optical coupling
between the input LEDs and output phototransistor allows for high isolation levels while maintaining low-level AC signal control capability.
The SAT400 provides an optically isolated method of controlling many interface applications such as telecommunications, industrial control
and instrumentation circuitry.
FEATURES
High input-to-output isolation package
(5000 Vrms)
Low input power consumption
High stability
AC/DC input control
Miniature 4 pin DIP package
APPLICATIONS
Registers, copiers, Automatic Vending Machines
System appliances, measuring instruments
Computer terminals, PLCs
Telecommunications, telephones
Home Appliances
Digital logic inputs
Microprocessor inputs
Switching power supply, laser beam printers, etc.
OPTIONS/SUFFIXES
-S
-TR
Surface Mount Option
Tape and Reel Option
MAXIMUM RATINGS
PARAMETER
Storage Temperature
Operating Temperature
4
Collector
UNIT
°C
°C
mA
A
V
mW
MIN
-55
-40
TYP
MAX
125
100
±60
±1
6
200
SCHEMATIC DIAGRAM
1
+/- Input
Input Forward Current
Input Peak Forward
Current
2
-/+ Input
3
Emitter
Reverse Input Control
Voltage
Total
Power Dissipation
APPROVALS
UL and C-UL Approved
File#E201932
rev 1.0
Solid State Optronics, Inc.
1.888.377.4776
www.ssousa.com
SAT400
AC Input
Optocoupler
ELECTRICAL CHARACTERISTICS - 25°
PARAMETER
INPUT SPECIFICATIONS
LED Forward Voltage
Peak Forward
Voltage
V
V
1.2
1.4
3
If =
±20mA
Ifm=±0.5A
UNIT
MIN
TYP
MAX
TEST CONDITIONS
OUTPUT SPECIFICATIONS
Collector-Emitter Breakdown Voltage
Emitter-Collector Breakdown Voltage
Dark Current
Floating Capacitance
Saturation Voltage
Current Transfer Ratio
Rise Time
Fall Time
V
V
A
pF
V
%
s
s
60
5
4
0.6
0.1
60
6
0.1
1
0.3
600
Ic = 1uA
Ie = 1uA
Vce = 20V
V= 0V, f=1.0MHz
If =±20mA, Ic = 1mA
If =
±1mA,
Vce = 5V
Ic = 2mA, Vce =
2V,
Rc = 100 ohms
Ic = 2mA, Vce =
2V,
Rc = 100 ohms
COUPLED SPECIFICATIONS
Isolation Voltage
Isolation Resistance
V
G
5000
50
T = 1 minute
CTR CLASSIFICATION
A:
B:
%
%
60
60
600
300
rev 1.0
Solid State Optronics, Inc.
1.888.377.4776
www.ssousa.com
SAT400

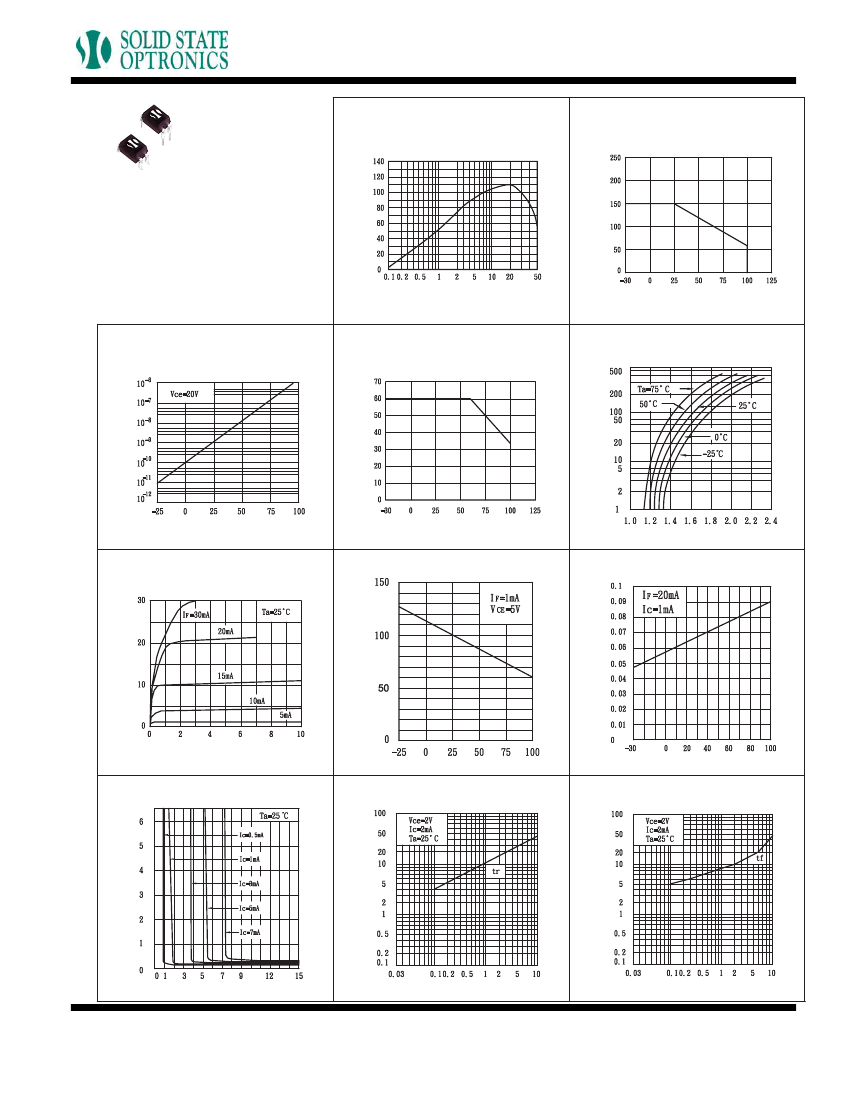

Fig.1
Current Transfer Ratio vs.
Forward Current
Collector Power Dissipation Pc (mW)
Forward Current I
F
(mA)
Fig.2
Collector Power Dissipation vs.
Ambient Temperature
Current transfer ratio CTR (%)
Ambient Temperature Ta (°C)
Fig.3
Collector Dark Current vs.
Ambient Temperature
Fig.4
Forward Current vs. Ambient
Temperature
Fig.5
Forward Current vs. Forward
Voltage
Collector Dark Current Iceo (A)
Forward Current I
F
(mA)
Ambient Temperature Ta (°C)
Ambient Temperature Ta (°C)
Forward Current I
F
(mA)
Forward Voltage V
F
(V)
Fig.6
Collector Current vs. Collector-
emitter Voltage
Fig.7
Relative Current Transfer Ratio
vs. Ambient Temperature
Collector-emitter Saturation Voltage Vce (V)
Ambient Temperature Ta (°C)
Fig.8
Collector-emitter Saturation
Voltage vs. Ambient Temperature
Collector-emitter Voltage V
CE
(V)
Relative Current Transfer Ratio (%)
Collector Current Ic (mA)
Ambient Temperature Ta (°C)
Fig.9
Collector-emitter Saturation
Voltage vs. Forward Current
Collector-emitter Saturation Voltage Vce (V)
Fig.10
Response Time vs. Load
Resistance
Fig.11
Response Time vs. Load
Resistance
Forward Current I
F
(mA)
Response Rise Time (us)
Load Resistance R
L
(K ohm)
Response Rise Time (us)
Load Resistance R
L
(K ohm)
rev 1.0
Solid State Optronics, Inc.
1.888.377.4776
www.ssousa.com
SAT400
AC Input
Optocoupler

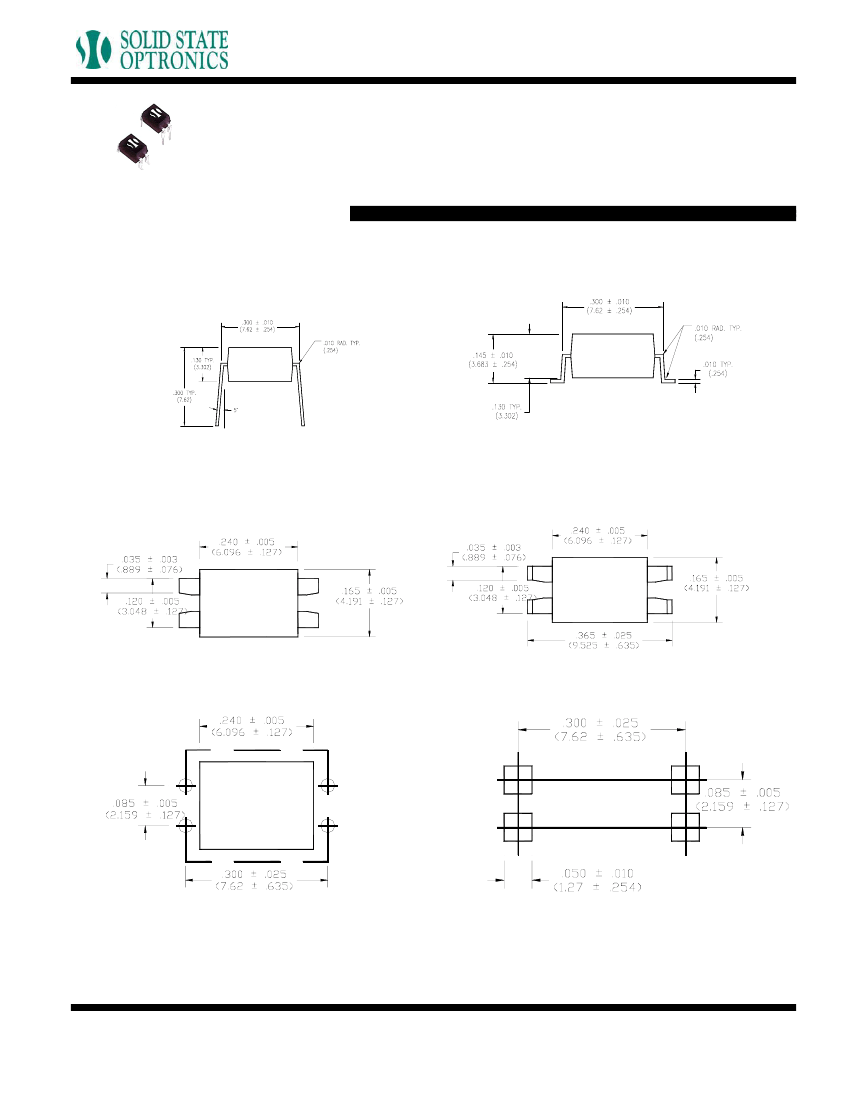

MECHANICAL DIMENSIONS
4 PIN DUAL IN-LINE PACKAGE
4 PIN SURFACE MOUNT DEVICE
END VIEW
END VIEW
TOP VIEW
TOP VIEW
BOTTOM VIEW
BOTTOM VIEW
rev 1.0
Solid State Optronics, Inc.
1.888.377.4776
www.ssousa.com
