NJU7311M-(T2) datasheet, PDF - EEWORLD Datasheet

NJU7311M-(T2): DescriptionAudio/Video Switch, 6 Func, 1 Channel, CMOS, PDSO30, MINI, GULLWING, PLASTIC, DIP-30; CategoryAnalog mixed-signal IC The signal circuit; File Size103KB，4 Pages; ManufacturerNew Japan Radio Co., Ltd..

Download Datasheet Parametric Compare View All

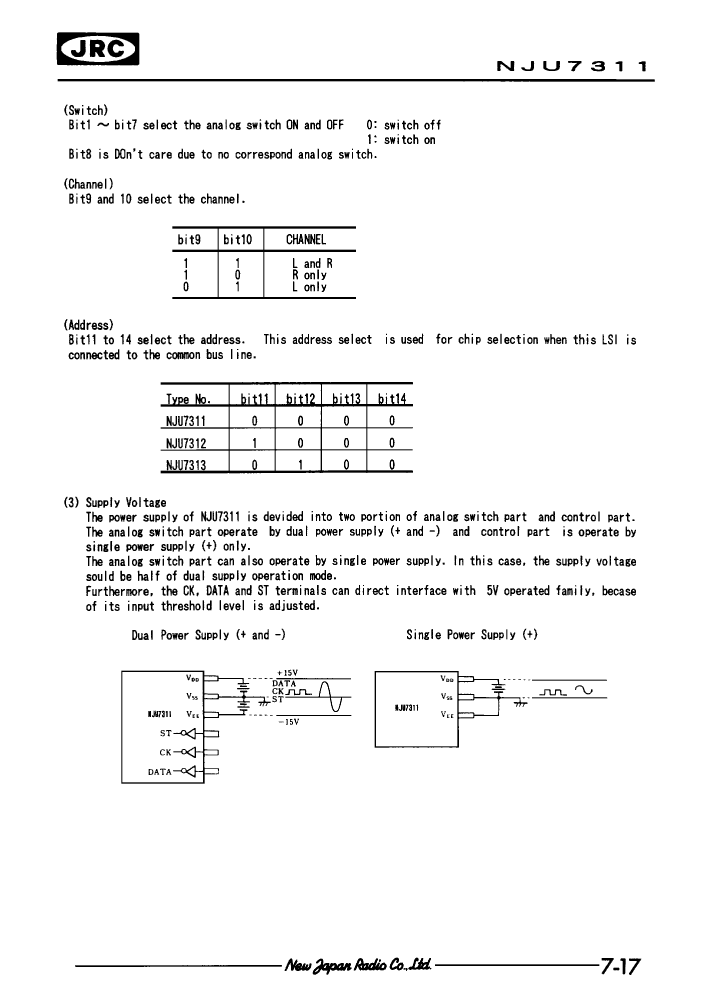

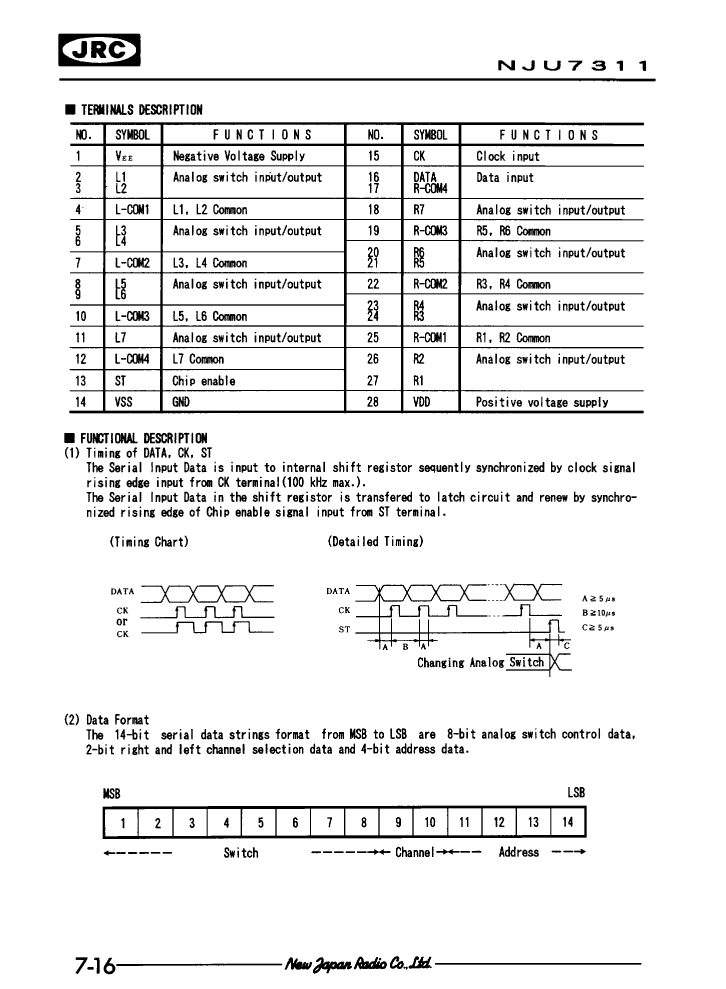

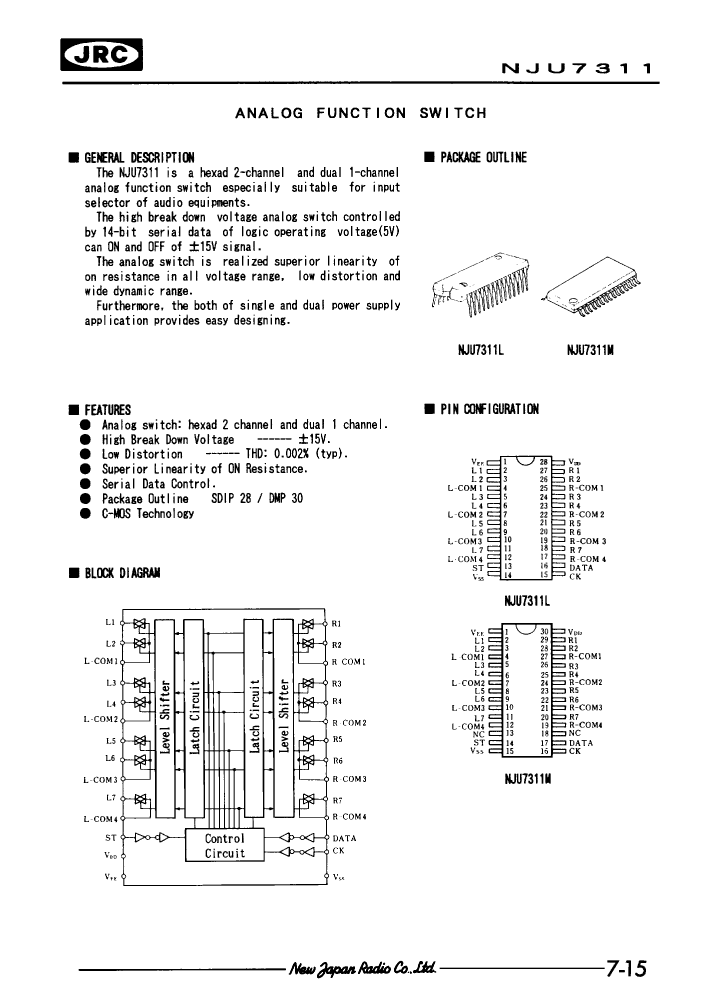

NJU7311M-(T2) Overview

Audio/Video Switch, 6 Func, 1 Channel, CMOS, PDSO30, MINI, GULLWING, PLASTIC, DIP-30

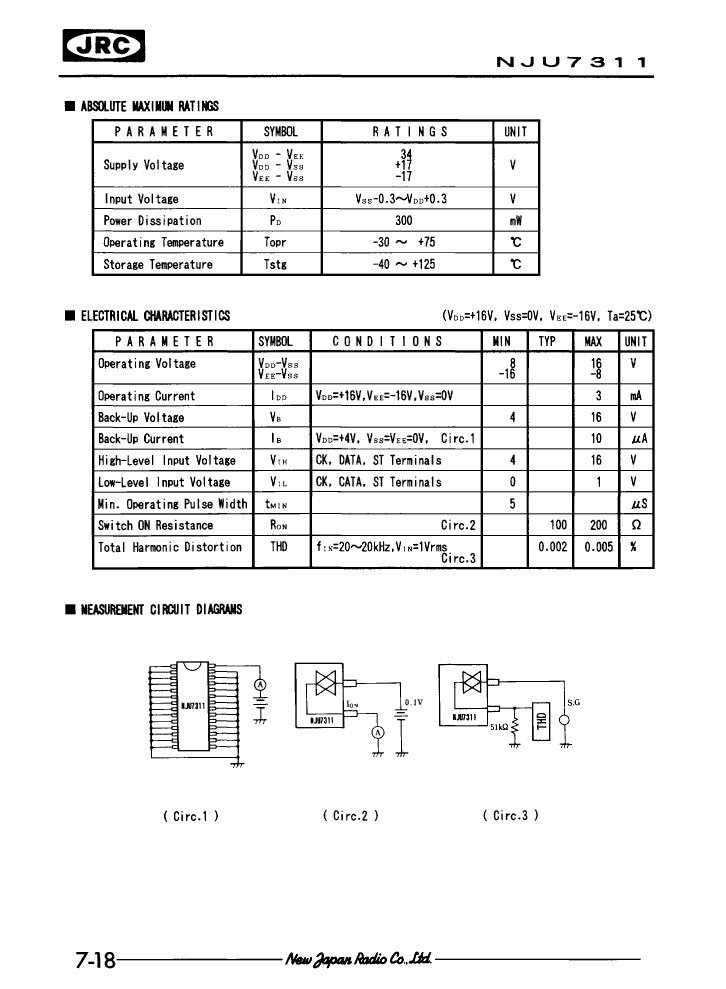

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	SSOP,
Contacts	30
Reach Compliance Code	unknown
Other features	ADDITIONAL DUAL 1-CHANNEL SWITCH
Analog Integrated Circuits - Other Types	AUDIO/VIDEO SWITCH
JESD-30 code	R-PDSO-G30
length	15.4 mm
Nominal Negative Supply Voltage (Vsup)	-16 V
Number of channels	1
Number of functions	6
Number of terminals	30
Maximum on-state resistance (Ron)	200 Ω
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	2.7 mm
Maximum supply current (Isup)	3 mA
Nominal supply voltage (Vsup)	16 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	1 mm
Terminal location	DUAL
width	7.5 mm
Base Number Matches	1

	NJU7311M-(T2)	NJU7311M-(T1)
Description	Audio/Video Switch, 6 Func, 1 Channel, CMOS, PDSO30, MINI, GULLWING, PLASTIC, DIP-30	Audio/Video Switch, 6 Func, 1 Channel, CMOS, PDSO30, MINI, GULLWING, PLASTIC, DIP-30
Parts packaging code	SOIC	SOIC
package instruction	SSOP,	SSOP,
Contacts	30	30
Reach Compliance Code	unknown	unknown
Other features	ADDITIONAL DUAL 1-CHANNEL SWITCH	ADDITIONAL DUAL 1-CHANNEL SWITCH
Analog Integrated Circuits - Other Types	AUDIO/VIDEO SWITCH	AUDIO/VIDEO SWITCH
JESD-30 code	R-PDSO-G30	R-PDSO-G30
length	15.4 mm	15.4 mm
Nominal Negative Supply Voltage (Vsup)	-16 V	-16 V
Number of channels	1	1
Number of functions	6	6
Number of terminals	30	30
Maximum on-state resistance (Ron)	200 Ω	200 Ω
Maximum operating temperature	75 °C	75 °C
Minimum operating temperature	-30 °C	-30 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.7 mm	2.7 mm
Maximum supply current (Isup)	3 mA	3 mA
Nominal supply voltage (Vsup)	16 V	16 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	GULL WING
Terminal pitch	1 mm	1 mm
Terminal location	DUAL	DUAL
width	7.5 mm	7.5 mm
Base Number Matches	1	1
