178071133003515 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 178071133003515

Preview

178071133003515: DescriptionBoard Connector, 95 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal,; CategoryThe connector The connector; File Size85KB，2 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

178071133003515 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	178071133003515	-	-	View	Buy Now

178071133003515 Overview

Board Connector, 95 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal,

178071133003515 Parametric

Parameter Name	Attribute value
Objectid	1489255700
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.6
Other features	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	95
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

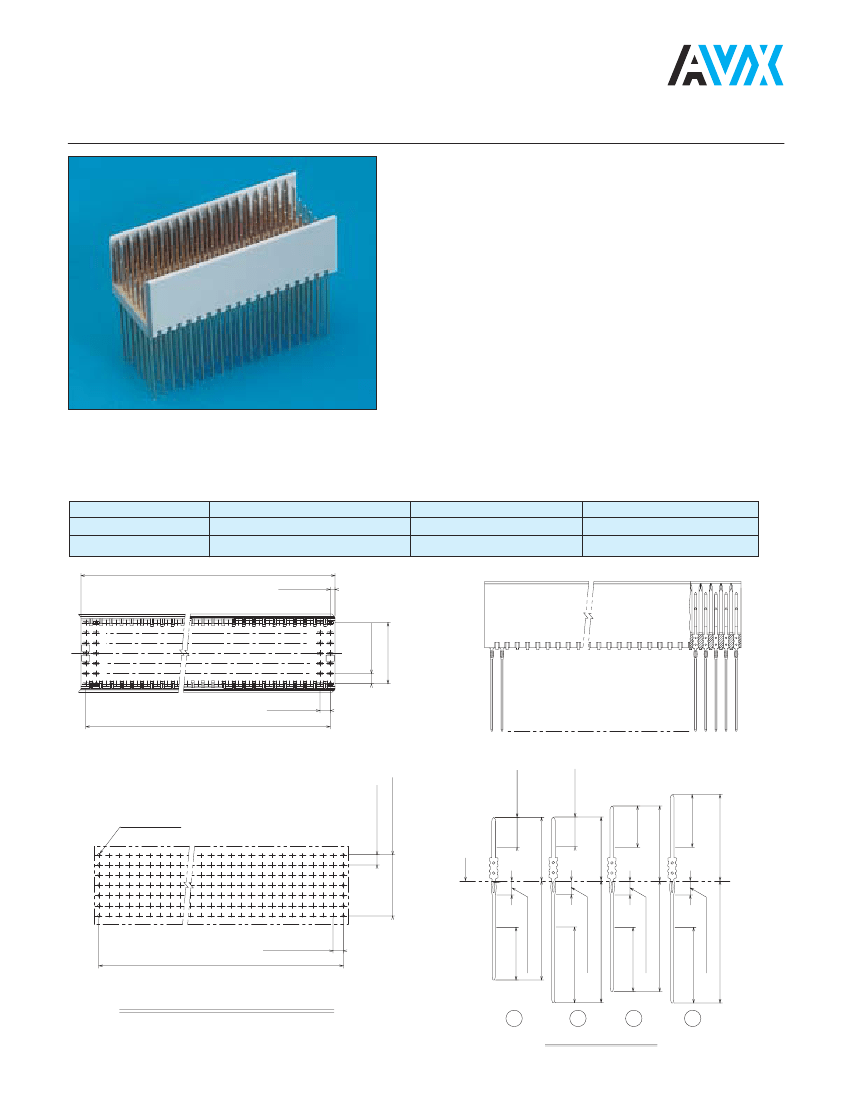

P3 Type B Vertical Male Feed-Thru

for Backplanes

Series 8071

• 95 signal contacts and 38 ground shield contacts in 5+2 rows

of 19 positions

• Designed for gas tight press-fit installation

• Fills position P3 of the CompactPCI specification

• Twelve different contact styles are available for customizing

connector to exact specifications (see page 65)

• See page 50 for rear shroud part numbers

17 8071 133 003 XXX

= P3 95 signal contacts and 38 ground contacts, Long Tail, L2,3 cPCI

17 8071 133 004 XXX

= P3 95 signal contacts and 38 ground contacts, Long Tail, L1,3 cPCI

17 8071 133 015 XXX

= P3 95 signal contacts and 38 ground contacts, Long Tail, L1,3 cPCI

XXX =

Plating Code

515

517

37.9

0.95

MAX.

Contact Area

0.1µm min. Au.65µm Pd/Ni

0.76µm min. Au

Press-fit Area

1.5-3.0µm Solder

Under Coat

Nickel 1.2-3.0µm

z

a

b

c

d

e

f

1

TYP.

8N21XX

19

36.0

2.0

TYP.

2X6=12.0

2.0

±0.1

TYP.

2X6=12.0

±0.1

CONTACT

AREA

CONTACT

AREA

P.C.B.

+0.2

0

+0.2

0

z

a

b

c

d

e

8.3

PRESS FIT AREA

8.3

PRESS FIT AREA

9.8

13.0

f

CONTACT

AREA

PRESS FIT AREA

16.0

14.5

CONTACT

AREA

CONTACT

AREA

36.0

±0.1

RECOMMENDED P.C. BOARD LAYOUT

(COMPONENT SIDE)

M

W

P

T

30

ELCO

CONTACT DETAIL

CONTACT

AREA

2.0

±0.1

TYP.

16.0

11.3

19

1

+0.2

0

+0.2

0

133-

f

0.6

±0.05

CONTACT

AREA

CONTACT

AREA

X X

2.0

1

178071133003515 Related Products

	178071133003515	178071133003517	178071133004517	178071133015517	178071133004515	178071133015515
Description	Board Connector, 95 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal,	Board Connector, 95 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal,	Board Connector, 95 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal,	Board Connector, 95 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal,	Board Connector, 95 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal,	Board Connector, 95 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal,
Reach Compliance Code	compliant	compliant	compliant	compliant	compli	compliant
Other features	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	95	95	95	95	95	95
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Objectid	1489255700	1936380901	1936380902	1936380903	-	1489255706
ECCN code	EAR99	EAR99	EAR99	EAR99	-	EAR99
YTEOL	8.6	8.6	8.6	8.6	-	8.6
Manufacturer's serial number	-	8071	8071	8071	8071	8071
