LT1399IS#TR: DescriptionBasic information of LT1399IS#TR amplifier: LT1399IS#TR is an OPERATIONAL AMPLIFIER from Linear Technology. The commonly used packaging method is SOP, LT1399IS#TR amplifier core information: The minimum operating temperature of the LT1399IS#TR is -40 °C and the maximum operating temperature is 85 °C. Its peak reflow temperature is 235 How to simply check the efficiency of an amplifier? Looking at its slew rate, the LT1399IS#TR has a nominal slew rate of 800 V/us. The nominal supply voltage of the LT1399IS#TR is 5 V, and its corresponding nominal negative supply voltage is -5 V. The input offset voltage of LT1399IS#TR is 12000 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).) Related dimensions of LT1399IS#TR: The width of LT1399IS#TR is: 3.9 mm and the length is 9.9 mm. LT1399IS#TR has 16 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 16 LT1399IS#TR amplifier additional information: Its temperature grade is: INDUSTRIAL. And its humidity sensitivity level is: 1. LT1399IS#TR is not Rohs certified. The corresponding JESD-30 code is: R-PDSO-G16. The corresponding JESD-609 code is: e0. The packaging code of LT1399IS#TR is: SOP. The materials of LT1399IS#TR package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The LT1399IS#TR package pin formats are: SMALL OUTLINE. Its terminal forms are: GULL WING. The maximum seat height is 1.75 mm.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size423KB，16 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html; Alternative parts：LT1399IS#TR

Download Datasheet Parametric View All

LT1399IS#TR Overview

Basic information of LT1399IS#TR amplifier:

LT1399IS#TR is an OPERATIONAL AMPLIFIER from Linear Technology. The commonly used packaging method is SOP,

LT1399IS#TR amplifier core information:

The minimum operating temperature of the LT1399IS#TR is -40 °C and the maximum operating temperature is 85 °C. Its peak reflow temperature is 235

How to simply check the efficiency of an amplifier? Looking at its slew rate, the LT1399IS#TR has a nominal slew rate of 800 V/us.

The nominal supply voltage of the LT1399IS#TR is 5 V, and its corresponding nominal negative supply voltage is -5 V. The input offset voltage of LT1399IS#TR is 12000 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).)

Related dimensions of LT1399IS#TR:

The width of LT1399IS#TR is: 3.9 mm and the length is 9.9 mm. LT1399IS#TR has 16 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 16

LT1399IS#TR amplifier additional information:

Its temperature grade is: INDUSTRIAL. And its humidity sensitivity level is: 1. LT1399IS#TR is not Rohs certified. The corresponding JESD-30 code is: R-PDSO-G16. The corresponding JESD-609 code is: e0.

The packaging code of LT1399IS#TR is: SOP. The materials of LT1399IS#TR package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The LT1399IS#TR package pin formats are: SMALL OUTLINE. Its terminal forms are: GULL WING.

The maximum seat height is 1.75 mm.

LT1399IS#TR Parametric

Parameter Name	Attribute value
Brand Name	Linear Technology
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Manufacturer packaging code	S
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Nominal Common Mode Rejection Ratio	52 dB
Maximum input offset voltage	12000 µV
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	9.9 mm
Humidity sensitivity level	1
Negative supply voltage upper limit	-6.3 V
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of functions	3
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	235
Certification status	Not Qualified
Maximum seat height	1.75 mm
Nominal slew rate	800 V/us
Supply voltage upper limit	6.3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	20
width	3.9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

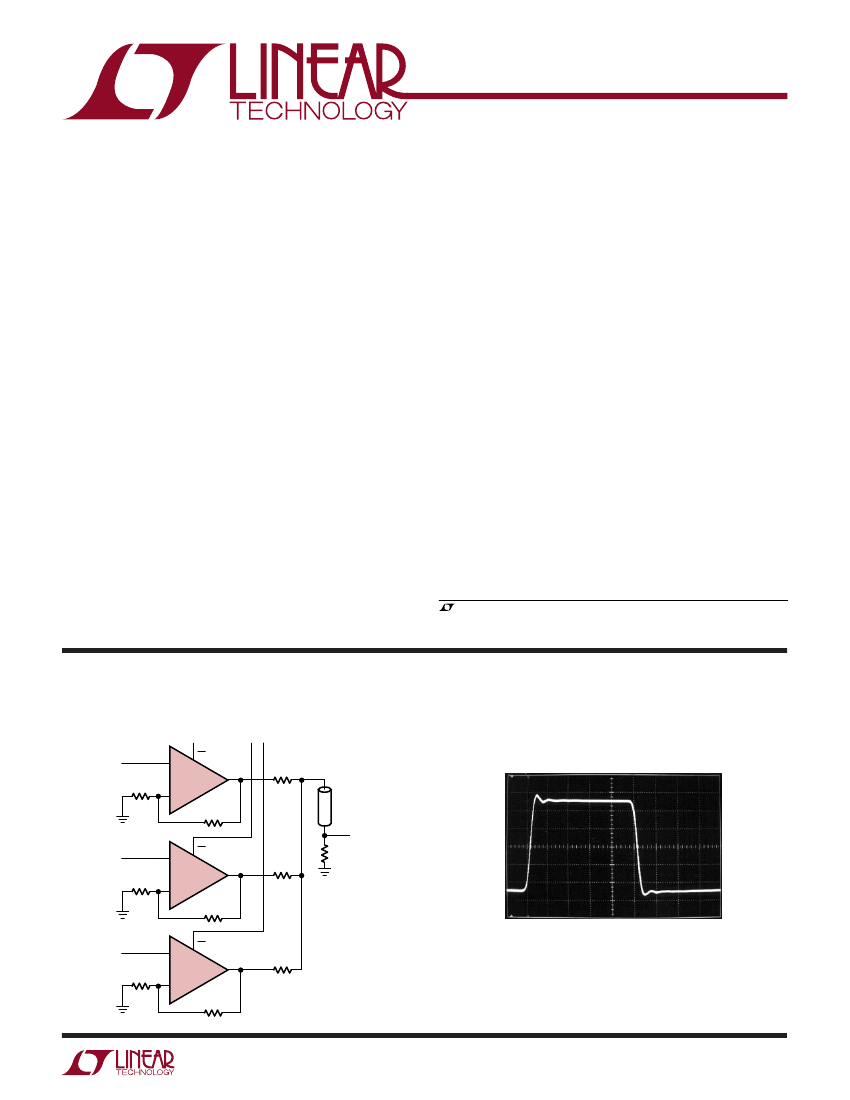

LT1398/LT1399/LT1399HV

Low Cost Dual and Triple

300MHz Current Feedback

Amplifiers with Shutdown

FEATURES

DESCRIPTIO

300MHz Bandwidth on

5V (A

= 1, 2 and –1)

0.1dB Gain Flatness: 150MHz (A

= 1, 2 and –1)

Completely Off in Shutdown, 0µA Supply Current

High Slew Rate: 800V/µs

Wide Supply Range:

±2V(4V)

±6V(12V)

(LT1398/LT1399)

±2V

(4V) to

±7.5V

(15V) (LT1399HV)

80mA Output Current

Low Supply Current: 4.6mA/Amplifier

Fast Turn-On Time: 30ns

Fast Turn-Off Time: 40ns

16-Pin Narrow SO/Narrow SSOP Packages

The LT

1399 and LT1399HV contain three independent

300MHz current feedback amplifiers, each with a shut-

down pin. The LT1399HV is a higher voltage version of the

LT1399. The LT1398 is a two amplifier version of the

LT1399.

The LT1398/LT1399 operate on all supplies from a single

4V to

±6V.

The LT1399HV operates on all supplies from 4V

±7.5V.

Each amplifier draws 4.6mA when active. When disabled

each amplifier draws zero supply current and its output be-

comes high impedance. The amplifiers turn on in only 30ns

and turn off in 40ns, making them ideal in spread spectrum

and portable equipment applications.

The LT1398/LT1399/LT1399HV are manufactured on Lin-

ear Technology’s proprietary complementary bipolar pro-

cess. The LT1399/LT1399HV are pin-for-pin upgrades to

the LT1260 optimized for use on

±5V/±7.5V

supplies.

, LTC and LT are registered trademarks of Linear Technology Corporation.

APPLICATIO S

RGB Cable Drivers

LCD Drivers

Spread Spectrum Amplifiers

MUX Amplifiers

Composite Video Cable Drivers

Portable Equipment

TYPICAL APPLICATIO

IN A

200Ω

CHANNEL

SELECT

EN A

B C

3-Input Video MUX Cable Driver

Square Wave Response

97.6Ω

–

1/3 LT1399

324Ω

75Ω

CABLE

OUT

IN B

200Ω

–

EN B

97.6Ω

75Ω

OUTPUT

200mV/DIV

1/3 LT1399

324Ω

IN C

200Ω

–

EN C

97.6Ω

1399 TA01

= 100Ω

= R

= 324Ω

f = 10MHz

1/3 LT1399

324Ω

TIME (10ns/DIV)

1398/99 TA02

sn13989 13989fas
