LPE504710000UH30%A datasheet, PDF

Datasheet> All Categories > Passive components> inductor> LPE504710000UH30%A

LPE504710000UH30%A: DescriptionGeneral Fixed Inductor, 1 ELEMENT, 10000 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size64KB，2 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

LPE504710000UH30%A Overview

General Fixed Inductor, 1 ELEMENT, 10000 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD

LPE504710000UH30%A Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
core material	FERRITE
DC Resistance	3.27 Ω
Nominal inductance(L)	10000 µH
Inductor Applications	FILTER CHOKE
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e2
Number of functions	1
Number of terminals	10
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Maximum rated current	0.19 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	TIN COPPER
Terminal location	DUAL IN-LINE
Terminal shape	GULL WING
Test frequency	0.01 MHz
Tolerance	30%
Base Number Matches	1

Preview

Download Datasheet

View All

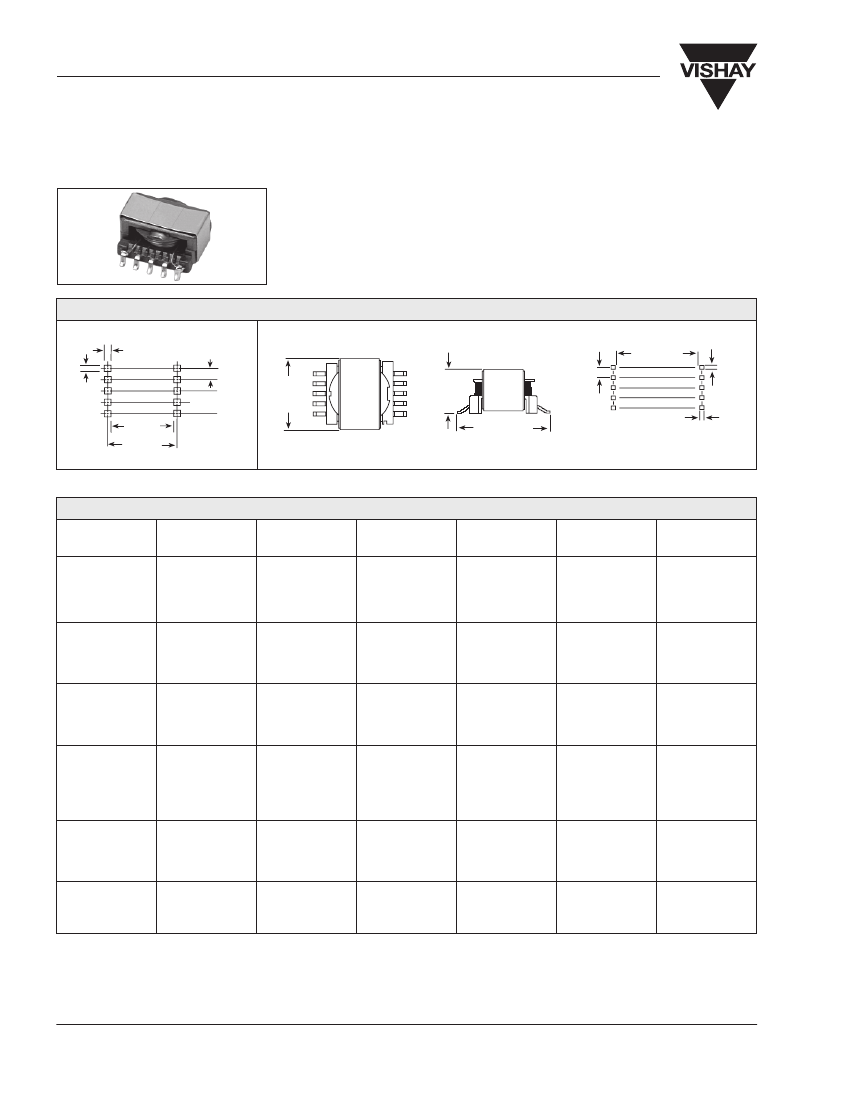

Model LPE-5047

Vishay Dale

Transformers/Inductors

Surface Mount, Gapped and Ungapped

Custom Configurations Available

ELECTRICAL SPECIFICATIONS

(Multiple winds are connected in parallel)

Inductance Range:

10µH to 68000µH, measured at 0.10V RMS @ 10kHz

without DC current, using an HP 4263A or HP 4284A impedance analyzer.

DC Resistance Range:

0.03 ohm to 24.1 ohm, measured at + 25°C

5°C.

Operating Temperature:

- 20°C to + 80°C.

Rated Current Range:

2.29 amps to .07 amps.

Dielectric Withstanding Voltage:

500V RMS, 60Hz, 5 seconds.

DIMENSIONAL CONFIGURATIONS

[Numbers in brackets indicate millimeters]

Pad Layout

0.045 [1.14] Pad Dimensions

Typical, 10 places

0.079 [2.01]

0.045

[1.14]

0.414

[10.52]

0.459

[11.66]

Reference Only

Typical 4

places

.472

[11.99]

Max.

.248

[6.30]

Max.

.525 [13.34]

Max.

.028

[.71]

Foot print Diagram

.079

[2.01]

Typ.

Dimensional Outline

.437 [11.10]

.028

[.71]

NOTE:

Pad layout guidelines per MIL-STD-275E (printed wiring for electronic equipment). Tolerances: xx

.01" [± 0.25mm]. xxx

.005" [± 0.12mm].

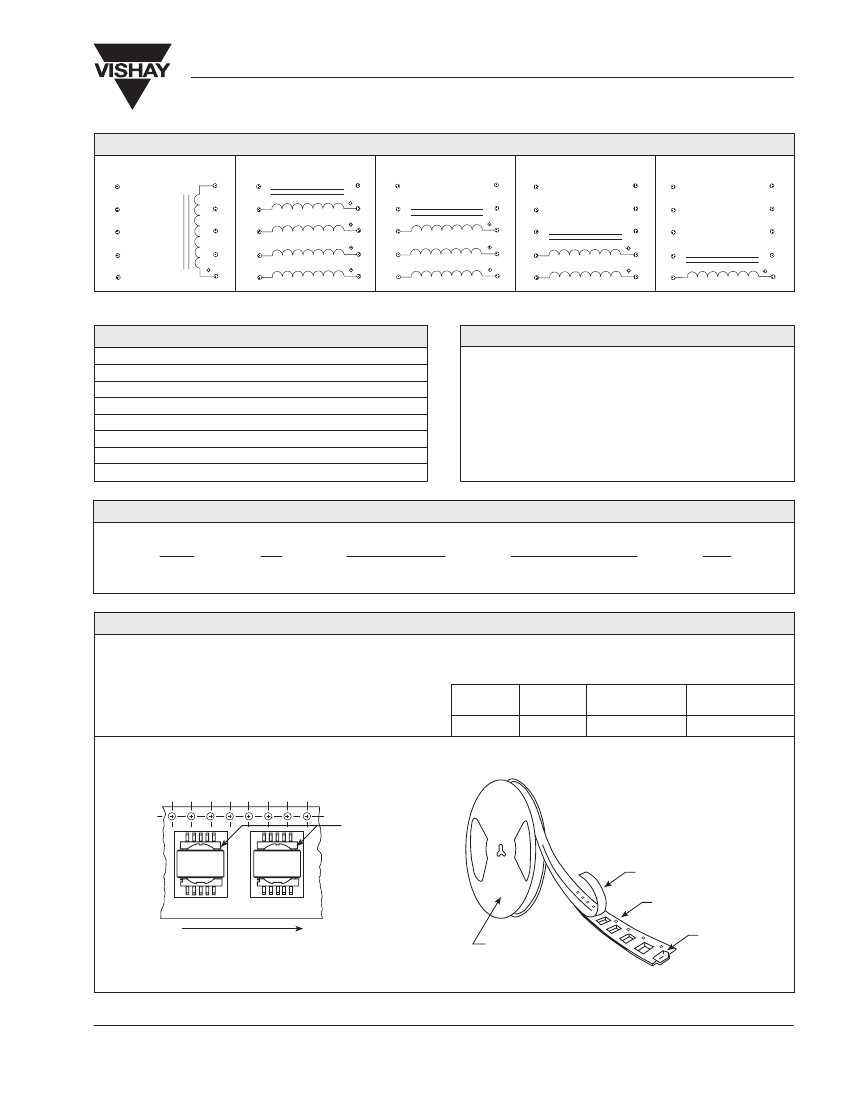

STANDARD ELECTRICAL SPECIFICATIONS

INDUCTANCE

(

150

220

330

470

680

1000

1500

2200

3300

4700

6800

10000

15000

22000

33000

47000

68000

100

150

220

330

470

680

1000

1500

2200

3300

4700

INDUCTANCE

TOLERANCE

30%

20%

SCHEMATIC

LETTER

DCR

MAX.

(Ohms)

MAX. RATED*

DC CURRENT

(Amps)

SATURATING**

CURRENT

(Amps)

MODEL

Ungapped Models

LPE-5047-151NA

LPE-5047-221NA

LPE-5047-331NA

LPE-5047-471NA

LPE-5047-681NA

LPE-5047-102NA

LPE-5047-152NA

LPE-5047-222NA

LPE-5047-332NA

LPE-5047-472NA

LPE-5047-682NA

LPE-5047-103NA

LPE-5047-153NA

LPE-5047-223NA

LPE-5047-333NA

LPE-5047-473NA

LPE-5047-683NA

Gapped Models

LPE-5047-100MB

LPE-5047-150MB

LPE-5047-220MB

LPE-5047-330MB

LPE-5047-470MB

LPE-5047-680MB

LPE-5047-101MB

LPE-5047-151MB

LPE-5047-221MB

LPE-5047-331MB

LPE-5047-471MB

LPE-5047-681MB

LPE-5047-102MB

LPE-5047-152MB

LPE-5047-222MB

LPE-5047-332MB

LPE-5047-472MB

0.20

0.24

0.29

0.35

0.42

0.51

0.63

0.76

1.00

2.24

2.70

3.27

6.26

7.58

9.50

18.5

24.1

0.03

0.04

0.05

0.09

0.13

0.15

0.24

0.37

0.55

0.85

1.29

1.96

2.38

3.66

5.47

8.48

13.2

.79

.72

.65

.59

.54

.49

.44

.40

.35

.24

.21

.19

.14

.13

.11

.08

.07

2.29

2.07

1.68

1.35

1.11

1.01

.81

.65

.53

.43

.35

.28

.26

.21

.17

.14

.11

N/A

2.690

2.230

1.860

1.540

1.300

1.085

.900

.740

.610

.500

.420

.350

.290

.240

.195

.160

.135

*DC current that will create a maximum temperature rise of 30°C when applied at + 25°C ambient. **DC current that will typically reduce the initial inductance by

20%.

UNGAPPED MODELS:

Highest possible inductance with the lowest DCR and highest Q capability. Beneficial in filter, impedance matching and line coupling

devices.

GAPPED MODELS:

Capable of handling large amounts of DC current, tighter inductance tolerance with better temperature stability than ungapped models.

Beneficial in DC to DC converters or other circuits carrying DC currents or requiring inductance stability over a temperature range.

www.vishay.com

Document Number 34065

Revision 27-Apr-99
