CX532Z-A0B3C1150-FREQD18 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> CX532Z-A0B3C1150-FREQD18

CX532Z-A0B3C1150-FREQD18: DescriptionParallel - Fundamental Quartz Crystal, 10MHz Min, 11.999MHz Max, ROHS COMPLIANT, CERAMIC PACKAGE-2; CategoryPassive components Crystal/resonator; File Size693KB，1 Pages; ManufacturerCardinal Components; Environmental Compliance

Download Datasheet Parametric View All

CX532Z-A0B3C1150-FREQD18 Overview

Parallel - Fundamental Quartz Crystal, 10MHz Min, 11.999MHz Max, ROHS COMPLIANT, CERAMIC PACKAGE-2

CX532Z-A0B3C1150-FREQD18 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, CERAMIC PACKAGE-2
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.003%
frequency tolerance	100 ppm
JESD-609 code	e4
load capacitance	18 pF
Manufacturer's serial number	CX532
Installation features	SURFACE MOUNT
Maximum operating frequency	11.999 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L5.0XB3.2XH1.3 (mm)/L0.197XB0.126XH0.051 (inch)
Series resistance	150 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Base Number Matches	1

Preview

Download Datasheet

View All

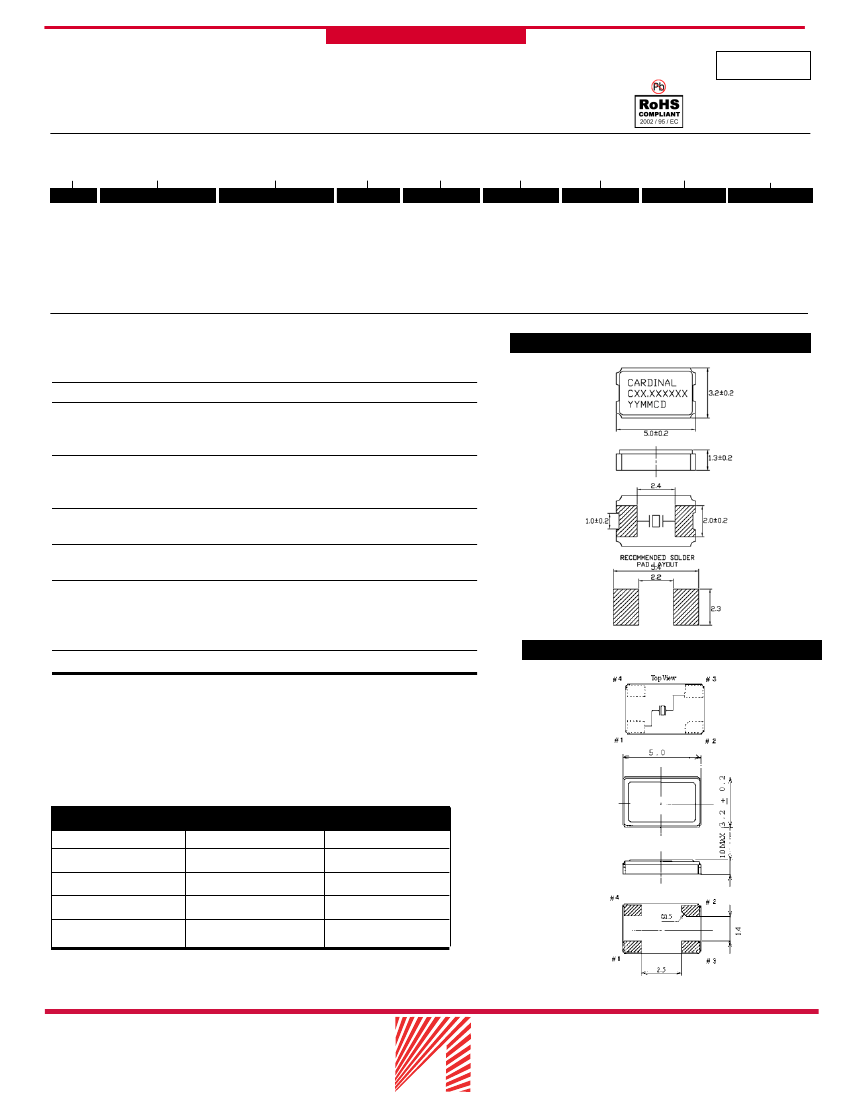

CARDINAL COMPONENTS

Ceramic Surface Mount Crystal

• Small overall package dimensions

• Available in both 2 & 4 pads

Series

CX532

Part Numbering Example: CX532 Z - A1 B2 C2 150 - 10.0 D16 - 3

CX532

A1*

150

10.0

D16

-3

SERIES ADDED FEATURES OPERATING TEMP. STABILITY TOLERANCE RESISTANCE FREQUENCY LOAD CAP.

OVERTONE

CX532 BLANK = BULK PACK A0 = -10°C ~ +60°C B1 = ±100 C1 = ±100 SEE CHART

D16,18,20,ETC. BLANK: FUND.

-3: 3rd OT

BELOW

A1 = -10°C ~ +70°C B2 = ± 50 C2 = ± 50

DS = SERIES

Z = TAPE AND REEL

-5: 5th OT

A2 = -40°C ~ +85°C B3 = ± 30 C3 = ± 30

-7: 7th OT

A3 = -55°C ~ +125°C B4 = ± 10 C4 = ± 10

-BT: BT Cut

*NOTE:

The above ABC combinations cover basic specification options. We tailor our crystal specifications

to meet customer requirements. Please contact our sales department if you don’t see exactly what you need.

Specifications:

Frequency Range:

Frequency Stability:

10.000 ~ 45.000 MHz

-10°C ~ +60°C

±100 ppm

± 50 ppm

± 30 ppm

±100 ppm

± 50 ppm

± 30 ppm

CX532

(Fundamental)

Standard

Operating Temperature:

Standard

Frequency Tolerance:

(at 25°C)

Load Capacitance:

Resistance:

Standard:

Standard

Standard 16, 18 pF or series.

Other values are available.

Maximum resistance corresponds to frequency.

See chart below.

Mode: Fundamental or 3rd Overtone

Shunt Capacitance: 7 pF Max

Aging: ± 5 ppm/year

Drive Level: 100 µW Max

Packaging: Tape and Reel

Option:

CX532A

Resistance Chart:

All resistances are maximum

EQUIVALENT SERIES RESISTANCE (ESR), MODE OF OPERATION (MODE)

Frequency MHz

10.0

12.0

16.0

30.0

11.999

15.999

29.999

45.000

ESR (Ω)

150

100

Oscillation Mode

Fundamental

155 Route 46 West

Wayne, NJ 07470

Rev: C-090414-11

Cardinal Components, Inc.

C-21

TEL:

(973)785-1333

E-MAIL: sales@cardinalxtal.com

WEB: http://www.cardinalxtal.com
