Ordering number : ENA1023
TND512MD
SANYO Semiconductors
DATA SHEET
TND512MD
Features
•
•
•
•
•
•
•
ExPD(Excellent-Performance Power & RF Device)
3-phase Motor Drive Application
3-phase high side driver.
Monolithic structure.
Allows simplified configuration of driver circuit.
Withstand voltage of 600V is assured.
Fully compatible input to LSTTL/CMOS.
High-speed switching.
Output current : 170mA Source, 340mA Sink.
Specifications
Absolute Maximum Ratings
at Ta=25°C (All voltage parameters are absolute voltage referenced to GND)
Parameter
High Side Floating Supply Voltage
High Side Floating Supply Offset Voltage
High Side Output Voltage
Logic Supply Voltage
Logic Input Voltage(UIN, VIN, WIN)
Allowable Power Dissipation
Junction Temperature
Storage Temperature
Symbol
VH
VFG
VOUT
VDD
VIN
PD
Tj
Tstg
When mounted on ceramic substrate (250mm
2
✕0.8mm)
Conditions
Ratings
--0.3 to 625
VH--25 to VH+0.3
VFG-
-0.3 to VH+0.3
--0.3 to 25
--0.3 to VDD+0.3
0.9
--55 to +150
--55 to +150
Unit
V
V
V
V
V
W
°C
°C
Recommended Operating Conditions
at Ta=25°C
Parameter
High Side Floating Supply Voltage
High Side Floating Supply Offset Voltage
High Side Output Voltage
Logic Supply Voltage
Logic Input Voltage(UIN, VIN, WIN)
Ambient Temperature
Symbol
VH
VFG
VOUT
VDD
VIN
Topr
Conditions
Ratings
VFG+10 to VFG+20
0 to 600
VFG to VH
+10 to +20
0 to VDD
--40 to +125
Unit
V
V
V
V
V
°C
Any and all SANYO Semiconductor Co.,Ltd. products described or contained herein are, with regard to
"standard application", intended for the use as general electronics equipment (home appliances, AV equipment,
communication device, office equipment, industrial equipment etc.). The products mentioned herein shall not be
intended for use for any "special application" (medical equipment whose purpose is to sustain life, aerospace
instrument, nuclear control device, burning appliances, transportation machine, traffic signal system, safety
equipment etc.) that shall require extremely high level of reliability and can directly threaten human lives in case
of failure or malfunction of the product or may cause harm to human bodies, nor shall they grant any guarantee
thereof. If you should intend to use our products for applications outside the standard applications of our
customer who is considering such use and/or outside the scope of our intended standard applications, please
consult with us prior to the intended use. If there is no consultation or inquiry before the intended use, our
customer shall be solely responsible for the use.
Specifications of any and all SANYO Semiconductor Co.,Ltd. products described or contained herein stipulate
the performance, characteristics, and functions of the described products in the independent state, and are not
guarantees of the performance, characteristics, and functions of the described products as mounted in the
customer' s products or equipment. To verify symptoms and states that cannot be evaluated in an independent
device, the customer should always evaluate and test devices mounted in the customer' s products or
equipment.
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
13008IP TI IM TC-00001142 No. A1023-1/8
TND512MD
AC Characteristics
at Ta=25°C (VDD=VH-VFG=15V, CL=1000pF)
Parameter
Turn-ON Delay Time
Turn-OFF Delay Time
Turn-ON Rise Time
Turn-OFF Fall Time
Turn-ON Delay Matching of U, V and W *
Turn-OFF Delay Matching of U, V and W *
Symbol
ton
toff
tr
tf
Mton
Mtoff
-t
⏐
tonu--tonv⏐,
⏐
tonv--tonw⏐,
⏐
tonw- onu⏐
toffu--toffv⏐,
⏐
toffv- offw⏐,
⏐
toffw--toffu⏐
-t
⏐
VFG=0V
VFG=600V
Conditions
Ratings
min
typ
155
135
110
40
30
30
max
Unit
ns
ns
ns
ns
ns
ns
DC Characteristics
at Ta=25°C (VDD=VH-VFG=15V)
Parameter
Logic “1” Input Voltage
Logic “0” Input Voltage
High-level Output Voltage, VBIAS-VO
Low-level Output Voltage, VO
Offset Supply Leakage Current
Quiescent VH Supply Current
Quiescent VDD Supply Current
Logic “1” Input Bias Current
Logic “0” Input Bias Current
VH Supply Undervoltage
Positive Going Threshold
VH Supply Undervoltage
Negative Going Threshold
VDD Supply Undervoltage
Positive Going Threshold
VDD Supply Undervoltage
Negative Going Threshold
Output High Short Circuit Pulsed Current
Output Low Short Circuit Pulsed Current
Symbol
VIH
VIL
VOH
VOL
ILK
IQH
IQDD
IIN+
IIN-
-
VHUV+
VHUV-
-
VDDUV+
VDDUV-
-
IO+
I O-
-
VOUT=0V, VIN=15V, PW≤10μs
VOUT=15V, VIN=0V, PW≤10μs
VDD=10 to 20V
VDD=10 to 20V
VIN=VIH, IO=0A
VIN=VIL, IO=0A
VH=VFG=600V
VIN=0V or VDD
VIN=0V or VDD
VIN=VDD
VIN=0V
7.6
6.7
7.6
6.7
170
340
8.9
8.1
8.9
8.1
200
400
50
140
20
Conditions
Ratings
min
3.0
0.8
0.1
0.1
10
100
230
55
1
9.9
9.5
9.9
9.5
typ
max
Unit
V
V
V
V
μA
μA
μA
μA
μA
V
V
V
V
mA
mA
Package Dimensions
unit : mm (typ)
7050A-002
10.0
16
9
0.15
6.4
4.4
0.63
1
(0.56)
1.27
0.35
8
1.7MAX
0.1
(1.5)
1 : No Contact
2 : VDD
3 : UIN
4 : VIN
5 : WIN
6 : GND
7 : No Contact
8 : WH
SANYO : MFP16
9 : WOUT
10 : WFG
11 : VFG
12 : VOUT
13 : VH
14 : UFG
15 : UOUT
16 : UH
No. A1023-2/8

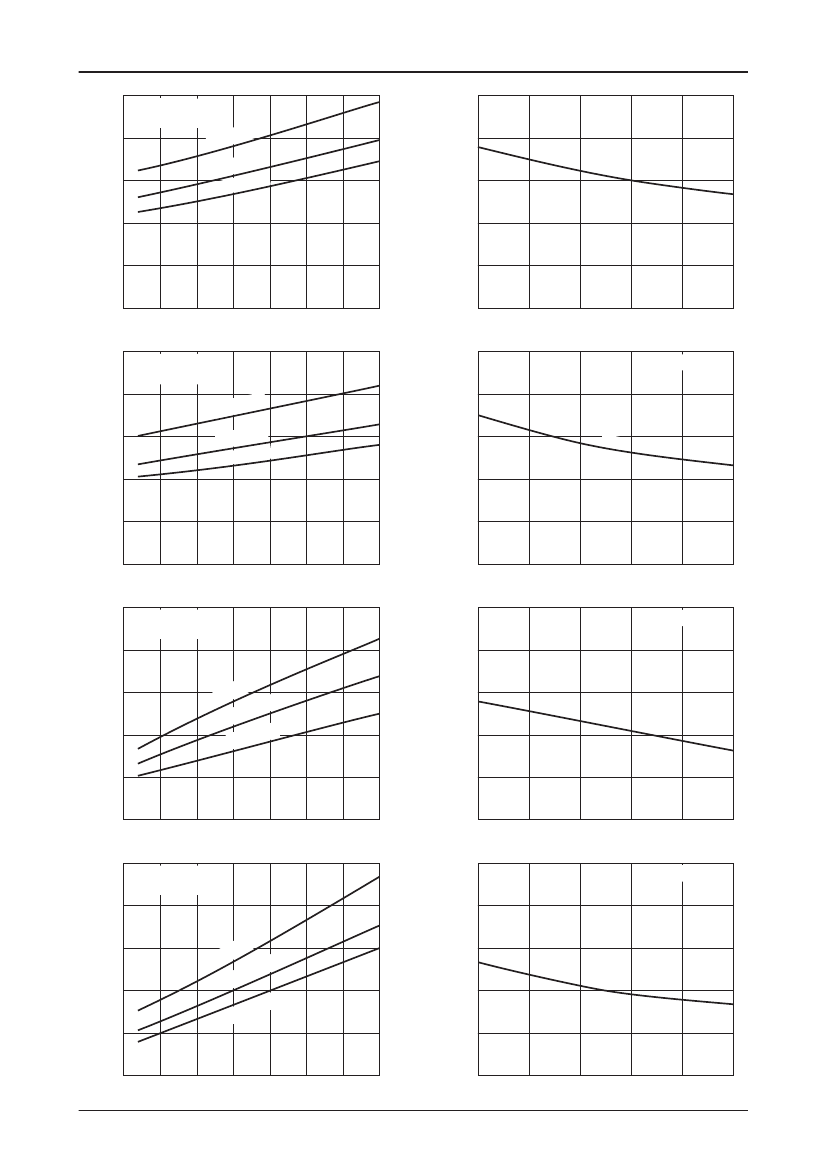

TND512MD
250
ton -- Tc
VFG=0V
VDD=VH--VFG
=10V
VDD
=15V
V DD
20V
V DD=
250
ton -- VDD, VH--VFG
VFG=0V
Turn-ON Delay Time, ton -- ns
Turn-ON Delay Time, ton -- ns
200
200
typ
150
150
100
100
50
50
0
--50
--25
0
25
50
75
100
125
IT13230
0
10
12
14
16
18
20
IT13231
Case Temperature, Tc --
°C
250
toff -- Tc
Turn-OFF Delay Time, toff -- ns
250
toff -- VDD, VH--VFG
VFG=600V
VDD, VH--VFG -- V
Turn-OFF Delay Time, toff -- ns
VFG=600V
VDD=VH--VFG
200
10V
V DD=
5V
V DD=1
V DD=20V
200
150
150
typ
100
100
50
50
0
--50
--25
0
25
50
75
100
125
IT13232
0
10
12
14
16
18
20
IT13233
Case Temperature, Tc --
°C
250
tr -- Tc
CL=1000pF
VDD=VH--VFG
250
tr -- VDD, VH--VFG
CL=1000pF
VDD, VH--VFG -- V
Turn-ON Rise Time, tr -- ns
150
100
V
=10
V DD
15V
D=
VD
=20V
V DD
Turn-ON Rise Time, tr -- ns
200
200
150
typ
100
50
50
0
--50
--25
0
25
50
75
100
125
IT11364
0
10
12
14
16
18
20
IT11365
Case Temperature, Tc --
°C
100
tf -- Tc
CL=1000pF
VDD=VH--VFG
100
tf -- VDD, VH--VFG
CL=1000pF
VDD, VH--VFG -- V
Turn-OFF Fall Time, tf -- ns
60
=1
DD
V
0V
V
Turn-OFF Fall Time, tf -- ns
80
80
60
=15
DD
V
typ
40
40
V
=20
D
VD
20
20
0
--50
--25
0
25
50
75
100
125
IT11366
0
10
12
14
16
18
20
IT11367
Case Temperature, Tc --
°C
VDD, VH--VFG -- V
No. A1023-4/8
TND512MD
5
VIH -- Tc
VDD=10V to 20V
5
VIH -- VDD
Logic "1" Input Voltage, VIH -- V
4
Logic "1" Input Voltage, VIH -- V
4
3
min
3
min
2
2
1
1
0
--50
--25
0
25
50
75
100
125
IT11368
0
10
12
14
16
18
20
IT10886
Case Temperature, Tc --
°C
2.0
VIL -- Tc
VDD=10V to 20V
Logic Circuit Supply Voltage, VDD -- V
2.0
VIL -- VDD
Logic "0" Input Voltage, VIL -- V
1.5
Logic "0" Input Voltage, VIL -- V
1.5
1.0
1.0
max
max
0.5
0.5
0
--50
--25
0
25
50
75
100
125
IT11369
0
10
12
14
16
18
20
IT10887
Case Temperature, Tc --
°C
200
VOH -- Tc
High-level Output Voltage, VOH -- mV
VIN=VIH
IO=0A
Logic Circuit Supply Voltage, VDD -- V
200
175
150
125
100
75
50
25
0
10
VOH -- VH--VFG
High-level Output Voltage, VOH -- mV
175
150
125
VIN=VIH
IO=0A
max
100
75
50
25
0
--50
max
--25
0
25
50
75
100
125
IT11370
12
14
16
18
20
IT10888
Case Temperature, Tc --
°C
200
VOL -- Tc
Low-level Output Voltage, VOL -- mV
VIN=VIL
IO=0A
200
175
150
125
100
75
50
25
0
10
VOL -- VH--VFG
VIN=VIL
IO=0A
VH--VFG -- V
Low-level Output Voltage, VOL -- mV
175
150
125
max
100
75
50
25
0
--50
max
--25
0
25
50
75
100
125
IT11371
12
14
16
18
20
IT10889
Case Temperature, Tc --
°C
VH--VFG -- V
No. A1023-5/8
