Ordering number : ENA1055
SBE807
SANYO Semiconductors
DATA SHEET
SBE807
Applications
•
Schottky Barrier Diode
30V, 1.0A Rectifier
High frequency rectification (switching regulators, converters, and choppers).
Features
•
•
Low switching noise.
Low reverse current (VR=16V, IR max=15μA).
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Repetitive Peak Reverse Voltage
Nonrepetitive Peak Reverse Surge Voltage
Average Output Current
Surge Forward Current
Junction Temperature
Storage Temperature
Symbol
VRRM
VRSM
IO
IFSM
Tj
Tstg
50Hz sine wave, 1 cycle
Conditions
Ratings
30
35
1.0
10
--55 to +125
--55 to +125
Unit
V
V
A
A
°C
°C
Electrical Characteristics
at Ta=25°C
Parameter
Reverse Voltage
Forward Voltage
Reverse Current
Interterminal Capacitance
Reverse Recovery Time
Thermal Resistance
Symbol
VR
VF1
VF2
IR
C
trr
Rth(j-a)
IR=0.2mA
IF=0.7A
IF=1.0A
VR=16V
VR=10V, f=1MHz
IF=IR=100mA, See specified Test Circuit.
When mounted on ceramic substrate (900mm
✕0.8mm)
2
Conditions
Ratings
min
30
0.45
0.48
27
10
111
0.50
0.53
15
typ
max
Unit
V
V
V
μA
pF
ns
°C
/ W
Marking : SJ
Any and all SANYO Semiconductor Co.,Ltd. products described or contained herein are, with regard to
"standard application", intended for the use as general electronics equipment (home appliances, AV equipment,
communication device, office equipment, industrial equipment etc.). The products mentioned herein shall not be
intended for use for any "special application" (medical equipment whose purpose is to sustain life, aerospace
instrument, nuclear control device, burning appliances, transportation machine, traffic signal system, safety
equipment etc.) that shall require extremely high level of reliability and can directly threaten human lives in case
of failure or malfunction of the product or may cause harm to human bodies, nor shall they grant any guarantee
thereof. If you should intend to use our products for applications outside the standard applications of our
customer who is considering such use and/or outside the scope of our intended standard applications, please
consult with us prior to the intended use. If there is no consultation or inquiry before the intended use, our
customer shall be solely responsible for the use.
Specifications of any and all SANYO Semiconductor Co.,Ltd. products described or contained herein stipulate
the performance, characteristics, and functions of the described products in the independent state, and are not
guarantees of the performance, characteristics, and functions of the described products as mounted in the
customer' s products or equipment. To verify symptoms and states that cannot be evaluated in an independent
device, the customer should always evaluate and test devices mounted in the customer' s products or
equipment.
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
22708SB TI IM TC-00001249 No. A1055-1/3
SBE807

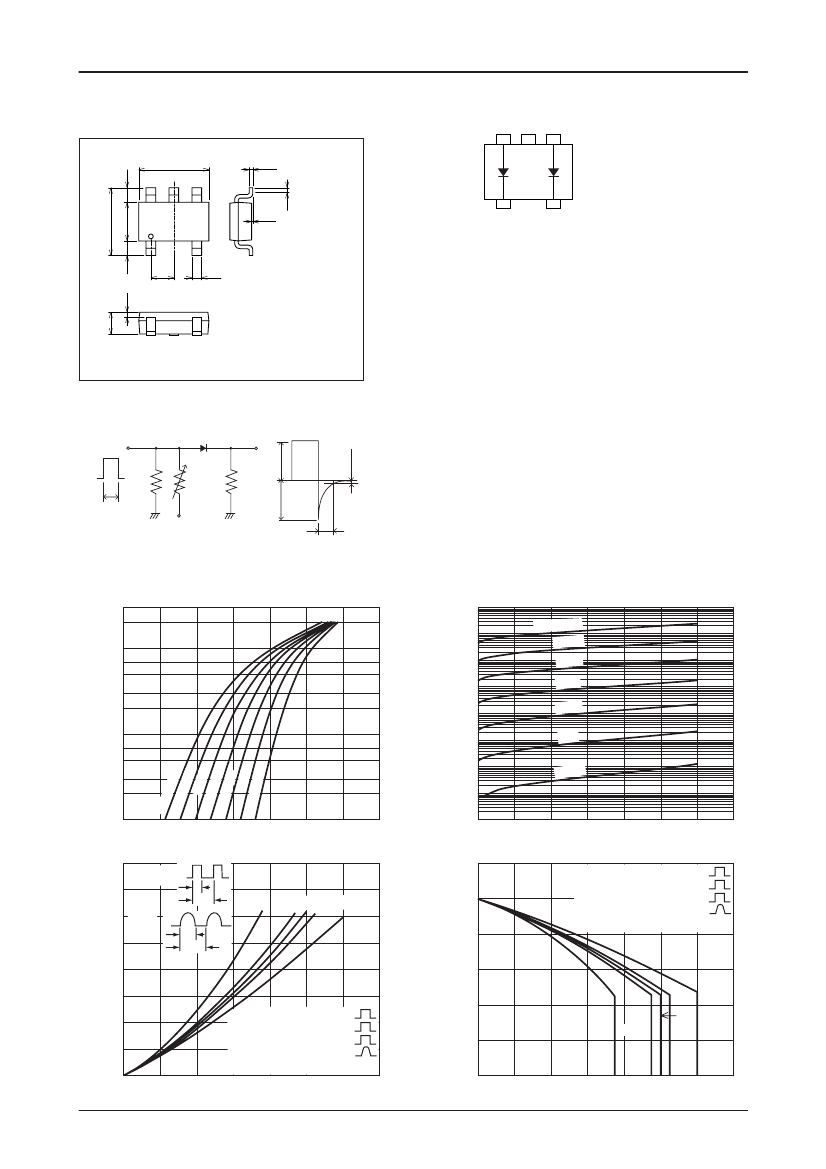

Package Dimensions
unit : mm (typ)
7017A-001
2.9
0.15
Electrical Connection
5
4
3
5
4
3
0.2
1 : Cathode
2 : Cathode
3 : Anode
4 : No Contact
5 : Anode
Top view
0.6
2.8
1.6
0.05
1
2
0.6
1
0.95
2
0.4
1 : Cathode
2 : Cathode
3 : Anode
4 : No Contact
5 : Anode
SANYO : CPH5
trr Test Circuit
Duty≤10%
0.9
0.2
100mA 100mA
50Ω
10μs
100Ω
10Ω
--5V
trr
10mA
3
2
1.0
IF -- VF
10000
5
1000
5
IR -- VR
Ta=125
°
C
100
°
C
Reverse Current, IR --
μA
Forward Current, IF -- A
7
5
3
2
0.1
7
5
3
2
0.01
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
IT09553
100
5
10
5
1.0
5
0.1
5
0.01
5
75
°
C
50
°
C
25
°
C
0
°
C
--25
°
C
Ta=
125
°
C
100
°
C
75
°
C
50
°
C
25
°
C
0
°
C
--25
°
C
0.001
5
0.0001
0
5
10
15
20
25
30
35
IT09554
Forward Voltage, VF -- V
Average Forward Power Dissipation, PF(AV) -- W
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
0
0.2
0.4
PF(AV) -- IO
Reverse Voltage, VR -- V
150
Ta -- IO
Rectangular
wave
θ
(1)
(2) (4)(3) (5)
Sine
wave
180°
360°
Ambient Temperature, Ta --
°C
360°
125
(1)Rectangular wave
θ
=60
°
(2)Rectangular wave
θ
=120
°
(3)Rectangular wave
θ
=180
°
(4)Sine wave
θ
=180
°
(5)DC
100
75
(1)Rectangular wave
θ
=60
°
(2)Rectangular wave
θ
=120
°
(3)Rectangular wave
θ
=180
°
(4)Sine wave
θ
=180
°
(5)DC
0.6
0.8
1.0
1.2
1.4
IT13283
50
(1) (2)
25
(4)
(3)
(5)
0
0
0.2
0.4
0.6 0.76 0.8 0.95 1.0 1.05 1.2
1.4
IT13284
Average Output Current, IO -- A
Average Output Current, IO -- A
No. A1055-2/3
SBE807
3
2
C -- VR
Surge Forward Current, IFSM(Peak) -- A
14
IFSM -- t
Current waveform 50Hz sine wave
I
S
20ms
t
Interterminal Capacitance, C -- pF
12
100
7
5
3
2
10
8
6
4
2
0
10
7
0.1
2
3
5
7 1.0
2
3
5
7 10
2
3
5
7 0.01
2
3
5
7 0.1
2
3
5
7 1.0
2
3
Reverse Voltage, VR -- V
IT09556
Time, t -- s
ID00435
