P114K datasheet, PDF - EEWORLD Datasheet

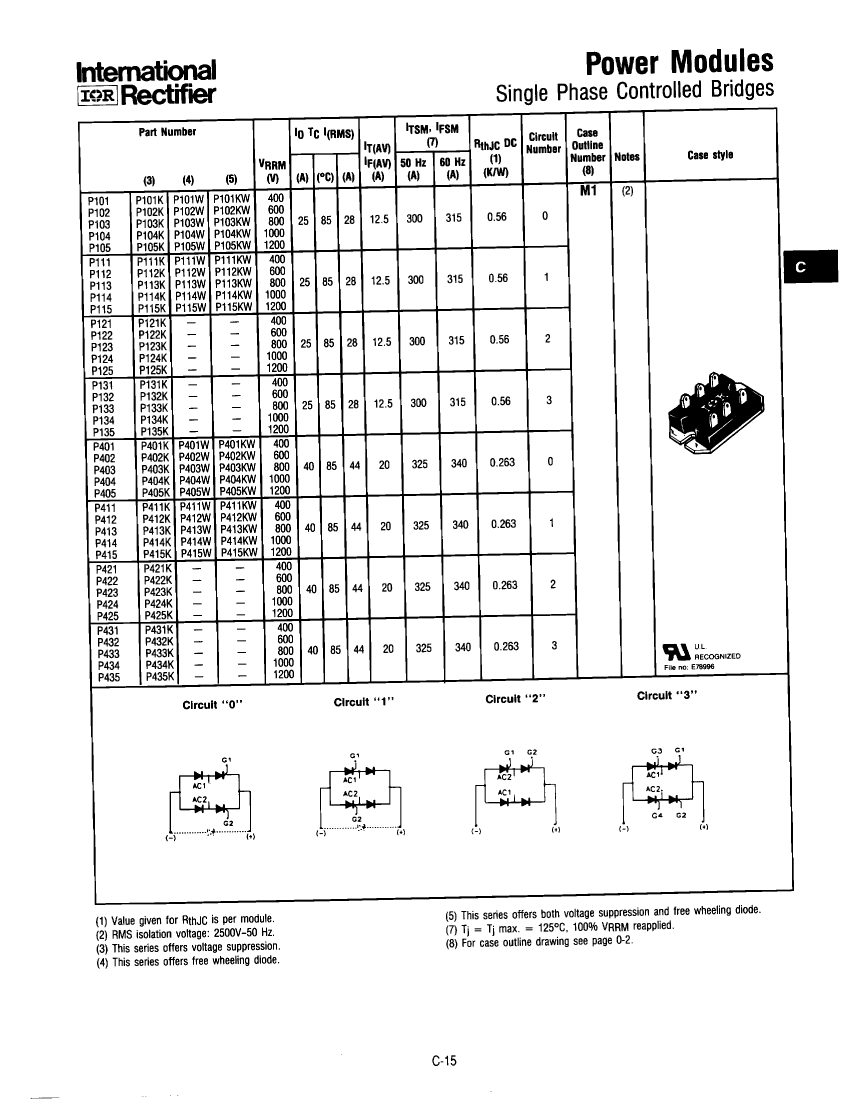

P114K: DescriptionSilicon Controlled Rectifier, 19.625A I(T)RMS, 12000mA I(T), 1000V V(DRM), 1000V V(RRM), 2 Element; CategoryAnalog mixed-signal IC Trigger device; File Size44KB，1 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric View All

P114K Overview

Silicon Controlled Rectifier, 19.625A I(T)RMS, 12000mA I(T), 1000V V(DRM), 1000V V(RRM), 2 Element

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	FLANGE MOUNT, R-PUFM-D6
Reach Compliance Code	compliant
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	BRIDGE, HALF-CONTROLLED, COMMON ANODE
Maximum DC gate trigger current	60 mA
Maximum DC gate trigger voltage	2 V
Quick connection description	2G-2AK-CA-CK
Description of screw terminals	0
Maximum holding current	100 mA
JESD-30 code	R-PUFM-D6
JESD-609 code	e0
Maximum leakage current	25000 mA
On-state non-repetitive peak current	375 A
Number of components	2
Number of terminals	6
Maximum on-state current	12000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-45 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	19.625 A
Maximum repetitive peak off-state leakage current	10000 µA
Off-state repetitive peak voltage	1000 V
Repeated peak reverse voltage	1000 V
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1
