RE2C-6STFP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> RE2C-6STFP

RE2C-6STFP: DescriptionPower/Signal Relay, DPDT, Momentary, 0.067A (Coil), 6VDC (Coil), 250mW (Coil), DC Input, Through Hole-Straight Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size175KB，2 Pages; ManufacturerWorld Produts Inc.; Websitehttp://www.worldproducts.com; Environmental Compliance

Download Datasheet Parametric View All

RE2C-6STFP Overview

Power/Signal Relay, DPDT, Momentary, 0.067A (Coil), 6VDC (Coil), 250mW (Coil), DC Input, Through Hole-Straight Mount, ROHS COMPLIANT

RE2C-6STFP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TOLERANCE ON NOMINAL RESISTANCE: 9
body width	12.7 mm
body height	15.7 mm
Body length or diameter	29 mm
Maximum coil current (DC)	0.067 A
Coil operating voltage (DC)	4.2 V
Coil power	250 mW
Coil release voltage (DC)	0.6 V
Coil resistance	90 Ω
Maximum coil voltage (DC)	6 V
Coil/Input Power Type	DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	RE
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	15 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	29mm x 12.7mm x 15.7mm
Guideline	UL
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	5 ms
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

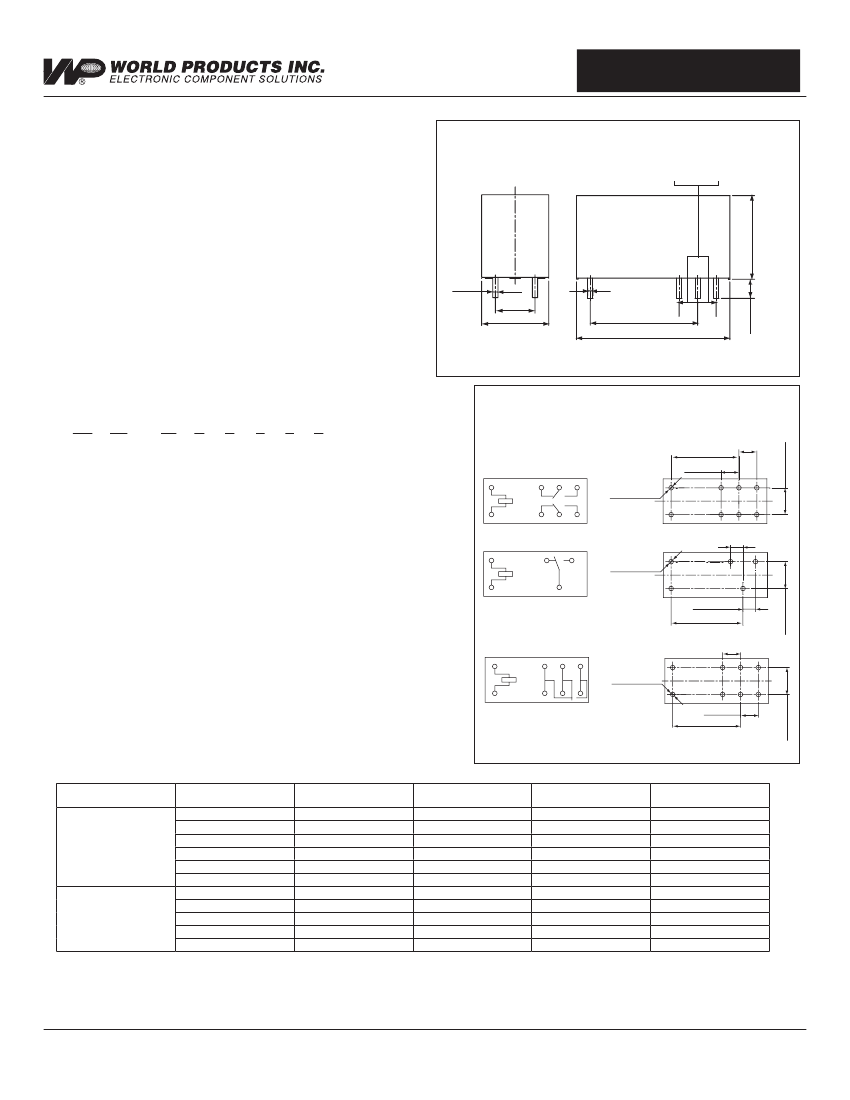

Preview

Download Datasheet

View All

RE SERIES

INDUSTRIAL RELAYS

The RE Series has 16A switching capabilities as well as a sealed and un-

sealed type available. This WPI industrial relay has 1 & 2 pole conﬁgura-

tions.

UL & CUL File #E245348

DIMENSIONS

3.5(.138)

2C, 1C-T

5.0(.197)

FEATURES

16A switching capabilities.

1 & 2 pole conﬁgurations.

5KV dielectric coil to contacts.

Height is 15.7mm.

Sealed & unsealed type available.

Creepage distance 10mm.

Sensitive coil 250mW.

1(.039)

12.7(.5)

20(.787)

29(1.142)

Unit: mm(inch)

Tolerance: ±0.2(.008)

ORDERING INFORMATION

(1)

(2)

SCHEMATICS

(bottom view)

PCB LAYOUT

(bottom view)

5(.197)

7.5(.295)

3.5(.138)

5 -

∅1.3

(.051)

1A -

(2)

12 H

T F P

(3) (4) (5) (6) (7) (8)

(5)

Enclosure

Nil

= Unsealed type

= Sealed type

Capacity

Nil

= Standard

= High Current

Insulation

Nil

= Class B

= Class F

RoHS Compliance

= RoHS

Nil

= Standard

20(.787)

Basic Designation

= RE Series

Contact Arrangement

= 1 Form A (SPST-NO)

= 1 Form C (SPDT)

= 2 Form A (DPST-NO)

= 2 Form C (DPDT)

Coil Voltage

5~110V

Coil Sensitivity

Nil

=Standard

= High sensitivity

8 -

∅1.3

(.051)

5(.197)

(6)

3.5(.138)

20(.787)

(4)

(8)

1C-T

8 -

∅1.3

(.051)

5(.197)

20(.787)

COIL RATINGS (AT 20°C)

Coil Type

Coil Nominal Voltage

(V)

110

Coil Resistance

(Ω)

62 ± 10%

90 ± 10%

360 ± 10%

1440 ± 10%

5520 ± 10%

26600 ± 12%

100 ± 10%

144 ± 10%

576 ± 10%

2304 ± 10%

9216 ± 10%

Pick-Up Voltage

(V)

3.5

4.2

8.4

16.8

33.6

3.7

4.5

9.0

18.0

36.0

Drop-Out Voltage

(V)

0.5

0.6

1.2

2.4

4.8

11.0

0.5

0.6

1.2

2.4

4.8

Unit: mm(inch)

DC Standard Coils

DC High Sensitivity

Coils**

Nominal Current

(mA)

80.6

66.7

33.3

16.7

8.7

4.1

41.7

20.8

10.4

5.2

* Max continuous Voltage at 20°C: 130% of Coil Nominal Voltage.

** “T” High Current conﬁguration is not available with a high sensitive coil.

Phone (707) 996-5201 | Fax (707) 996-3380 |

www.worldproducts.com

rH12 060206

Industrial Relay Catalog |

7.5(.295)

(3)

(7)

3.6(.142)

7.5(.295)

15.7(.618)
