TOP243G-TL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> TOP243G-TL

TOP243G-TL: DescriptionSwitching Regulator, Voltage-mode, 1.44A, 140kHz Switching Freq-Max, CMOS, PDSO7, SMD-8/7; CategoryPower/power management The power supply circuit; File Size2MB，52 Pages; ManufacturerPower Integrations; Websitehttps://www.powerint.cn

Download Datasheet Parametric Compare View All

TOP243G-TL Overview

Switching Regulator, Voltage-mode, 1.44A, 140kHz Switching Freq-Max, CMOS, PDSO7, SMD-8/7

TOP243G-TL Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP, GWDIP7/8,.4
Contacts	8/7
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	REQUIRES AN AC SUPPLY OF 85 TO 265 V
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION
JESD-30 code	R-PDSO-G7
JESD-609 code	e0
length	9.575 mm
Humidity sensitivity level	4
Number of functions	1
Number of terminals	7
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current	1.44 A
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	GWDIP7/8,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
Maximum seat height	3.98 mm
surface mount	YES
Switch configuration	SINGLE
Maximum switching frequency	140 kHz
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	6.35 mm
Base Number Matches	1

Preview

Download Datasheet

View All

TOP242-250

TOPSwitch-GX

Family

Product Highlights

Lower System Cost, High Design Flexibility

• Extended power range for higher power applications

• No heatsink required up to 34 W using P/G packages

• Features eliminate or reduce cost of external components

• Fully integrated soft-start for minimum stress/overshoot

• Externally programmable accurate current limit

• Wider duty cycle for more power, smaller input capacitor

• Separate line sense and current limit pins on Y/R/F packages

• Line under-voltage (UV) detection: no turn off glitches

• Line overvoltage (OV) shutdown extends line surge limit

• Line feed-forward with maximum duty cycle (DC

MAX

)

reduction rejects line ripple and limits DC

MAX

at high line

• Frequency jittering reduces EMI and EMI ﬁltering costs

• Regulates to zero load without dummy loading

• 132 kHz frequency reduces transformer/power supply size

• Half frequency option in Y/R/F packages for video applications

• Hysteretic thermal shutdown for automatic fault recovery

• Large thermal hysteresis prevents PC board overheating

EcoSmart

–

Energy Efﬁcient

• Extremely low consumption in remote off mode

(80 mW at 110 VAC, 160 mW at 230 VAC)

• Frequency lowered with load for high standby efﬁciency

• Allows shutdown/wake-up via LAN/input port

Extended Power, Design Flexible,

EcoSmart,

Integrated Off-line Switcher

OUT

CONTROL

TOPSwitch-GX

PI-2632-060200

Figure 1. Typical Flyback Application.

OUTPUT POWER TABLE

PRODUCT

230 VAC ±15%

Adapter

85-265 VAC

Description

TOPSwitch-GX

uses the same proven topology as

TOPSwitch,

cost effectively integrating the high voltage power MOSFET,

PWM control, fault protection and other control circuitry onto

a single CMOS chip. Many new functions are integrated to

reduce system cost and improve design ﬂexibility, performance

and energy efﬁciency.

Depending on package type, either 1 or 3 additional pins over

the

TOPSwitch

standard DRAIN, SOURCE and CONTROL

terminals allow the following functions: line sensing (OV/UV,

line feed-forward/DC

MAX

reduction), accurate externally set

current limit, remote ON/OFF, synchronization to an external

lower frequency, and frequency selection (132 kHz/66 kHz).

All package types provide the following transparent features:

Soft-start, 132 kHz switching frequency (automatically reduced

at light load), frequency jittering for lower EMI, wider DC

MAX

hysteretic thermal shutdown, and larger creepage packages. In

addition, all critical parameters (i.e. current limit, frequency,

PWM gain) have tighter temperature and absolute tolerances

to simplify design and optimize system cost.

TOP242 P or G 9 W

TOP242 R

15 W

TOP242 Y or F 10 W

TOP243 P or G 13 W

TOP243 R

29 W

TOP243 Y or F 20 W

TOP244 P or G 16 W

TOP244 R

34 W

TOP244 Y or F 30 W

TOP245 P or G 19 W

TOP245 R

37 W

TOP245 Y or F 40 W

TOP246 P or G 21 W

TOP246 R

40 W

TOP246 Y or F 60 W

42 W

TOP247 R

TOP247 Y or F 85 W

43 W

TOP248 R

TOP248 Y or F 105 W

44 W

TOP249 R

TOP249 Y or F 120 W

45 W

TOP250 R

TOP250 Y or F 135 W

Open

Adapter

Frame

15 W

6.5 W

10 W

22 W

11 W

14 W

22 W

14 W

25 W

15 W

45 W

17 W

23 W

45 W

15 W

30 W

28 W

20 W

11 W

50 W

20 W

28 W

65 W

20 W

45 W

30 W

13 W

22 W

57 W

23 W

33 W

85 W

26 W

60 W

34 W

15 W

26 W

64 W

26 W

38 W

125 W

40 W

90 W

70 W

28 W

43 W

165 W

55 W

125 W

75 W

30 W

48 W

205 W

70 W

155 W

79 W

31 W

53 W

250 W

80 W

180 W

82 W

32 W

55 W

290 W

90 W

210 W

Table 1.

Notes:

Typical continuous power in a non-ventilated enclosed

adapter measured at 50

°C

ambient.

Maximum practical continuous

power in an open frame design at 50

°C

ambient. See Key Applications

for detailed conditions.

For lead-free package options, see Part

Ordering Information.

230 VAC or 100/115 VAC with doubler.

November 2005

TOP242-250

Section List

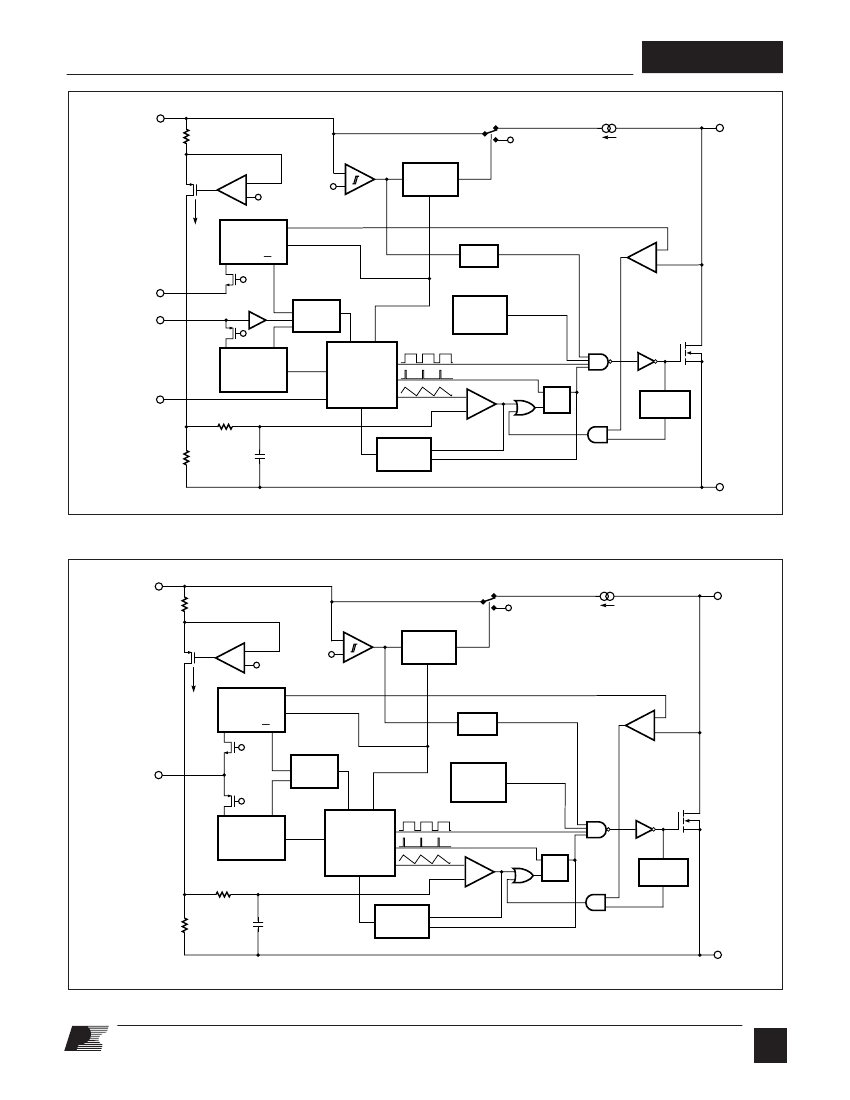

Functional Block Diagram

....................................................................................................................................... 3

Pin Functional Description

...................................................................................................................................... 4

TOPSwitch-GX

Family Functional Description

....................................................................................................... 5

CONTROL (C) Pin Operation.................................................................................................................................. 6

Oscillator and Switching Frequency ........................................................................................................................ 6

Pulse Width Modulator and Maximum Duty Cycle .................................................................................................. 7

Light Load Frequency Reduction ............................................................................................................................ 7

Error Ampliﬁer ......................................................................................................................................................... 7

On-Chip Current Limit with External Programmability ............................................................................................ 7

Line Under-Voltage Detection (UV)......................................................................................................................... 8

Line Overvoltage Shutdown (OV) ........................................................................................................................... 8

Line Feed-Forward with DC

MAX

Reduction .............................................................................................................. 8

Remote ON/OFF and Synchronization ................................................................................................................... 9

Soft-Start ................................................................................................................................................................. 9

Shutdown/Auto-Restart ........................................................................................................................................... 9

Hysteretic Over-Temperature Protection ................................................................................................................. 9

Bandgap Reference .............................................................................................................................................. 10

High-Voltage Bias Current Source ........................................................................................................................ 10

Using Feature Pins

................................................................................................................................................... 10

FREQUENCY (F) Pin Operation ........................................................................................................................... 10

LINE-SENSE (L) Pin Operation ............................................................................................................................ 10

EXTERNAL CURRENT LIMIT (X) Pin Operation .................................................................................................. 11

MULTI-FUNCTION (M) Pin Operation .................................................................................................................. 11

Typical Uses of FREQUENCY (F) Pin

...................................................................................................................... 14

Typical Uses of LINE-SENSE (L) and EXTERNAL CURRENT LIMIT (X) Pins

...................................................... 15

Typical Uses of MULTI-FUNCTION (M) Pin

........................................................................................................... 17

Application Examples

.............................................................................................................................................. 20

A High Efﬁciency, 30 W, Universal Input Power Supply ........................................................................................ 20

A High Efﬁciency, Enclosed, 70 W, Universal Adapter Supply .............................................................................. 20

A High Efﬁciency, 250 W, 250-380 VDC Input Power Supply ............................................................................... 22

Multiple Output, 60 W, 185-265 VAC Input Power Supply .................................................................................... 23

Processor Controlled Supply Turn On/Off ............................................................................................................. 24

Key Application Considerations

............................................................................................................................. 26

TOPSwitch-II

vs.

TOPSwitch-GX

.......................................................................................................................... 26

TOPSwitch-FX

vs.

TOPSwitch-GX

....................................................................................................................... 28

TOPSwitch-GX

Design Considerations ............................................................................................................... 28

TOPSwitch-GX

Layout Considerations ................................................................................................................. 30

Quick Design Checklist ......................................................................................................................................... 32

Design Tools ......................................................................................................................................................... 32

Product Speciﬁcations and Test Conditions

......................................................................................................... 33

Typical Performance Characteristics

.................................................................................................................... 40

Part Ordering Information

....................................................................................................................................... 46

Package Outlines

..................................................................................................................................................... 47

11/05

TOP243G-TL Related Products

	TOP243G-TL	TOP243G	TOP246P
Description	Switching Regulator, Voltage-mode, 1.44A, 140kHz Switching Freq-Max, CMOS, PDSO7, SMD-8/7	Switching Regulator, Voltage-mode, 1.44A, 140kHz Switching Freq-Max, CMOS, PDSO7, SMD-8/7	Switching Regulator, Voltage-mode, 4.32A, 140kHz Switching Freq-Max, CMOS, PDIP7, DIP-8/7
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	SOIC	SOIC	DIP
package instruction	SOP, GWDIP7/8,.4	SOP, GWDIP7/8,.4	DIP, DIP8,.3
Contacts	8/7	8/7	8
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	REQUIRES AN AC SUPPLY OF 85 TO 265 V	REQUIRES AN AC SUPPLY OF 85 TO 265 V	REQUIRES AN AC SUPPLY OF 85 TO 265 V
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR
control mode	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
JESD-30 code	R-PDSO-G7	R-PDSO-G7	R-PDIP-T7
JESD-609 code	e0	e0	e0
length	9.575 mm	9.575 mm	9.575 mm
Number of functions	1	1	1
Number of terminals	7	7	7
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Maximum output current	1.44 A	1.44 A	4.32 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	DIP
Encapsulate equivalent code	GWDIP7/8,.4	GWDIP7/8,.4	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	225	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.98 mm	3.98 mm	3.62 mm
surface mount	YES	YES	NO
Switch configuration	SINGLE	SINGLE	SINGLE
Maximum switching frequency	140 kHz	140 kHz	140 kHz
technology	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	NOT SPECIFIED	NOT SPECIFIED
width	6.35 mm	6.35 mm	7.62 mm
Base Number Matches	1	1	1
Humidity sensitivity level	4	4	-

Recommended Resources

IGBT drive circuit

FM transmitter circuit 06

High-performance dual-band wireless microphone receiving circuit

Relay delay suction circuit

Computer motherboard circuit diagram 430TX_18

Looking for solar inverter design circuit diagram: Requires pure sine wave inverter, actual standard 2000W3000W4000W12V circuit diagram...; fh1211 Power technology

STVD cannot view the value of variables when debugging STM8: Recently I found a strange problem, as follows: I have two files, one main.c and one main.h.In main.c I wrote: #define GLOBAL_VAR #include "main.h"In main.h I wrote: #ifndef __MAIIN_H__ #define __MAIN...; hailee1985 stm32/stm8

Find a book in electronic format or buy it: Find a book, either electronic or purchased, title: A reformulation-linearization technique for solving discrete and continuous nonconvex problems, email: [email]liyuely@yahoo.com.cn[/email] If you ha...; lymnmn Embedded System

Now let's make a bipolar constant current source: Now I want to make a bipolar constant current source with a peak value of 10mA, a pulse width of 1.5s, and a period of 3s. I designed one myself, but the square wave effect is always not good. Can any...; 369761094 Analog electronics

{Beijing} Urgently hiring a part-time software development engineer familiar with stm32 to do simple project transplantation work: Project description: Collect data through AD, perform multi-point calibration on the collected data, send the calibrated data to the host computer through UART, and store the calibration parameters. P...; youluo1925 Talking about work

Has anyone used an AD around 1m? Can you recommend a model? Also, is there anything worth noting about the power supply?: Has anyone used an AD around 1m? Can you recommend a model? Also, is there anything worth noting about the power supply?...; shzps Analogue and Mixed Signal

Shortcut: A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components
