D38999/24WF35BN datasheet, PDF

Datasheet> All Categories > The connector> The connector> D38999/24WF35BN

D38999/24WF35BN: DescriptionMIL Series Connector, 66 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle,; CategoryThe connector The connector; File Size52KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

D38999/24WF35BN Overview

MIL Series Connector, 66 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle,

D38999/24WF35BN Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	STANDARD: MIL-DTL-38999, EMI SHIELDED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact size	22D
Coupling type	THREADED
DIN compliance	NO
empty shell	YES
Environmental characteristics	CORROSION/FLUID RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	F
Termination type	CRIMP
Total number of contacts	66
Base Number Matches	1

Preview

Download Datasheet

View All

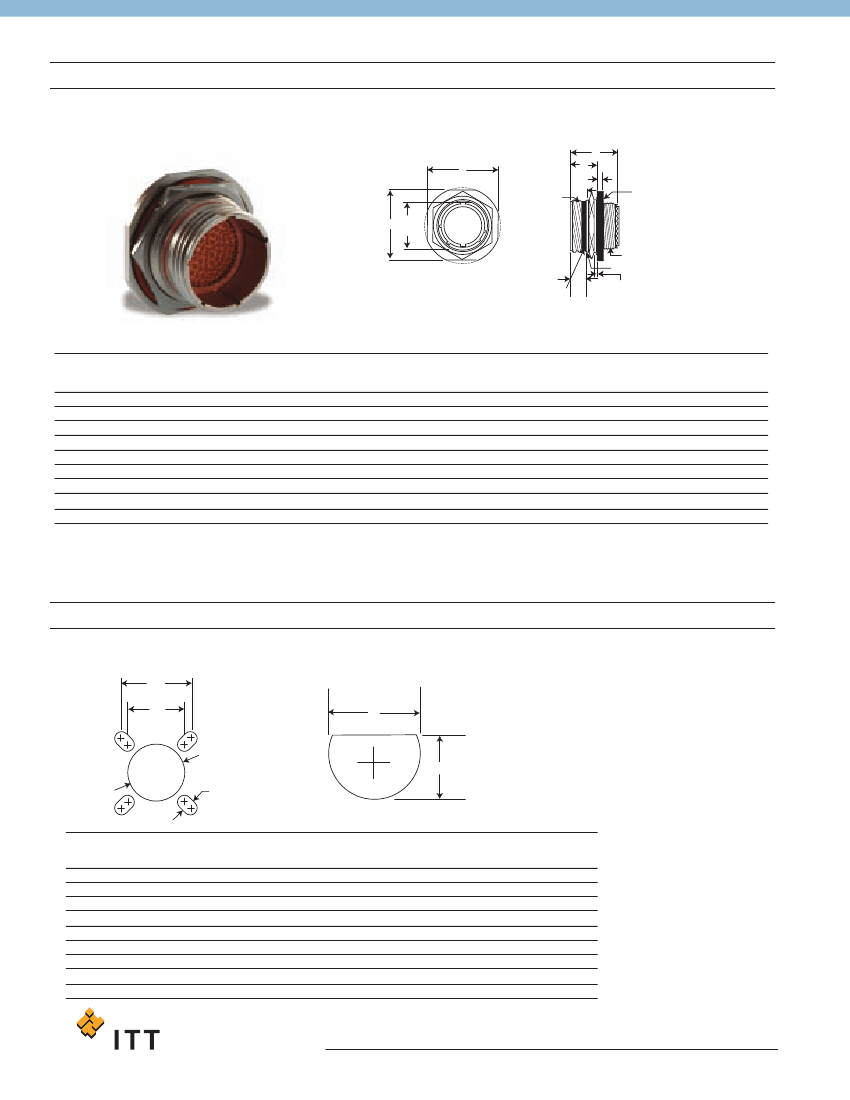

MIL-DTL-38999 Series III Connectors

Jam Nut Receptacle

D38999/24

KJA7T***

Cannon KJA

THREAD

FLAT

BLUE BAND

(INDICATES REAR

RELEASE CONTACT

RETENTION SYSTEM)

V THREAD

R THREAD

.520 (13.2) MAX.

RED BAND

(FULLY MATED

INDICATOR BAND)

.062 (1.57) MIN./.125 (3.18) MAX.

PANEL THICKNESS

Shell Shell size +.010 (.250)

-.005 (.130)

Code

Size

.104 (2.64)

.135 (3.43)

B Thread

Class 2A

(Plated)

.6250-0.1P-0.3L-TS

.7500-0.1P-0.3L-TS

.8750-0.1P-0.3L-TS

1.0000-0.1P-0.3L-TS

1.1875-0.1P-0.3L-TS

1.2500-0.1P-0.3L-TS

1.3750-0.1P-0.3L-TS

1.5000-0.1P-0.3L-TS

1.6250-0.1P-0.3L-TS

+.004 (.100)

-.010 (.250)

.651 (16.53)

.751 (19.07)

.938 (23.82)

1.062 (26.97)

1.187 (30.15)

1.312 (33.32)

1.437 (36.50)

1.562 (39.67)

1.687 (42.85)

+.005 (.130) +.005 (.130)

-.040 (.100) -.004 (.100)

1.243 (31.57)

.871 (22.12)

.878 (22.30)

+.016 (.410)

-.004 (.100)

.555 (14.10)

.563 (14.30)

1.062 (26.97)

1.250 (31.75)

1.375 (34.92)

1.500 (38.10)

1.625 (41.28)

1.812 (46.02)

1.938 (49.23)

2.062 (52.37)

2.188 (55.38)

Metric R

Thread

(Plated)

M17X1-6g0.100R

M20X1-6g0.100R

M25X1-6g0.100R

M28X1-6g0.100R

M32X1-6g0.100R

M35X1-6g0.100R

M38X1-6g0.100R

M41X1-6g0.100R

M44X1-6g0.100R

Metric V

Thread

(Plated)

M12X1-6g0.100R

M15X1-6g0.100R

M18X1-6g0.100R

M22X1-6g0.100R

M25X1-6g0.100R

M28X1-6g0.100R

M31X1-6g0.100R

M34X1-6g0.100R

M37X1-6g0.100R

Performance Specifications-Pages 3-4

Contacts, Sealing Plugs, Assembly Tools - Pages 22, 27-28

Contact Arrangements - Pages 20-21

Panel Cutouts

Wall Mounted Receptacle

Jam Nut Receptacle

Shell

Size

+.010 (.25)

-.000 (.00)

.700 (17.78)

.825 (20.96)

1.010 (25.65)

1.135 (28.83)

1.260 (32.00)

1.385 (35.18)

1.510 (38.35)

1.635 (41.53)

1.760 (44.70)

+.000 (.00)

-.010 (.25)

.670 (17.02)

.771 (19.58)

.955 (24.26)

1.085 (27.56)

1.210 (30.73)

1.335 (33.91)

1.460 (37.08)

1.585 (40.26)

1.710 (43.43)

+.010 (.25)

-.000 (.00)

.626 (15.90)

.751 (19.08)

.876 (22.25)

1.001 (25.43)

1.188 (30.18)

1.251 (31.78)

1.376 (34.95)

1.511 (38.38)

1.626 (41.30)

(TP)

.719 (18.26)

.812 (20.62)

.906 (23.01)

.969 (24.61)

1.062 (26.97)

1.156 (29.36)

1.250 (31.75)

1.375 (34.92)

1.500 (38.10)

(TP)

.594 (15.09)

.719 (18.26)

.812 (20.62)

.906 (23.01)

.969 (24.61)

1.062 (26.97)

1.156 (29.36)

1.250 (31.75)

1.375 (34.92)

(Max.)

.134 (3.40)

.160 (4.06)

Dimensions shown in mm

Specifications and dimensions subject to change

www.ittcannon.com
