LS1009MN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LS1009MN

LS1009MN: DescriptionTwo Terminal Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, PBCY3, TO-92, 3 PIN; CategoryPower/power management The power supply circuit; File Size72KB，2 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LS1009MN Overview

Two Terminal Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, PBCY3, TO-92, 3 PIN

LS1009MN Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	TO-92
package instruction	TO-92, SIP3,.1,50
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	O-PBCY-T3
Humidity sensitivity level	1
Number of functions	1
Output times	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output voltage	2.505 V
Minimum output voltage	2.495 V
Nominal output voltage	2.5 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-92
Encapsulate equivalent code	SIP3,.1,50
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
surface mount	NO
technology	BIPOLAR
Maximum voltage temperature coefficient	35 ppm/°C
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	YES
Maximum voltage tolerance	0.2%
Base Number Matches	1

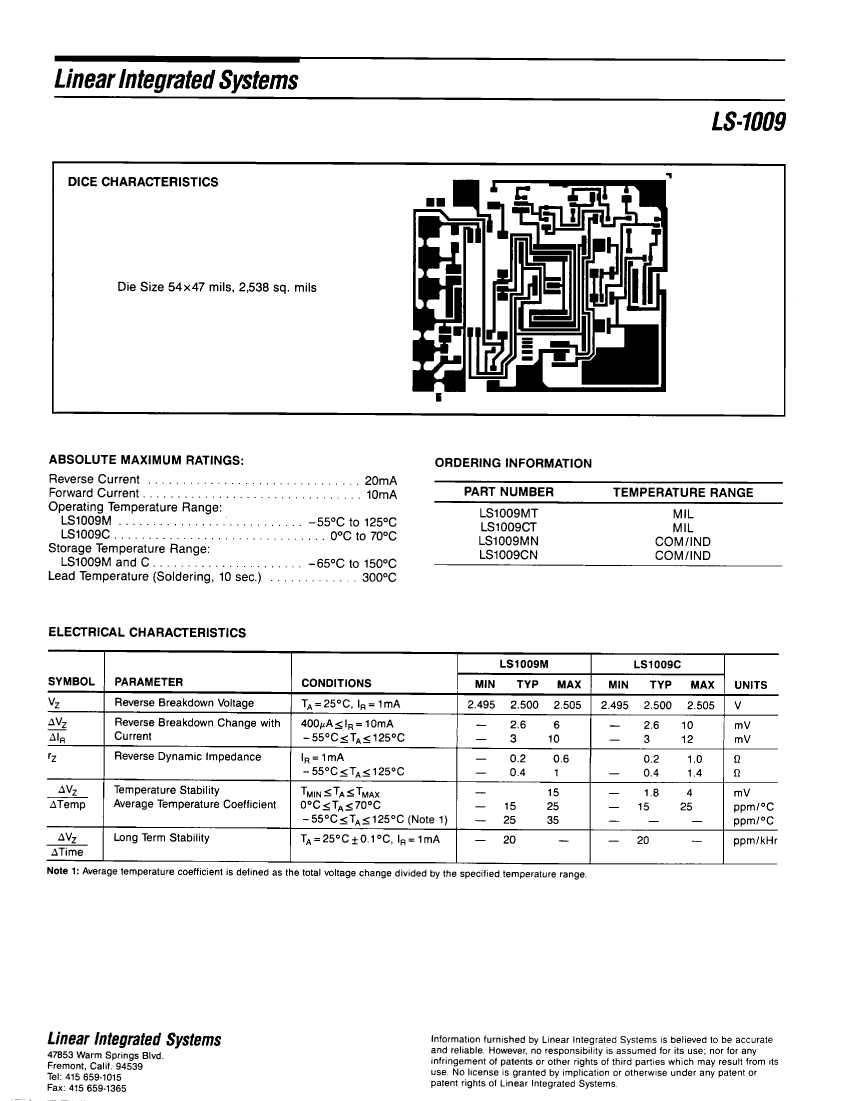

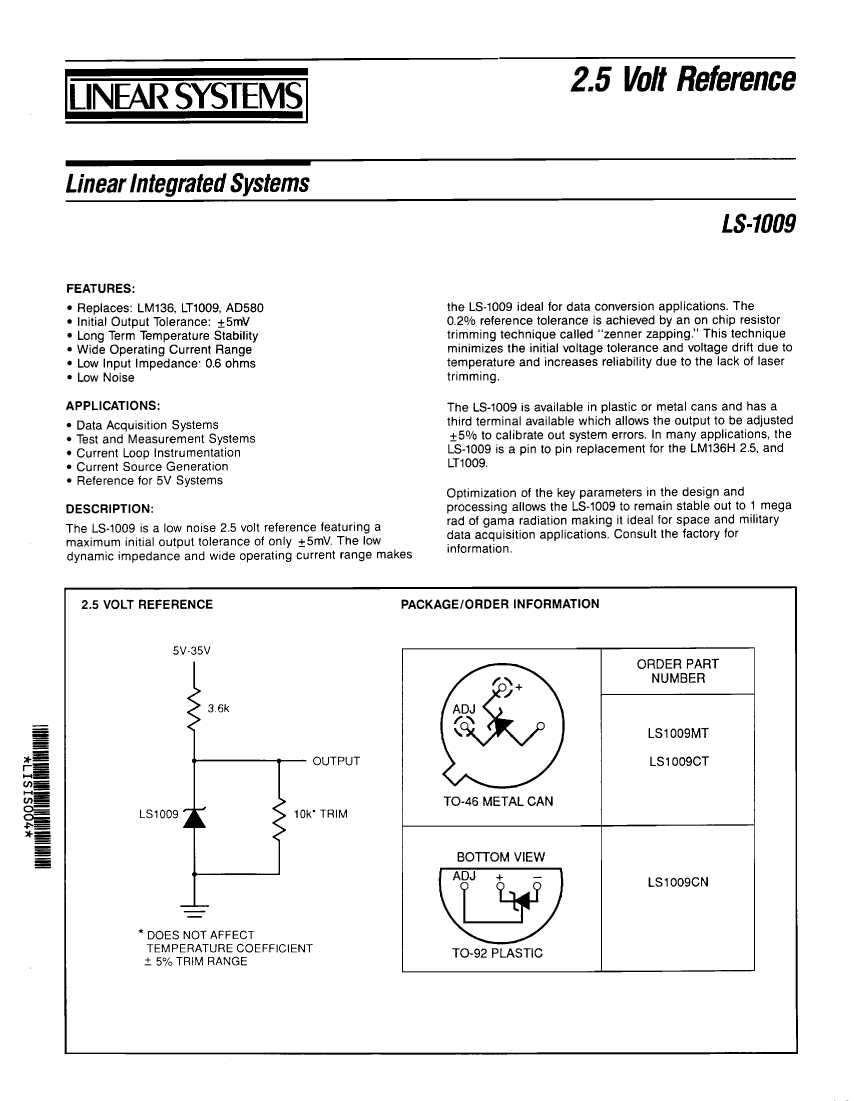

Preview

Download Datasheet

View All

LS1009MN Related Products

	LS1009MN	LS1009MT	LS1009CN	LS1009CT
Description	Two Terminal Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, PBCY3, TO-92, 3 PIN	Two Terminal Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, MBCY3, TO-46, 3 PIN	Two Terminal Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, PBCY3, TO-92, 3 PIN	Two Terminal Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, MBCY3, TO-46, 3 PIN
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	TO-92	TO-46	TO-92	TO-46
package instruction	TO-92, SIP3,.1,50	TO-46, CAN3/4,.1	TO-92, SIP3,.1,50	TO-46, CAN3/4,.1
Contacts	3	3	3	3
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	O-PBCY-T3	O-MBCY-W3	O-PBCY-T3	O-MBCY-W3
Humidity sensitivity level	1	1	1	1
Number of functions	1	1	1	1
Output times	1	1	1	1
Number of terminals	3	3	3	3
Maximum operating temperature	125 °C	125 °C	70 °C	70 °C
Maximum output voltage	2.505 V	2.505 V	2.505 V	2.505 V
Minimum output voltage	2.495 V	2.495 V	2.495 V	2.495 V
Nominal output voltage	2.5 V	2.5 V	2.5 V	2.5 V
Package body material	PLASTIC/EPOXY	METAL	PLASTIC/EPOXY	METAL
encapsulated code	TO-92	TO-46	TO-92	TO-46
Encapsulate equivalent code	SIP3,.1,50	CAN3/4,.1	SIP3,.1,50	CAN3/4,.1
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Peak Reflow Temperature (Celsius)	225	225	225	225
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Maximum voltage temperature coefficient	35 ppm/°C	35 ppm/°C	25 ppm/°C	25 ppm/°C
Temperature level	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	WIRE	THROUGH-HOLE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Fine-tuning/adjustable output	YES	YES	YES	YES
Maximum voltage tolerance	0.2%	0.2%	0.2%	0.2%
Base Number Matches	1	1	1	1
