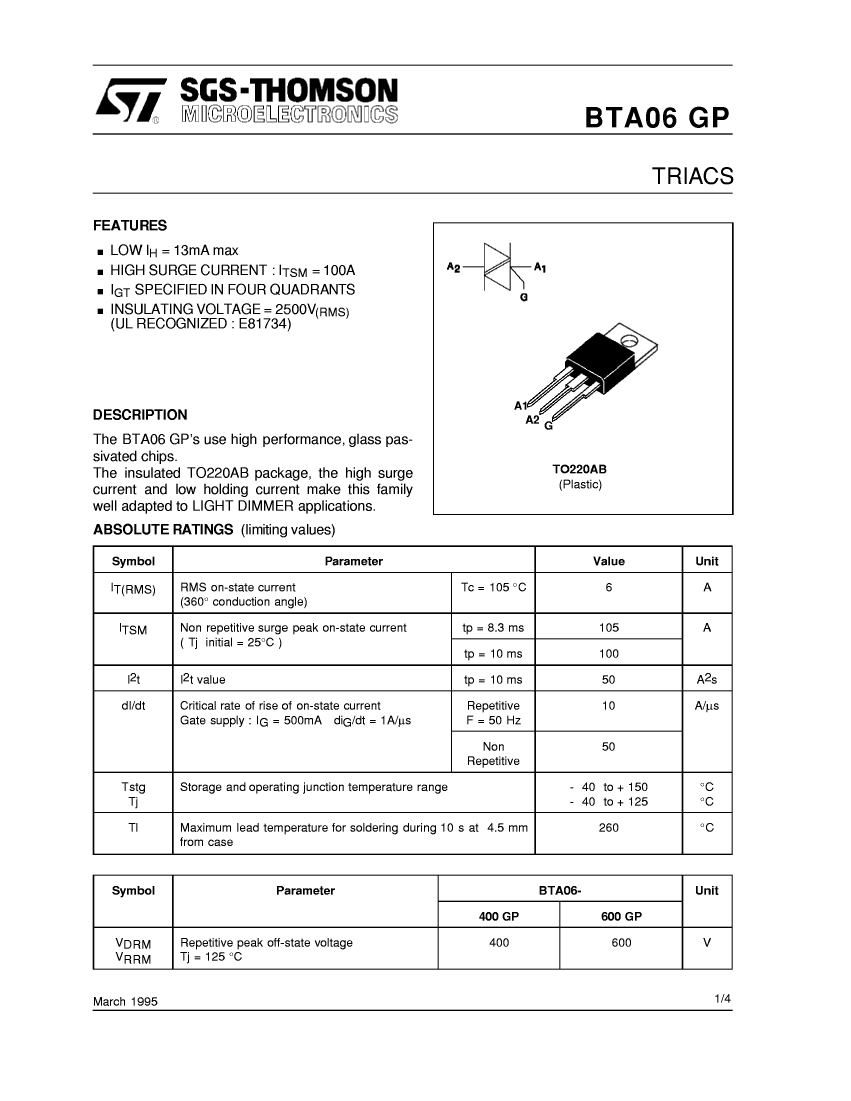

BTA06-600GPRG

Description
600V, 6A, TRIAC, TO-220AB, PLASTIC PACKAGE-3
CategoryAnalog mixed-signal IC    Trigger device
File Size124KB,4 Pages
ManufacturerSTMicroelectronics
Websitehttp://www.st.com/
Environmental Compliance
Download Datasheet Parametric View All

BTA06-600GPRG Overview

600V, 6A, TRIAC, TO-220AB, PLASTIC PACKAGE-3

BTA06-600GPRG Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to

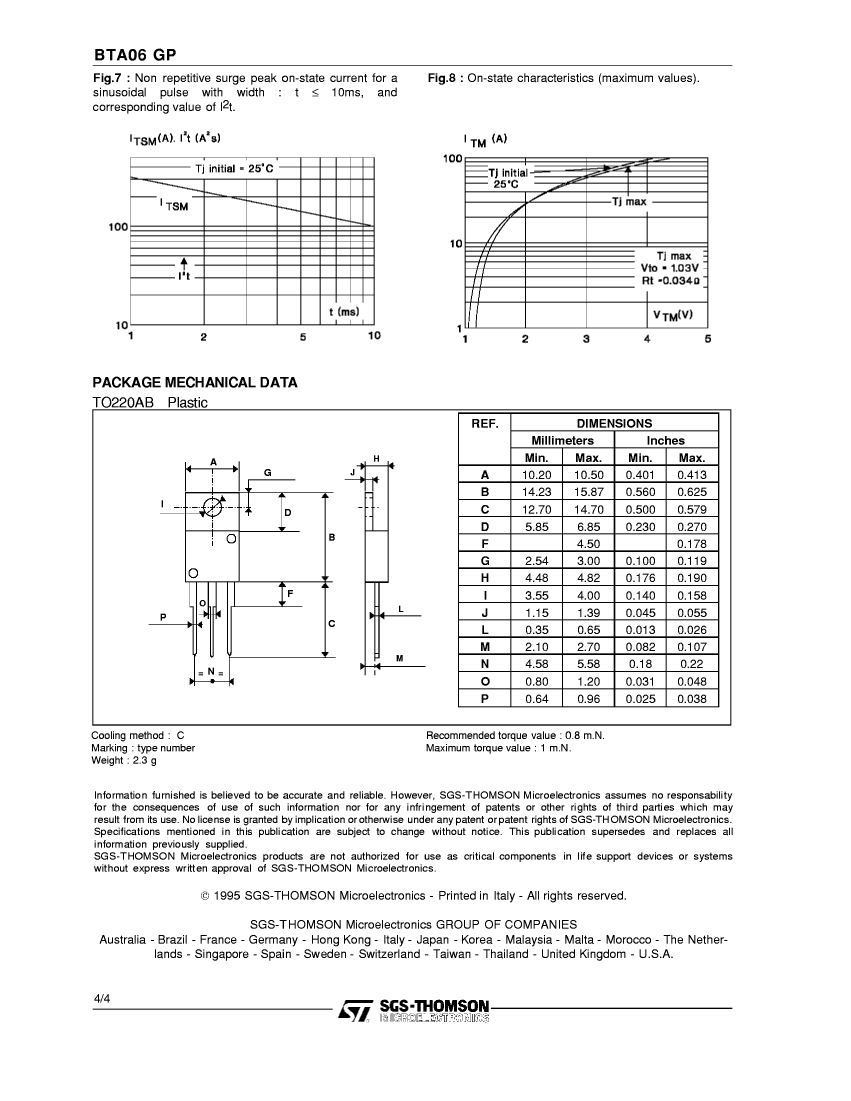

Parts packaging codeTO-220AB
package instructionFLANGE MOUNT, R-PSFM-T3
Contacts3
Reach Compliance Codecompliant
Shell connectionISOLATED
ConfigurationSINGLE

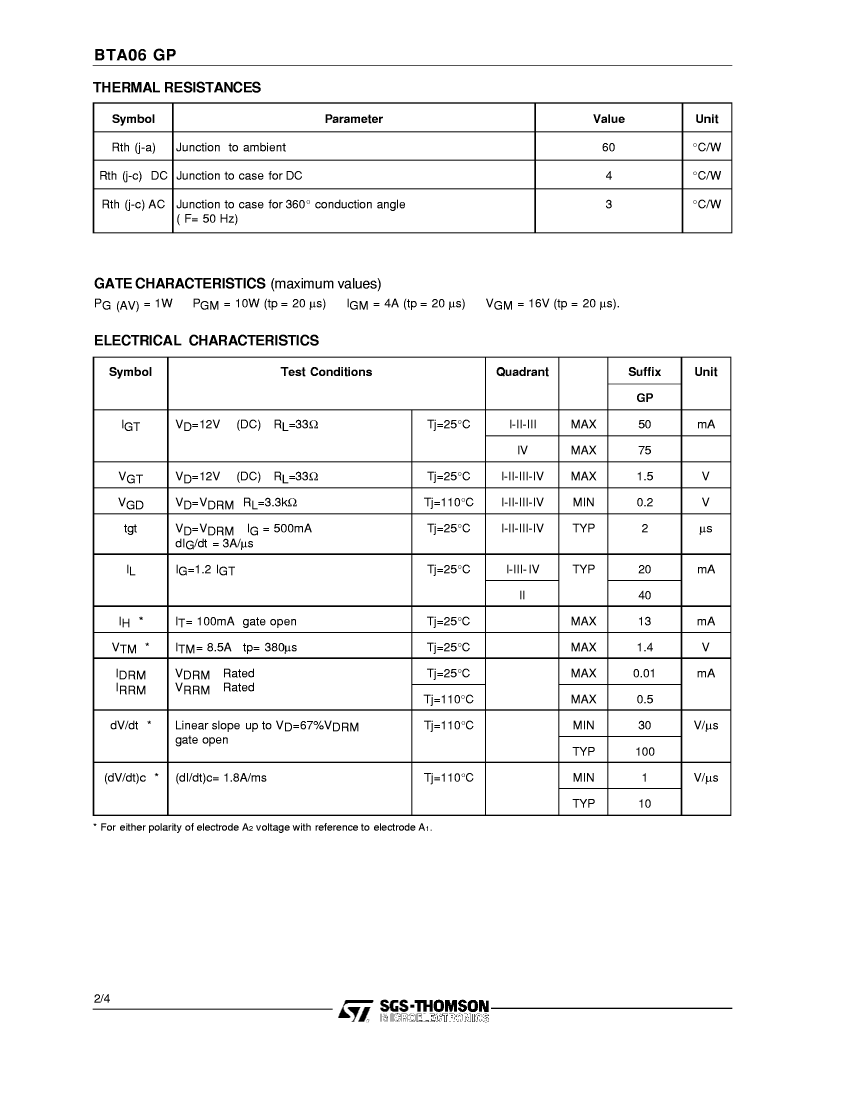

Critical rise rate of commutation voltage - minimum value1 V/us
Critical rise rate of minimum off-state voltage30 V/us
Maximum DC gate trigger current75 mA
Maximum DC gate trigger voltage1.5 V
Maximum holding current13 mA
JEDEC-95 codeTO-220AB
JESD-30 codeR-PSFM-T3
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals3
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)225
Certification statusNot Qualified

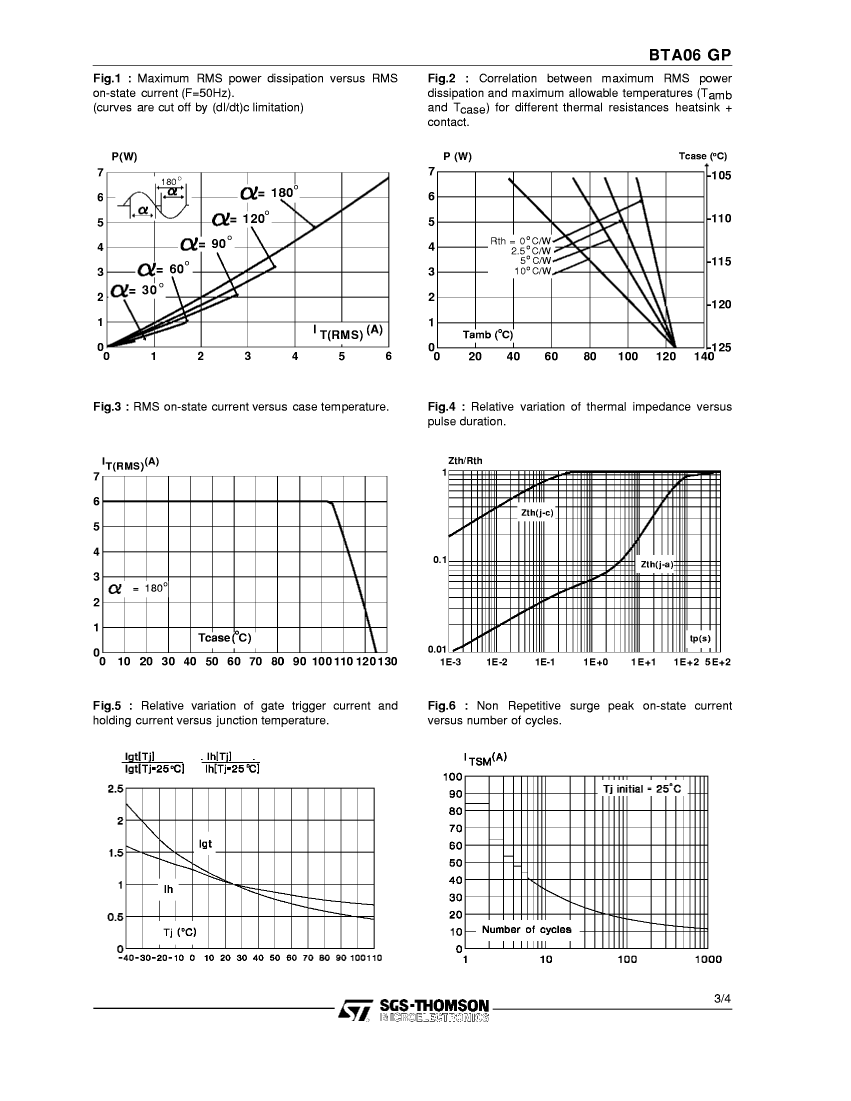

Maximum rms on-state current6 A
Off-state repetitive peak voltage600 V
surface mountNO
Terminal surfaceMatte Tin (Sn)
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger device typeTRIAC
Base Number Matches1
