R161.241.000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> R161.241.000

R161.241.000: DescriptionRF N Connector, Female, Cable Mount, Crimp Terminal, Jack; CategoryThe connector The connector; File Size43KB，1 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

R161.241.000 Overview

RF N Connector, Female, Cable Mount, Crimp Terminal, Jack

R161.241.000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
Other features	APPLICABLE CABLES: RG 165; RG 213
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF N CONNECTOR
Contact to complete cooperation	GOLD (20) OVER NICKEL
Contact completed and terminated	GOLD (20) OVER NICKEL
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.17 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	N
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	11 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.2
Base Number Matches	1

Preview

Download Datasheet

View All

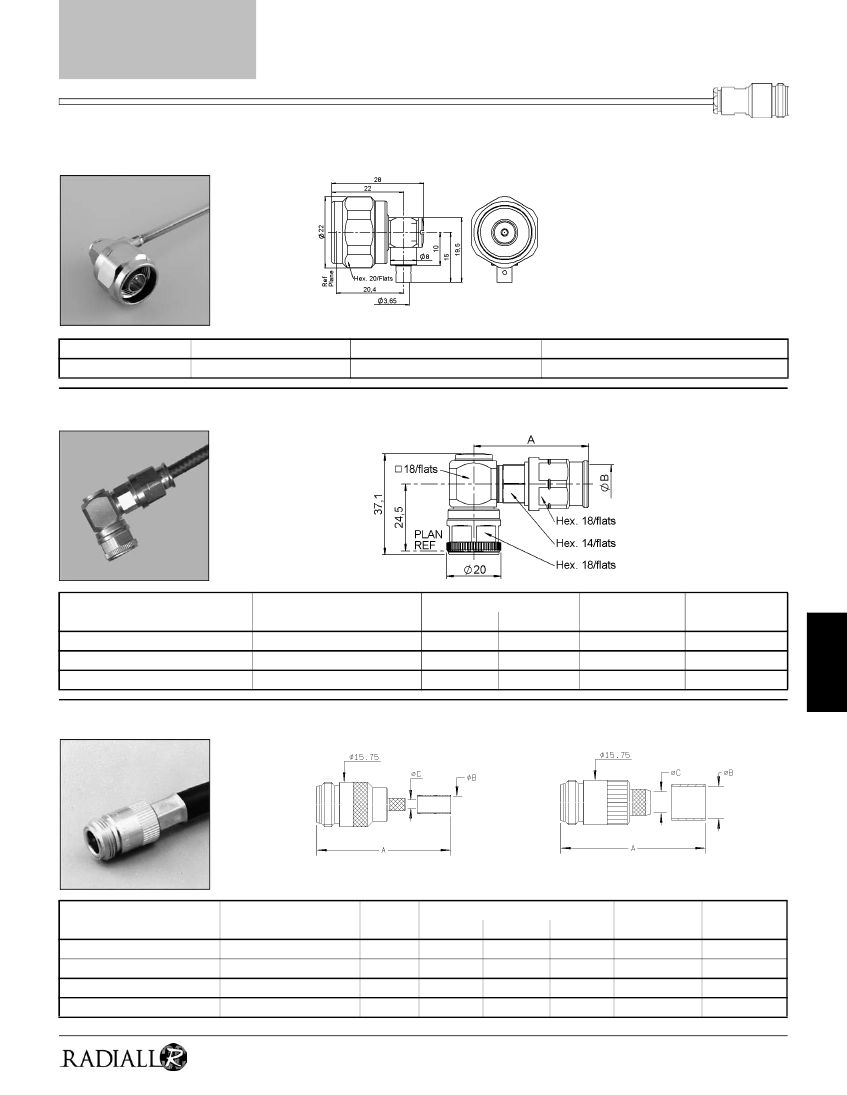

N 50

PLUGS AND JACKS

RIGHT ANGLE PLUG, SOLDER TYPE, FOR SEMI-RIGID CABLES

Cable group

.141“

Part number

R161 152 107

Captured center contact

yes

Assembly instructions

M17

RIGHT ANGLE PLUGS, EZ FIT TYPE, FOR CORRUGATED CABLES

Cable group

1/4” superflexible corrugated

3/8” superflexible corrugated

1/2” superflexible corrugated

Part number

R161 177 007

R161 177 207

R161 177 137

Dimensions (mm)

41.8

42.25

41.75

7.95

Captured

center contact

yes

Assembly

instructions

M13

STRAIGHT JACKS, FULL CRIMP TYPE, FOR FLEXIBLE CABLES

(single piece body)

Fig. 1

Fig. 2

Cable group

5 / 50 / S

5 / 50 / D

10 / 50 / S

11 / 50 / D

Part number

R161 237 000

R161 238 000

R161 241 000

R161 243 000

Fig.

Dimensions (mm)

39.3

40.6

5.41

5.8

11.05

11.4

3.11

7.46

Captured

center contact

yes

Assembly

instructions

M12

M10

13-15

R161.241.000 Related Products

	R161.241.000	R161177207	R161.177.007	R161.243.000	PS1R85B-220TEB2-U	R161.177.137	R161177137
Description	RF N Connector, Female, Cable Mount, Crimp Terminal, Jack	RF N Connector, Male, Cable Mount, Clamp Terminal, Plug	RF N Connector, Male, Cable Mount, Clamp Terminal, Plug	RF N Connector, Female, Cable Mount, Crimp Terminal, Jack	Board Connector, 40 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug	RF N Connector, Male, Cable Mount, Clamp Terminal, Plug	RF N Connector, Male, Cable Mount, Clamp Terminal, Plug
Reach Compliance Code	unknow	unknow	unknow	unknow	unknown	unknown	unknown
Body/casing type	JACK	PLUG	PLUG	JACK	PLUG	PLUG	PLUG
Connector type	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR	BOARD CONNECTOR	RF N CONNECTOR	RF N CONNECTOR
Contact to complete cooperation	GOLD (20) OVER NICKEL	SILVER (118) OVER COPPER	SILVER (118) OVER COPPER	GOLD (20) OVER NICKEL	TIN (200)	GOLD	GOLD
Contact completed and terminated	GOLD (20) OVER NICKEL	SILVER (118) OVER COPPER	SILVER (118) OVER COPPER	GOLD (20) OVER NICKEL	Tin (Sn)	GOLD	GOLD
Contact point gender	FEMALE	MALE	MALE	FEMALE	FEMALE	MALE	MALE
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	NYLON	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4	e4	e3	e4	e4
Manufacturer's serial number	N	N	N	N	PS1R	N	N
Installation method	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	CABLE	CABLE	CABLE	CABLE	BOARD	CABLE	CABLE
Termination type	CRIMP	CLAMP	CLAMP	CRIMP	SOLDER	CLAMP	CLAMP
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	-	-
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	-	-
Other features	APPLICABLE CABLES: RG 165; RG 213	VSWR MAX AT 5 GHZ	VSWR MAX AT 5 GHZ	APPLICABLE CABLES: RG 214; RG 225	-	VSWR MAX AT 5 GHZ	VSWR MAX AT 5 GHZ
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	-	50 Ω	50 Ω
Contact material	BERYLLIUM COPPER	BRASS	BRASS	BERYLLIUM COPPER	COPPER ALLOY	-	-
Coupling type	THREADED	THREADED	THREADED	THREADED	-	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	-	NO	NO
Filter function	NO	NO	NO	NO	-	NO	NO
IEC compliance	NO	NO	NO	NO	-	NO	NO
Insertion loss	0.17 dB	0.33 dB	0.33 dB	0.17 dB	-	0.33 dB	0.33 dB
MIL compliance	NO	NO	NO	NO	-	NO	NO
Maximum operating frequency	11 GHz	11 GHz	11 GHz	11 GHz	-	11 GHz	11 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	-	NO	NO
voltage standing wave ratio	1.2	1.2	1.2	1.2	-	1.2	1.2
Base Number Matches	1	1	1	1	-	1	1
