DC-DC Regulated Power Supply Module, 1 Output, 36.50 X 6 MM, 19 HEIGHT, PACKAGE-14
| Parameter Name | Attribute value |
| Parts packaging code | MODULE |
| package instruction | SIP, |
| Contacts | 14 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Analog Integrated Circuits - Other Types | DC-DC REGULATED POWER SUPPLY MODULE |
| JESD-30 code | R-PSIP-T14 |
| Number of functions | 1 |
| Output times | 1 |
| Number of terminals | 14 |
| Nominal output voltage | 5 V |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| Fine-tuning/adjustable output | NO |
| Base Number Matches | 1 |

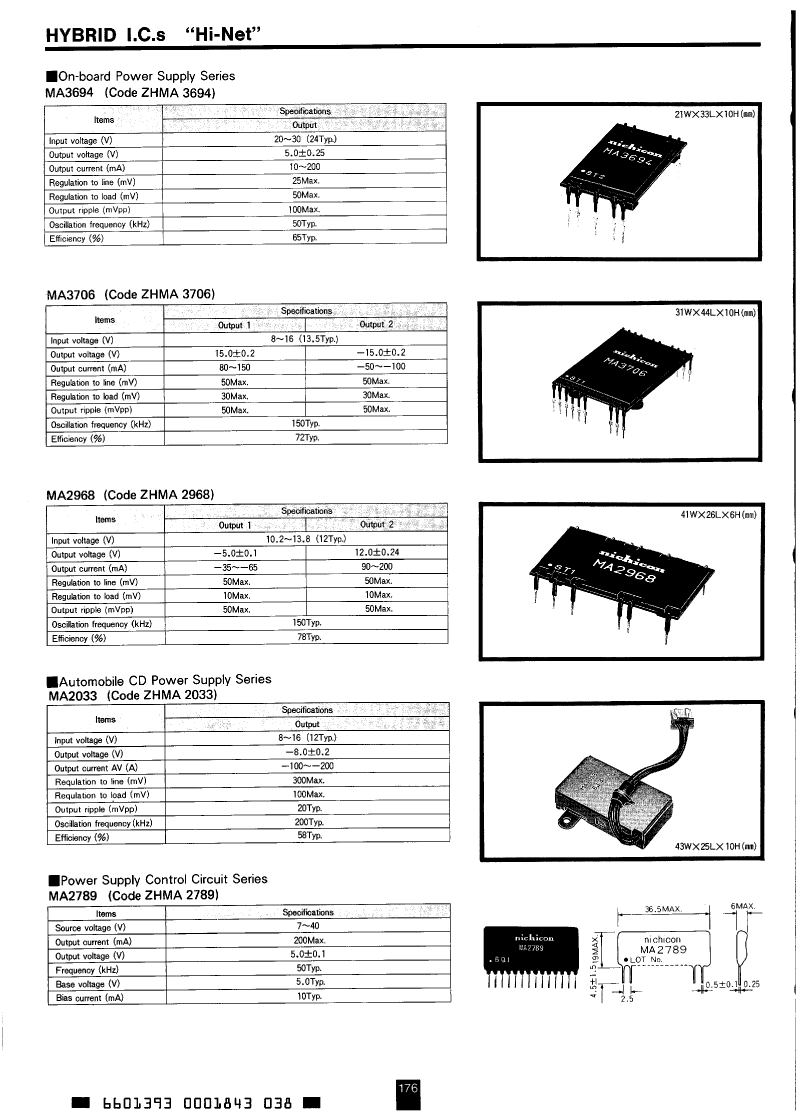

| ZHMA2789 | MA2789 | MA3694 | ZHMA3694 | ZHMA2033 | MA2033 | MA3706 | |
|---|---|---|---|---|---|---|---|
| Description | DC-DC Regulated Power Supply Module, 1 Output, 36.50 X 6 MM, 19 HEIGHT, PACKAGE-14 | DC-DC Regulated Power Supply Module, 1 Output, Hybrid, 36.50 X 6 MM, 19 HEIGHT, PACKAGE-14 | DC-DC Regulated Power Supply Module, 1 Output, Hybrid, 21 X 33 MM, 10 MM HEIGHT, PACKAGE-9 | DC-DC Regulated Power Supply Module, 1 Output, 21 X 33 MM, 10 MM HEIGHT, PACKAGE-9 | DC-DC Regulated Power Supply Module, 1 Output, 43 X 25 MM, 10 MM HEIGHT, PACKAGE | DC-DC Regulated Power Supply Module, 1 Output, 43 X 25 MM, 10 MM HEIGHT, PACKAGE | DC-DC Regulated Power Supply Module, 2 Output, Hybrid, 31 X 44 MM, 10 MM HEIGHT, PACKAGE-19 |
| Parts packaging code | MODULE | MODULE | MODULE | MODULE | MODULE | MODULE | MODULE |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Analog Integrated Circuits - Other Types | DC-DC REGULATED POWER SUPPLY MODULE | DC-DC REGULATED POWER SUPPLY MODULE | DC-DC REGULATED POWER SUPPLY MODULE | DC-DC REGULATED POWER SUPPLY MODULE | DC-DC REGULATED POWER SUPPLY MODULE | DC-DC REGULATED POWER SUPPLY MODULE | DC-DC REGULATED POWER SUPPLY MODULE |
| JESD-30 code | R-PSIP-T14 | R-PSIP-T14 | R-MDMA-T9 | R-MDMA-T9 | R-XXMA-X | R-XXMA-X | R-MDMA-T19 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Output times | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
| Nominal output voltage | 5 V | 5 V | 5 V | 5 V | -8 V | -8 V | 15 V |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | METAL | METAL | UNSPECIFIED | UNSPECIFIED | METAL |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | MICROELECTRONIC ASSEMBLY | MICROELECTRONIC ASSEMBLY | MICROELECTRONIC ASSEMBLY | MICROELECTRONIC ASSEMBLY | MICROELECTRONIC ASSEMBLY |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO | NO | NO |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | UNSPECIFIED | UNSPECIFIED | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE | DUAL | DUAL | UNSPECIFIED | UNSPECIFIED | DUAL |
| Fine-tuning/adjustable output | NO | NO | NO | NO | NO | NO | NO |
| Contacts | 14 | 14 | 9 | 9 | - | - | 19 |
| Number of terminals | 14 | 14 | 9 | 9 | - | - | 19 |
| Base Number Matches | 1 | 1 | 1 | 1 | - | 1 | - |
| Maximum input voltage | - | 40 V | 30 V | 30 V | 16 V | 16 V | 16 V |
| Minimum input voltage | - | 7 V | 20 V | 20 V | 12 V | 12 V | 8 V |
| Maximum output voltage | - | 5.1 V | 5.25 V | 5.25 V | -8.2 V | -10 V | 15.2 V |
| Minimum output voltage | - | 4.9 V | 4.75 V | 4.75 V | -7.8 V | -6 V | 14.8 V |
| Maker | - | - | Nichicon | Nichicon | Nichicon | - | Nichicon |
| Nominal input voltage | - | - | 24 V | 24 V | 8 V | 8 V | 13.5 V |
| Maximum load regulation | - | - | 1% | 1% | 1.25% | 1.25% | 0.2% |
