KM641003AJI-12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> KM641003AJI-12

KM641003AJI-12: DescriptionStandard SRAM, 256KX4, 12ns, CMOS, PDSO32; Categorystorage storage; File Size455KB，9 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KM641003AJI-12 Overview

Standard SRAM, 256KX4, 12ns, CMOS, PDSO32

KM641003AJI-12 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SOJ, SOJ32,.44
Reach Compliance Code	unknown
Maximum access time	12 ns
I/O type	COMMON
JESD-30 code	R-PDSO-J32
JESD-609 code	e0
memory density	1048576 bit
Memory IC Type	STANDARD SRAM
memory width	4
Humidity sensitivity level	3
Number of terminals	32
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	256KX4
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ32,.44
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.008 A
Minimum standby current	4.5 V
Maximum slew rate	0.15 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Base Number Matches	1

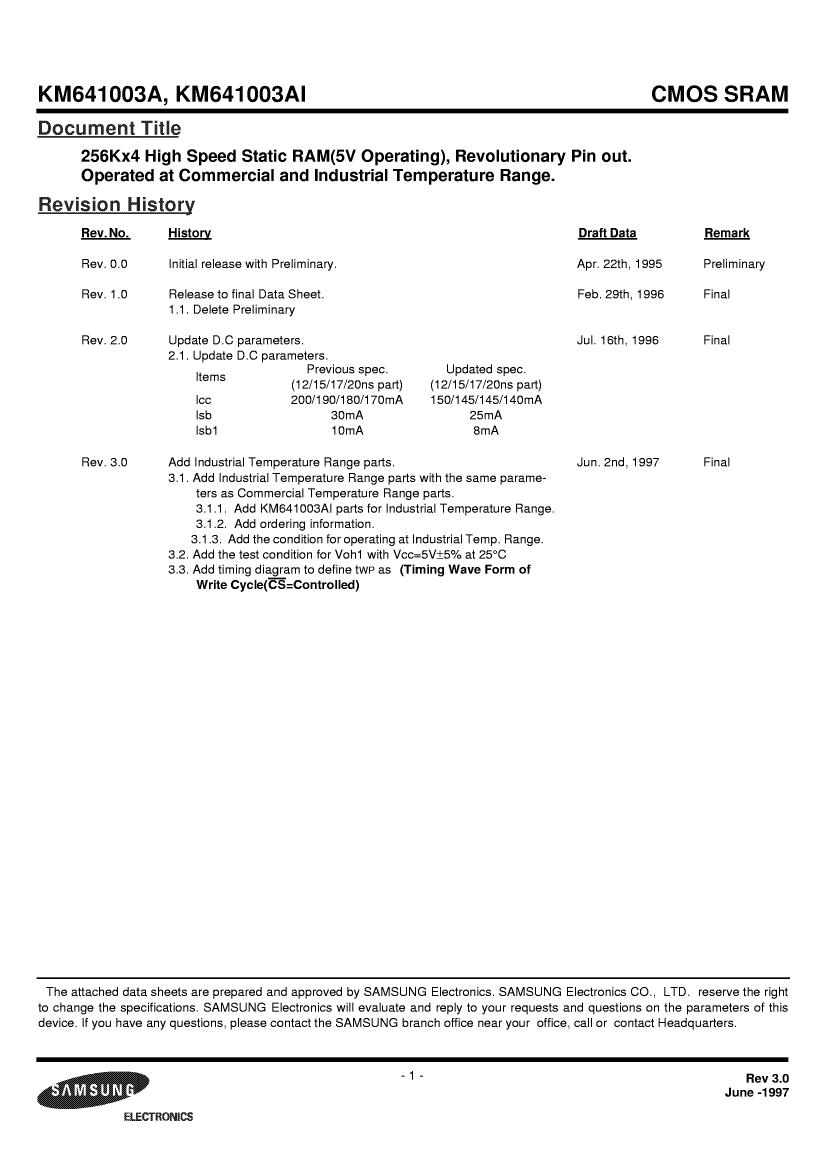

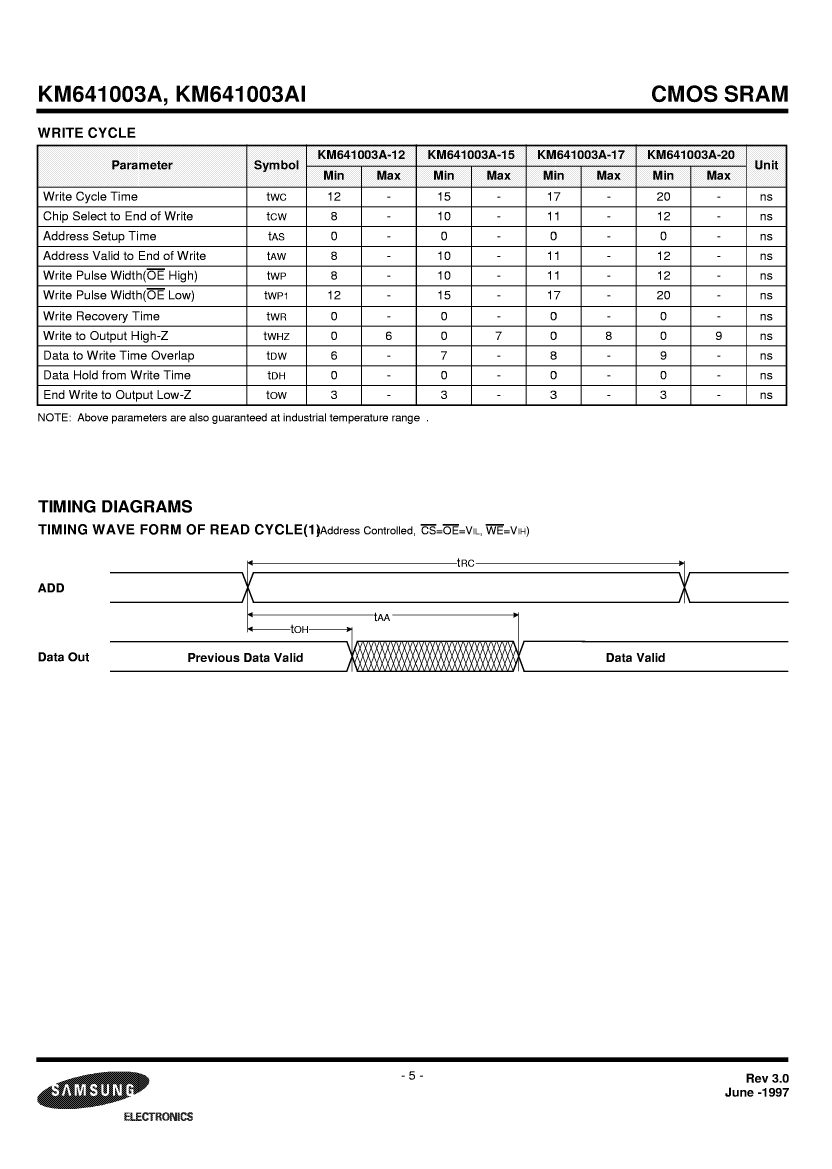

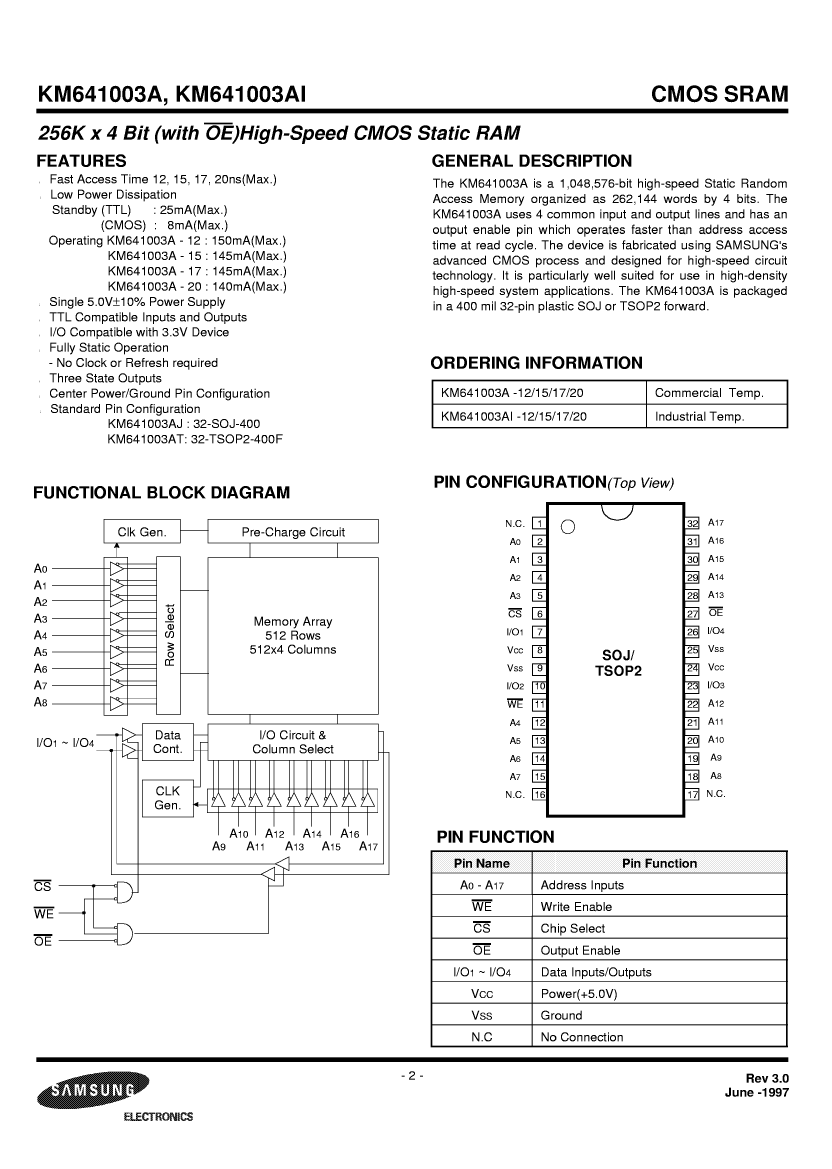

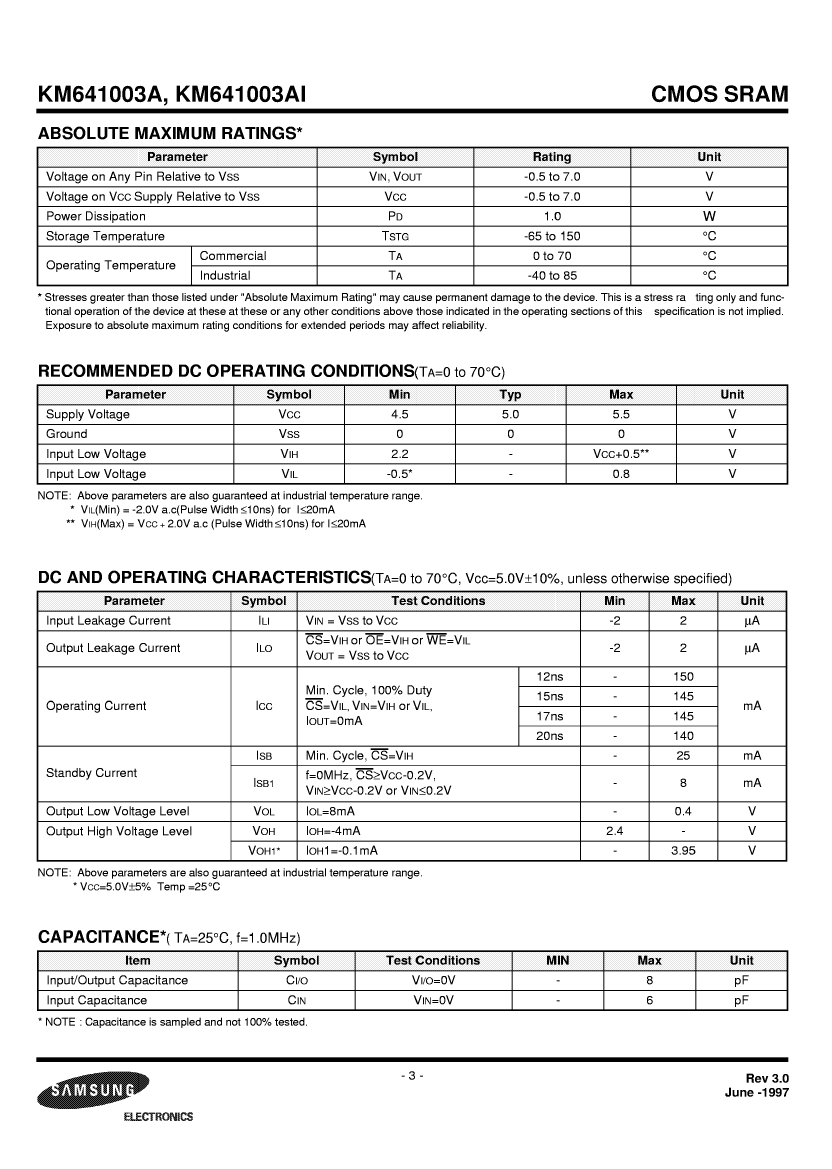

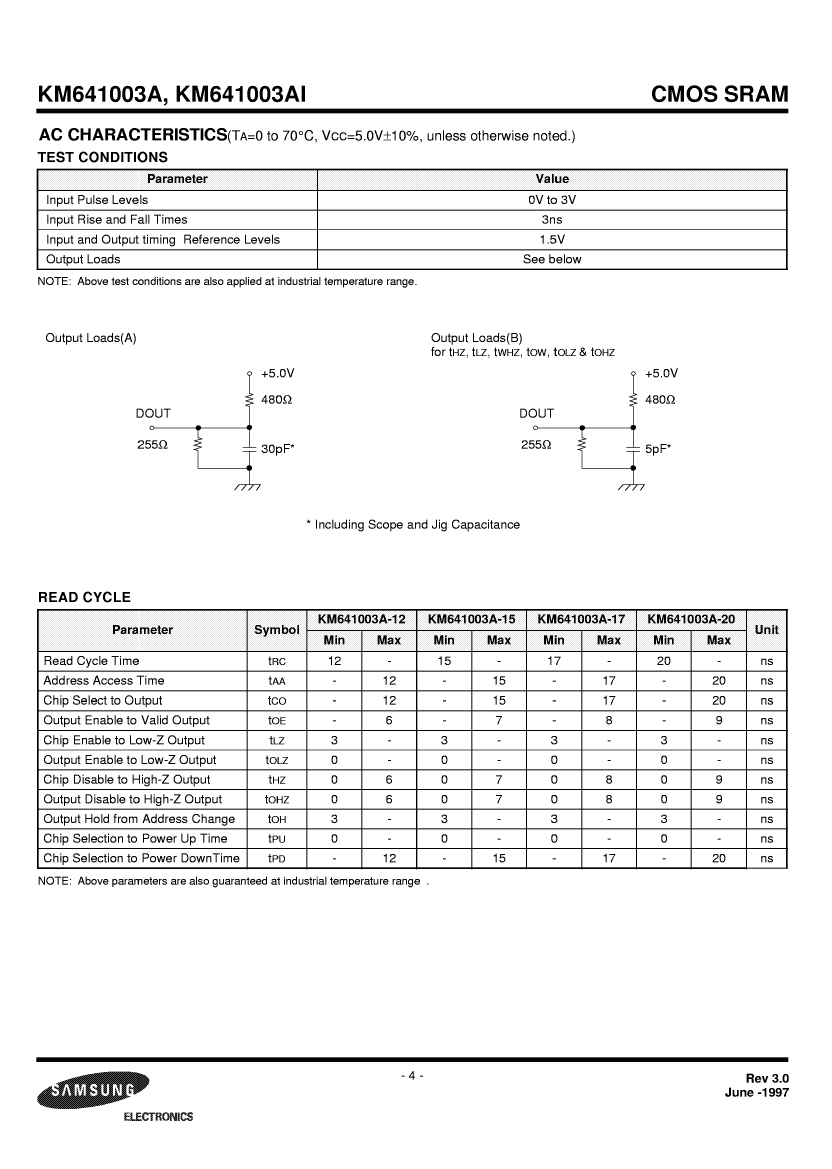

Preview

Download Datasheet

View All

KM641003AJI-12 Related Products

	KM641003AJI-12	KM641003AJI-15	KM641003ATI-15	KM641003ATI-17	KM641003ATI-20	KM641003AJI-20	KM641003ATI-12	KM641003AJI-17
Description	Standard SRAM, 256KX4, 12ns, CMOS, PDSO32	Standard SRAM, 256KX4, 15ns, CMOS, PDSO32	Standard SRAM, 256KX4, 15ns, CMOS, PDSO32	Standard SRAM, 256KX4, 17ns, CMOS, PDSO32	Standard SRAM, 256KX4, 20ns, CMOS, PDSO32	Standard SRAM, 256KX4, 20ns, CMOS, PDSO32	Standard SRAM, 256KX4, 12ns, CMOS, PDSO32	Standard SRAM, 256KX4, 17ns, CMOS, PDSO32
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	SOJ, SOJ32,.44	SOJ, SOJ32,.44	TSOP, TSOP32,.46	TSOP, TSOP32,.46	TSOP, TSOP32,.46	SOJ, SOJ32,.44	TSOP, TSOP32,.46	SOJ, SOJ32,.44
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	12 ns	15 ns	15 ns	17 ns	20 ns	20 ns	12 ns	17 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-J32	R-PDSO-J32	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	R-PDSO-J32	R-PDSO-G32	R-PDSO-J32
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
memory density	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	4	4	4	4	4	4	4	4
Humidity sensitivity level	3	3	3	3	3	3	3	3
Number of terminals	32	32	32	32	32	32	32	32
word count	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000	256000	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
organize	256KX4	256KX4	256KX4	256KX4	256KX4	256KX4	256KX4	256KX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	SOJ	TSOP	TSOP	TSOP	SOJ	TSOP	SOJ
Encapsulate equivalent code	SOJ32,.44	SOJ32,.44	TSOP32,.46	TSOP32,.46	TSOP32,.46	SOJ32,.44	TSOP32,.46	SOJ32,.44
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260	260
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.008 A	0.008 A	0.008 A	0.008 A	0.008 A	0.008 A	0.008 A	0.008 A
Minimum standby current	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Maximum slew rate	0.15 mA	0.145 mA	0.145 mA	0.145 mA	0.14 mA	0.14 mA	0.15 mA	0.145 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND	GULL WING	GULL WING	GULL WING	J BEND	GULL WING	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	40	40	40	40	40	40	40	40
Base Number Matches	1	1	1	1	1	-	-	-
