13-003084 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 13-003084

13-003084: DescriptionConnector Accessory,; CategoryThe connector Connector bracket; File Size188KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric Compare View All

13-003084 Overview

Connector Accessory,

13-003084 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Connector bracket type	CONNECTOR ACCESSORY
Base Number Matches	1

Preview

Download Datasheet

View All

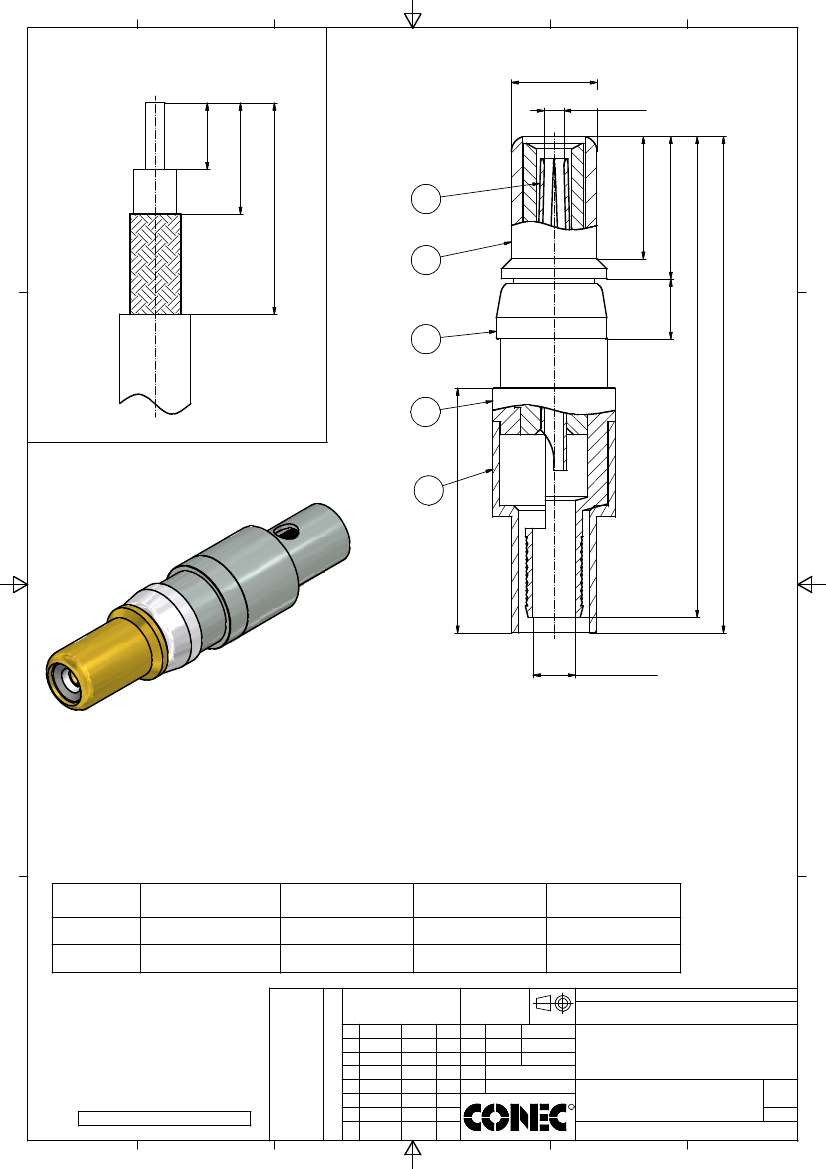

STRIPPING DIMENSIONS

3,85

0,02

0,88

0,02

5,5

+ 0,1

-0

9,5

2,7

21,6

22,3

1,9

+ 0

- 0,05

6,4

0,05

ASSEMBLY TOOLING:

1. CENTER CONTACT:

SOLDERED

2. OUTER CONDUCTOR:

SOLDERED OR CRIMPED

USE CRIMP TOOL: 360X10519X

WITH TOOL INSERT: 360X11019X

INSERT CAVITY B: HEX 3.25 / .128"

Part no.

13-003084

13-003083

Finish

Pos.1

50µin HARD GOLD

over min. 50µin NICKEL

GOLD FLASH over NICKEL

Finish

Pos.2

30µin HARD GOLD

over min. 50µin NICKEL

GOLD FLASH over NICKEL

Finish

Pos.3

NICKEL PLATED

Finish

Pos. 4/5

TIN PLATED

THIS DRAWING MAY NOT BE COPIED OR

REPRODUCED IN ANY WAY, AND MAY NOT

BE PASSED ON TO A THIRD PARTY WITHOUT

WRITTEN PERMISSION.

OWNERSHIP AND COPYRIGHT OF CONEC GmbH

DO NOT ALTER CAD DRAWING BY HAND

tolerance

dim. in mm

date

drawn

07.08.13

appd.

07.08.13

norm

d-old

scale:

material:

name

8:1

COPPER ALLOY

(Pos. 1-5)

title:

Henneboel

Koch

COAXIAL CONTACT PLUG 50 OHM

inner conductor for solder termination

outer conductor for solder or crimp termination

dwg no:

DIN-

Directive 2002/95/EC RoHS compliant

Original

13K1A4415

part no:

sh:

rev. description

date

name

see table

13-003084 Related Products

	13-003084	13-003083
Description	Connector Accessory,	Connector Accessory,
Reach Compliance Code	compli	compli
Connector bracket type	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY
Base Number Matches	1	1
