1711510000

Description
Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,
CategoryThe connector    The connector
File Size74KB，1 Pages
ManufacturerWeidmuller
Websitehttp://www.weidmuller.com/
Environmental Compliance
Download Datasheet Parametric View All

1711510000 Online Shopping

Suppliers Part Number Price MOQ In stock
1711510000 - - View Buy Now

1711510000 Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,

1711510000 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompli
ECCN codeEAR99
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch5.08 mm
Termination typeSOLDER
Total number of contacts16
UL Flammability Code94V-0
Base Number Matches1

Preview

Download Datasheet

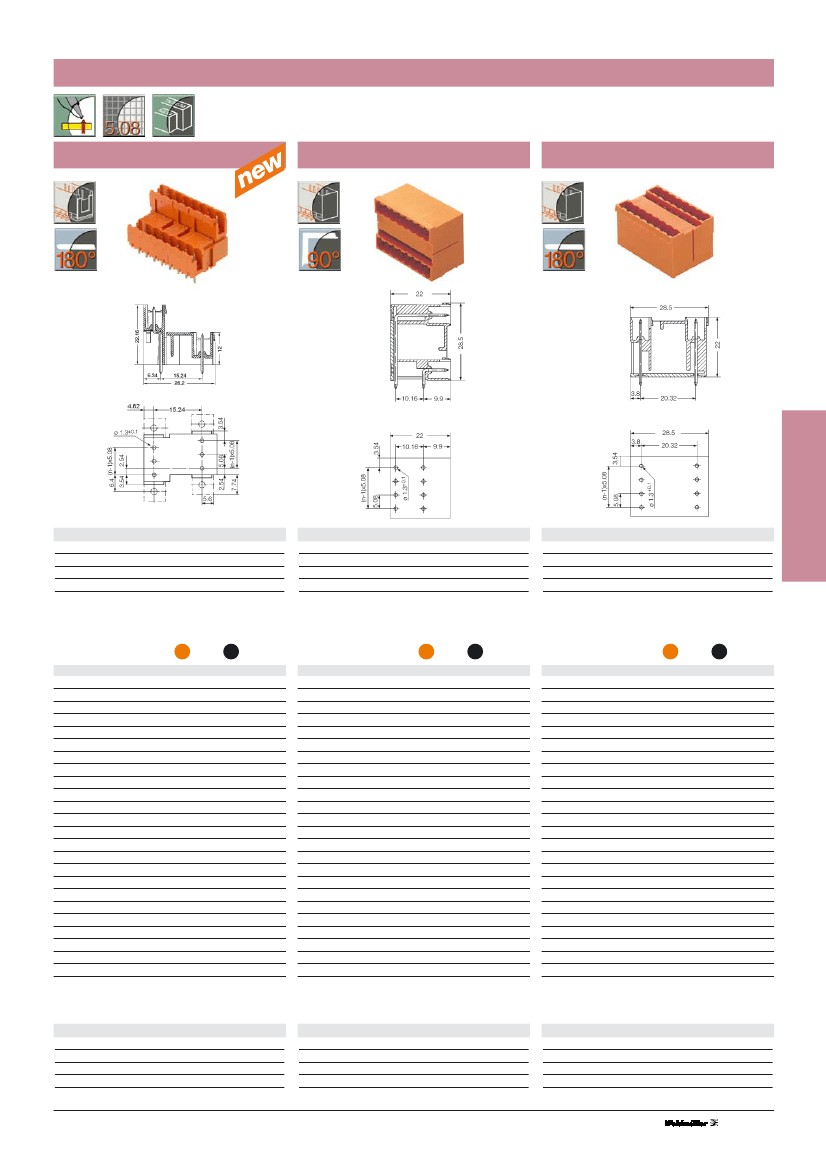

Omnimate Range - Pitch 5.08 mm
Pin headers SLD 5.08V/180B
Pin headers SLD 5.08R20
Pin headers SLD 5.08R20
Technical Data
Rated voltage
Rated current
V
A
VDE
250*
7
UL
300
10
CSA
300
10
Technical Data
Rated voltage
Rated current
V
A
VDE
250*
8
UL
300
10
CSA
300
10
Technical Data
Rated voltage
Rated current
V
A
VDE
250*
8
UL
300
10
CSA
300
10
*Overvoltage category III / Pollution severity 3
Additional technical data see page 217
*Overvoltage category III / Pollution severity 3
Additional technical data see page 216
*Overvoltage category III / Pollution severity 3
Additional technical data see page 216
Solder pin length
Colour
Poles
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
3.2 mm
4.5 mm
Solder pin length
Colour
Poles
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
3.2 mm
4.5 mm
Solder pin length
Colour
Poles
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
3.2 mm
4.5 mm
Type
SLD 5.08V/4/180B
SLD 5.08V/6/180B
SLD 5.08V/8/180B
SLD 5.08V/10/180B
SLD 5.08V/12/180B
SLD 5.08V/14/180B
SLD 5.08V/16/180B
SLD 5.08V/18/180B
SLD 5.08V/20/180B
SLD 5.08V/22/180B
SLD 5.08V/24/180B
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
5.08V/26/180B
5.08V/28/180B
5.08V/30/180B
5.08V/32/180B
5.08V/34/180B
5.08V/36/180B
5.08V/38/180B
5.08V/40/180B
5.08V/42/180B
5.08V/44/180B
5.08V/46/180B
5.08V/48/180B
Cat. No.
1726740000
1726750000
1726760000
1726770000
1726780000
1726790000
1726800000
1726810000
1726820000
1726830000
1726840000
1726850000
1726860000
1726870000
1726880000
1726890000
1726900000
1726910000
1726920000
1726930000
1726940000
1726950000
1726960000
Cat. No.
1726970000
1726980000
1726990000
1727000000
1727010000
1727020000
1727030000
1727040000
1727050000
1727060000
1727070000
1727080000
1727090000
1727100000
1727110000
1727120000
1727130000
1727140000
1727150000
1727160000
1727170000
1727180000
1727190000
Qty.
100
100
100
50
50
50
50
50
50
50
50
50
50
50
50
50
20
20
20
20
20
20
20
Type
SLD 5.08R20/4
SLD 5.08R20/6
SLD 5.08R20/8
SLD 5.08R20/10
SLD 5.08R20/12
SLD 5.08R20/14
SLD 5.08R20/16
SLD 5.08R20/18
SLD 5.08R20/20
SLD 5.08R20/22
SLD 5.08R20/24
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
5.08R20/26
5.08R20/28
5.08R20/30
5.08R20/32
5.08R20/34
5.08R20/36
5.08R20/38
5.08R20/40
5.08R20/42
5.08R20/44
5.08R20/46
5.08R20/48
Cat. No.
1601790000
1601800000
1601810000
1601820000
1601830000
1601840000
1601850000
1601860000
1601870000
1601880000
1601890000
1601900000
1601910000
1601920000
1601930000
1601940000
1601950000
1601960000
1601970000
1601980000
1601990000
1602000000
1602010000
Cat. No.
Qty.
1711450000
50
1675320000
50
1675330000
50
1711480000
50
1711490000
50
1711500000
20
1711510000
20
1711520000
20
1711530000
20
1711540000
10
1711550000
10
1711560000
1711570000
1711580000
1711590000
1711600000
1711610000
1711620000
1711630000
1711640000
1711650000
1711660000
1711670000
10
10
10
10
10
10
10
10
10
10
10
10
Type
SLD 5.08R20/4
SLD 5.08R20/6
SLD 5.08R20/8
SLD 5.08R20/10
SLD 5.08R20/12
SLD 5.08R20/14
SLD 5.08R20/16
SLD 5.08R20/18
SLD 5.08R20/20
SLD 5.08R20/22
SLD 5.08R20/24
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
5.08R20/26
5.08R20/28
5.08R20/30
5.08R20/32
5.08R20/34
5.08R20/36
5.08R20/38
5.08R20/40
5.08R20/42
5.08R20/44
5.08R20/46
5.08R20/48
Cat. No.
1602390000
1602400000
1602410000
1602420000
1602430000
1602440000
1602450000
1602460000
1602470000
1602480000
1602490000
1602500000
1602510000
1602520000
1602530000
1602540000
1602550000
1602560000
1602570000
1602580000
1602590000
1602600000
1602610000
Cat. No.
Qty.
1711680000
50
1711690000
50
1711700000
50
1711710000
50
1711720000
50
1711730000
20
1676730000
20
1711750000
20
1711760000
20
1711770000
10
1711780000
10
1711790000
1711800000
1711810000
1711820000
1711830000
1711840000
1711850000
1711860000
1711870000
1711880000
1711890000
1711900000
10
10
10
10
10
10
10
10
10
10
10
10
Accessories
Fixing
Marking
Coding
Miscellaneous
Page
193
196
199
–
Accessories
Fixing
Marking
Coding
Miscellaneous
Page
–
196
198, 199
–
Accessories
Fixing
Marking
Coding
Miscellaneous
Page
–
196
198, 199
–
125
Omnimate Range
Pitch 5.08 mm
