AMZ8104PC datasheet, PDF - EEWORLD Datasheet

AMZ8104PC: DescriptionBus Transceiver, 81 Series, 1-Func, 8-Bit, True Output, TTL, PDIP20, PLASTIC, DIP-20; Categorylogic logic; File Size208KB，6 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric View All

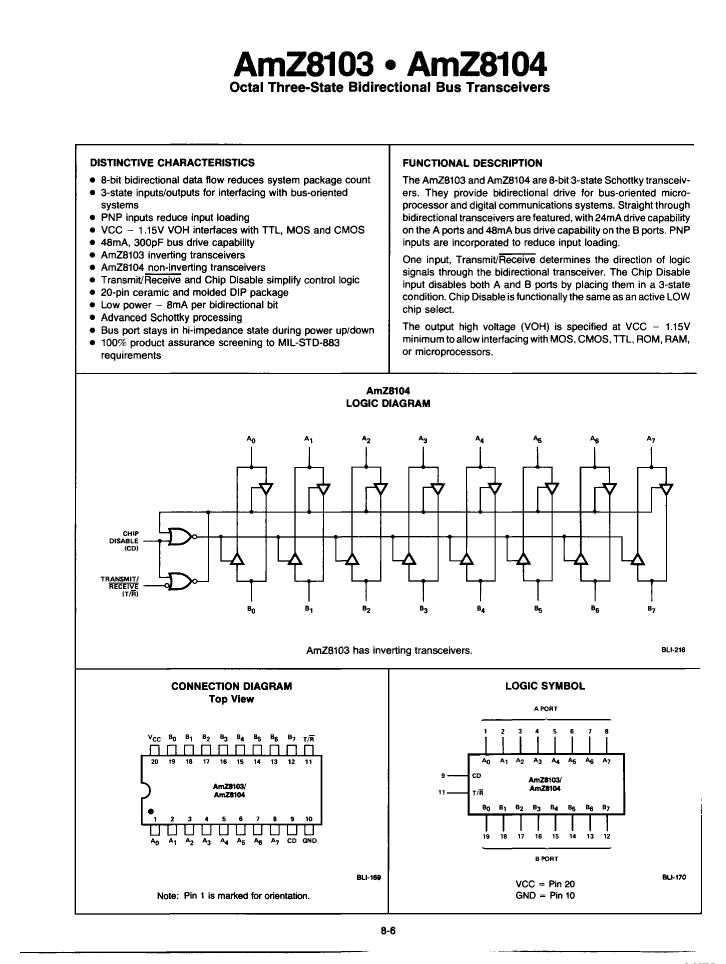

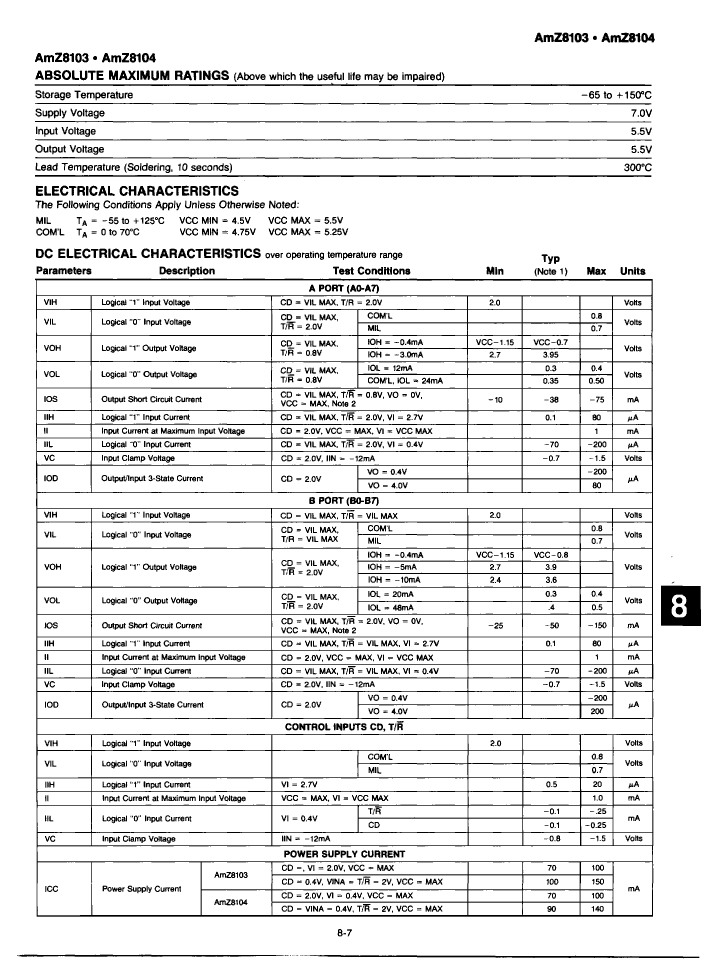

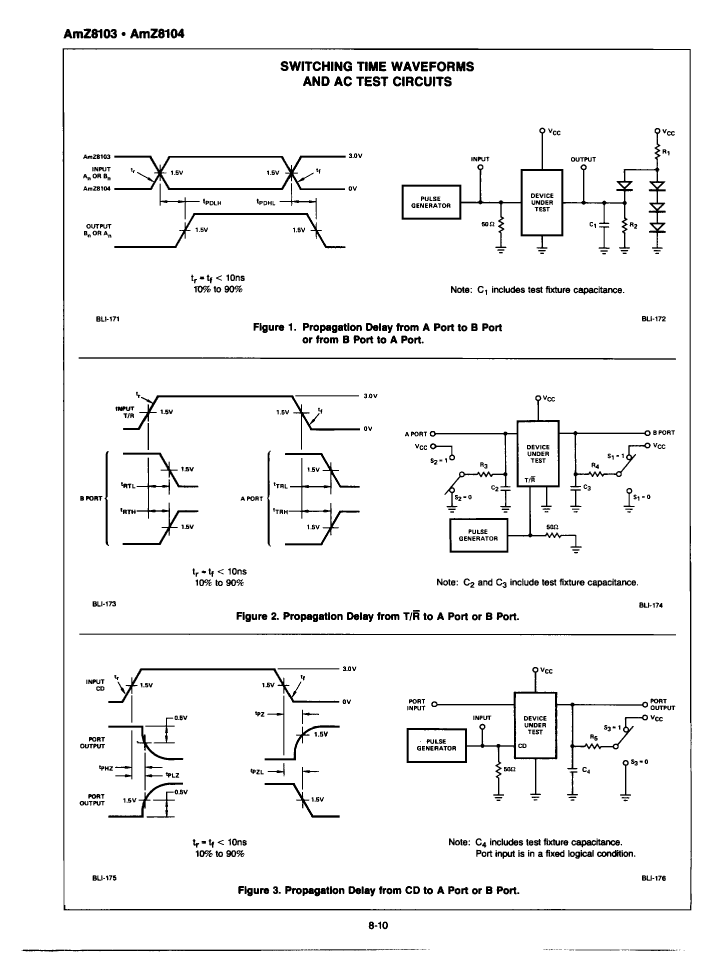

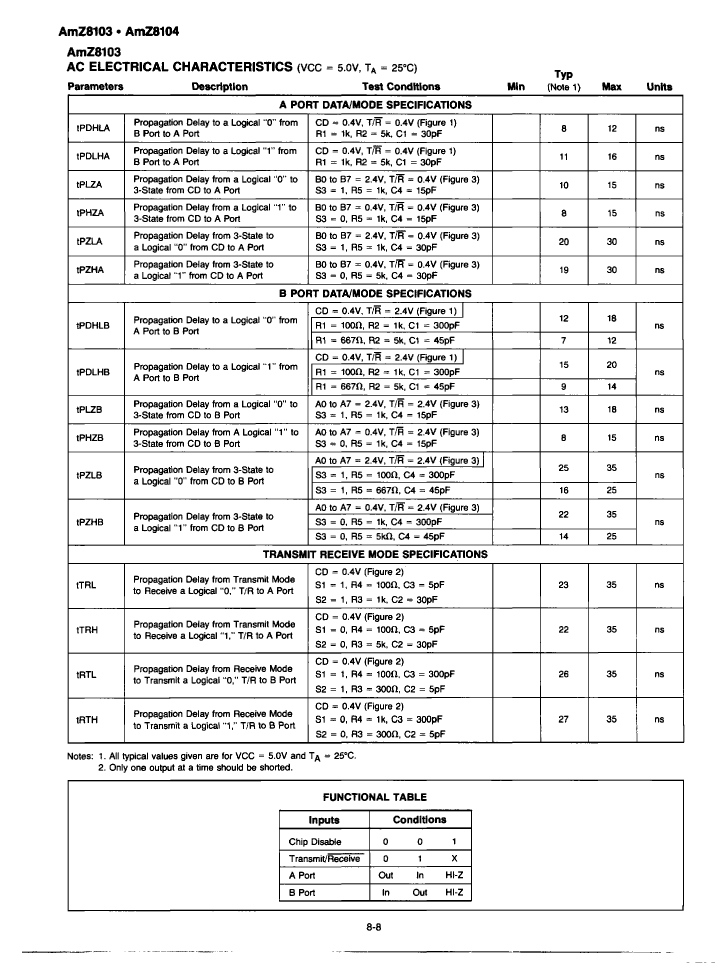

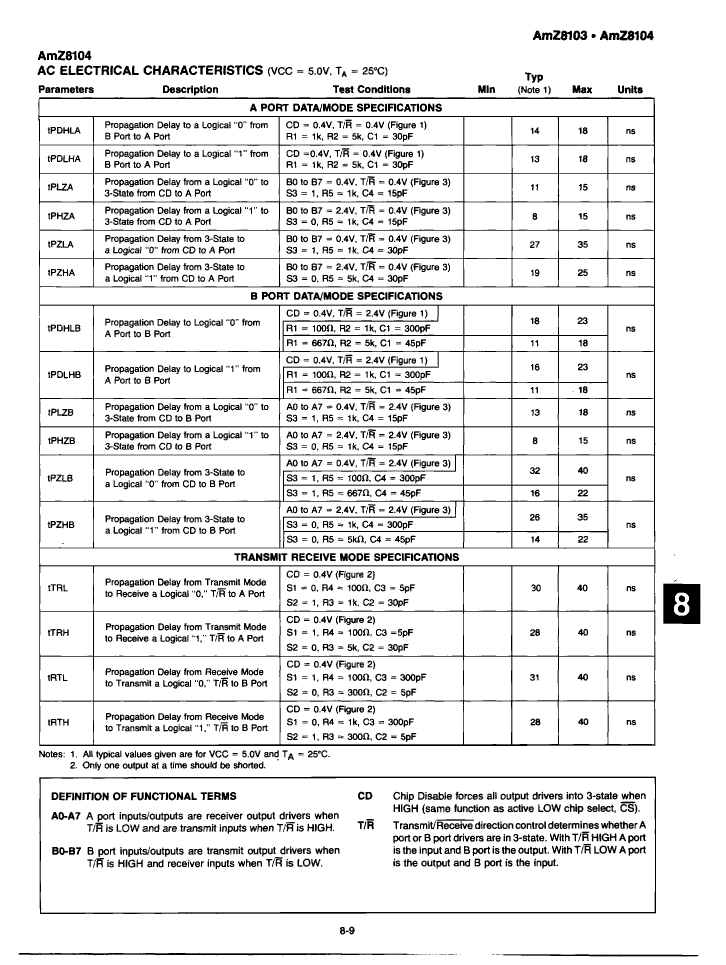

AMZ8104PC Overview

Bus Transceiver, 81 Series, 1-Func, 8-Bit, True Output, TTL, PDIP20, PLASTIC, DIP-20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP20,.3
Contacts	20
Reach Compliance Code	unknown
Control type	COMMON CONTROL
Counting direction	BIDIRECTIONAL
series	81
JESD-30 code	R-PDIP-T20
JESD-609 code	e0
length	26.162 mm
Load capacitance (CL)	300 pF
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum supply current (ICC)	140 mA
propagation delay (tpd)	23 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
translate	N/A
width	7.62 mm
Base Number Matches	1
