AZ2100
40A MINIATURE
POWER RELAY

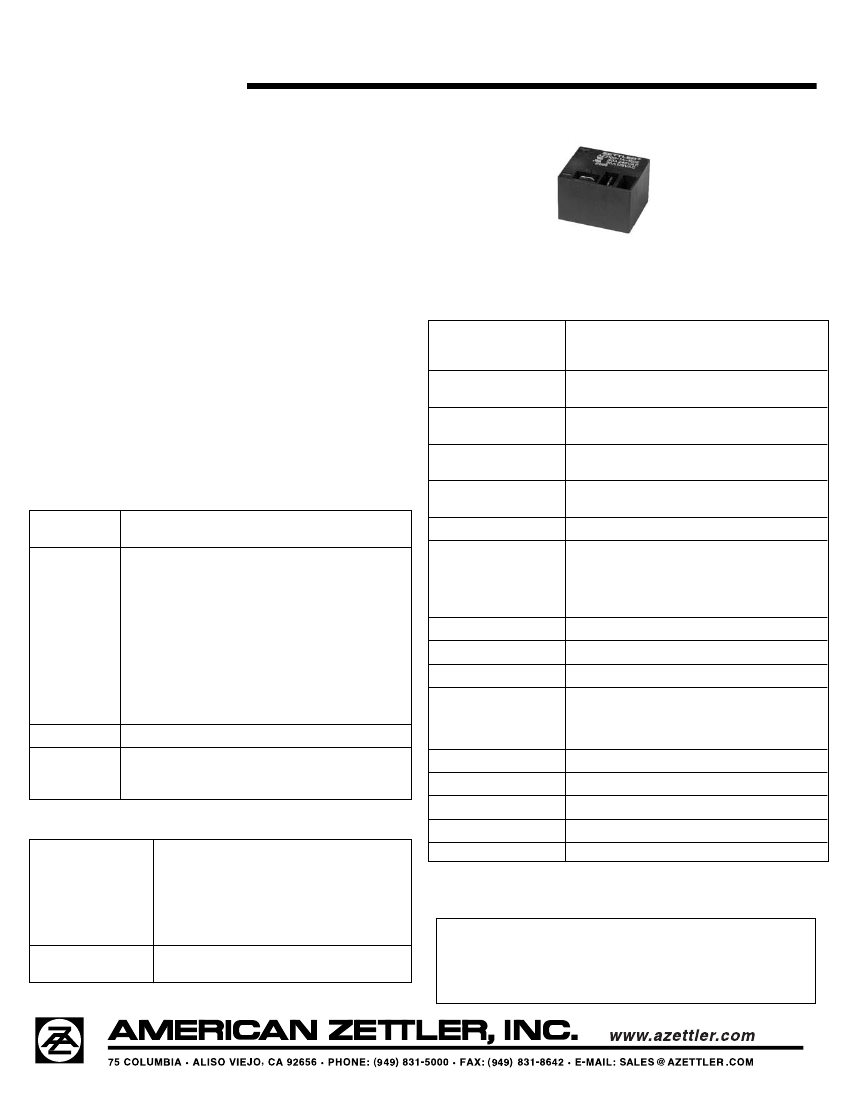

FEATURES
•
Versatility of both PC and “Trace-Saver” quick-connect ter-
minals on contacts
•
40 Amp switching capability
•
1 Form A, B and C contacts available
•
DC coils to 120 VDC
•
Life expectancy to 10 million operations
•
Class B insulation for high temperature applications
•
Class F (155°C) version available
•
Available with an epoxy seal for automatic wave
soldering and immersion cleaning
•
Proof Tracking Index (PTI/CTI) 175
•
UL, CUR file E44211 including versions meeting UL 508
and UL 873 spacing and contact rating requirements; VDE
40023154 (some models)
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time (max.)
Release Time (max.)
Dielectric Strength
(at sea level for 1 min.)
Minimum operations
1 x 10
7
1 x 10
5
at 30 A 120 VAC Res. (N.O.)
Max. 12 ms
Typical: 8 ms
Max. 5 ms
Typical: 3.5 ms
2500 Vrms contact to coil
1500 Vrms between open contacts
100 megohms min. at 500 VDC, 20°C,
50% RH
Greater than 10% of nominal coil voltage
-55°C
-55°C
-55°C
-55°C
(-67°F)
(-67°F)
(-67°F)
(-67°F)
to
to
to
to
100°C
125°C
130°C
155°C
(212°F)
(257°F)
(266°F)
(311°F)
Class
Class
Class
Class
B
F
B
F
CONTACTS
Arrangement
Ratings
SPDT (1 Form C)
SPST (1 Form A and 1 Form B)
Resistive load:
Max. switched power: 900 W or 10000 VA
Max. switched current: 40 A (Form A) 30 A (Form B)
Max. switched voltage: 30 VDC or 300 VAC
UL Rating:

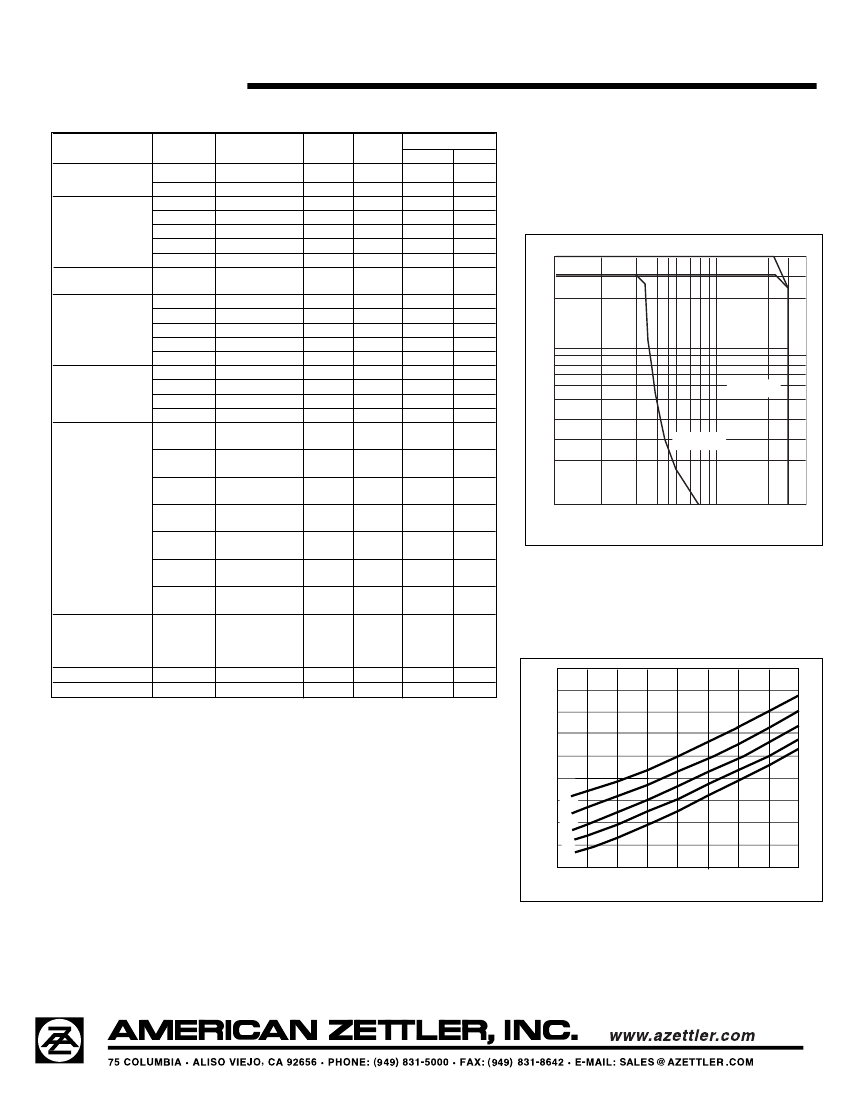

See chart for UL contact ratings. AZ2100
Series meets UL 508 Group A spacing and UL 873
refrigeration and safety control requirements. AZ2101
Series meets UL 508 Group B spacing requirements.
VDE Rating:
AZ2100-1A - 25 A at 250 VAC, 10K cycles, resistive
AZ2100-1C - 20 A at 250 VAC, 10k cycles, resistive
Material
Resistance
Silver cadmium oxide
< 20 milliohms initially
(at rated current, voltage drop method)
Insulation Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
Shock
Enclosure
Terminals
0.062" DA at 10–55 Hz
20 g
P.B.T. polyester
Tinned copper alloy, P.C. with quick-con
nect tabs, .250" wide, on top
Note: Allow suitable slack on leads when wiring,
do not subject the terminals to excessive force.
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
43 grams
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Temperature
500 mW
2.2 W at 20°C (68°F) ambient
1.8 W at 40°C (104°F) ambient
38°C (68°F) at nominal coil voltage
Max. 130°C (266°F) Class B
Max. 155°C (311°F) Class F
Max. Immersion Time
Weight
NOTES
1.
2.
3.
4.
5.
All values at 20°C (68°F).
Relay may pull in with less than “Must Operate” value.
Unsealed relays should not be dip cleaned.
Other coil resistances and sensitivities available upon request.
Specifications subject to change without notice.
7/23/09
AZ2100
RELAY ORDERING DATA: 1/8” Clearance, 1/4” Creepage
STANDARD RELAYS: 1 Form A (SPST N.O.)
COIL SPECIFICATIONS
Nominal Coil
VDC
5
6
9
12
15
18
24
48
70
110
Max. Continuous
VDC
7.3
8.9
13.9
17.5
22.5
27.4
36.1
68.4
104.4
163.2
Coil Resistance
±10%
27
40
97
155
256
380
660
2,560
5,500
13,450
Must Operate
VDC
3.75
4.5
6.75
9.0
11.25
13.5
18.0
36.0
52.5
82.5
ORDER NUMBER*
Unsealed
AZ2100–1A–5D
AZ2100–1A–6D
AZ2100–1A–9D
AZ2100–1A–12D
AZ2100–1A–15D
AZ2100–1A–18D
AZ2100–1A–24D
AZ2100–1A–48D
AZ2100–1A–70D
Sealed
AZ2100–1A–5DE
AZ2100–1A–6DE
AZ2100–1A–9DE
AZ2100–1A–12DE
AZ2100–1A–15DE
AZ2100–1A–18DE
AZ2100–1A–24DE
AZ2100–1A–48DE
AZ2100–1A–70DE
AZ2100–1A–110D AZ2100–1A–110DE
STANDARD RELAYS: 1 Form C (SPDT)
COIL SPECIFICATIONS
Nominal Coil
VDC
5
6
9
12
15
18
24
48
70
110
Max. Continuous
VDC
7.3
8.9
13.9
17.5
22.5
27.4
36.1
68.4
104.4
163.2
Coil Resistance
±10%
27
40
97
155
256
380
660
2,560
5,500
13,450
Must Operate
VDC
3.75
4.5
6.75
9.0
11.25
13.5
18.0
36.0
52.5
82.5
ORDER NUMBER*
Unsealed
AZ2100–1C–5D
AZ2100–1C–6D
AZ2100–1C–9D
AZ2100–1C–12D
AZ2100–1C–15D
AZ2100–1C–18D
AZ2100–1C–24D
AZ2100–1C–48D
AZ2100–1C–70D
Sealed
AZ2100–1C–5DE
AZ2100–1C–6DE
AZ2100–1C–9DE
AZ2100–1C–12DE
AZ2100–1C–15DE
AZ2100–1C–18DE
AZ2100–1C–24DE
AZ2100–1C–48DE
AZ2100–1C–70DE
AZ2100–1C–110D AZ2100–1C–110DE
*Substitute “1B” in place of “1A” or “1C” to indicate 1 Form B. To indicate Class F version, add suffix “F”.
Other coil resistances and sensitivities available upon request. Please contact the factory.

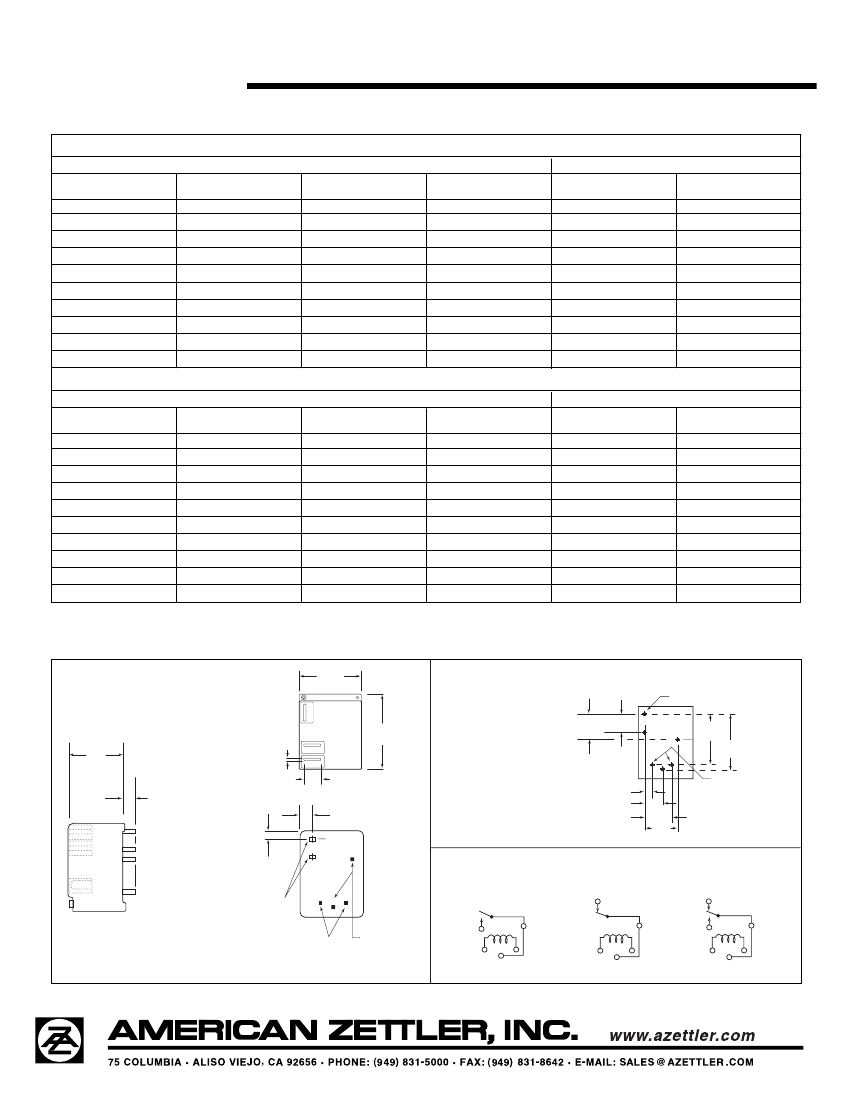

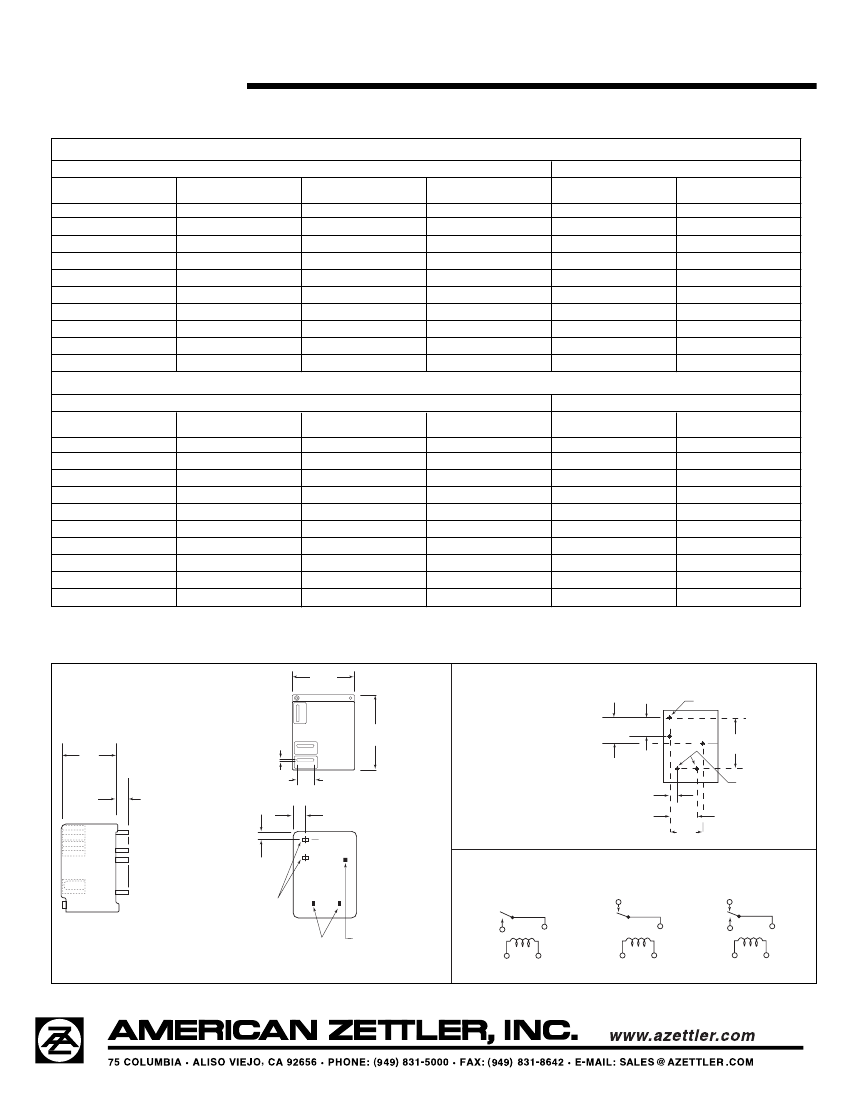

MECHANICAL DATA
1.08
(27.4)
PC BOARD LAYOUT
1.27
(32.23)
.300
(7.6)
.081 ± .003 DIA (3 PLACES)
(2.06 ± .076)
1.10
(27.92)
.140 + .01, –.020
(3.6 + .25, –.51)
(3 PLACES) .032
(0.81)
.900
(22.84)
.400
(10.2)
.150
(3.81)
(3 PLACES) .250
(6.35)
.240
(6.1)
.043 ± .003
(1.09 ± .076) DIA
.550
(13.96)
Viewed toward terminals
.700
(17.77)
.130
(3.3)
WIRING DIAGRAM
I FORM A
(SPST - NO)
I FORM B
(SPST - NC)
3
.045 x .045
(1.14 x 1.14)
.025 x .025
(0.63 x 0.63)
3
I FORM C
(SPDT)
.032 x .062
(0.81 x 1.57)
2
1
5
4
4
1
5
2
1
5
4
Viewed toward terminals
Dimensions in inches with metric equivalents in parentheses. Tolerance: ± .010"
7/23/09
AZ2100
RELAY ORDERING DATA: 1/16” Clearance, 1/8” Creepage
STANDARD RELAYS: 1 Form A (SPST N.O.)
COIL SPECIFICATIONS
Nominal Coil
VDC
5
6
9
12
15
18
24
48
70
110
Max. Continuous
VDC
7.3
8.9
13.9
17.5
22.5
27.4
36.1
68.4
104.4
163.2
Coil Resistance
±10%
27
40
97
155
256
380
660
2,560
5,500
13,450
Must Operate
VDC
3.75
4.5
6.75
9.0
11.25
13.5
18.0
36.0
52.5
82.5
ORDER NUMBER*
Unsealed
AZ2101–1A–5D
AZ2101–1A–6D
AZ2101–1A–9D
AZ2101–1A–12D
AZ2101–1A–15D
AZ2101–1A–18D
AZ2101–1A–24D
AZ2101–1A–48D
AZ2101–1A–70D
Sealed
AZ2101–1A–5DE
AZ2101–1A–6DE
AZ2101–1A–9DE
AZ2101–1A–12DE
AZ2101–1A–15DE
AZ2101–1A–18DE
AZ2101–1A–24DE
AZ2101–1A–48DE
AZ2101–1A–70DE
AZ2101–1A–110D AZ2101–1A–110DE
STANDARD RELAYS: 1 Form C (SPDT)
COIL SPECIFICATIONS
Nominal Coil
VDC
5
6
9
12
15
18
24
48
70
110
Max. Continuous
VDC
7.3
8.9
13.9
17.5
22.5
27.4
36.1
68.4
104.4
163.2
Coil Resistance
±10%
27
40
97
155
256
380
660
2,560
5,500
13,450
Must Operate
VDC
3.75
4.5
6.75
9.0
11.25
13.5
18.0
36.0
52.5
82.5
ORDER NUMBER*
Unsealed
AZ2101–1C–5D
AZ2101–1C–6D
AZ2101–1C–9D
AZ2101–1C–12D
AZ2101–1C–15D
AZ2101–1C–18D
AZ2101–1C–24D
AZ2101–1C–48D
AZ2101–1C–70D
Sealed
AZ2101–1C–5DE
AZ2101–1C–6DE
AZ2101–1C–9DE
AZ2101–1C–12DE
AZ2101–1C–15DE
AZ2101–1C–18DE
AZ2101–1C–24DE
AZ2101–1C–48DE
AZ2101–1C–70DE
AZ2101–1C–110D AZ2101–1C–110DE
*Substitute “1B” in place of “1A” or “1C” to indicate 1 Form B. To indicate Class F version, add suffix “F”.
Other coil resistances and sensitivities available upon request. Please contact the factory.
MECHANICAL DATA
1.08
(27.4)
PC BOARD LAYOUT
1.27
(32.23)
.400
(10.2)
.300
(7.6)
.081 x .003 DIA (4 PLACES)
(2.06 x .076)
1.10
(27.92)
.140 + .01, –.020
(3.6 + .25, –.51)
(3 PLACES) .032
(0.81)
.900
(22.84)
1.000
(25.38)
.043 x .003
(1.09 x .076) DIA
.350
(8.89)
.700
(17.78)
(3 PLACES) .250
(6.35)
.240
(6.1)
.150
(3.81)
.550
(13.97)
Viewed toward terminals
.130
(3.3)
WIRING DIAGRAM
I FORM A
(SPST - NO)
I FORM B
(SPST - NC)
4
.045 x .045
(1.14 x 1.14)
.025 x .025
(0.63 x 0.63)
3
2
1
6
5
2
1
6
5
4
3
2
1
6
5
I FORM C
(SPDT)
.032 x .062
(0.81 x 1.57)
Viewed toward terminals
Dimensions in inches with metric equivalents in parentheses. Tolerance: ± .010"
7/23/09
