PCF8569T-T datasheet, PDF - EEWORLD Datasheet

PCF8569T-T: DescriptionIC LIQUID CRYSTAL DISPLAY DRIVER, PDSO56, Display Driver; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size81KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

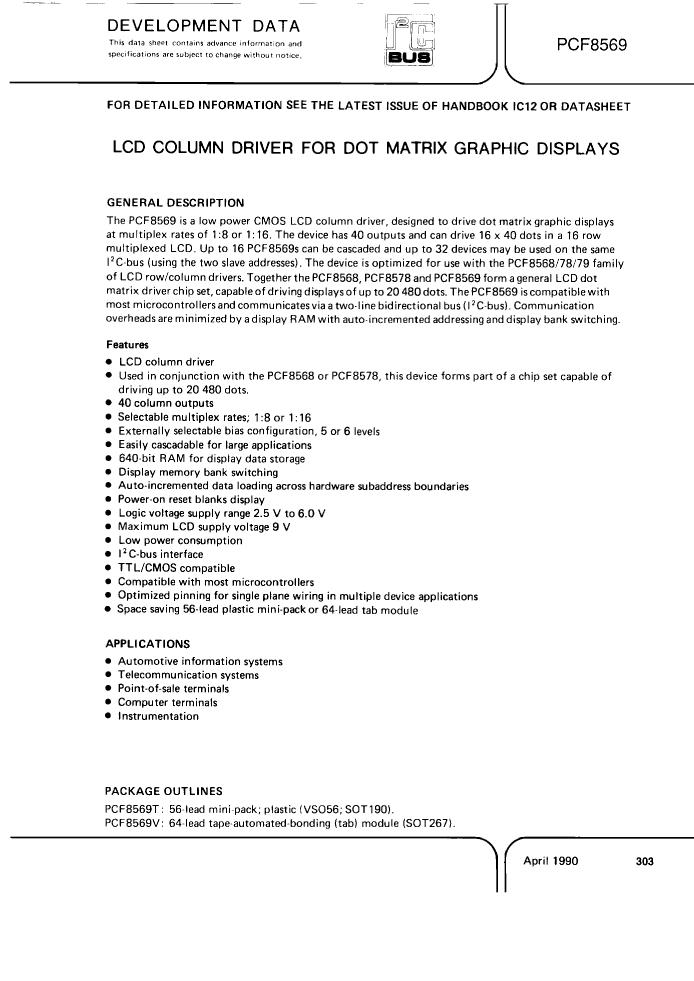

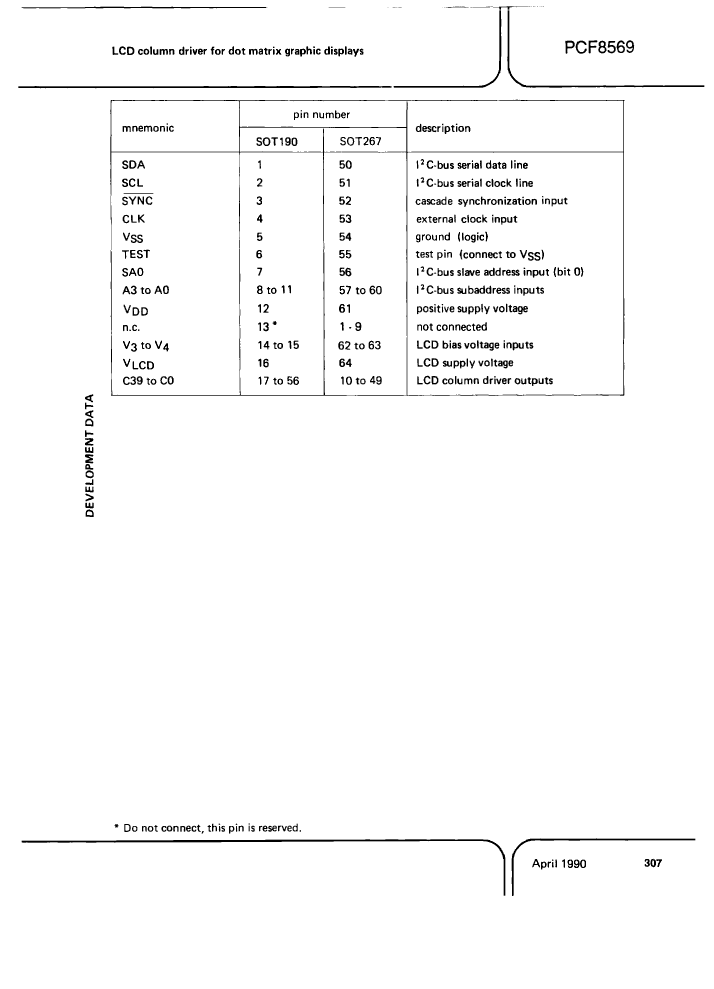

PCF8569T-T Overview

IC LIQUID CRYSTAL DISPLAY DRIVER, PDSO56, Display Driver

Parameter Name	Attribute value
package instruction	SSOP,
Reach Compliance Code	unknown
ECCN code	EAR99
data entry mode	SERIAL
display mode	DOT MATRIX
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	R-PDSO-G56
length	21.5 mm
Multiplex display function	NO
Number of functions	1
Number of segments	40
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	3.3 mm
Maximum supply voltage	6 V
Minimum supply voltage	2.5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.75 mm
Terminal location	DUAL
width	11.05 mm
Base Number Matches	1

	PCF8569T-T	PCF8569T	PCF8569V
Description	IC LIQUID CRYSTAL DISPLAY DRIVER, PDSO56, Display Driver	IC LIQUID CRYSTAL DISPLAY DRIVER, PDSO56, Display Driver	IC LIQUID CRYSTAL DISPLAY DRIVER, UUC64, Display Driver
package instruction	SSOP,	SSOP,	DIE,
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
data entry mode	SERIAL	SERIAL	SERIAL
display mode	DOT MATRIX	DOT MATRIX	DOT MATRIX
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	R-PDSO-G56	R-PDSO-G56	R-XUUC-N64
Multiplex display function	NO	NO	NO
Number of functions	1	1	1
Number of segments	40	40	40
Number of terminals	56	56	64
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED
encapsulated code	SSOP	SSOP	DIE
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	UNCASED CHIP
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	6 V	6 V	6 V
Minimum supply voltage	2.5 V	2.5 V	2.5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	NO LEAD
Terminal location	DUAL	DUAL	UPPER
Base Number Matches	1	1	1
length	21.5 mm	21.5 mm	-
Maximum seat height	3.3 mm	3.3 mm	-
Terminal pitch	0.75 mm	0.75 mm	-
width	11.05 mm	11.05 mm	-
