1726960000 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 1726960000

Preview

1726960000: DescriptionBoard Connector, 48 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,; CategoryThe connector The connector; File Size222KB，1 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/; Environmental Compliance

Download Datasheet Parametric View All

1726960000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1726960000	-	-	View	Buy Now

1726960000 Overview

Board Connector, 48 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,

1726960000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Factory Lead Time	10 weeks
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	48
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

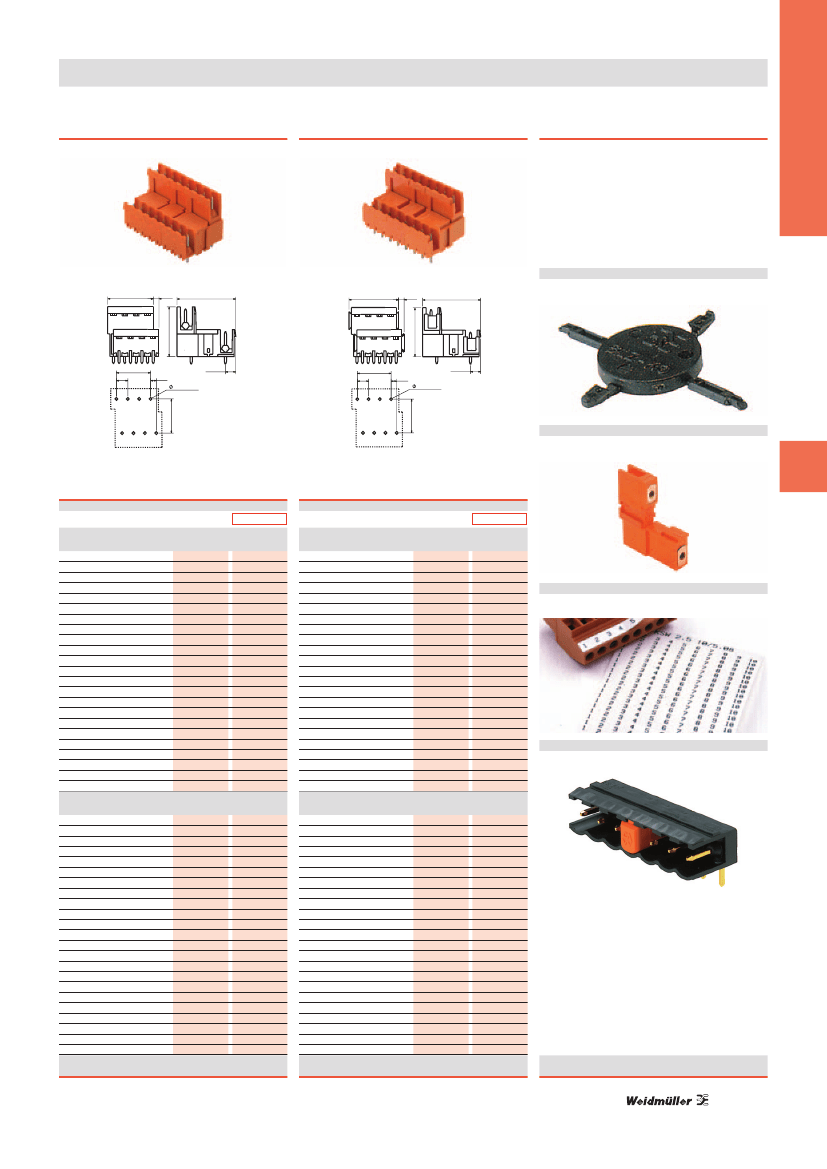

Solder connection pin headers

Omnimate Range

Pitch 5.00 / 5.08

SLD 5.08V/180

SLD 5.08V/180B

Accessories

Coding element

See page L.10

L1+P

P/2

26.2

1.032"

L1+P+2

P/2

26.2

1.032"

22.2

0.872"

22.2

0.872"

L1

P

P/2

1.3+0.1

0.051"

15.24

0.600"

4.6

0.182"

L1

P

P/2

1.3+0.1

0.051"

15.4

0.600"

4.6

0.182"

Fixing block

See page L.7

Ordering data

Solder pin length

Colour

3.2 mm

orange

Ordering data

Solder pin length

Colour

3.2 mm

orange

E

Marking strips

See page L.24

Partition element

See page L.11

Pitch 5.08 mm

Poles

L1 mm (inch)

Qty.

4

5.08 (0.200)

50

6

10.16 (0.400)

50

8

15.24 (0.600)

50

10

20.32 (0.800)

50

12

25.40 (1.000)

50

14

30.48 (1.200)

20

16

35.56 (1.400)

20

18

40.64 (1.600)

20

45.72 (1.800)

20

22

50.80 (2.000)

10

24

55.88 (2.200)

10

26

60.96 (2.400)

10

28

66.04 (2.600)

10

30

71.12 (2.800)

10

32

76.20 (3.000)

10

34

81.28 (3.200)

10

36

86.36 (3.400)

10

38

91.44 (3.600)

10

40

96.52 (3.800)

10

42

101.60 (4.000)

10

44

106.68 (4.200)

10

46

111.76 (4.400)

10

48

116.84 (4.600)

10

Order no.

1725650000

1725660000

1725670000

1725680000

1725690000

1725700000

1725710000

1725720000

1725730000

1725740000

1725750000

1725760000

1725770000

1725780000

1725790000

1725800000

1725810000

1725820000

1725830000

1725840000

1725850000

1725860000

1725870000

Pitch 5.08 mm

Poles

L1 mm (inch)

Qty.

4

5.08 (0.200)

50

6

10.16 (0.400)

50

8

15.24 (0.600)

50

10

20.32 (0.800)

50

12

25.40 (1.000)

50

14

30.48 (1.200)

20

16

35.56 (1.400)

20

18

40.64 (1.600)

20

45.72 (1.800)

20

22

50.80 (2.000)

10

24

55.88 (2.200)

10

26

60.96 (2.400)

10

28

66.04 (2.600)

10

30

71.12 (2.800)

10

32

76.20 (3.000)

10

34

81.28 (3.200)

10

36

86.36 (3.400)

10

38

91.44 (3.600)

10

40

96.52 (3.800)

10

42

101.60 (4.000)

10

44

106.68 (4.200)

10

46

111.76 (4.400)

10

48

116.84 (4.600)

10

Order no.

1726740000

1726750000

1726760000

1726770000

1726780000

1726790000

1726800000

1726810000

1726820000

1726830000

1726840000

1726850000

1726860000

1726870000

1726880000

1726890000

1726900000

1726910000

1726920000

1726930000

1726940000

1726950000

1726960000

Articles with coloured order number are kept permanently in stock at the central warehouse in Germany.

Delivery times see page X.2

E.25
