PSPW150B-4Y02-U datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> PSPW150B-4Y02-U

PSPW150B-4Y02-U: DescriptionAC-DC Power Factor Correction Module,; CategoryPower/power management The power supply circuit; File Size1MB，5 Pages; ManufacturerWall Industries,Inc.; Websitehttps://www.wallindustries.com/

Download Datasheet Parametric Compare View All

PSPW150B-4Y02-U Overview

AC-DC Power Factor Correction Module,

PSPW150B-4Y02-U Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	compliant
Analog Integrated Circuits - Other Types	AC-DC POWER FACTOR CORRECTION MODULE
Base Number Matches	1

Preview

Download Datasheet

View All

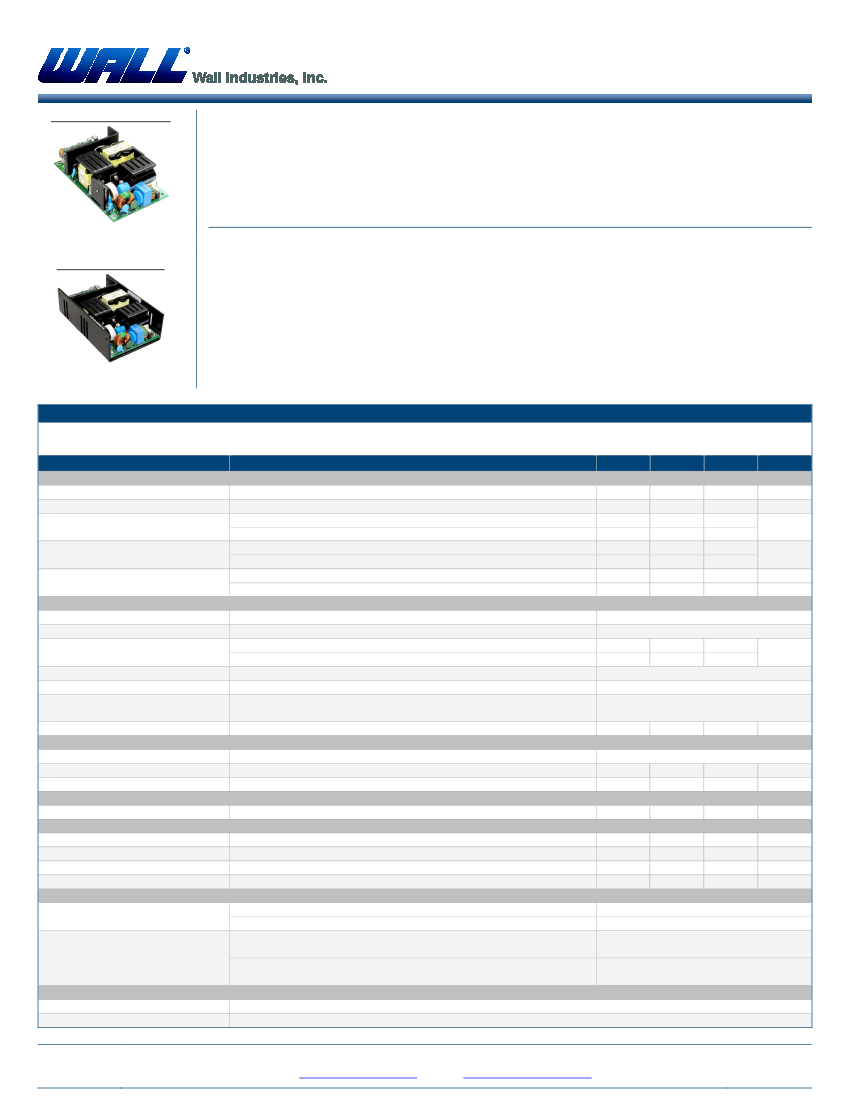

Rev B

PSPWX150 SERIES

Up to 150 Watts, AC/DC Switching Power

Supplies

Built-in Active PFC Function, PF > 0.9 at 230VAC

Short Circuit, Over Load, and Over Temperature Protection

MTBF > 100,000 Hours

UL60950-1, CSA 22.2 No.60950-1, Nemko EN60950-1, & CB

IEC60950-1 Safety Approvals

•

Open Frame and U-Chassis Mechanical Options Available

•

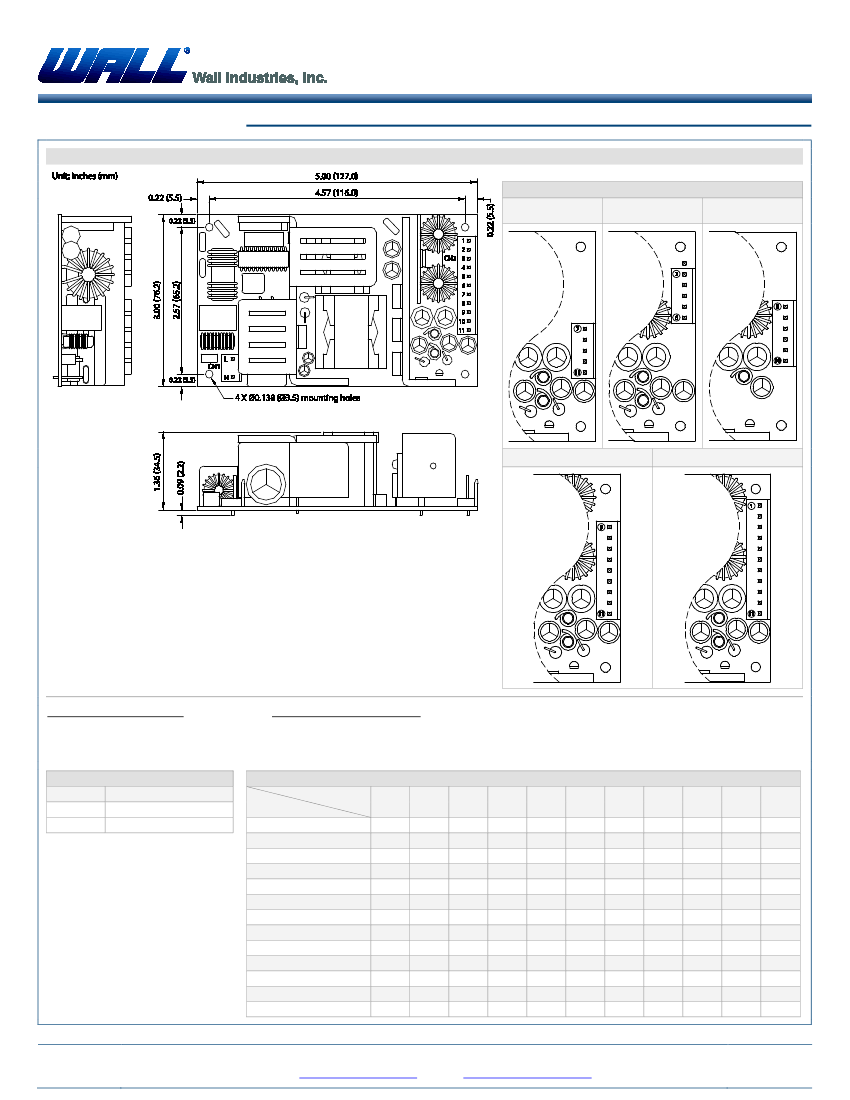

Open Frame (Suffix “O”)

FEATURES

•

RoHS Compliant

Dual to Quad Outputs

High Efficiency up to 80%

120 Watts with Convection Cooling

150 Watts with Forced Air Cooling

90~264 VAC Input Voltage Range

Size:

5.00 x 3.00 x 1.36

inches

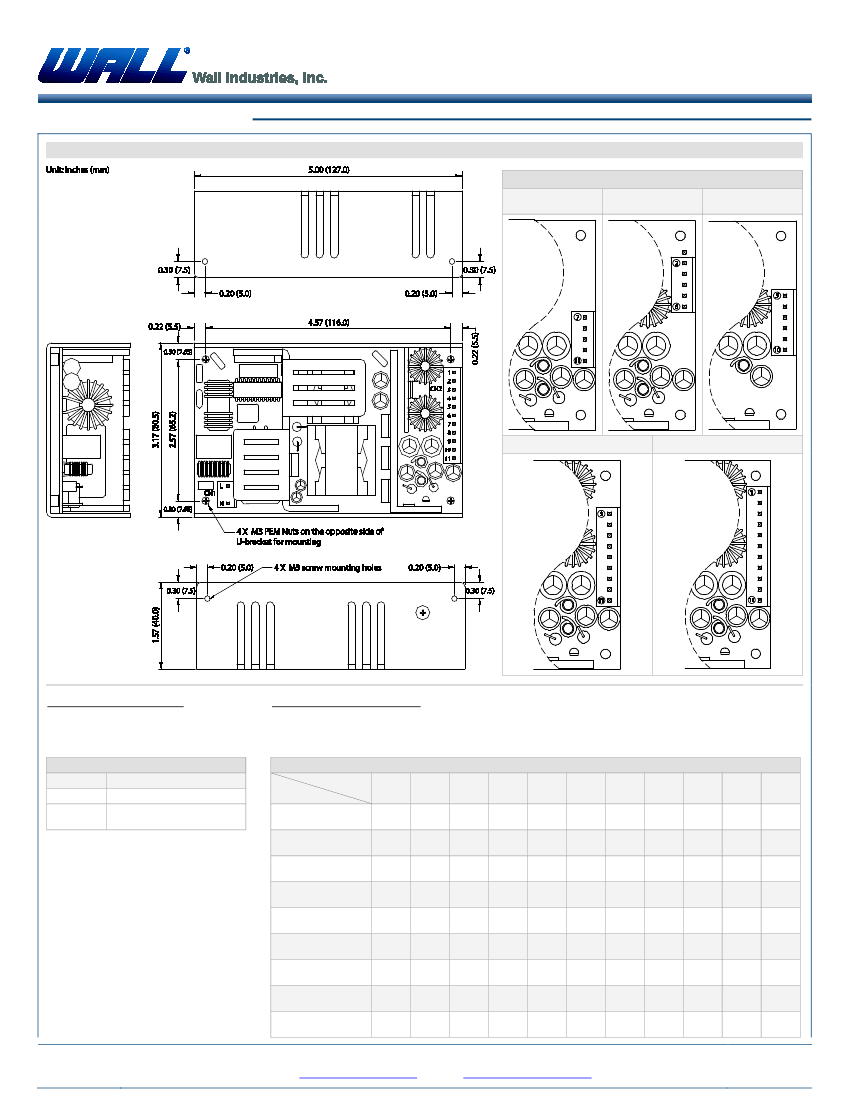

U-Chassis (Suffix “U”)

DESCRIPTION

Size:

5.00 x 3.17 x 1.57

inches

The PSPWX150 series of AC/DC switching power supplies provides 120 Watts of output power with

convection cooling and 150 Watts with 30CFM forced air. This series consists of dual, triple, and quad output

models with a 90-264VAC input voltage range. These supplies also feature a high efficiency up to 80% and a

power factor > 0.9 at 230VAC. These supplies are also protected against short circuit, over load, and over

temperature conditions. The PSPWX150 series has UL60950-1, CSA 22.2 No.60950-1, Nemko EN60950-1,

and CB IEC60950-1 safety approvals. This series is also CE marked and meets EN55022 Class B, CISPR22

Class B, and FCC Part 15 Class B EMC standards. Both open frame and U-chassis mechanical options are

available for this series.

SPECIFICATIONS: PSPWX150 SERIES

SPECIFICATION

All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.

We reserve the right to change specifications based on technological advances.

INPUT SPECIFICATIONS

Input Voltage Range

Input Frequency

Input Current (rms)

Inrush Current

Power Factor Correction

OUTPUT SPECIFICATIONS

Output Voltage

Total Regulation

Output Power

Output Current

Minimum Load

Ripple & Noise

TEST CONDITIONS

Min

Typ

Max

264

2.5

1.25

Unit

VAC

115VAC and full load

230VAC and full load

115VAC, cold start, 25°C

115VAC and full load

230VAC and full load

0.95

0.90

Convection cooling

With 30CFM forced air

Measured at 20MHz limited bandwidth and with 0.1μF ceramic and

10μF electrolytic capacitors in parallel across the

output

115VAC and full load

See Table

120

150

See Table

110

Automatic recovery

160

-40

100,000

+60

+85

Hold-up Time

PROTECTION

Short Circuit Protection

Over Load Protection

Auto-recovery

Over Temperature Protection

Auto-recover; the temperature sensing point is located at HS1

GENERAL SPECIFICATIONS

Efficiency

115VAC and full load

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature

Derating linearly 2.5% per °C from +41°C to +60°C

Storage Temperature Range

Humidity

Non-condensing

MTBF

Full load, 25°C ambient temperature

PHYSICAL SPECIFICATIONS

Open Frame Models (Suffix “O”)

Weight

U-Chassis Models (Suffix “U”)

Dimensions (L x W x H)

SAFETY & EMC

Safety Approvals

EMC Standards

Open Frame Models (Suffix “O”)

U-Chassis Models (Suffix “U”)

°C

hours

0.86 lbs (390g)

1.11 lbs (500g)

5.00 x 3.00 x 1.36 in (127 x 76.2 x 34.5

mm)

5.00 x 3.17 x 1.57 in (127 x 80.5 x 40.0

mm)

UL60950-1

(5)

, CSA 22.2 No.60950-1, Nemko EN60950-1, CB IEC60950-1

EN55022 Class B, CISPR22 Class B, FCC Part 15 Class B, CE

Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •

website:

www.wallindustries.com

• e-mail:

sales@wallindustries.com

7/23/2019

Page 1 of 5

PSPW150B-4Y02-U Related Products

	PSPW150B-4Y02-U	PSPW150B-3Y01-U	PSPW150B-3Y01-O	PSPW150B-3Y03-O	PSPW150B-2Y02-O	PSPW150B-2Y01-U	PSPW150B-2Y02-U	PSPW150B-2Y03-O	PSPW150B-2Y03-U
Description	AC-DC Power Factor Correction Module,	AC-DC Power Factor Correction Module,	AC-DC Power Factor Correction Module,	AC-DC Power Factor Correction Module,	AC-DC Power Factor Correction Module,	AC-DC Power Factor Correction Module,	AC-DC Power Factor Correction Module,	AC-DC Power Factor Correction Module,	AC-DC Power Factor Correction Module,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Analog Integrated Circuits - Other Types	AC-DC POWER FACTOR CORRECTION MODULE	AC-DC POWER FACTOR CORRECTION MODULE	AC-DC POWER FACTOR CORRECTION MODULE	AC-DC POWER FACTOR CORRECTION MODULE	AC-DC POWER FACTOR CORRECTION MODULE	AC-DC POWER FACTOR CORRECTION MODULE	AC-DC POWER FACTOR CORRECTION MODULE	AC-DC POWER FACTOR CORRECTION MODULE	AC-DC POWER FACTOR CORRECTION MODULE
Base Number Matches	1	1	1	1	1	1	1	1	1
