CMLSH2-4LA
CMLSH2-4LC
CMLSH2-4LS
SURFACE MOUNT SILICON
DUAL PAIR, LOW VF
SCHOTTKY DIODES
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CMLSH2-4LA series
consists of dual pairs of common anode, common
cathode, and in-series low VF Schottky diodes
manufactured in an SOT-563 surface mount package.

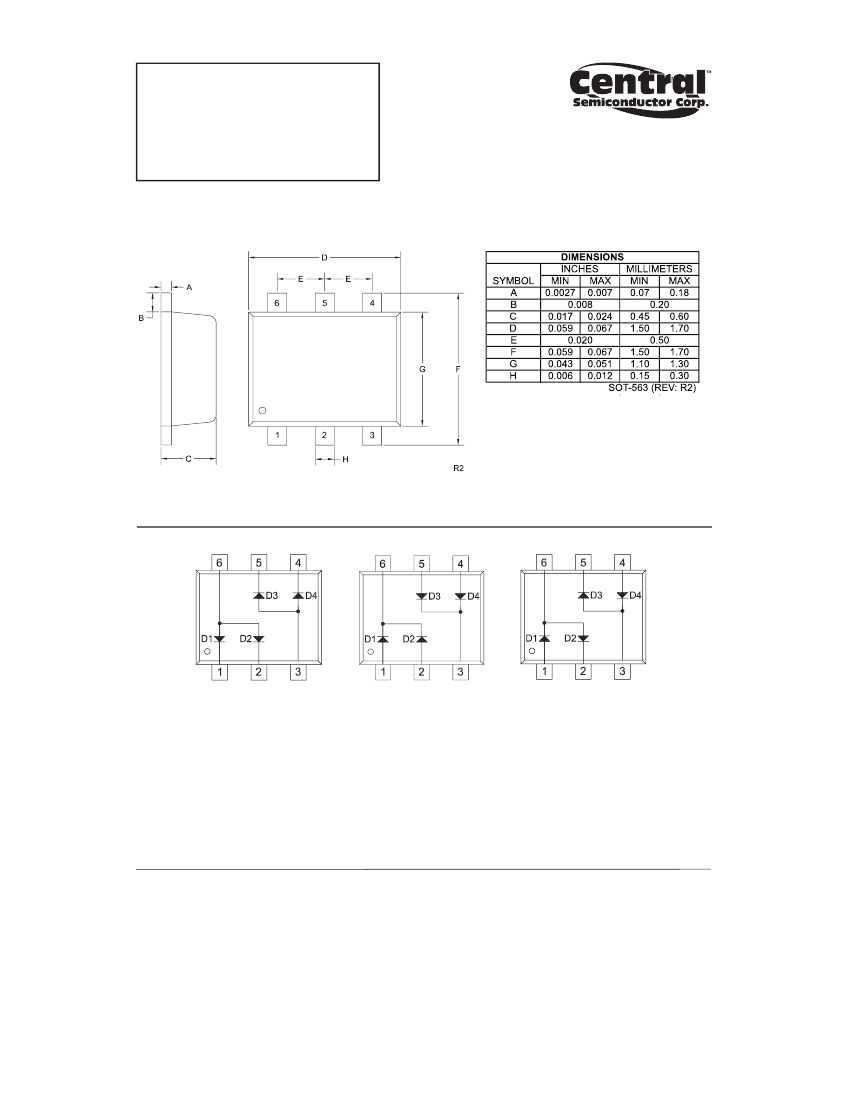

SOT-563 CASE
•
Devices are
Halogen Free
by design
DEVICE CONFIGURATIONS:
CMLSH2-4LA
DUAL PAIR, COMMON ANODE
CMLSH2-4LC
DUAL PAIR, COMMON CATHODE
CMLSH2-4LS
DUAL PAIR, IN SERIES
MAXIMUM RATINGS:
(TA=25°C)
Peak Repetitive Reverse Voltage
Continuous Forward Current
Peak Repetitive Forward Current
Peak Forward Surge Current, tp=10ms
Power Dissipation (Note 1)
Power Dissipation (Note 2)
Power Dissipation (Note 3)
Operating and Storage Junction Temperature
Thermal Resistance (Note 1)
MARKING CODE: 4AL
MARKING CODE: 4CL
MARKING CODE: 4SL
SYMBOL
VRRM
IF
IFRM
IFSM
PD
PD
PD
TJ, Tstg
Θ
JA
UNITS
V
mA
mA
mA
mW
mW
mW
°C
°C/W
40
200
300
600
350
300
150
-65 to +150
357

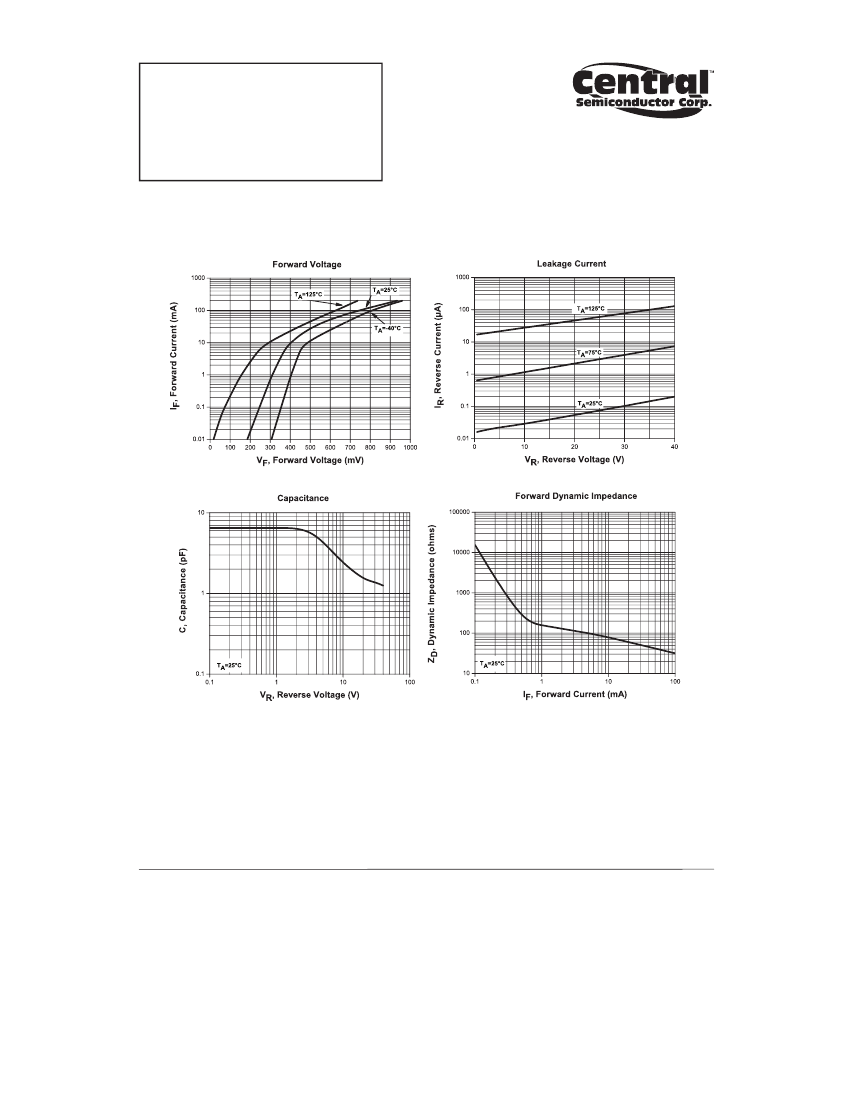

ELECTRICAL CHARACTERISTICS PER DIODE:
(TA=25°C unless otherwise noted)
SYMBOL TEST CONDITIONS
MIN
TYP
MAX
IR
VR=25V
100
500
BVR
VF
VF
VF
VF
VF
CJ
trr
Notes:
UNIT
nA
V
V
V
V
V
V
pF
ns
IR=100μA
IF=100μA
IF=500μA
IF=1.0mA
IF=50mA
IF=100mA
VR=1.0V, f=1.0MHz
IF=IR=10mA, Irr=1.0mA, RL=100Ω
40
55
0.24
0.29
0.31
0.54
0.67
0.26
0.31
0.33
0.60
0.75
10
5.0
(1) Ceramic or aluminum core PC Board with copper mounting pad area of 4.0mm
2
(2) FR-4 Epoxy PC Board with copper mounting pad area of 4.0mm
2
(3) FR-4 Epoxy PC Board with copper mounting pad area of 1.4mm
2
R7 (1-July 2015)
