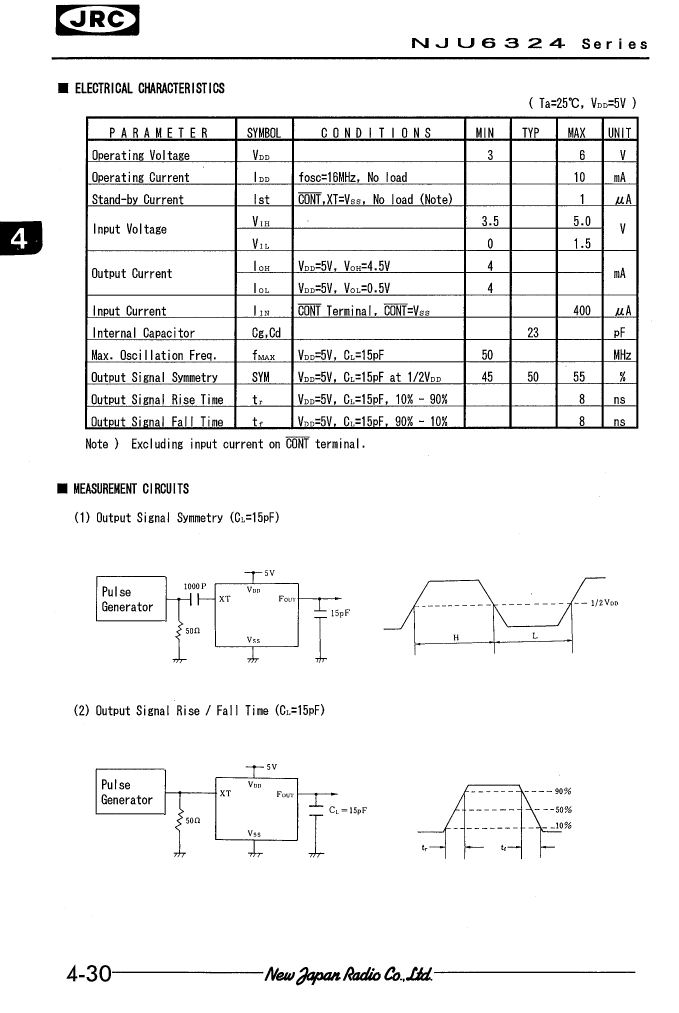

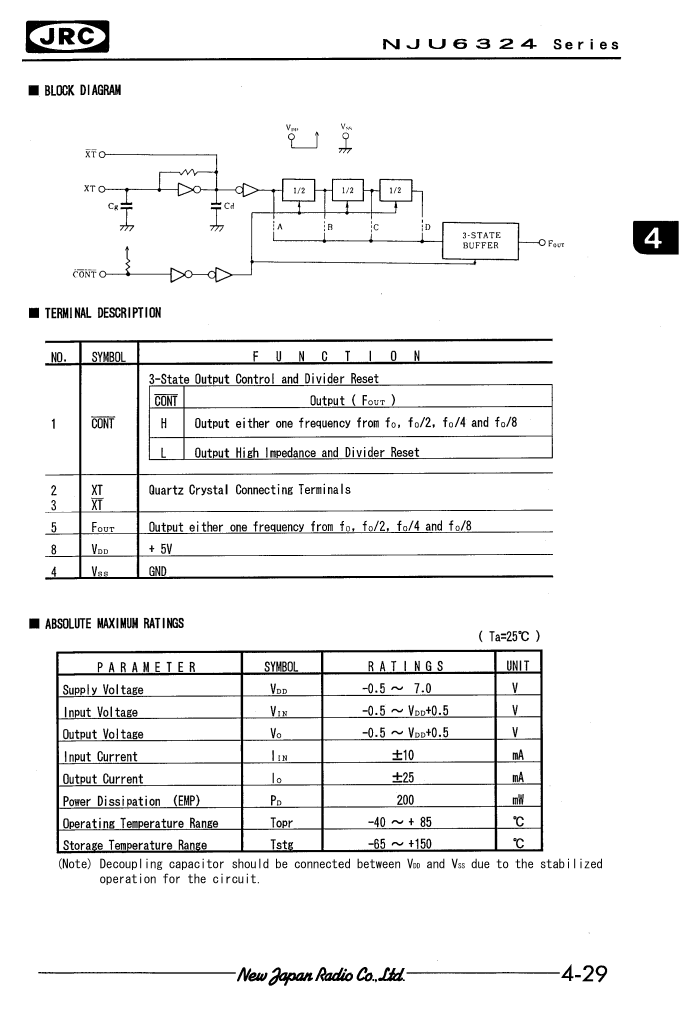

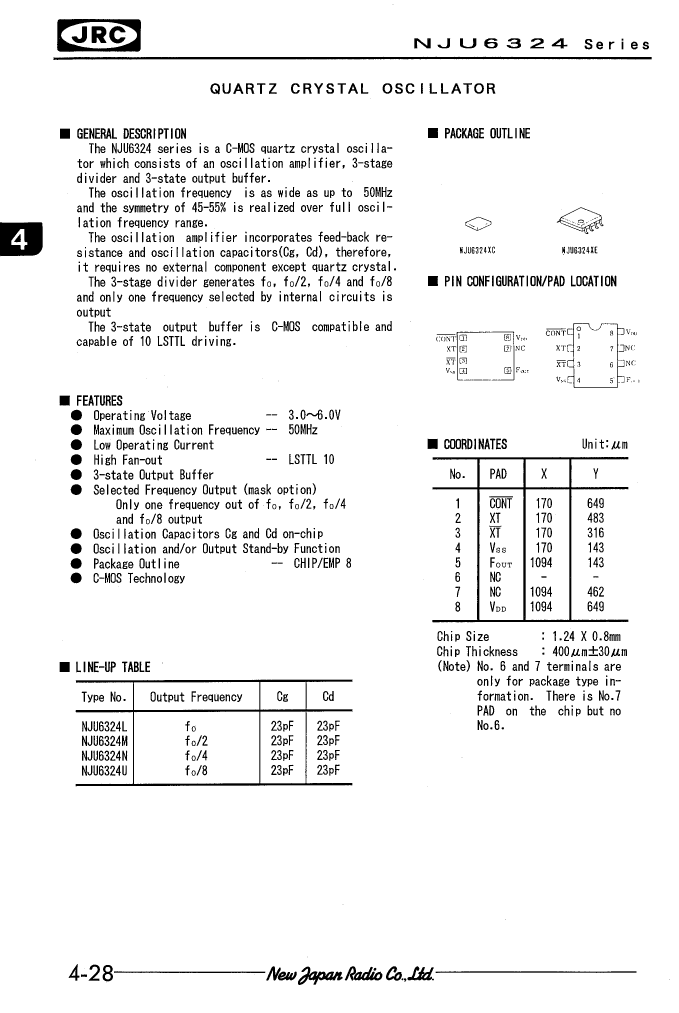

Preview

NJU6324LC: DescriptionClock Generator, 50MHz, CMOS, 1.24 X 0.80 MM, DIE-6; CategoryThe embedded processor and controller Microcontrollers and processors; File Size266KB，4 Pages; ManufacturerNew Japan Radio Co., Ltd..; Environmental Compliance

Download Datasheet Parametric Compare View All

NJU6324LC Overview

Clock Generator, 50MHz, CMOS, 1.24 X 0.80 MM, DIE-6

NJU6324LC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	DIE
package instruction	DIE,
Contacts	6
Reach Compliance Code	compliant
ECCN code	EAR99
JESD-30 code	R-XUUC-N6
JESD-609 code	e6
Number of terminals	6
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output clock frequency	50 MHz
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Peak Reflow Temperature (Celsius)	260
Master clock/crystal nominal frequency	50 MHz
Certification status	Not Qualified
Maximum slew rate	10 mA
Maximum supply voltage	6 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN BISMUTH
Terminal form	NO LEAD
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER
Base Number Matches	1

Preview

Download Datasheet

View All

NJU6324LC Related Products

	NJU6324LC	NJU6324ME	NJU6324UC	NJU6324UE	NJU6324MC	NJU6324NC	NJU6324NE	NJU6324LE
Description	Clock Generator, 50MHz, CMOS, 1.24 X 0.80 MM, DIE-6	Clock Generator, 25MHz, CMOS, PDSO8, EMP-8	Clock Generator, 6.25MHz, CMOS, 1.24 X 0.80 MM, DIE-6	Clock Generator, 6.25MHz, CMOS, PDSO8, EMP-8	Clock Generator, 25MHz, CMOS, 1.24 X 0.80 MM, DIE-6	Clock Generator, 12.5MHz, CMOS, 1.24 X 0.80 MM, DIE-6	Clock Generator, 12.5MHz, CMOS, PDSO8, EMP-8	Clock Generator, 50MHz, CMOS, PDSO8, EMP-8
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	DIE	SOIC	DIE	SOIC	DIE	DIE	SOIC	SOIC
package instruction	DIE,	SOP,	DIE,	SOP,	DIE,	DIE,	SOP,	SOP,
Contacts	6	8	6	8	6	6	8	8
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-30 code	R-XUUC-N6	R-PDSO-G8	R-XUUC-N6	R-PDSO-G8	R-XUUC-N6	R-XUUC-N6	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e6	e6	e6	e6	e6	e6	e6	e6
Number of terminals	6	8	6	8	6	6	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output clock frequency	50 MHz	25 MHz	6.25 MHz	6.25 MHz	25 MHz	12.5 MHz	12.5 MHz	50 MHz
Package body material	UNSPECIFIED	PLASTIC/EPOXY	UNSPECIFIED	PLASTIC/EPOXY	UNSPECIFIED	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIE	SOP	DIE	SOP	DIE	DIE	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	SMALL OUTLINE	UNCASED CHIP	SMALL OUTLINE	UNCASED CHIP	UNCASED CHIP	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260	260
Master clock/crystal nominal frequency	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA
Maximum supply voltage	6 V	6 V	6 V	6 V	6 V	6 V	6 V	6 V
Minimum supply voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH
Terminal form	NO LEAD	GULL WING	NO LEAD	GULL WING	NO LEAD	NO LEAD	GULL WING	GULL WING
Terminal location	UPPER	DUAL	UPPER	DUAL	UPPER	UPPER	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER
Is it lead-free?	-	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Maker	-	-	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..
