#SK107M5N-AE-10X Overview

Ceramic BPF, 10.7MHz

#SK107M5N-AE-10X Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	HIGH SELECTIVITY
Center frequency or cutoff frequency (fo/fc)	10.7 MHz
filter type	CERAMIC BPF
high	6 mm
Input/output impedance	330 OHM
Maximum insertion loss	6 dB
Manufacturer's serial number	CFSKNX
Installation type	THROUGH HOLE MOUNT
physical size	L9XB3.5XH6 (mm)
Base Number Matches	1

Preview

Download Datasheet

View All

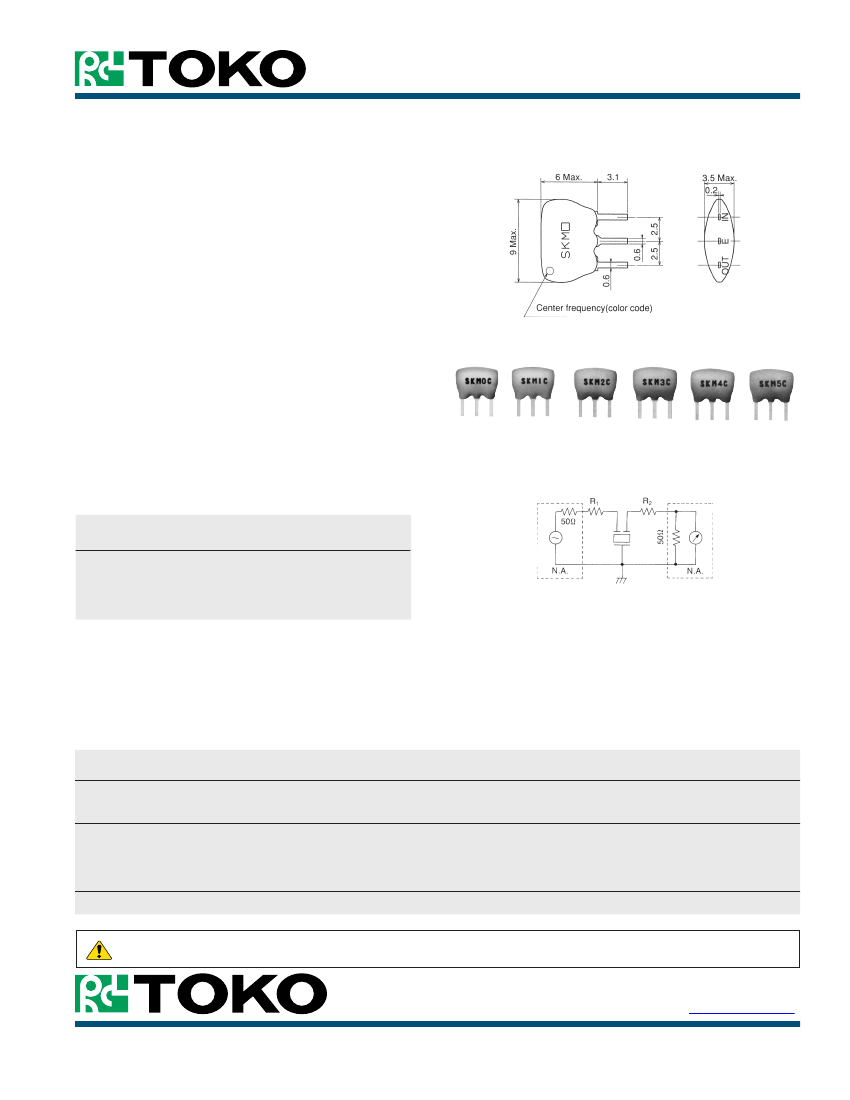

CFSKN X Series

FM CERAMIC FILTERS

Description

• Low insertion loss design for lower gain

dispersion in transceiver applications.

Dimensions

Features

• Compact and low profile (ideal for slimline sets)

• Low temperature coefficient and dispersion for

reliable response

• High selectivity

• Low spurious response

• Independent terminal structure

• Lead-free terminations

Unit: mm

Applications

• Cordless telephones, tuner packs, radio cassettes,

car radios, compact portable radios

• Wireless data communication equipment

SKM0N

SKM1N

SKM2N

SKM3N

SKM4N

SKM5N

Color Code Table

Center

Frequency*

10.70±0.03MHZ

10.67±0.03MHZ

10.73±0.03MHZ

10.64±0.03MHZ

10.76±0.03MHZ

Color

Code

None

Blue

Orange

Black

White

Test Circuit

Rank

* Standard center frequency: 10.7MHz

* Applicable center frequencies: 10.3MHz — 11.5MHz

* Center frequency tolerance: Standard ±30kHz; ±25kHz

and ±20kHz also available

Test Conditions

: 280Ω

N.A.: HP4194A or equivalent

(Input impedance less than 15pF)

STANDARD FILTERS SELECTION GUIDE

TYPE CFSKN Low Loss X Series

TOKO

Part

Number

#SK107M0N-AE-10X

#SK107M1N-AE-10X

#SK107M2N-AE-20X

#SK107M3N-AE-20X

#SK107M4N-AE-20X

#SK107M5N-AE-10X

Center

Frequency

(Fo)*

See Color Code Table

Bandwidth

at 3dB

(kHz)

330±50

280±50

230±50

180±40

150±40

110±30

Bandwidth

at 20dB

(kHz)

680 max.

650 max.

600 max.

520 max.

400 max.

350 max.

Insertion

Loss

(dB)

2.5±2.0

3.0±2.0

3.5±1.5

5.5±2.0

6.0±2.0

Spurious

Response

(dB)

30 min.

40 min.

30 min.

Impedance

(In/Out)

(Ω)

330/330

The information furnished by TOKO, Inc. is believed to be accurate and reliable. However, TOKO reserves the right to make changes or improvements in the design, specification or manufacture

of its products without further notice. TOKO does not assume any liability arising from the application or use of any product or circuit described herein, nor for any infringements of patents or

other rights of third parties which may result from the use of its products. No license is granted by implication or otherwise under any patent or patent rights of TOKO, Inc.

TOKO America, Inc.

1250 Feehanville Drive, Mount Prospect, Illinois 60056

Tel: (847) 297-0070 Fax: (847) 699-7864 Web: http://www.tokoam.com

August 2005

Printed in USA

CF-323-CFSKN/X

R-LOG0805A
